PT26-71B/TR8

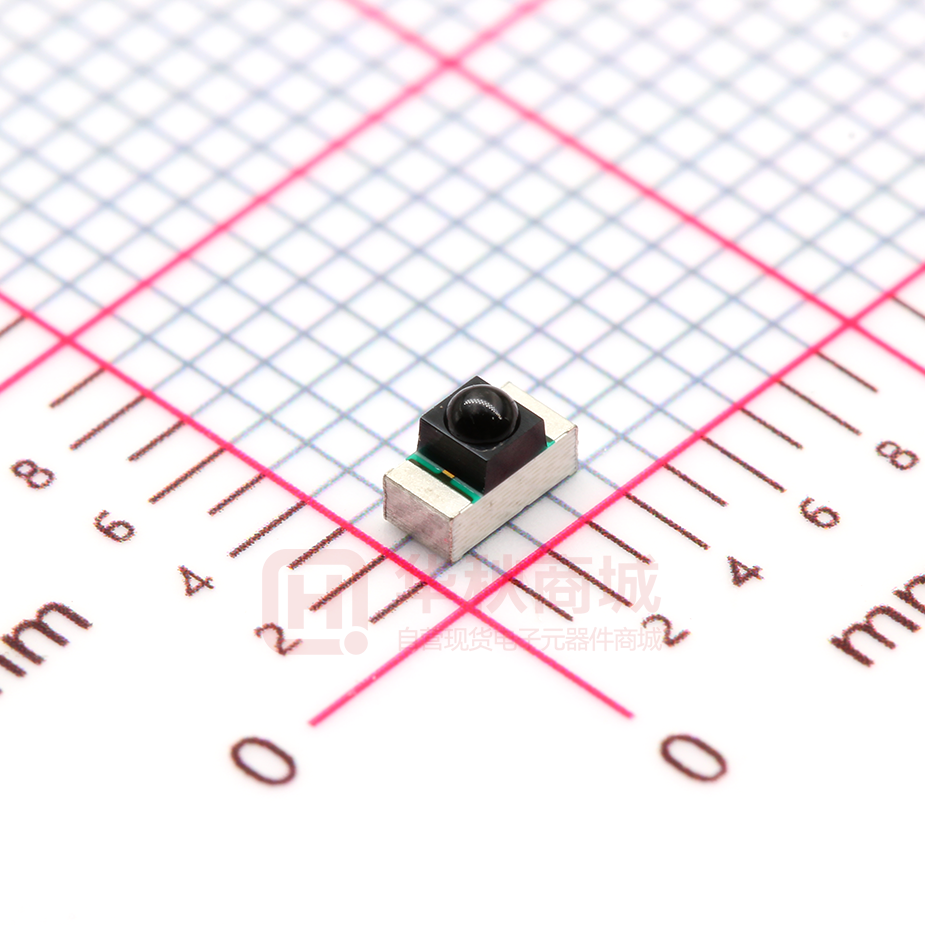

Technical Data Sheet 1.6mm Round Subminiature Side Looking Phototransiator PT26-71B/T/TR8(HG) Features ․Fast response time ․High photo sensitivity ․Small junction capacitance ․Package in 8mm tape on 7” diameter reels. ․Pb free ․The product itself will remain within RoHS compliant version. Descriptions ․PT26-71B/T/TR8(HG) is a phototransistor in miniature SMD package which is molded in a black with spherical top view lens. The device is Spectrally matched to infrared emitting diode. Applications ․Miniature switch ․Counters and sorter ․Position sensor ․Infrared applied system Device Selection Guide LED Part No. Chip Material Lens Color PT26-71B/T/TR8(HG) Silicon Black Everlight Electronics Co., Ltd. http://www.everlight.com Rev 2 Device No Prepared date Prepared by Hsin Wei Ho ：DPT-0000272 ：12-24-2012 ： Page: 1 of 9 PT26-71B/T/TR8(HG) Package Dimensions Collector Emitter Recommended Soldering Pattern for Side Looker Notes: 1.All dimensions are in millimeters 2.Tolerances unless dimensions ±0.1mm Absolute Maximum Ratings (Ta=25℃ ℃) Parameter Symbol Rating Units Collector-Emitter Voltage VCEO 30 Emitter-Collector-Voltage VECO 5 V V IC 20 mA Operating Temperature Topr -25 ~ +85 ℃ Storage Temperature Tstg -40 ~ +100 ℃ Soldering Temperature Tsol 260 ℃ Power Dissipation at(or below) 25℃Free Air Temperature Pc 75 mW Collector Current Notes: *1:Soldering time≦5 seconds. Everlight Electronics Co., Ltd. http://www.everlight.com Rev 2 Device No Prepared date Prepared by Hsin Wei Ho ：DPT-0000272 ：12-24-2012 ： Page: 2 of 9 PT26-71B/T/TR8(HG) Electro-Optical Characteristics (Ta=25℃ ℃) Parameter Symbol Condition Min Typ Max Unit Rang Of Spectral Bandwidth λ0.1 --- 730 --- 1100 nm Wavelength Of Peak Sensitivity λP --- --- 940 --- nm Collector-Emitter Breakdown Voltage BVCEO IC=100μA Ee=0mW/cm2 30 --- --- V Emitter-Collector Breakdown Voltage BVECO 5 --- --- V Collector-Emitter Saturation Voltage VCE(sat) IC=1.5mA Ee=1mW/cm2 --- --- 0.4 V ICEO VCE=20V Ee=0mW/cm2 --- --- 100 nA IC(ON) VCE=5V Ee=1mW /cm2 λP =940nm 1.14 3.0 10.00 mA --- 15 --- --- 15 --- --- 50 --- Collector Dark Current On State Collector Current IE=100μA Ee=0mW/cm2 Rise Time tr Fall Time tf VCE=5V IC=1mA RL=1000Ω 2θ1/2 VCE=5V View Angle μS deg Rankings Min Max BIN4 1.14 2.60 BIN5 1.77 3.61 BIN6 2.67 5.07 BIN7 3.54 7.07 BIN8 5.00 10.00 Rank Symbol IC(ON) Unit Test Condition mA VCE=5V Ee=1mW/c ㎡ λP =940nm Everlight Electronics Co., Ltd. http://www.everlight.com Rev 2 Device No Prepared date Prepared by Hsin Wei Ho ：DPT-0000272 ：12-24-2012 ： Page: 3 of 9 PT26-71B/T/TR8(HG) Typical Electro-Optical Characteristics Curves Fig.1Collector Power Dissipation vs. Ambient Temperature Fig.2 Spectral Sensitivity 100 80 80 R e la tiv e R e s p o n s e (% ) 100 60 40 20 0 -25 25 0 50 40 20 700 800 900 1000 1100 Wavelength λ (nm) Fig.4 Collector Current vs. Irradiance 1000 10 O n S ta te C o lle c to r C u rre n t(m A ) 100 D a r k C u rr e n t Ic e o ( n A ) 60 0 600 75 85 100 Fig.3 Collector Dark Current vs. Ambient Temperature ℃ Spectral Response (Ta=25 ) 10 1 0.1 1 VCE=5V λP=940nm Ta=25℃ 10 0 10 -1 10 -2 Vce=10V 0.01 -40 -20 0 20 40 60 ℃ 80 100 0.01 0.1 1 2 Ambient Temperature Ta ( ) Ee(mW/cm ) Everlight Electronics Co., Ltd. http://www.everlight.com Rev 2 Device No Prepared date Prepared by Hsin Wei Ho ：DPT-0000272 ：12-24-2012 ： Page: 4 of 9 PT26-71B/T/TR8(HG) Fig.5 Switching Time vs. Load Resistance s) 1000 Sw itching Tim e t ( μ 100 tf tr 10 Vce=5V,IC(on)=1mA Ta=25 ℃ 1 0.1 1 10 Load Resistance RL (KΩ) Fig.6 Relative On State Collector Current vs. Angular Displacement 0 1.0 R e le tiv e O n S ta te C o lle c to r C u rre n t 30 0.8 0.6 60 0.4 0.2 0.0 -90 90 -60 -30 0 View Angle(Degree) Everlight Electronics Co., Ltd. http://www.everlight.com Rev 2 Device No Prepared date Prepared by Hsin Wei Ho ：DPT-0000272 ：12-24-2012 ： Page: 5 of 9 PT26-71B/T/TR8(HG) Precautions For Use 1. Over-current-proof Customer must apply resistors for protection , otherwise slight voltage shift will cause big current change ( Burn out will happen ). 2. Storage 2.1 Do not open moisture proof bag before the products are ready to use. 2.2 Before opening the package, the LEDs should be kept at 30℃ or less and 90%RH or less. 2.3 The LEDs should be used within a year. 2.4 After opening the package, the LEDs should be kept at 30℃ or less and 70%RH or less. 2.5 The LEDs should be used within 168 hours (7 days) after opening the package. 2.6 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment : 60±5℃ for 24 hours. 3. Soldering Condition 3.1 Pb-free solder temperature profile 3.2 Reflow soldering should not be done more than two times. 3.3 When soldering, do not put stress on the LEDs during heating. 3.4 After soldering, do not warp the circuit board. Everlight Electronics Co., Ltd. http://www.everlight.com Rev 2 Device No Prepared date Prepared by Hsin Wei Ho ：DPT-0000272 ：12-24-2012 ： Page: 6 of 9 PT26-71B/T/TR8(HG) 4.Soldering Iron Each terminal is to go to the tip of soldering iron temperature less than 350℃ for 3 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder. 5.Repairing Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing. Everlight Electronics Co., Ltd. http://www.everlight.com Rev 2 Device No Prepared date Prepared by Hsin Wei Ho ：DPT-0000272 ：12-24-2012 ： Page: 7 of 9 PT26-71B/T/TR8(HG) Package Dimensions 1. Reel Dimensions Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm 2. Carrier Tape Dimensions :(Quantity: 1500pcs/reel) Emitter Collector Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm Everlight Electronics Co., Ltd. http://www.everlight.com Rev 2 Device No Prepared date Prepared by Hsin Wei Ho ：DPT-0000272 ：12-24-2012 ： Page: 8 of 9 PT26-71B/T/TR8(HG) Packing Procedure Aluminum moistue-proof bag Label Desiccant Label Label Form Specification Pb CPN: Customer’s Production Number P/N : Production Number EVERLIGHT CPN : 393-003012-01 P N : XXXXXXXXXXXXX QTY: Packing Quantity CAT: Ranks HUE: Peak Wavelength REF: Reference RoHS XXXXXXXXXXX QTY : XXX CAT : XXX HUE : XXX REF : XXX LOT NO : XXXXXXXXXX LOT No: Lot Number MADE IN TAIWAN: Production Place Reference : XXXXXXXX Notes 1. Above specification may be changed without notice. EVERLIGHT will reserve authority on material change for above specification. 2. When using this product, please observe the absolute maximum ratings and the instructions for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets. 3. These specification sheets include materials protected under copyright of EVERLIGHT corporation. Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s consent. EVERLIGHT ELECTRONICS CO., LTD. Office: No 6-8, Zhonghua Rd., Shulin Dist., New Taipei City 23860, Taiwan, R.O.C Tel: 886-2-2685-6688 Fax: 886-2-2685-6699 http://www.everlight.com Everlight Electronics Co., Ltd. http://www.everlight.com Rev 2 Device No Prepared date Prepared by Hsin Wei Ho ：DPT-0000272 ：12-24-2012 ： Page: 9 of 9
