PT333-3B

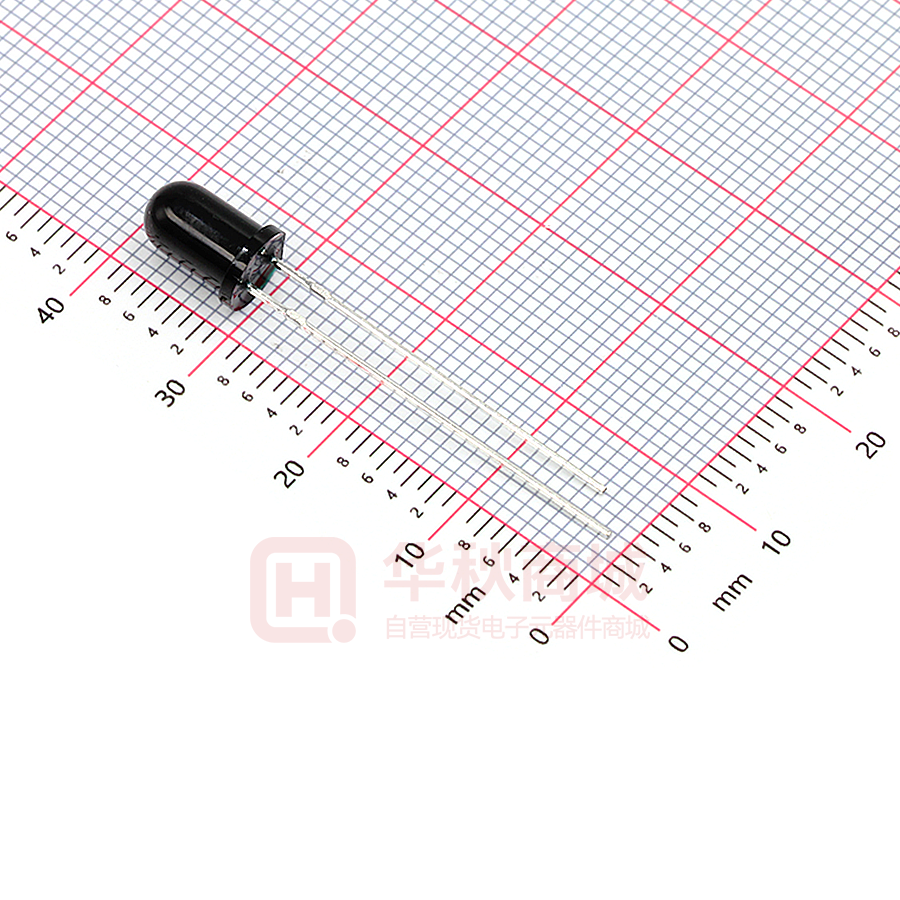

Technical Data Sheet 5mm Phototransistor T-1 PT333-3B Features ․Fast response time ․High photo sensitivity ․Pb free ․This product itself will remain within RoHS compliant version. Descriptions ․PT333-3B is a high speed and high sensitive NPN silicon NPN epitaxial planar phototransistor molded in a standard 5 mm package. Due to is black epoxy the device is sensitive to visible and near Infrared radiation. Applications ․Infrared applied system ․Camera ․Cockroach catcher Device Selection Guide LED Part No. Chip Material Lens Color PT333-3B Silicon Black Everlight Electronics Co., Ltd. http:\\www.everlight.com Device No：CDPT-033-010 Prepared date：2006/01/10 Rev 1 Page: 1 of 7 Prepared by：Fealty zhu PT333-3B Package Dimensions Notes: 1.All dimensions are in millimeters 2.Tolerances unless dimensions ±0.25mm Absolute Maximum Ratings (Ta=25℃) Parameter Symbol Rating Collector-Emitter Voltage VCEO 30 Units V Emitter-Collector-Voltage VECO 5 V IC mA Collector Current Operating Temperature Topr 20 -25 ~ +85℃ Storage Temperature Tstg -40 ~ +85℃ ℃ Lead Soldering Temperature(*1) Tsol 260 ℃ Power Dissipation at (or below) 25℃ Free Air Temperature Pc 75 mW ℃ Notes: *1:Soldering time≦5 seconds. Everlight Electronics Co., Ltd. http:\\www.everlight.com Device No：CDPT-033-010 Prepared date：2006/01/10 Rev 1 Page: 2 of 7 Prepared by：Fealty zhu PT333-3B Electro-Optical Characteristics (Ta=25℃) Parameter Symbol Condition IC=100μA Ee=0mW/cm2 Min. Typ. Max. Units 30 --- --- V Collector – Emitter Breakdown Voltage BVCEO Emitter-Collector Breakdown Voltage IE=100μA BVECO Ee=0mW/cm2 5 --- --- V Collector-Emitter Saturation Voltage IC=2mA VCE)(sat) Ee=1mW/cm2 --- --- 0.4 V --- 15 --- --- 15 --- --- --- 100 nA 0.7 3.0 --- mA Rise Time tr Fall Time tf VCE=5V IC=1mA RL=1000Ω Ee=0mW/cm2 VCE=20V Ee=1mW/cm2 VCE=5V μS Collector Dark Current ICEO On State Collector Current IC(on) Wavelength of Peak Sensitivity λp --- --- 940 --- nm Rang of Spectral Bandwidth λ0.5 --- --- 840-1100 --- nm Rankings Parameter Symbol Min Max 0.70 1.14 1.90 2.60 K 1.77 2.67 3.61 5.07 L 4.18 7.07 G H J Ic(ON) Unit Test Condition mA VcE=5V Ee=1mW/cm² Everlight Electronics Co., Ltd. http:\\www.everlight.com Device No：CDPT-033-010 Prepared date：2006/01/10 Rev 1 Page: 3 of 7 Prepared by：Fealty zhu PT333-3B Typical Electro-Optical Characteristics Curves Fig.1Collector Power Dissipation vs. Ambient Temperature 160 Fig.2 Spectral Sensitivity 1.0 O Ta=25 C 2 140 0.8 120 100 0.6 80 Ambient Temperature 60 0.4 40 0.2 20 0 0 0 10 20 30 40 50 60 600 700 800 900 1000 1100 1200 70 Fig.3 Relative Collector Current vs. Ambient Temperature Fig.4 Collector Current vs. Irradiance 100 100 C 80 10 60 1 40 0.1 20 0 -25 0 25 50 75 85 100 0.01 0.5 1.5 1 3 2 Everlight Electronics Co., Ltd. http:\\www.everlight.com Device No：CDPT-033-010 Prepared date：2006/01/10 Rev 1 Page: 4 of 7 Prepared by：Fealty zhu PT333-3B Typical Electro-Optical Characteristics Curves Fig.5 Collector Dark Current vs. Ambient Temperature Fig.6 Collector Current vs. Collector-Emitter Voltage 10 14 12 10 10 8 10 6 4 10 2 10 0 25 50 75 100 0 0 Everlight Electronics Co., Ltd. http:\\www.everlight.com Device No：CDPT-033-010 Prepared date：2006/01/10 1 2 Rev 1 3 4 Page: 5 of 7 Prepared by：Fealty zhu PT333-3B Reliability Test Item And Condition The reliability of products shall be satisfied with items listed below. Confidence level：90% LTPD：10% NO. Item 1 Solder Heat Test Conditions Test Hours/ Sample Cycles Sizes TEMP.：260℃±5℃ 10secs 2 Temperature Cycle H : +100℃ L : -40℃ 3 Thermal Shock Failure Judgement Criteria Ac/Re 22pcs 0/1 15mins 300Cycles 5mins 15mins 22pcs 0/1 5mins 300Cycles 10secs 5mins 22pcs L：the initial test 0/1 value H :+100℃ L :-10℃ IC(ON)≦L×0.8 4 High Temperature Storage TEMP.：+100℃ 1000hrs 22pcs 0/1 5 Low Temperature Storage TEMP.：-40℃ 1000hrs 22pcs 0/1 1000hrs 22pcs 0/1 1000hrs 22pcs 0/1 6 DC Operating Life VCE=5V 7 High Temperature/ 85℃ / 85% R.H High Humidity Everlight Electronics Co., Ltd. http:\\www.everlight.com Device No：CDPT-033-010 Prepared date：2006/01/10 Rev 1 Page: 6 of 7 Prepared by：Fealty zhu PT333-3B Packing Quantity Specification 1.500PCS/1Bag，5Bags/1Box 2.10Boxes/1Carton Label Form Specification CPN: Customer’s Production Number P/N : Production Number QTY: Packing Quantity CAT: Ranks HUE: Peak Wavelength REF: Reference LOT No: Lot Number PT333-3B Notes 1. Above specification may be changed without notice. EVERLIGHT will reserve authority on material change for above specification. 2. When using this product, please observe the absolute maximum ratings and the instructions for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets. 3. These specification sheets include materials protected under copyright of EVERLIGHT corporation. Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s consent. EVERLIGHT ELECTRONICS CO., LTD. Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Tucheng, Taipei 236, Taiwan, R.O.C Tel: 886-2-2267-2000, 2267-9936 Fax: 886-2267-6244, 2267-6189, 2267-6306 http:\\www.everlight.com Everlight Electronics Co., Ltd. http:\\www.everlight.com Device No：CDPT-033-010 Prepared date：2006/01/10 Rev 1 Page: 7 of 7 Prepared by：Fealty zhu
