PT334-6B

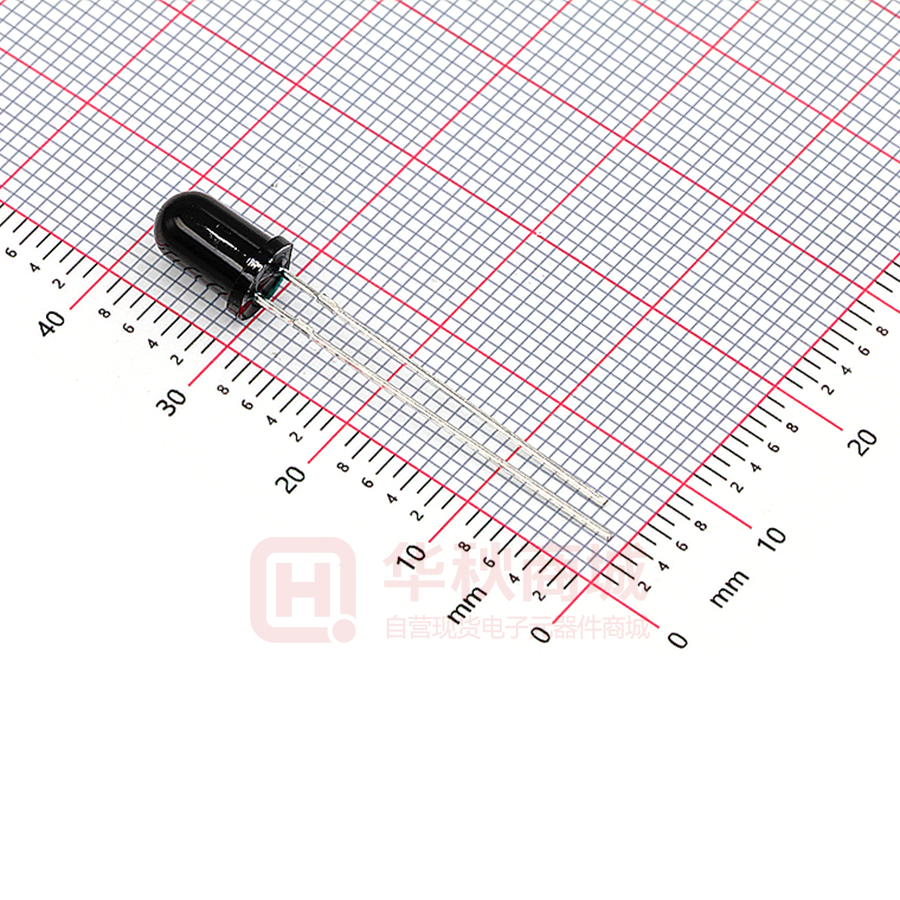

5mm Phototransistor ,T-1 3/4 PT334-6B Features ․Fast response time ․High photo sensitivity ․Pb free ․The product itself will remain within RoHS compliant version. Description ․PT334-6B is a high speed and high sensitive NPN silicon NPN epitaxial planar phototransistor molded in a standard 5 mm package. Due to its Black epoxy the device is sensitive to infrared radiation. Applications ․Infrared applied system ․Camera ․Printer ․Cockroach catcher 1 Copyright © 2010, Everlight All Rights Reserved. Release Date : May.28.2013. Issue No: DPT-0000263 Ver.: Release Date: Confidential Level: 狀態: 　 www.everlight.com DATASHEET 5mm Phototransistor PT334-6B Device Selection Guide Chip Lens Color Materials Silicon Black Absolute Maximum Ratings (Ta=25℃) Parameter Symbol Rating Unit Collector-Emitter Voltage VCEO 30 V Emitter-Collector-Voltage VECO 5 V IC 20 mA Operating Temperature Topr -25~+85 °C Storage Temperature Tstg -40~ +100 °C Lead Soldering Temperature Power Dissipation at (or below) Tsol 260℃ for 5sec °C 75 mW Collector Current Pc 25℃Free Air Temperature Notes: *1:Soldering time≦5 seconds. 2 Copyright © 2010, Everlight All Rights Reserved. Release Date : May.28.2013. Issue No: DPT-0000263 Ver.: Release Date: Confidential Level: 狀態: 　 www.everlight.com DATASHEET 5mm Phototransistor PT334-6B Electro-Optical Characteristics (Ta=25℃) Parameter Symbol Min. Typ. Max. Unit Condition BVCEO 30 ----- ----- V IC=100μA 2 Ee=0mW/cm BVECO 5 ----- ----- V IE=100μA 2 Ee=0mW/cm Collector-Emitter Saturation Voltage VCE(sat) ----- ----- 0.4 V IC=2mA 2 Ee=1mW/cm Rise Time tr ----- 15 ----- μS VCE=5V IC=1mA RL=1000Ω Collector – Emitter Breakdown Voltage Emitter-Collector Breakdown Voltage Fall Time tf ----- 15 ----- Collector Dark Current ICEO ----- ----- 100 nA On State Collector Current IC(on) 0.7 2.0 ----- mA Rang Of Spectral Bandwidth λ0.5 760 ----- 1100 nm ---- Wavelength of Peak Sensitivity λP ----- 940 ----- nm ---- 2 3 Ee=0mW/cm VCE=20V 2 Ee=1mW/cm VCE=5V λp=940nm Copyright © 2010, Everlight All Rights Reserved. Release Date : May.28.2013. Issue No: DPT-0000263 Ver.: Release Date: Confidential Level: 狀態: 　 www.everlight.com DATASHEET 5mm Phototransistor PT334-6B Typical Electro-Optical Characteristics Curves Collector Power Dissipation vs. Ambient Temperature Spectral Sensitivity 1 .0 100 T a=25 C 80 0 .8 60 0 .6 40 0 .4 20 0 .2 0 -2 5 25 0 50 75 85 100 Relative Collector Current vs. Ambient Temperature 0 700 800 900 1000 1100 1300 Collector Current vs. Irradiance 100 160 C 2 140 10 120 100 1 80 60 0 .1 40 20 0 .0 1 0 0 10 20 30 40 50 60 70 0 .5 1 1 .5 3 2 4 Copyright © 2010, Everlight All Rights Reserved. Release Date : May.28.2013. Issue No: DPT-0000263 Ver.: Release Date: Confidential Level: 狀態: 　 www.everlight.com DATASHEET 5mm Phototransistor PT334-6B Collector Dark Current vs. Ambient Temperature Collector Current vs. Collector-Emitter Voltage 10 10 10 10 10 0 5 25 50 75 100 Copyright © 2010, Everlight All Rights Reserved. Release Date : May.28.2013. Issue No: DPT-0000263 Ver.: Release Date: Confidential Level: 狀態: 　 www.everlight.com DATASHEET 5mm Phototransistor PT334-6B Package Dimension Note: Tolerances unless dimensions ±0.25mm 6 Copyright © 2010, Everlight All Rights Reserved. Release Date : May.28.2013. Issue No: DPT-0000263 Ver.: Release Date: Confidential Level: 狀態: 　 www.everlight.com DATASHEET 5mm Phototransistor PT334-6B Label Form Specification Pb EVERLIGHT CPN : P N : XXXXXXXXXXXXX RoHS XXXXXXXXXXXXX CAT : XXX HUE : XXX REF : XXX QTY : XXX ‧CPN: Customer’s Product Number ‧P/N: Product Number ‧QTY: Packing Quantity ‧CAT: Luminous Intensity Rank ‧HUE: Dom. Wavelength Rank ‧REF: Forward Voltage Rank ‧LOT No: Lot Number ‧X: Month ‧Reference: Identify Label Number LOT NO : XXXXXXXXXX Reference : XXXXXXXX Packing Specification ■ Anti-electrostatic bag ■ Inner Carton ■ Outside Carton ■ Packing Quantity 1. 500 PCS/1 Bag, 5 Bags/1 Inner Carton 2. 10 Inner Cartons/1 Outside Carton 7 Copyright © 2010, Everlight All Rights Reserved. Release Date : May.28.2013. Issue No: DPT-0000263 Ver.: Release Date: Confidential Level: 狀態: 　 www.everlight.com DATASHEET 5mm Phototransistor PT334-6B Notes 1. Lead Forming  During lead formation, the leads should be bent at a point at least 3mm from the base of the epoxy bulb.  Lead forming should be done before soldering.  Avoid stressing the LED package during leads forming. The stress to the base may damage the LED’s characteristics or it may break the LEDs.  Cut the LED lead frames at room temperature. Cutting the lead frames at high temperatures may cause failure of the LEDs.  When mounting the LEDs onto a PCB, the PCB holes must be aligned exactly with the lead position of the LED. If the LEDs are mounted with stress at the leads, it causes deterioration of the epoxy resin and this will degrade the LEDs. 2. Storage  The LEDs should be stored at 30°C or less and 70%RH or less after being shipped from Everlight and the storage life limits are 3 months. If the LEDs are stored for 3 months or more, they can be stored for a year in a sealed container with a nitrogen atmosphere and moisture absorbent material.  Please avoid rapid transitions in ambient temperature, especially, in high humidity environments where condensation can occur. 3. Soldering  Careful attention should be paid during soldering. When soldering, leave more then 3mm from solder joint to epoxy bulb, and soldering beyond the base of the tie bar is recommended.  Recommended soldering conditions:  Hand Soldering 300℃ Max. (30W Max.) Temp. at tip of iron Soldering time 3 sec Max. Distance 3mm Min.(From solder joint to epoxy bulb) Recommended soldering profile Preheat temp. Bath temp. & time Distance DIP Soldering 100℃ Max. (60 sec Max.) 260 Max., 5 sec Max 3mm Min. (From solder joint to epoxy bulb) la m in a r w a v e F lu x in g P re h e a d  Avoiding applying any stress to the lead frame while the LEDs are at high temperature particularly when soldering.  Dip and hand soldering should not be done more than one time  After soldering the LEDs, the epoxy bulb should be protected from mechanical shock or vibration until the LEDs return to room temperature. 8 Copyright © 2010, Everlight All Rights Reserved. Release Date : May.28.2013. Issue No: DPT-0000263 Ver.: Release Date: Confidential Level: 狀態: 　 www.everlight.com DATASHEET 5mm Phototransistor PT334-6B  A rapid-rate process is not recommended for cooling the LEDs down from the peak temperature. Although the recommended soldering conditions are specified in the above table, dip or hand soldering at the lowest possible temperature is desirable for the LEDs.  Wave soldering parameter must be set and maintain according to recommended temperature and dwell time in the solder wave. 4. Cleaning  When necessary, cleaning should occur only with isopropyl alcohol at room temperature for a duration of no more than one minute. Dry at room temperature before use.  Do not clean the LEDs by the ultrasonic. When it is absolutely necessary, the influence of ultrasonic cleaning on the LEDs depends on factors such as ultrasonic power and the assembled condition. Ultrasonic cleaning shall be pre-qualified to ensure this will not cause damage to the LED 5. Heat Management  Heat management of LEDs must be taken into consideration during the design stage of LED application. The current should be de-rated appropriately by referring to the de-rating curve found in each product specification.  The temperature surrounding the LED in the application should be controlled. Please refer to the data sheet de-rating curve. 6. ESD (Electrostatic Discharge)  Electrostatic discharge (ESD) or surge current (EOS) can damage LEDs.  An ESD wrist strap, ESD shoe strap or antistatic gloves must be worn whenever handling LEDs.  All devices, equipment and machinery must be properly grounded.  Use ion blower to neutralize the static charge which might have built up on surface of the LEDs plastic lens as a result of friction between LEDs during storage and handing. 7. Other  Above specification may be changed without notice. EVERLIGHT will reserve authority on material change for above specification.  When using this product, please observe the absolute maximum ratings and the instructions for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets.  These specification sheets include materials protected under copyright of EVERLIGHT corporation. Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s consent. 9 Copyright © 2010, Everlight All Rights Reserved. Release Date : May.28.2013. Issue No: DPT-0000263 Ver.: Release Date: Confidential Level: 狀態: 　 www.everlight.com Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Everlight: PT334-6B
