PT91-21B

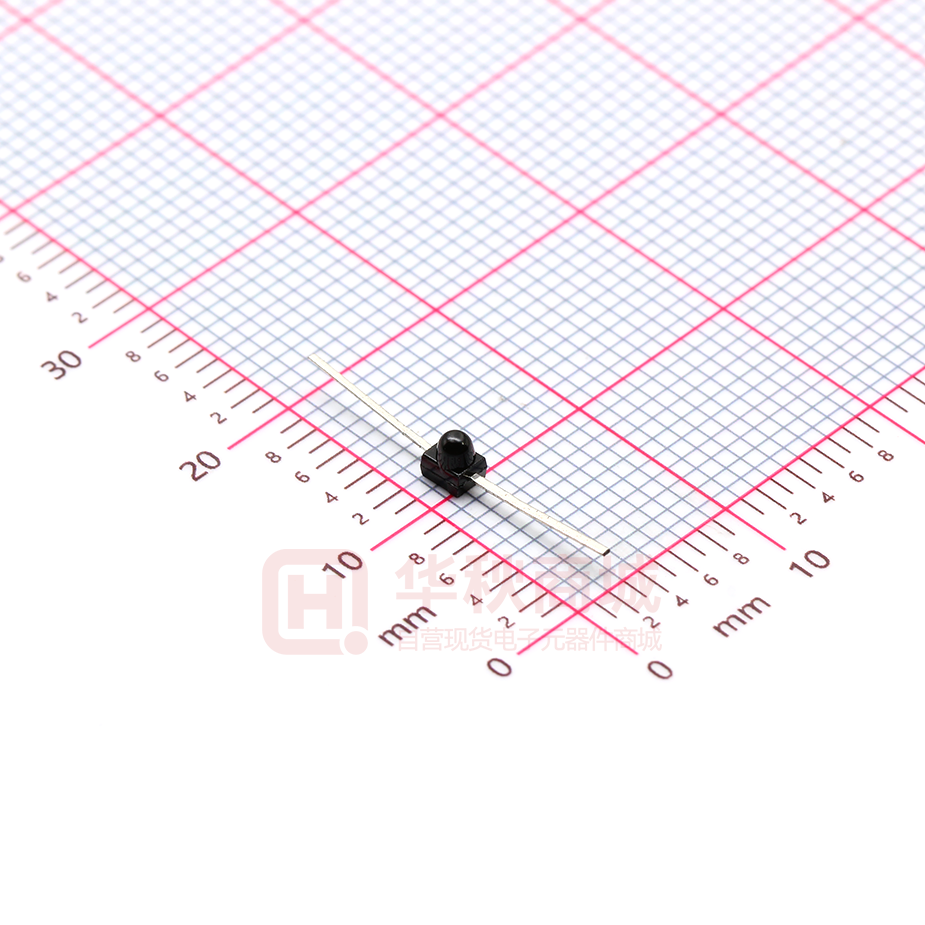

1.9mm Round Subminiature Axial Phototransistor PT91-21B Features ․Fast response time ․High photo sensitivity ․Small junction capacitance ․Compatible with infrared and vapor phase reflow solder process. ․Pb free ․RoHS Compliance ․The product itself will remain within RoHS compliant version. Descriptions ․PT91-21B is a phototransistor in miniature SMD package which is molded in black transparent epoxy with spherical top view lens. The device is spectrally matched to infrared emitting diode. Applications ․Miniature switch ․Counters and sorter ․Position sensor ․Infrared applied system Device Selection Guide 1 Revision Part Category Chip Material Lens Color PT Silicon Black Copyright © 2013, Everlight All Rights Reserved.Release Date :23-Sep-2015.Issue No: DPT-0000300.Rev:2 :2 LifecyclePhase: www.everlight.com Release Date:2015-10-06 19:56:13.0 Expired Period: Forever Data Sheet 1.9mm Round Subminiature Axial Phototransistor PT91-21B Package Dimensions Collector Emitter Notes: 1.All dimensions are in millimeters 2.Tolerances unless dimensions ±0.1mm Absolute Maximum Ratings (Ta=25℃) 2 Revision Copyright © 2013, Everlight All Rights Reserved.Release Date : 23-Sep-2015.Issue No: DPT-0000300.Rev:2 :2 LifecyclePhase: www.everlight.com Release Date:2015-10-06 19:56:13.0 Expired Period: Forever Data Sheet 1.9mm Round Subminiature Axial Phototransistor PT91-21B Parameter Symbol Rating Collector-Emitter Voltage VCEO 30 Units V Emitter-Collector-Voltage VECO 5 V IC 20 mA Operating Temperature Topr -25 ~ +85 ℃ Storage Temperature Tstg -40 ~ + 85 ℃ Soldering Temperature *1 Tsol 260 ℃ Power Dissipation at(or below) 25℃Free Air Temperature Pd 75 mW Collector Current Notes: *1:Soldering time≦5 seconds. Electro-Optical Characteristics (Ta=25℃) Parameter Rang Of Spectral Bandwidth Wavelength Of Peak Sensitivity Symbol Condition λ0.5 Min Typ Max Unit 730 --- 1100 nm λP --- --- 940 --- nm Collector-Emitter Breakdown Voltage BVCEO IC=100μA Ee=0mW/cm2 30 --- --- V Emitter-Collector Breakdown Voltage BVECO 5 --- --- V Collector-Emitter Saturation Voltage VCE(sat) IC=2mA Ee=1mW/cm2 --- --- 0.4 V Collector Dark Current ICEO VCE=20V Ee=0mW/cm2 --- --- 100 nA On State Collector Current IC(ON) VCE=5V Ee=1mW/cm2 1.0 3.0 --- mA 3 Revision IE=10μA Ee=0mW/cm2 Copyright © 2013, Everlight All Rights Reserved.Release Date : 23-Sep-2015.Issue No: DPT-0000300.Rev:2 :2 LifecyclePhase: www.everlight.com Release Date:2015-10-06 19:56:13.0 Expired Period: Forever Data Sheet 1.9mm Round Subminiature Axial Phototransistor PT91-21B Typical Electro-Optical Characteristics Curves Fig.1 Spectral Sensitivity Fig.2 Collector Current vs. Irradiance 1.0 Ta=25°C 0.8 0.6 0.4 0.2 0 700 800 900 1000 1100 1300 Fig.3 Collector Current vs. Collector-Emitter Voltage 4 Revision Copyright © 2013, Everlight All Rights Reserved.Release Date : 23-Sep-2015.Issue No: DPT-0000300.Rev:2 :2 LifecyclePhase: www.everlight.com Release Date:2015-10-06 19:56:13.0 Expired Period: Forever Data Sheet 1.9mm Round Subminiature Axial Phototransistor PT91-21B Precautions For Use 1. Over-current-proof Customer must apply resistors for protection , otherwise slight voltage shift will cause big current change ( Burn out will happen ). 2. Storage 2.1 Do not open moisture proof bag before the products are ready to use. 2.2 Before opening the package, the Phototransistor should be kept at 30℃ or less and 90%RH or less. 2.3 The Phototransistor should be used within a year. 2.4 After opening the package, the Phototransistor should be kept at 30℃ or less and 60%RH or less. 2.5 The Phototransistor should be used within 168 hours (7 days) after opening the package. 2.6 If the moisture absorbent material (silica gel) has faded away or the Phototransistor have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment : 60±5℃ for 24 hours. 3. Soldering Condition 3.1 Pb-free solder temperature profile 3.2 Reflow soldering should not be done more than two times. 3.3 When soldering, do not put stress on the Phototransistor during heating. 3.4 After soldering, do not warp the circuit board. 5 Revision Copyright © 2013, Everlight All Rights Reserved.Release Date : 23-Sep-2015.Issue No: DPT-0000300.Rev:2 :2 LifecyclePhase: www.everlight.com Release Date:2015-10-06 19:56:13.0 Expired Period: Forever Data Sheet 1.9mm Round Subminiature Axial Phototransistor PT91-21B 4.Soldering Iron Each terminal is to go to the tip of soldering iron temperature less than 350℃ for 3 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder. 5.Repairing Repair should not be done after the Phototransistor have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the Phototransistor will or will not be damaged by repairing. Packing Quantity Specification 1000PCS/1Bag 6 Revision Copyright © 2013, Everlight All Rights Reserved.Release Date : 23-Sep-2015.Issue No: DPT-0000300.Rev:2 :2 LifecyclePhase: www.everlight.com Release Date:2015-10-06 19:56:13.0 Expired Period: Forever Data Sheet 1.9mm Round Subminiature Axial Phototransistor PT91-21B Label Form Specification CPN: Customer’s Production Number P/N : Production Number QTY: Packing Quantity CAT: Ranks HUE: Peak Wavelength REF: Reference LOT No: Lot Number Notes 1. Above specification may be changed without notice. EVERLIGHT will reserve authority on material change for above specification. 2. When using this product, please observe the absolute maximum ratings and the instructions for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets. 3. These specification sheets include materials protected under copyright of EVERLIGHT corporation. Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s consent. EVERLIGHT ELECTRONICS CO., LTD. Office: No. 6-8, Zhonghua Rd., Shulin Dist., New Taipei City 23860, Taiwan 7 Revision Tel: 886-2-2685-6688 Fax: 886-2685-2699，6897 http://www.everlight.com Copyright © 2013, Everlight All Rights Reserved.Release Date : 23-Sep-2015.Issue No: DPT-0000300.Rev:2 :2 LifecyclePhase: www.everlight.com Release Date:2015-10-06 19:56:13.0 Expired Period: Forever
