PT91-21C/TR7

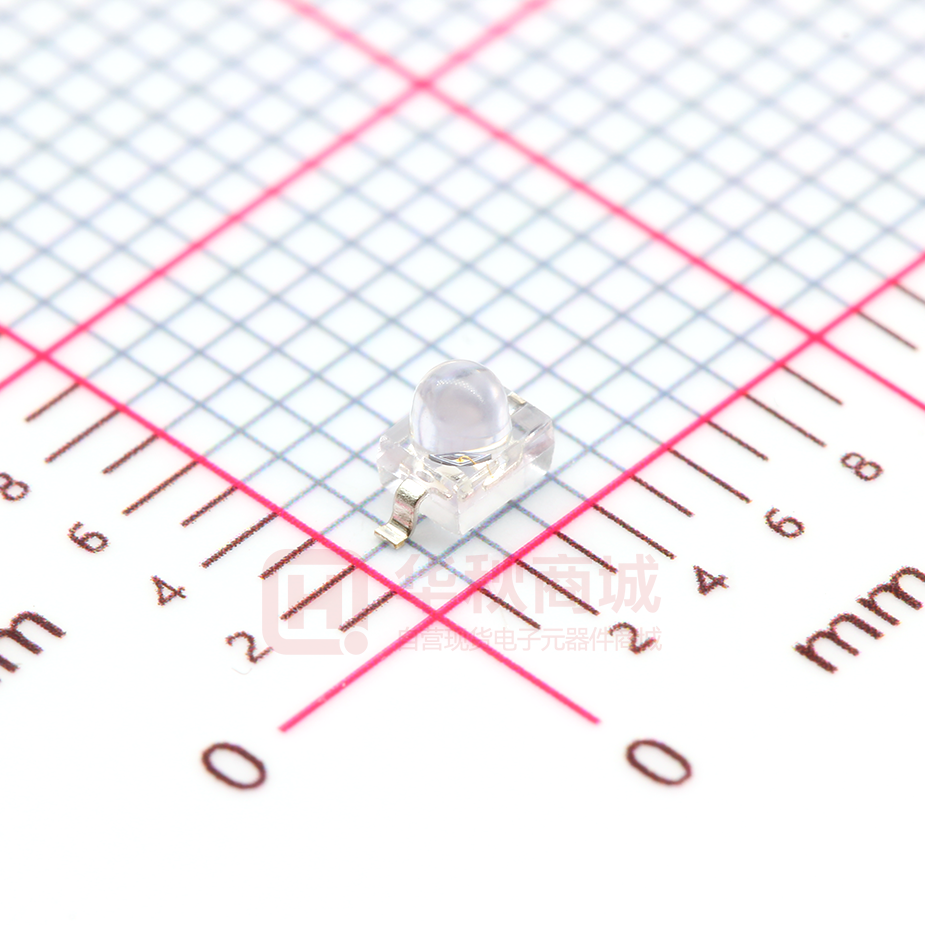

1.9mm Round Subminiature “Gull Wing”Lead Phototransistor PT91-21C/TR7 Features ․Fast response time ․High photo sensitivity ․Small junction capacitance ․Compatible with infrared and vapor phase reflow solder process. ․Pb free ․The product itself will remain within RoHS compliant version. Descriptions ․PT91-21C/TR7 is a phototransistor in miniature SMD package which is molded in water clear plastic with spherical top view lens. The device is spectrally matched to infrared emitting diode. Applications ․Miniature switch ․Counters and sorter ․Position sensor ․Infrared applied system Device Selection Guide 1 Part Category Chip Material Lens Color PT Silicon Water clear Copyright © 2013, Everlight All Rights Reserved. Release Date : 6/6/2013. Issue No:DPT-0000295. Rev:3 Revision :3 LifecyclePhase: www.everlight.com Release Date:2013-06-10 14:32:27.0 Expired Period: Forever Data Sheet 1.9mm Round Subminiature Gull wing” Lead Photortransistor PT91-21C/TR7 Package Dimensions Notes: 1.All dimensions are in millimeters 2.Tolerances unless dimensions ±0.1mm 2 Copyright © 2013, Everlight All Rights Reserved. Release Date : 6/6/2013. Issue No:DPT-0000295. Rev:3 Revision :3 LifecyclePhase: www.everlight.com Release Date:2013-06-10 14:32:27.0 Expired Period: Forever Data Sheet 1.9mm Round Subminiature Gull wing” Lead Photortransistor PT91-21C/TR7 Absolute Maximum Ratings (Ta=25℃) Parameter Symbol Rating Units Collector-Emitter Voltage VCEO 30 Emitter-Collector-Voltage VECO 5 V V IC 20 mA Operating Temperature Topr -25 ~ +85 ℃ Storage Temperature Tstg -40 ~ +85 ℃ Tsol 260 ℃ Pd 75 mW Collector Current Soldering Temperature *1 Power Dissipation at(or below) 25℃Free Air Temperature Notes: *1:Soldering time≦5 seconds. Electro-Optical Characteristics (Ta=25℃) Parameter 3 Symbol Condition Min Typ Max Unit Rang Of Spectral Bandwidth λ0.5 --- 400 --- 1100 nm Wavelength Of Peak Sensitivity λP --- --- 940 --- nm Collector-Emitter Breakdown Voltage BVCEO IC=100μA Ee=0mW/cm2 30 --- --- V Emitter-Collector Breakdown Voltage BVECO 5 --- --- V Collector-Emitter Saturation Voltage VCE(sat) IC=2mA Ee=1mW/cm2 --- --- 0.4 V Collector Dark Current ICEO VCE=20V Ee=0mW/cm2 --- --- 100 nA On State Collector Current IC(ON) VCE=5V Ee=1mW/cm2 1.0 1.5 --- mA IE=10μA Ee=0mW/cm2 Copyright © 2013, Everlight All Rights Reserved. Release Date : 6/6/2013. Issue No:DPT-0000295. Rev:3 Revision :3 LifecyclePhase: www.everlight.com Release Date:2013-06-10 14:32:27.0 Expired Period: Forever Data Sheet 1.9mm Round Subminiature Gull wing” Lead Photortransistor PT91-21C/TR7 Typical Electro-Optical Characteristics Curves Fig.1 Spectral Sensitivity Fig.2 Collector Current vs Irradiance Fig.3 Collector Current vs Collecror-Emitter Voltage 4 Copyright © 2013, Everlight All Rights Reserved. Release Date : 6/6/2013. Issue No:DPT-0000295. Rev:3 Revision :3 LifecyclePhase: www.everlight.com Release Date:2013-06-10 14:32:27.0 Expired Period: Forever Data Sheet 1.9mm Round Subminiature Gull wing” Lead Photortransistor PT91-21C/TR7 Precautions For Use 1. Over-current-proof Customer must apply resistors for protection , otherwise slight voltage shift will cause big current change ( Burn out will happen ). 2. Storage 2.1 Do not open moisture proof bag before the products are ready to use. 2.2 Before opening the package, the LEDs should be kept at 30℃ or less and 90%RH or less. 2.3 The LEDs should be used within a year. 2.4 After opening the package, the LEDs should be kept at 30℃ or less and 70%RH or less. 2.5 The LEDs should be used within 168 hours (7 days) after opening the package. 2.6 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment : 60±5℃ for 24 hours. 3. Soldering Condition 3.1 Pb-free solder temperature profile 3.2 Reflow soldering should not be done more than two times. 3.3 When soldering, do not put stress on the LEDs during heating. 3.4 After soldering, do not warp the circuit board. 5 Copyright © 2013, Everlight All Rights Reserved. Release Date : 6/6/2013. Issue No:DPT-0000295. Rev:3 Revision :3 LifecyclePhase: www.everlight.com Release Date:2013-06-10 14:32:27.0 Expired Period: Forever Data Sheet 1.9mm Round Subminiature Gull wing” Lead Photortransistor PT91-21C/TR7 4.Soldering Iron Each terminal is to go to the tip of soldering iron temperature less than 350℃ for 3 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder. 5.Repairing Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing. 6 Copyright © 2013, Everlight All Rights Reserved. Release Date : 6/6/2013. Issue No:DPT-0000295. Rev:3 Revision :3 LifecyclePhase: www.everlight.com Release Date:2013-06-10 14:32:27.0 Expired Period: Forever Data Sheet 1.9mm Round Subminiature Gull wing” Lead Photortransistor PT91-21C/TR7 Package Dimensions Note: The tolerances unless mentioned are ±0.1, unit=mm. Carrier Taping Dimensions: (Quantity: 1000PCS/Reel) Note: The tolerances unless mentioned are ±0.1, unit=mm 7 Copyright © 2013, Everlight All Rights Reserved. Release Date : 6/6/2013. Issue No:DPT-0000295. Rev:3 Revision :3 LifecyclePhase: www.everlight.com Release Date:2013-06-10 14:32:27.0 Expired Period: Forever Data Sheet 1.9mm Round Subminiature Gull wing” Lead Photortransistor PT91-21C/TR7 Label Form Specification CPN: Customer’s Production Number P/N : Production Number QTY: Packing Quantity CAT: Ranks Peak Wavelength REF: Reference LOT No: Lot Number Notes 1. Above specification may be changed without notice. EVERLIGHT will reserve authority on material change for above specification. 2. When using this product, please observe the absolute maximum ratings and the instructions for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets. 3. These specification sheets include materials protected under copyright of EVERLIGHT corporation. Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s consent. EVERLIGHT ELECTRONICS CO., LTD. Office: No. 6-8, Zhonghua Rd., Shulin Dist., New Taipei City 23860, Taiwan 8 Tel: 886-2-2685-6688 Fax: 886-2685-2699，6897 http://www.everlight.com Copyright © 2013, Everlight All Rights Reserved. Release Date : 6/6/2013. Issue No:DPT-0000295. Rev:3 Revision :3 LifecyclePhase: www.everlight.com Release Date:2013-06-10 14:32:27.0 Expired Period: Forever Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Everlight: PT91-21C/TR7
