PT928-6C

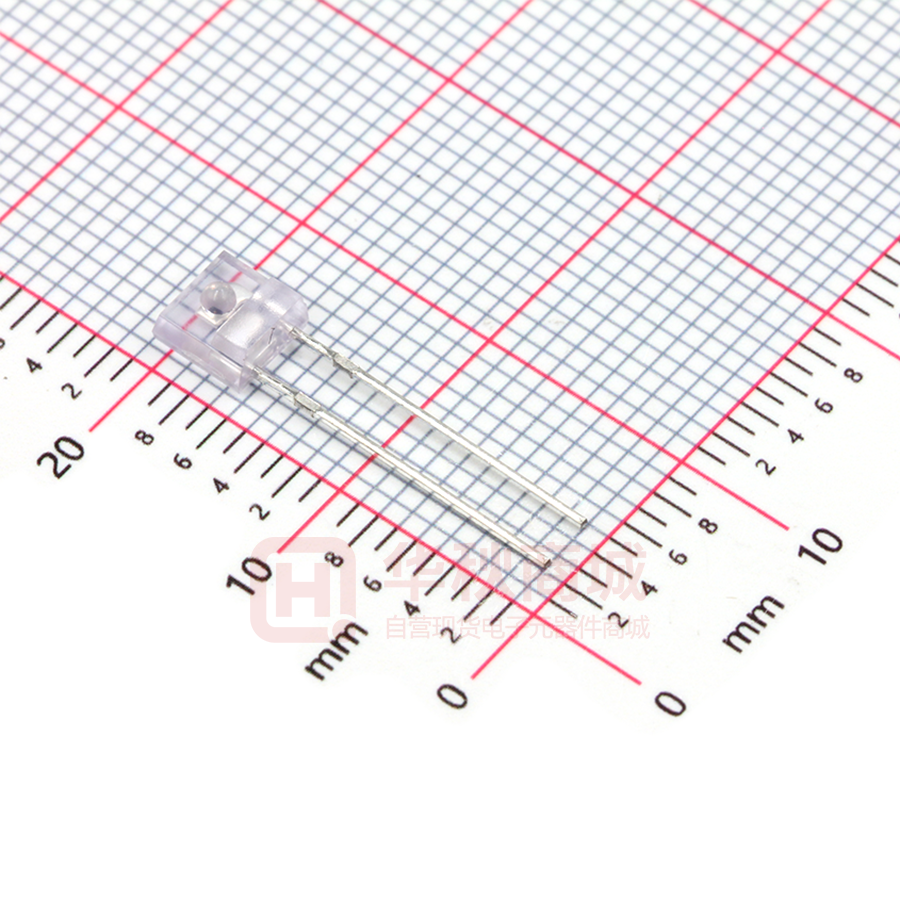

Technical Data Sheet 1.5mm Side Looking Phototransistor PT928-6C Features ․Fast response time ․High sensitivity ․Small junction capacitance ․Pb free ․This product itself will remain within RoHS compliant version. Descriptions PT928-6C is a phototransistor in miniature package which is molded in a water clear plastic with spherical top view lens. The device is spectrally matched to infrared emitting diode. Applications ․Optoelectronic switch ․VCR，Video Camera ․Floppy disk drive ․Infrared applied system Device Selection Guide LED Part No. PT928-6C Everlight Electronics Co., Ltd. Device No: CDPT-092-006 Chip Material Silicon Lens Color Water Clear http:\\www.everlight.com Prepared date: 2006/11/13 Rev 2 Page: 1of 7 Prepared by: zhouhong PT928-6C Package Dimensions Notes: 1.All dimensions are in millimeters 2.Tolerances unless dimensions ±0.25mm Everlight Electronics Co., Ltd. Device No: CDPT-092-006 http:\\www.everlight.com Prepared date: 2006/11/13 Rev 2 Page: 2of 7 Prepared by: zhouhong PT928-6C Absolute Maximum Ratings (Ta=25℃) Parameter Symbol Rating Collector-Emitter Voltage VCEO 30 Units V Emitter-Collector-Voltage VECO 5 V IC mA Collector Current Operating Temperature Topr 40 -25 ~ +85℃ Storage Temperature Tstg -40 ~ +85℃ ℃ Lead Soldering Temperature Tsol 260 ℃ PD 75 mW Power Dissipation at (or below) 25℃ Free Air Temperature ℃ Notes: *1:Soldering time≦5 seconds. Electro-Optical Characteristics (Ta=25℃) Parameter Symbol Condition Min. Typ. Collector – Emitter Breakdown Voltage BVCEO IC=100μA Ee=0mW/cm2 30 --- --- V Emitter-Collector Breakdown Voltage BVECO IE=100μA Ee=0mW/cm2 5 --- --- V Collector-Emitter Saturation Voltage V(CE)(sat) IC=2mA Ee=1mW/cm2 --- --- 0.4 V 15 --- μS 15 --- --- 100 nA 3.41 mA Rise Time tr Fall Time tf VCE=5V --IC=1mA --RL=1000Ω 2 Ee=0mW/cm --VCE=20V Ee=0.555mW/cm2 0.53 VCE=5V Max. Units Collector Dark Current ICEO On State Collector Current IC(on) Wavelength of Peak Sensitivity λp --- --- 940 --- nm Rang of Spectral Bandwidth λ0.5 --- 400 --- 1200 nm Everlight Electronics Co., Ltd. Device No: CDPT-092-006 http:\\www.everlight.com Prepared date: 2006/11/13 Rev 2 Page: 3of 7 Prepared by: zhouhong PT928-6C Typical Electro-Optical Characteristics Curves 1.0 Ta=25 C 0.8 0.6 0.4 0.2 0 Everlight Electronics Co., Ltd. Device No: CDPT-092-006 http:\\www.everlight.com Prepared date: 2006/11/13 Rev 2 Page: 4of 7 Prepared by: zhouhong PT928-6C Test method Ranks Parameter Min Max 7-3 0.53 1.19 7-2 0.88 1.70 1.24 2.21 6-2 1.59 2.98 6-1 1.77 3.41 7-1 Symbol IC(ON) Everlight Electronics Co., Ltd. Device No: CDPT-092-006 Unit Test condition mA VCE=5V Ee=0.555mW/cm2 http:\\www.everlight.com Prepared date: 2006/11/13 Rev 2 Page: 5of 7 Prepared by: zhouhong PT928-6C Reliability Test Item And Condition The reliability of products shall be satisfied with items listed below. Confidence level：90% LTPD：10% NO. 1 2 3 Item Solder Heat Test Conditions TEMP:260℃±5℃ H : +100℃ 15mins L : -40℃ 5mins 15mins H :+100℃ 5mins L :-10℃ 10secs 5mins Temperature Cycle Thermal Shock Test Hours/ Cycles 10sec 300Cycle Failure Sample Judgement Sizes Criteria Ac/Re 22pcs More than 90% of lead to be covered 22pcs by soldering 0/1 0/1 300ycle IR≧U×2 22pcs Ee≦L×0.8 VF≧U×1.2 0/1 1000hrs 22pcs 0/1 1000hrs Specification 22pcs Limit L：Lower 4 High Temperature Storage TEMP.：+100℃ 5 Low Temperature Storage TEMP.：-40℃ 6 DC Operating Life VCE=5V 1000hrs 22pcs Specification Limit 0/1 7 High Temperature/ 85℃ / 85% R.H High Humidity 1000hrs 22pcs 0/1 Everlight Electronics Co., Ltd. Device No: CDPT-092-006 http:\\www.everlight.com Prepared date: 2006/11/13 Rev 2 U：Upper Page: 6of 7 Prepared by: zhouhong 0/1 PT928-6C Packing Quantity Specification 1. 1000 Pcs/1Bag，10 Bags/1Box 2. 10 Boxes/1Carton Label Form Specification PT928-6C CPN: Customer’s Production Number P/N : Production Number QTY: Packing Quantity CAT: Ranks HUE: Peak Wavelength REF: Reference LOT No: Lot Number Notes 1. Above specification may be changed without notice. EVERLIGHT will reserve authority on material change for above specification. 2. When using this product, please observe the absolute maximum ratings and the instructions for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets. 3. These specification sheets include materials protected under copyright of EVERLIGHT corporation. Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s consent. EVERLIGHT ELECTRONICS CO., LTD. Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Tucheng, Taipei 236, Taiwan, R.O.C Everlight Electronics Co., Ltd. Device No: CDPT-092-006 Tel: 886-2-2267-2000, 2267-9936 Fax: 886-2267-6244, 2267-6189, 2267-6306 http:\\www.everlight.com http:\\www.everlight.com Prepared date: 2006/11/13 Rev 2 Page: 7of 7 Prepared by: zhouhong
