S2C-AM2N2VY

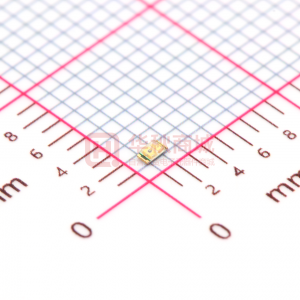

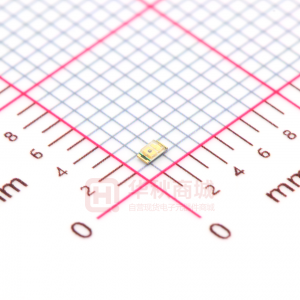

EVERLIGHT ELECTRONICS CO.,LTD. Technical Data Sheet 0603 Package Chip LED (0.4mm Height) 19-217/S2C-AM2N2VY/3T Features ․Package in 8mm tape on 7〞diameter reel. ․Compatible with automatic placement equipment. ․Compatible with infrared and vapor phase reflow solder process. ․Mono-color type. ․Pb-free. ․The product itself will remain within RoHS complaint version Descriptions ․The 19-217 SMD Taping is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained. ․ Besides, lightweight makes them ideal for miniature applications. etc. Applications ․Backlighting in dashboard and switch. ․Telecommunication: indicator and backlighting in telephone and fax. ․Flat backlight for LCD, switch and symbol. ․General use. Device Selection Guide Part No. 19-217/S2C-AM2N2VY/3T Chip Material AlGaInP Emitted Color Brilliant Orange Lens Color Water Clear Everlight Electronics Co., Ltd. Device No:SZDSE-197-S03 http://www.everlight.com Prepared date: 17-Mar-2006 Rev. 1 Page: 1 of 10 Prepared by: Wu xiaowei EVERLIGHT ELECTRONICS CO.,LTD. 19-217/S2C-AM2N2VY/3T Package Outline Dimensions Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm Everlight Electronics Co., Ltd. Device No:SZDSE-197-S03 http://www.everlight.com Prepared date: 17-Mar-2006 Rev. 1 Page: 2 of 10 Prepared by: Wu xiaowei EVERLIGHT ELECTRONICS CO.,LTD. 19-217/S2C-AM2N2VY/3T Absolute Maximum Ratings (Ta=25℃) Parameter Reverse Voltage Forward Current Operating Temperature Storage Temperature Electrostatic Discharge(HBM) Power Dissipation Peak Forward Current (Duty 1/10 @1KHz) Soldering Temperature Symbol VR IF Topr Tstg ESD Pd IFP Rating 5 25 -40 ~ +85 -40 ~ +90 2000 60 60 Unit V mA ℃ ℃ V mW mA Reflow Soldering : 260 ℃ for 10 sec. Tsol Hand Soldering : 350 ℃ for 3 sec. Electro-Optical Characteristics (Ta=25℃) Parameter Luminous Intensity Viewing Angle Peak Wavelength Dominant Wavelength Symbol Iv 2θ1/2 λp λd △λ VF IR Min. 22.5 --------600.5 ----1.70 ----- Typ. ----120 611 ----17 --------- Max. 45.0 --------612.5 ----2.20 10 Unit mcd deg nm nm nm V μA Condition IF=5mA Spectrum Radiation Bandwidth Forward Voltage Reverse Current VR=5V Notes: 1.Tolerance of Luminous Intensity ±10% 2.Tolerance of Dominant Wavelength ±1nm 3.Tolerance of Forward Voltage ±0.05V Everlight Electronics Co., Ltd. Device No:SZDSE-197-S03 http://www.everlight.com Prepared date: 17-Mar-2006 Rev. 1 Page: 3 of 10 Prepared by: Wu xiaowei EVERLIGHT ELECTRONICS CO.,LTD. 19-217/S2C-AM2N2VY/3T Bin Range Of Dom. Wavelength Group Bin D8 Min 600.5 603.5 606.5 609.5 Max 603.5 606.5 609.5 612.5 nm IF=5mA Unit Condition A D9 D10 D11 Bin Range Of Luminous Intensity Bin M2 N1 N2 Min 22.5 28.5 36.0 Max 28.5 36.0 45.0 mcd IF=5mA Unit Condition Bin Rang Of Forward Voltage Group Bin 19 20 Min 1.70 1.80 1.90 2.00 2.10 Max 1.80 1.90 2.00 2.10 2.20 V IF=5mA Unit Condition v 21 22 23 Notes: 1.Tolerance of Luminous Intensity ±10% 2.Tolerance of Dominant Wavelength ±1nm 3.Tolerance of Forward Voltage ±0.05V Everlight Electronics Co., Ltd. Device No:SZDSE-197-S03 http://www.everlight.com Prepared date: 17-Mar-2006 Rev. 1 Page: 4 of 10 Prepared by: Wu xiaowei EVERLIGHT ELECTRONICS CO.,LTD. 19-217/S2C-AM2N2VY/3T Typical Electro-Optical Characteristics Curves Everlight Electronics Co., Ltd. Device No:SZDSE-197-S03 http://www.everlight.com Prepared date: 17-Mar-2006 Rev. 1 Page: 5 of 10 Prepared by: Wu xiaowei EVERLIGHT ELECTRONICS CO.,LTD. 19-217/S2C-AM2N2VY/3T Label explanation CAT: Luminous Intensity Rank HUE: Dom. Wavelength Rank REF: Forward Voltage Rank xxxxxx xxxxxx RoHS xxxxxxxxxxxx xxxx xxxxxxxx Reel Dimensions Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm Everlight Electronics Co., Ltd. Device No:SZDSE-197-S03 http://www.everlight.com Prepared date: 17-Mar-2006 Rev. 1 Page: 6 of 10 Prepared by: Wu xiaowei EVERLIGHT ELECTRONICS CO.,LTD. 19-217/S2C-AM2N2VY/3T Carrier Tape Dimensions: Loaded quantity 3000 PCS per reel Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm Moisture Resistant Packaging Label Aluminum moisture-proof bag Desiccant Label Everlight Electronics Co., Ltd. Device No:SZDSE-197-S03 http://www.everlight.com Prepared date: 17-Mar-2006 Rev. 1 Page: 7 of 10 Prepared by: Wu xiaowei EVERLIGHT ELECTRONICS CO.,LTD. 19-217/S2C-AM2N2VY/3T Reliability Test Items And Conditions The reliability of products shall be satisfied with items listed below. Confidence level：90% LTPD：10% No. 1 Items Reflow Soldering Test Condition Temp. : 260℃±5℃ Min. 5sec. H : +100℃ 15min ∫ 5 min L : -40℃ 15min H : +100℃ 5min ∫ 10 sec L : -10℃ 5min Temp. : 100℃ Temp. : -40℃ IF = 20 mA 85℃/ 85%RH Test Sample Hours/Cycles Size 6 Min. 300 Cycles 22 PCS. Ac/Re 0/1 2 Temperature Cycle 22 PCS. 0/1 3 Thermal Shock High Temperature Storage Low Temperature Storage DC Operating Life High Temperature / High Humidity 300 Cycles 1000 Hrs. 1000 Hrs. 1000 Hrs. 1000 Hrs. 22 PCS. 0/1 4 5 6 7 22 PCS. 22 PCS. 22 PCS. 22 PCS. 0/1 0/1 0/1 0/1 Everlight Electronics Co., Ltd. Device No:SZDSE-197-S03 http://www.everlight.com Prepared date: 17-Mar-2006 Rev. 1 Page: 8 of 10 Prepared by: Wu xiaowei EVERLIGHT ELECTRONICS CO.,LTD. 19-217/S2C-AM2N2VY/3T Precautions For Use 1. Over-current-proof Customer must apply resistors for protection, otherwise slight voltage shift will cause big current change ( Burn out will happen ). 2. Storage 2.1 Do not open moisture proof bag before the products are ready to use. 2.2 Before opening the package: The LEDs should be kept at 30℃ or less and 90%RH or less. 2.3 After opening the package : The LEDs should be kept at 30℃ or less and 60%RH or less(Floor life). However, it's recommended that the LEDs should be used within 168 hours (7 days) after opening the package. If unused LEDs remain, it should be stored in moisture proof packages. 2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment : 60±5℃ for 24 hours. 3. Soldering Condition 3.1 Pb-free solder temperature profile 3.2 Reflow soldering should not be done more than two times. 3.3 When soldering, do not put stress on the LEDs during heating. 3.4 After soldering, do not warp the circuit board. Everlight Electronics Co., Ltd. Device No:SZDSE-197-S03 http://www.everlight.com Prepared date: 17-Mar-2006 Rev. 1 Page: 9 of 10 Prepared by: Wu xiaowei EVERLIGHT ELECTRONICS CO.,LTD. 19-217/S2C-AM2N2VY/3T 4.Soldering Iron Each terminal is to go to the tip of soldering iron temperature less than 350℃ for 3 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder. 5.Repairing Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing. EVERLIGHT ELECTRONICS CO., LTD. Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Tucheng, Taipei 236, Taiwan, R.O.C Tel: 886-2-2267-2000, 2267-9936 Fax: 886-2267-6244, 2267-6189, 2267-6306 http://www.everlight.com Everlight Electronics Co., Ltd. Device No:SZDSE-197-S03 http://www.everlight.com Prepared date: 17-Mar-2006 Rev. 1 Page: 10 of 10 Prepared by: Wu xiaowei
