S530-E2

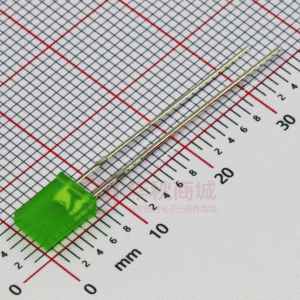

Technical Data Sheet 2.4*4.9mm Rectangular Type LED Lamps 1533SYGD/S530-E2 █ Features : ● ● ● ● ● Choice of various viewing angles Available on tape and reel. Reliable and robust Pb free The product itself will remain within RoHS compliant version. █ Descriptions : ● The series is specially designed for applications requiring higher brightness ● The led lamps are available with different colors, intensities. █ Applications : ● ● ● ● TV set Monitor Telephone Computer PART NO. 1533SYGD/S530-E2 Material AlGaInP Emitted Color Super Yellow Green Lens Color Green Diffused EVERLIGHT ELECTRONICS CO.,LTD. Device Number : CDLE-153-017 http : //www.everlight.com Prepared date: 2005/7/26 0 Rev.: 1 Page: 1 of 6 Zhenxiaqu Prepared by: Technical Data Sheet 2.4*4.9mm Rectangular Type LED Lamps 1533SYGD/S530-E2 Package Dimensions Notes: 1. All dimensions are in millimetres 2. The height of flange must be less than 1.5mm(0.059"). 3. Without special declared,the tolerance is ±0.25mm. █ Absolute Maximum Ratings at Ta = 25℃ Parameter Forward Current Operating Temperature Storage Temperature Soldering Temperature Electrostatic Discharge Power Dissipation Reverse Voltage Symbol IF Topr Tstg Tsol ESD Pd VR Rating 25 -40 to +85 -40 to +100 260 ± 5 2000 60 5 Unit mA ℃ ℃ ℃ V mW V Note: *1:Soldering time ≦ 5 seconds. EVERLIGHT ELECTRONICS CO.,LTD. Device Number : CDLE-153-017 http : //www.everlight.com Prepared date: 2005/7/26 Rev.: 1 Page: 2 of 6 Zhenxiaqu Prepared by: Technical Data Sheet 2.4*4.9mm Rectangular Type LED Lamps 1533SYGD/S530-E2 Electro-Optical Characteristics (Ta=25℃) Parameter Forward Voltage Reverse Current Luminous Intensity Viewing Angle Peak Wavelength Dominant Wavelength Spectrum Radiation Bandwidth Symbol VF IR Iv 2θ1/2 λp λd △λ Condition IF= VR= IF= IF= IF= IF= IF= 20 5 20 20 20 20 20 mA V mA mA mA mA mA Min. ／ ／ 1.6 ／ ／ ／ ／ Typ. 2.0 ／ 3.2 100 575 573 20 Max. 2.4 10 ／ ／ ／ ／ ／ Unit V μA mcd deg nm nm nm EVERLIGHT ELECTRONICS CO.,LTD. Device Number : CDLE-153-017 http : //www.everlight.com Prepared date: 2005/7/26 Rev.: 1 Page: 3 of 6 Zhenxiaqu Prepared by: Technical Data Sheet 2.4*4.9mm Rectangular Type LED Lamps 1533SYGD/S530-E2 █ Typical Electro-Optical Characteristic Curves: EVERLIGHT ELECTRONICS CO.,LTD. Device Number : CDLE-153-017 http : //www.everlight.com Prepared date: 2005/7/26 Rev.: Prepared by: 1 Page: 4 of 6 Zhenxiaqu Technical Data Sheet 2.4*4.9mm Rectangular Type LED Lamps 1533SYGD/S530-E2 █ Reliability test items and conditions: The reliability of products shall be satisfied with items listed below. Confidence level：97% LTPD：3% NO Item Test Conditions Test Hours/Cycle 10 SEC Sample Size 76 PCS Failure Judgment Criteria Ac/Re 1 Solder Heat TEMP : 260℃ ± 5 ℃ H : +100℃ 15min ∫ 5 min H : +100℃ 5min ∫ 10 sec L : -10℃ 5min TEMP : 100℃ 0/1 2 Temperature Cycle 300 CYCLES 76 PCS 0/1 3 Thermal Shock High Temperature Storage Low Temperature Storage DC Operating Life High Temperature / High Humidity 300 CYCLES 76 PCS 4 1000 HRS Iv≦Ivt*0.5 or Vf≧U 76 PCS or Vf≦L 76 PCS 0/1 0/1 5 TEMP : -40℃ TEMP : 25℃ IF = 20mA 85℃ / 85% RH 1000 HRS 0/1 6 7 1000 HRS 1000 HRS 76 PCS 76 PCS 0/1 0/1 Note：Ivt：To test Iv value of the chip before the reliablility test Iv：The test value of the chip that has completed the reliablility test U：Upper Specification Limit L： Lower Specification Limit EVERLIGHT ELECTRONICS CO.,LTD. Device Number : CDLE-153-017 http : //www.everlight.com Prepared date: 2005/7/26 Rev.: 1 Page: 5 of 6 Zhenxiaqu Prepared by: Technical Data Sheet 2.4*4.9mm Rectangular Type LED Lamps 1533SYGD/S530-E2 Packing Quantity Specification 1.500PCS/1Bag，5Bags/1Box 2.10Boxes/1Carton Label Form Specification CPN: Customer's Production Number QTY: Packing Quantity CAT: Ranks 1533SYGD/S530-E2 HUE: Dominant Wavelength REF: Reference LOT No: Lot Number MADE IN TAIWAN: Production Place Notes 1. Above specification may be changed without notice. EVERLIGHT will reserve authority on material change for above specification. 2. When using this product, please observe the absolute maximum ratings and the instructions for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets. 3. These specification sheets include materials protected under copyright of EVERLIGHT corporation Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’sconsent. EVERLIGHT ELECTRONICS CO., LTD. Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Tucheng, Taipei 236, Taiwan, R.O.C Tel: 886-2-2267-2000, 2267-9936 Fax: 886-2267-6244, 2267-6189, 2267-6306 http:\\www.everlight.com EVERLIGHT ELECTRONICS CO.,LTD. Device Number : CDLE-153-017 http : //www.everlight.com Prepared date: 2005/7/26 Rev.: 1 Prepared by: Page: 6 of 6 Zhenxiaqu
