Technical Data Sheet 0603 Package Chip LED (0.3mm Height)

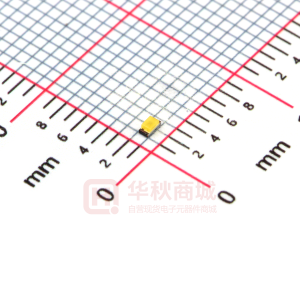

19-218/T1D-AQ2R2TY/3T
Features
․Package in 8mm tape on 7〞diameter reel. ․Compatible with automatic placement equipment. ․Compatible with infrared and vapor phase reflow solder process. ․Mono-color type. ․Pb-free. ․The product itself will remain within RoHS compliant version.
Descriptions
․The 19-218 SMD Taping is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained. ․Besides, lightweight makes them ideal for miniature applications. etc.
Applications
․Backlighting in dashboard and switch. ․Telecommunication: indicator and backlighting in telephone and fax. ․Flat backlight for LCD, switch and symbol. ․General use.
Device Selection Guide Part No.
19-218/T1D-AQ2R2TY/3T
Chip
Material InGaN
Emitted Color Pure White
Lens Color
Yellow Diffused
Everlight Electronics Co., Ltd. Device No. : DSE-198-W01
http://www.everlight.com Prepared date:15-Jan-2007
Rev.1
Page: 1 of 12
Prepared by: Ashley Kuo
EVERLIGHT ELECTRONICS CO.,LTD.
19-218/T1D-AQ2R2TY/3T
Package Outline Dimensions
Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm
Everlight Electronics Co., Ltd. Device No. : DSE-198-W01
http://www.everlight.com Prepared date: 15-Jan-2007
Rev.1
Page: 2 of 12
Prepared by: Ashley Kuo
EVERLIGHT ELECTRONICS CO.,LTD.
19-218/T1D-AQ2R2TY/3T
Absolute Maximum Ratings (Ta=25℃)
Parameter Reverse Voltage Forward Current Peak Forward Current IFP (Duty 1/10 @1KHz) Power Dissipation Electrostatic Discharge(HBM) Operating Temperature Storage Temperature Soldering Temperature Pd ESD Topr Tstg Tsol 110 150 -40 ~ +85 -40 ~ +90 mW V ℃ ℃ 100 mA Symbol VR IF Rating 5 25 Unit V mA
Reflow Soldering : 260 ℃ for 10 sec. Hand Soldering : 350 ℃ for 3 sec.
Electro-Optical Characteristics (Ta=25℃)
Parameter
Luminous Intensity Viewing Angle Forward Voltage Reverse Current
Symbol Iv 2θ1/2 VF IR
Min. 90 ----2.60 -----
Typ. ----130 ---------
Max. 180 ----3.00 50
Unit mcd deg V μA
Condition
IF=5mA
VR=5V
Notes:
1.Tolerance of Luminous Intensity ±11% 2.Tolerance of Forward Voltage ±0.05V
Everlight Electronics Co., Ltd. Device No. : DSE-198-W01
http://www.everlight.com Prepared date: 15-Jan-2007
Rev.1
Page: 3 of 12
Prepared by: Ashley Kuo
EVERLIGHT ELECTRONICS CO.,LTD.
19-218/T1D-AQ2R2TY/3T
Bin Range Of Luminous Intensity & Forward Voltage
Symbol Bin Code Q2 IV R1 R2 28 VF 29 30 31 Min. 90 112 140 2.60 2.70 2.80 2.90 Max. 112 140 180 2.70 2.80 2.90 3.00 V IF=5mA mcd IF=5mA Unit Condition
Notes:
1.Tolerance of Luminous Intensity ±11% 2.Tolerance of Forward Voltage ±0.05V
Everlight Electronics Co., Ltd. Device No. : DSE-198-W01
http://www.everlight.com Prepared date: 15-Jan-2007
Rev.1
Page: 4 of 12
Prepared by: Ashley Kuo
EVERLIGHT ELECTRONICS CO.,LTD.
19-218/T1D-AQ2R2TY/3T
Chromaticity Coordinates Specifications for Bin Grading Group Bin Code CIE_x 0.274 0.274 0.294 0.294 0.274 0.274 0.294 0.294 0.294 0.294 0.314 0.314 0.294 0.294 0.314 0.314 0.314 0.314 0.334 0.334 0.314 0.314 0.334 0.334 CIE_y 0.226 0.258 0.286 0.254 0.258 0.291 0.319 0.286 0.254 0.286 0.315 0.282 0.286 0.319 0.347 0.315 0.282 0.315 0.343 0.311 0.315 0.347 0.376 0.343
Condition
1
2
3 A 4
IF= 5mA
5
6 Notes:
1.The C.I.E. 1931 chromaticity diagram ( Tolerance ±0.01). 2.The products are sensitive to static electricity and care must be fully taken when handling products.
Everlight Electronics Co., Ltd. Device No. : DSE-198-W01
http://www.everlight.com Prepared date: 15-Jan-2007
Rev.1
Page: 5 of 12
Prepared by: Ashley Kuo
EVERLIGHT ELECTRONICS CO.,LTD.
19-218/T1D-AQ2R2TY/3T
CIE Chromaticity Diagram
Everlight Electronics Co., Ltd. Device No. : DSE-198-W01
http://www.everlight.com Prepared date: 15-Jan-2007
Rev.1
Page: 6 of 12
Prepared by: Ashley Kuo
EVERLIGHT ELECTRONICS CO.,LTD.
19-218/T1D-AQ2R2TY/3T
Typical Electro-Optical Characteristics Curves
Everlight Electronics Co., Ltd. Device No. : DSE-198-W01
http://www.everlight.com Prepared date: 15-Jan-2007
Rev.1
Page: 7 of 12
Prepared by: Ashley Kuo
EVERLIGHT ELECTRONICS CO.,LTD.
19-218/T1D-AQ2R2TY/3T
Label explanation
CAT: Luminous Intensity Rank HUE: Chromaticity Coordinates REF: Forward Voltage Rank
Reel Dimensions
Note: The tolerances unless mentioned is ±0.1mm , Unit = mm
Everlight Electronics Co., Ltd. Device No. : DSE-198-W01
http://www.everlight.com Prepared date: 15-Jan-2007
Rev.1
Page: 8 of 12
Prepared by: Ashley Kuo
EVERLIGHT ELECTRONICS CO.,LTD.
19-218/T1D-AQ2R2TY/3T
Carrier Tape Dimensions: Loaded quantity 3000 PCS per reel
Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm
Moisture Resistant Packaging
Label
Aluminum moisture-proof bag
Desiccant
Label
Everlight Electronics Co., Ltd. Device No. : DSE-198-W01
http://www.everlight.com Prepared date: 15-Jan-2007
Rev.1
Page: 9 of 12
Prepared by: Ashley Kuo
EVERLIGHT ELECTRONICS CO.,LTD.
19-218/T1D-AQ2R2TY/3T
Reliability Test Items And Conditions
The reliability of products shall be satisfied with items listed below. Confidence level：90% LTPD：10%
No. 1
Items Reflow Soldering
Test Condition Temp. : 260℃±5℃ Min. 5sec. H : +100℃ 15min ∫ 5 min L : -40℃ 15min H : +100℃ 5min ∫ 10 sec L : -10℃ 5min Temp. : 100℃ Temp. : -40℃ IF = 20 mA 85℃/ 85%RH
Test Sample Hours/Cycles Size 6 Min. 300 Cycles 22 PCS.
Ac/Re 0/1
2
Temperature Cycle
22 PCS.
0/1
3
Thermal Shock High Temperature Storage Low Temperature Storage DC Operating Life High Temperature / High Humidity
300 Cycles 1000 Hrs. 1000 Hrs. 1000 Hrs. 1000 Hrs.
22 PCS.
0/1
4 5 6 7
22 PCS. 22 PCS. 22 PCS. 22 PCS.
0/1 0/1 0/1 0/1
Everlight Electronics Co., Ltd. Device No. : DSE-198-W01
http://www.everlight.com Prepared date: 15-Jan-2007
Rev.1
Page: 10 of 12
Prepared by: Ashley Kuo
EVERLIGHT ELECTRONICS CO.,LTD.
19-218/T1D-AQ2R2TY/3T
Precautions For Use
1. Over-current-proof Customer must apply resistors for protection, otherwise slight voltage shift will cause big current change ( Burn out will happen ). 2. Storage 2.1 Do not open moisture proof bag before the products are ready to use. 2.2 Before opening the package: The LEDs should be kept at 30℃ or less and 90%RH or less. 2.3 After opening the package: The LED's floor life is 1 year under 30℃ or less and 60% RH or less. If unused LEDs remain, it should be stored in moisture proof packages. 2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment : 60±5℃ for 24 hours. 3. Soldering Condition 3.1 Pb-free solder temperature profile
3.2 Reflow soldering should not be done more than two times. 3.3 When soldering, do not put stress on the LEDs during heating. 3.4 After soldering, do not warp the circuit board.
