DK-47WQT-RX62N

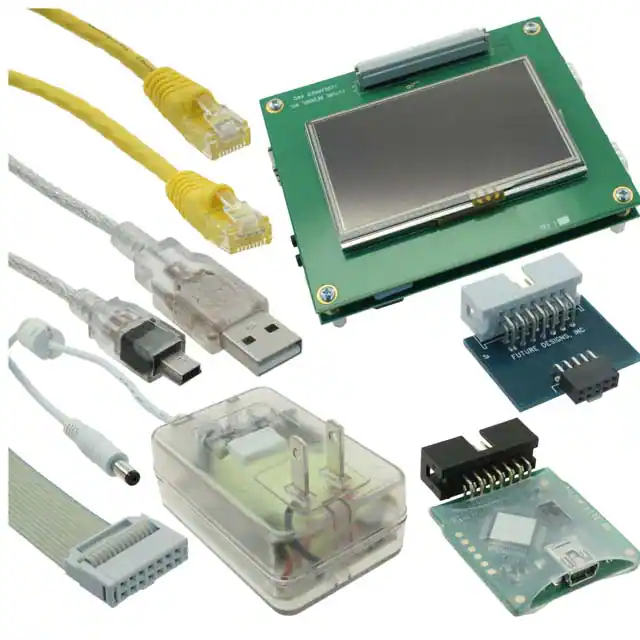

4.7” WQVGA Touch Screen LCD Kit DK-47WQT-RX62N For the Renesas RX62N Highlights  SOMDIMM – CPU Module based on SODIMM form factor (Dual Inline Memory Module) o RX62N 100MHz, 165 DMIPS microcontroller o 512KB of Internal FLASH, 96KB of Internal SRAM, 8MB of External SDRAM o 10/100 Ethernet PHY o Mini-JTAG Debug Connector  CARRIER – Generic Carrier Board for CPU and LCD Modules o 200-pin SOMDIMM Socket, supporting various processor modules o 10/100 Ethernet Port, USB Host and Device ports o One CAN port (Male DB9), One RS-232 port (Male DB9), External I2C interface o 3-axis Digital Accelerometer & Temperature Sensor o Real-time Clock with SuperCap backup o TFT interface for Graphics LCD displays up to 1024x768 resolution, 18-bit color o Flexible Power Supply input can be wall supply or 5V USB o 2-Channel I2S Audio Codec o Redpine and Roving Networks Wi-Fi compatible  LCDCARRIER o 4.7”W QVGA Display (480 x 272) with Touch Screen Interface o Optional Display sizes of 4.3” and 4.7” WQVGA resolutions  Software Included o FreeRTOS Operating System o uEZ® Rapid Development Platform o Drivers and APIs with documentation  Supplied with easy-to-use application documents for all hardware and software Platform is based on a modular design for maximum flexibility Additional CPU DIMM and LCD Carrier boards under development   The DK-47WQT-RX62N is optimized to save development time in typical embedded control applications. The modular format uses a base Carrier Board, a core CPU SOMDIMM and an LCD Carrier Board. The base Carrier Board includes expansion connectors for added flexibility and a range of configurations. FDI offers low cost customization services for customer specific hardware, software or packaging applications at volumes of 500 units or more. Features SOMDIMM-RX62N Description The SOMDIMM-RX62N includes a 100MHz Renesas RX62N microcontroller running the open source uEZ® + FreeRTOS software platform. The RX62N has 512KB of internal Flash memory, 96KB of internal SRAM, a 10/100 Ethernet Media Access Controller (MAC), a USB full speed device/host/OTG controller, up to six UARTs, one CAN channels and a collection of serial communications interfaces. The SOMDIMM-RX62N also includes 8MB of external SDRAM. Actual PCB dimensions are 2.66” x 1.89” Software Included μEZ® (pronounced Muse) is an open source rapid development platform that supplies application developers with an extensive library of open source software, drivers, and processor support - all under a common framework. μEZ® allows companies to focus on innovation and their value-added applications while minimizing development time and maximizing software reuse. The diagram below shows a typical embedded application stack. The μEZ® components comprise three primary categories to simplify embedded application development:    Operating System Abstraction Layer (μEZ® OSAL) Sub-system drivers (ex: μEZ® TCP/IP, μEZ® USB, μEZ® Driver) Hardware Abstraction Layer (μEZ® HAL) Ordering Information Kit Contents: Part Number: DK-47WQT-RX62N Renesas Part Number: TBD Suggested Resale Price: $475.00(USD) Order Online at: www.teamfdi.com Warranty: 30-day money back guarantee Phone 256-883-1240 Fax 256-883-1241 sales@teamfdi.com www.teamfdi.com - SOMDIMM-RX62N Board - CARRIER Board - LCDCARRIER Board & 4.7” WQVGA LCD Touch Screen - 5VDC, 2.3A North American Power Supply - USB and Ethernet Cables - Segger JTAG Debugger with cables Download Users Manual, documents, schematics, and software examples at: www.teamfdi.com/DK-47WQT-RX62N Rev 1 9/14/2011 All brand names and product names are trademarks or registered trademarks of their respective holder
