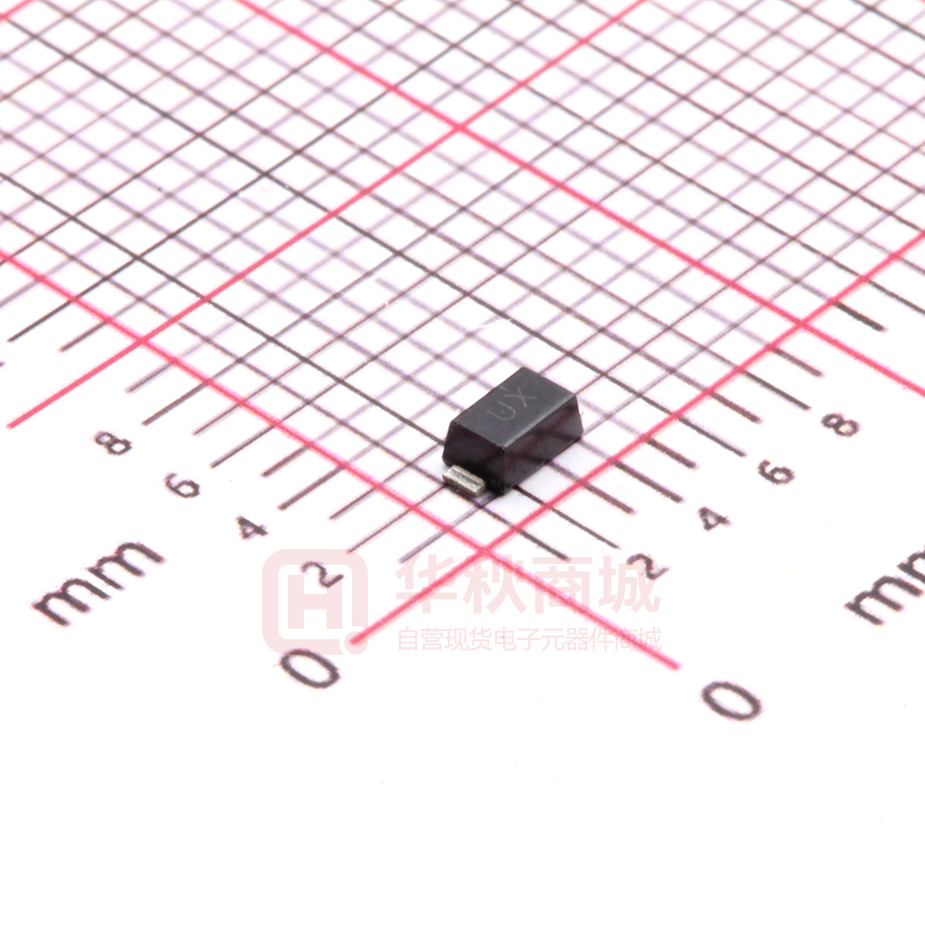

SMF22CA

Formosa MS SMD Transient Voltage Suppressor Diodes SMF5.0(C)A-MS THRU SMF170(C)A-MS List List................................................................................................. 1 Package outline............................................................................... 2 Features.......................................................................................... 2 Mechanical data............................................................................... 2 Maximum ratings ............................................................................. 2 Electrical characteristics................................................................... 3 Rating and characteristic curves........................................................ 4 Pinning information........................................................................... 5 Marking........................................................................................... 5 Suggested solder pad layout............................................................. 5 Packing information.......................................................................... 6 Reel packing.................................................................................... 7 Suggested thermal profiles for soldering processes............................. 7 High reliability test capabilities........................................................... 8 http://www.formosams.com/ TEL:886-2-22696661 FAX:886-2-22696141 Page 1 Document ID Issued Date Revised Date Revision Page. DS-121868 2011/02/25 2014/02/26 E 8 Formosa MS SMD Transient Voltage Suppressor Diodes SMF5.0(C)A-MS THRU SMF170(C)A-MS 200W Surface Mount Unidirectional and Bidirectional Transient Voltage Suppressors Diodes- 5.0V- 170V Package outline Features • For surface mounted applications in order to optimize board space • Low profile package • Excellent clamping capability • IEC61000-4-2 ESD 15kV Air, 8kV contact compliance • Protects one I/O line • Lead-free parts meet RoHS requirments • Suffix "-H" indicates Halogen-free part, ex.SMF5.0A-ΜS-H SOD-123S 0.154(3.9) 0.138(3.5) 0.018(0.45) Typ. 0.044(1.1) 0.079(2.0) 0.063(1.6) 0.028(0.7) Applications • Personal digital assistants (PDA) • Cellular handsets & Accessories • Portable devices • Portable instrumentation • Handhelds and notebooks • Digital cameras 0.119(3.0) 0.103(2.6) 0.009(0.22) 0.007(0.18) Mechanical data 0.040(1.00) 0.036(0.90) 0.032 (0.8) Typ. 0.032(0.8) Typ. • Epoxy : UL94-V0 rated flame retardant • Case : Molded plastic, SOD-123S/MINI SMA • Terminals :Plated terminals, solderable per MIL-STD-750, Dimensions in inches and (millimeters) Method 2026 • Polarity : Indicated by cathode band • Mounting Position : Any • Weight : Approximated 0.0155 gram Maximum ratings and Electrical characteristics (AT Parameter o T A =25 C unless otherwise noted) Conditions Symbol Value Unit Peak power dissipation Peak pulse power dissipation at T A = 25 O C by 10x1000 μ s ( note 1 ) P PPM 200 W Peak power dissipation Peak pulse power dissipation at O T A = 25 C by 8x20 μ s ( note 2 ) P PPM 1000 W Steady state power dissipation at T L =75 O C , (note 3) P M(AV) 1.0 W Typical thermal resistance Junction to ambient R θJA 70 O C/W Typical thermal resistance Junction to case R θJC 37 O C/W Typical thermal resistance Junction to lead R θJL 26 O C/W Maximum instantaneous forward voltage at I F =12A For uni-directional types only VF 3.5 TJ -55 to +150 O C T STG -65 to +175 O C Operating junction temperature range Storage temperature range V O Notes 1: Non - repetitive current pulse , per Fig . 2 and derated above T A = 25 C per Fig . 1 2 : Non - repetitive current pulse per Fig . 3 and derated above T A = 25 O C per Fig. 1 3: Mounted on copper pad area of 0.2"x0.2" (5.0x5.0 mm) per Fig.6 http://www.formosams.com/ TEL:886-2-22696661 FAX:886-2-22696141 Page 2 Document ID Issued Date Revised Date Revision Page. DS-121868 2011/02/25 2014/02/26 E 8 Formosa MS SMD Transient Voltage Suppressor Diodes Electrical characteristics (at T Part No. (Uni) Part No. (Bi) Reverse Stand-off Voltage o A =25 C unless otherwise noted) Breakdown Voltage VBR @ IT VRW M VB R M i n Volts Volts Test Current Maximum Clamping Voltage @I PP VB R M a x IT VC Volts mA Volts IP P Maximum Reverse Leakage Current I R @V R W M Marking Code (Note 4) μA A Uni Bi SMF5.0A-MS SMF5.0CA-MS 5.0 6.40 7.00 10 9.2 21.7 400 KE AE SMF6.0A-MS SMF6.0CA-MS 6.0 6.67 7.37 10 10.3 19.4 400 KG AG SMF6.5A-MS SMF6.5CA-MS 6.5 7.22 7.98 10 11.2 17.9 250 KK AK SMF7.0A-MS SMF7.0CA-MS 7.0 7.78 8.60 10 12.0 16.7 100 KM AM SMF7.5A-MS SMF7.5CA-MS 7.5 8.33 9.21 1.0 12.9 15.5 50 KP AP SMF8.0A-MS SMF8.0CA-MS 8.0 8.89 9.83 1.0 13.6 14.7 25 KR AR SMF8.5A-MS SMF8.5CA-MS 8.5 9.44 10.4 1.0 14.4 13.8 10 KT AT SMF9.0A-MS SMF9.0CA-MS 9.0 10.0 11.1 1.0 15.4 13.0 5.0 KV AV SMF10A-MS SMF10CA-MS 10 11.1 12.3 1.0 17.0 11.8 2.5 KX AX SMF11A-MS SMF11CA-MS 11 12.2 13.5 1.0 18.2 10.9 2.5 KZ AZ SMF12A-MS SMF12CA-MS 12 13.3 14.7 1.0 19.9 10.1 2.5 LE BE SMF13A-MS SMF13CA-MS 13 14.4 15.9 1.0 21.5 9.3 1 LG BG SMF14A-MS SMF14CA-MS 14 15.6 17.2 1.0 23.2 8.6 1 LK BK SMF15A-MS SMF15CA-MS 15 16.7 18.5 1.0 24.4 8.2 1 LM BM SMF16A-MS SMF16CA-MS 16 17.8 19.7 1.0 26.0 7.6 1 LP BP SMF17A-MS SMF17CA-MS 17 18.9 20.9 1.0 27.6 7.2 1 LR BR SMF18A-MS SMF18CA-MS 18 20.0 22.1 1.0 29.2 6.8 1 LT BT SMF20A-MS SMF20CA-MS 20 22.2 24.5 1.0 32.4 6.2 1 LV BV SMF22A-MS SMF22CA-MS 22 24.4 26.9 1.0 35.5 5.6 1 LX BX SMF24A-MS SMF24CA-MS 24 26.7 29.5 1.0 38.9 5.1 1 LZ BZ SMF26A-MS SMF26CA-MS 26 28.9 31.9 1.0 42.1 4.7 1 ME CE SMF28A-MS SMF28CA-MS 28 31.1 34.4 1.0 45.4 4.4 1 MG CG SMF30A-MS SMF30CA-MS 30 33.3 36.8 1.0 48.4 4.1 1 MK CK SMF33A-MS SMF33CA-MS 33 36.7 40.6 1.0 53.3 3.8 1 MM CM SMF36A-MS SMF36CA-MS 36 40.0 44.2 1.0 58.1 3.4 1 MP CP SMF40A-MS SMF40CA-MS 40 44.4 49.1 1.0 64.5 3.1 1 MR CR SMF43A-MS SMF43CA-MS 43 47.8 52.8 1.0 69.4 2.8 1 MT CT SMF45A-MS SMF45CA-MS 45 50.0 55.3 1.0 72.7 2.8 1 MV CV SMF48A-MS SMF48CA-MS 48 53.3 58.9 1.0 77.4 2.5 1 MX CX SMF51A-MS SMF51CA-MS 51 56.7 62.7 1.0 82.4 2.4 1 MZ CZ SMF54A-MS SMF54CA-MS 54 60.0 66.3 1.0 87.1 2.2 1 NE DE SMF58A-MS SMF58CA-MS 58 64.4 71.2 1.0 93.6 2.2 1 NG DG SMF60A-MS SMF60CA-MS 60 66.7 73.7 1.0 96.8 2.0 1 NK DK SMF64A-MS SMF64CA-MS 64 71.1 78.6 1.0 103.0 1.9 1 NM DM SMF70A-MS SMF70CA-MS 70 77.8 86.0 1.0 113.0 1.7 1 NP DP SMF75A-MS SMF75CA-MS 75 83.3 92.1 1.0 121.0 1.7 1 NR DR SMF78A-MS SMF78CA-MS 78 86.7 95.8 1.0 126.0 1.5 1 NT DT SMF85A-MS SMF85CA-MS 85 94.4 104.0 1.0 137.0 1.4 1 NV DV SMF90A-MS SMF90CA-MS 90 100.0 111.0 1.0 146.0 1.3 1 NX DX SMF100A-MS SMF100CA-MS 100 111.0 123.0 1.0 162.0 1.2 1 NZ DZ SMF110A-MS SMF110CA-MS 110 122.0 135.0 1.0 177.0 1.1 1 PE EE SMF120A-MS SMF120CA-MS 120 133.0 147.0 1.0 193.0 1.0 1 PG EG SMF130A-MS SMF130CA-MS 130 144.0 159.0 1.0 209.0 1.0 1 PK EK SMF150A-MS SMF150CA-MS 150 167.0 185.0 1.0 243.0 0.8 1 PM EM SMF160A-MS SMF160CA-MS 160 178.0 197.0 1.0 259.0 0.7 1 PP EP SMF170A-MS SMF170CA-MS 170 189.0 209.0 1.0 275.0 0.8 1 PR ER Notes 1 : V BR measured after I T applied for 300μs , I T = sequare wave pulse or equivalent 2 : Surge current waveform per 10 x 1000μs exponential wave and derated per Fig . 2 3 : All terms and symbols are consistent with ANSI / IEEE C62 . 35 4: For bi-directional types having V RWM of 10volts and less, the I R limit is doubled http://www.formosams.com/ TEL:886-2-22696661 FAX:886-2-22696141 Page 3 Document ID Issued Date Revised Date Revision Page. DS-121868 2011/02/25 2014/02/26 E 8 Formosa MS SMD Transient Voltage Suppressor Diodes Rating and characteristic curves (SMF SERIES) F IG .1 - P ULSE D ERATING C URVE 150 Peak Pulse Current, I PPM (%) Peak Pulse Power or Current Derating in Percentage, % 100 75 50 25 0 Tr
