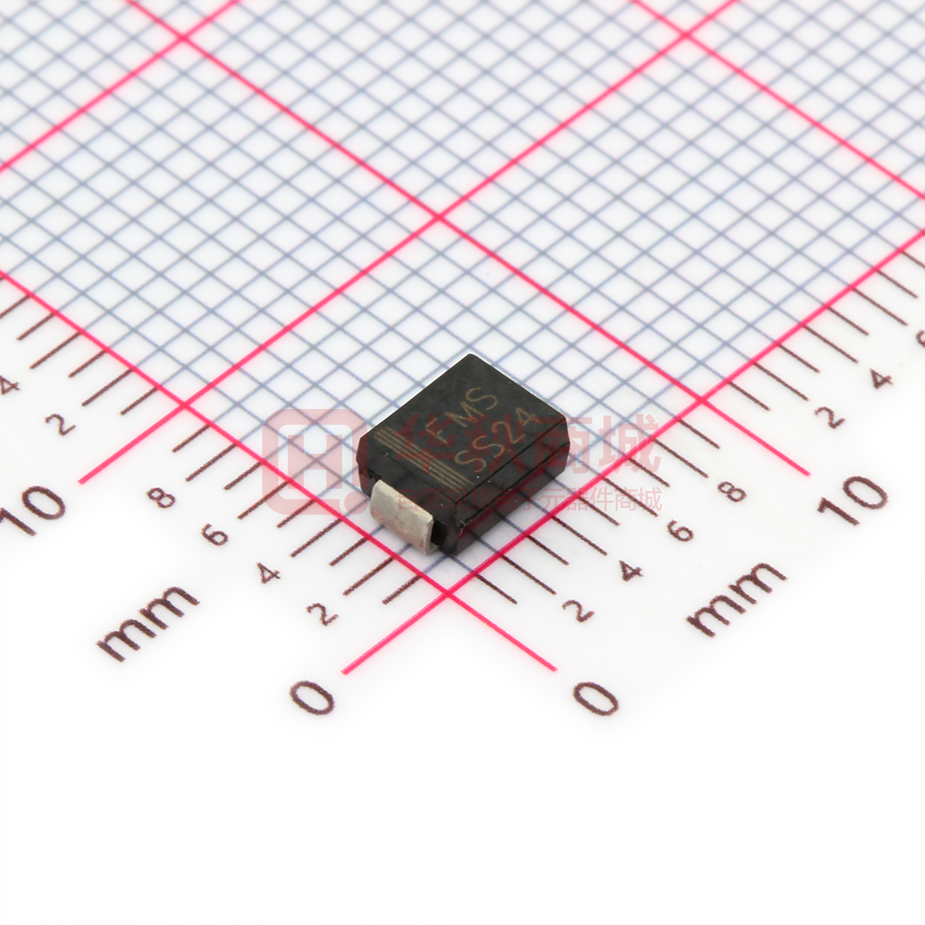

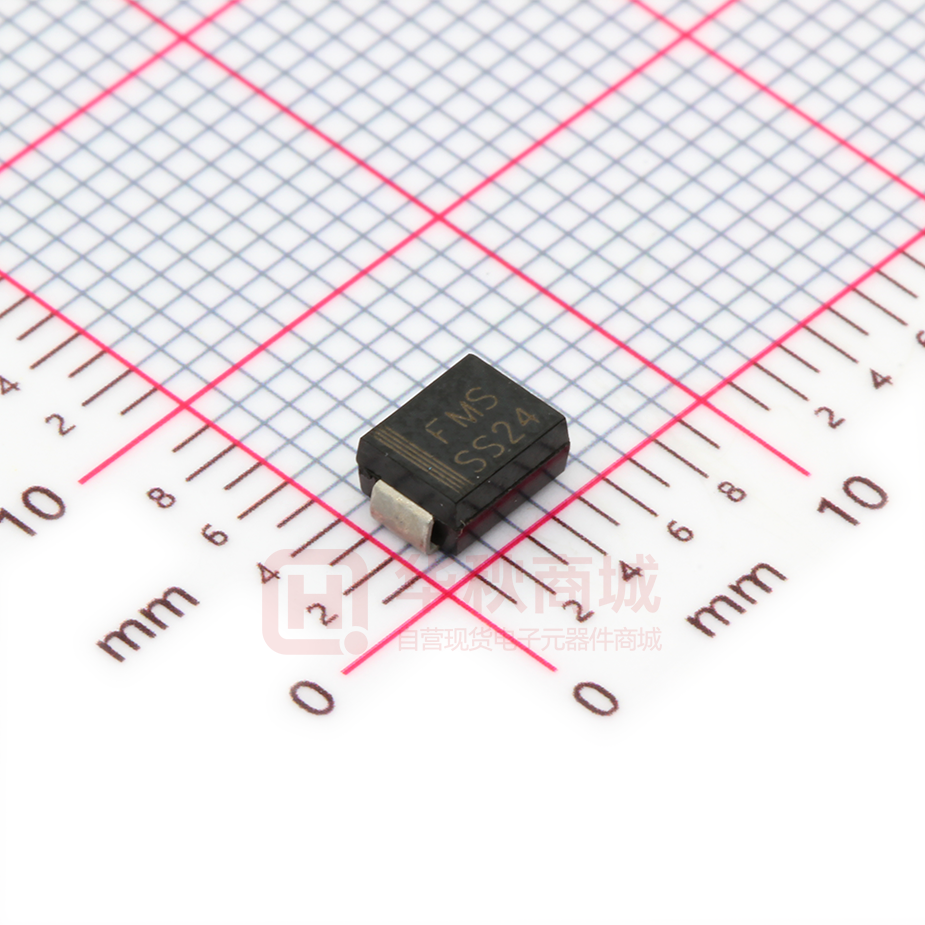

SS24-B

Formosa MS SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER SS22-B THRU SS220-B 2.0A Surface Mount Schottky Barrier Rectifiers - 20V-200V Package outline Features SMB/DO-214AA The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 For surface mounted applications Metal silicon junction,majority carrier conduction Low power loss,high efficiency Built-in strain relief,ideal for automated placement High forward surge current capability High temperature soldering guaranteed: 250 C/10 seconds at terminals Compliant to RoHS Directive 2011/65/EU Suffix"-H" indicates Halogen-free part,ex.SS24-B-H 0.155(3.94) 0.130(3.30) 0.086 (2.20) 0.071 (1.80) 0.183(4.65) 0.160(4.05) 0.012(0.305) 0.006(0.152) 0.096(2.45) 0.081(2.05) Mechanical data Case: JEDEC DO-214AA molded plastic body Terminals: Solder plated, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any Weight:0.003 ounce, 0.093 grams 0.060(1.52) 0.219(5.56) 0.202(5.14) Dimensions in inches and (millimeters) Maximum ratings and Electrical Characteristics (AT PARAMETER 0.008(0.203)MAX. 0.030(0.76) T A=25 oC unless otherwise noted) CONDITIONS Symbol MIN. TYP. MAX. UNIT Forward rectified current See Fig.2 IO 2.0 A Forward surge current 8.3ms single half sine-wave (JEDEC methode) I FSM 50 A V R = V RRM T A = 25 OC Reverse current V R = V RRM T A = 100 OC Thermal resistance Junction to ambient NOTE 1 Diode junction capacitance f=1MHz and applied 4V DC reverse voltage Storage temperature 0.5 IR 10 R θJA 75 CJ 220 T STG O C/W pF +150 -65 mA O C Note: 1.P.C.B. mounted with 0.2x0.2”(5.0x5.0mm) copper pad areas *1 V RRM (V) V RMS*2 (V) *3 VR (V) SS22-B 20 14 20 SS23-B 30 21 30 SYMBOLS SS24-B 40 28 40 SS25-B 50 35 50 SS26-B 60 42 60 SS28-B 80 56 80 SS210-B 100 70 100 SS215-B 150 105 150 SS220-B 200 140 200 http://www.formosams.cn TEL:886-755-27188611 FAX:886-755-27188568 *4 VF (V) Operating temperature T J, ( OC) 0.55 -55 to +125 *1 Repetitive peak reverse voltage *2 RMS voltage *3 Continuous reverse voltage *4 Maximum forward voltage@I F=2.0A 0.70 0.85 -55 to +150 0.92 Page 1 Document ID Issued Date Revised Date Revision Page. FM-3060010 2003/03/08 2012/05/16 D 3 Formosa MS SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER SS22-B THRU SS220-B 2.0 1.6 Single Phase Half Wave 60Hz Resistive or inductive Load 1.2 P.C.B mounted on 0.2*0.2"(5.0*5.0mm) copper pad areas 0.8 SS22-B-SS26-B SS28-B-SS220-B 0.4 0 0 25 50 75 100 125 150 FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 50 40 30 20 10 175 0 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) 1 TJ=25 C 10.0 1 SS22-B-SS24-B SS25-B-SS26-B SS28-B-SS210-B SS215-B-SS220-B 0.1 FIG. 4-TYPICAL REVERSE CHARACTERISTICS 100 10 TJ=100 C 1 TJ=75 C 0.1 0.01 TJ=25 C 0.001 0 20 40 60 80 100 PERCENT OF PEAK REVERSE VOLTAGE,% 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 INSTANTANEOUS FORWARD VOLTAGE, VOLTS FIG. 5-TYPICAL JUNCTION CAPACITANCE 2000 1000 TJ=25 C 100 SS22-B-SS24-B SS25-B-SS220-B TRANSIENT THERMAL IMPEDANCE, C/W 0.01 100 NUMBER OF CYCLES AT 60 Hz 50 JUNCTION CAPACITANCE, pF 10 LEAD TEMPERATURE, C FIG. 3-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS INSTANTANEOUS FORWARD CURRENT,AMPERES PEAK FORWARD SURGE CURRENT, AMPERES FIG. 1- FORWARD CURRENT DERATING CURVE INSTANTANEOUS REVERSE CURRENT, MILLIAMPERES AVERAGE FORWARD RECTIFIED CURRENT, AMPERES Rating and characteristic curves FIG. 6-TYPICAL TRANSIENT THERMAL IMPEDANCE 100 10 1 0.1 0.01 0.1 1 10 100 10 0.1 1.0 10 100 REVERSE VOLTAGE,VOLTS http://www.formosams.cn TEL:886-755-27188611 FAX:886-755-27188568 t,PULSE DURATION,sec. Page 2 Document ID Issued Date Revised Date Revision Page. FM-3060010 2003/03/08 2012/05/16 D 3 Formosa MS SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER SS22-B THRU SS220-B Pinning information Pin Pin1 Pin2 Simplified outline cathode anode 1 Symbol 2 1 2 Marking Type number Marking code SS22-B SS23-B SS24-B SS25-B SS26-B SS28-B SS210-B SS215-B SS220-B SS22 SS23 SS24 SS25 SS26 SS28 SS210 SS215 SS220 Example For Halogen D evice For Halogen-free Device LOGO LOGO FMS FMS SS24 SS24-H Marking code Marking code Suggested solder pad layout C A B Dimensions in inches and (millimeters) http://www.formosams.cn TEL:886-755-27188611 FAX:886-755-27188568 PACKAGE A B C SMB 0.078 (2.00) 0.059 (1.50) 0.110 (2.80) Page 3 Document ID Issued Date Revised Date Revision Page. FM-3060010 2003/03/08 2012/05/16 D 3
