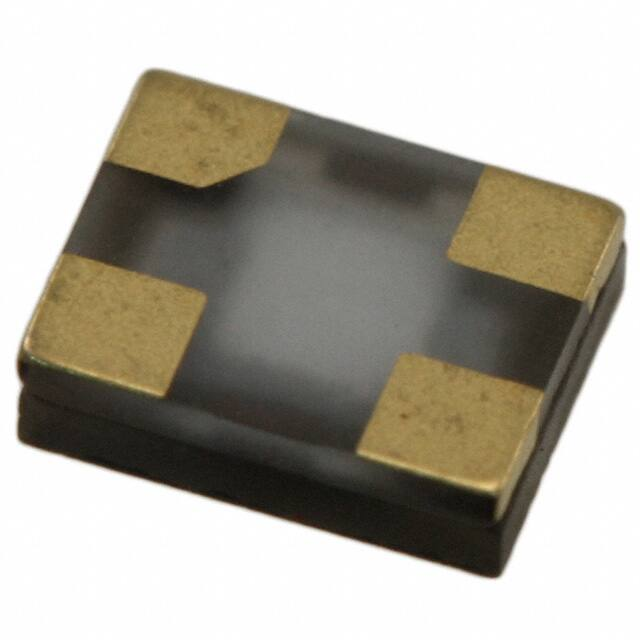

FC3BQBBME16.0-T1

FC3BQ 3.2mm x 2.5mm SMD Crystal (Former FQ3225B) Features • • Tolerances down to ±20 PPM Stabilities down to ±10 PPM STANDARD SPECIFICATIONS PARAMETERS Frequency Range Frequency Tolerance @ 25°C Frequency Stability, ref 25°C Over Operating Temp Range Temperature Range Operating (TOPR) Storage (TSTG) Shunt Capacitance (CO) Load Capacitance (CL) Drive Level MAX (Unless otherwise noted) 12.000 ~ 50.000 MHz (See options below) Aging per year (@ 25°C) Maximum Soldering Temp / Time Moisture Sensitivity Level (MSL) per J-STD-033 Termination Finish Seal Method Lead (Pb) Free RoHS Compliant ±5 PPM 260°C / 10 Seconds 1 DIMENSIONS / MECHANICAL SPECIFICATIONS (See options below) (See options below) -55°C ~ +125°C 3 pF (See options below) 100µW Frequency Range (MHz) 12.000 ~ 15.999999 16.000 ~ 20.000 20.000001 ~ 25.000 25.000001 ~ 30.000 30.000001 ~ 50.000 Ag Resin YES YES Chamfer may be on pad 1 of pad 3 Operating Mode Max ESR Ω Fundamental Fundamental Fundamental Fundamental Fundamental 120 100 80 60 50 Note: Dimensional drawing is for reference to critical specifications defined by size measurements. Certain noncritical visual attributes, such as side castellations, cover shape, etc. may vary. AVAILABLE OPERATING TEMPERATURES AND STABILITIES* Operating Temperature ±10 PPM ±15 PPM ±20 PPM ±25 PPM ±30 PPM -10°C ~ +70°C O O O O O -20°C ~ +70°C O O O O O -40°C ~ +85°C X X X X O Key: O = Available, X = Not Available, ∆ = Consult Fox Technical Support *Does not imply a stocked part. Revised B: 12/01/2021 Page 1 of 2 ±50 PPM O O O www.foxonline.com FC3BQ 3.2mm x 2.5mm SMD Crystal (Former FQ3225B) TAPE SPECIFICATIONS (mm) REEL SPECIFICATIONS (mm) A B C D E F REEL QTY G H I J K L M ø1.5 4.0 4.0 3.5 8.0 1.25 -T3 = 3,000 2.0 Ø13 Ø21 Ø62 Ø178 9.0 1.2 Available Options & Part Identification for SMD Crystal FC3BQ1 Sample PN: FC3BQBBME25.0-T3 F C3BQ B B M E 25.0 -T3 Fox Model Number Tolerance B = ±50 PPM C = ±30 PPM D = ±25 PPM E = ±20 PPM Stability B = ±50 PPM C = ±30 PPM D = ±25 PPM E = ±20 PPM F = ±15 PPM H = ±10 PPM Load Capacitance2 V = 7pF D = 8pF E = 10pF G = 12pF K = 16pF M = 20pF Operating Temperature E = -10 to +70°C F = -20 to +70°C M = -40 to +85°C Frequency (MHz) Values Added Options Blank = Bulk T3 = 3,000 pcs 1 Not all frequency, tolerance, stability, load, and operating temperature combinations may be available. 2 Listed load capacitances represent the most commonly used. Other load capacitances are available. Contact us for assistance Reliability Test Conditions Please contact Abracon Quality Assurance department Revised B: 12/01/2021 Page 2 of 2 www.foxonline.com
