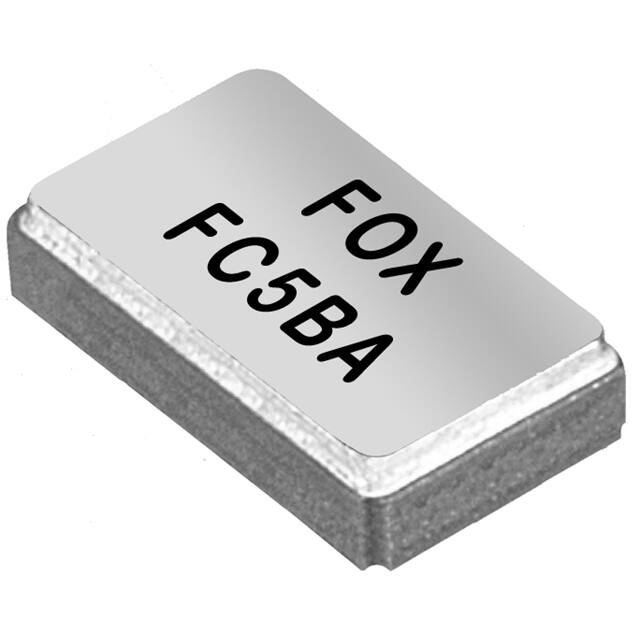

FC5BA 5mm x 3.2mm Auto Grade Crystal (Former FXA5032B) Features • • • • AEC Q200 Qualified IATF-16949 QMS Tolerances down to ±10 PPM Stabilities down to ±20 PPM STANDARD SPECIFICATIONS PARAMETERS Frequency Range Frequency Tolerance @ 25°C Frequency Stability, ref 25°C Temperature Range Operating (TOPR) Storage (TSTG) Shunt Capacitance (CO) Load Capacitance (CL) Drive Level Aging per year (@ 25°C) Maximum Soldering Temp / Time Moisture Sensitivity Level (MSL) per J-STD-033 Termination Finish Seal Method Lead (Pb) Free RoHS Compliant REACH Compliant (latest version) MAX (Unless otherwise noted) DIMENSIONS / MECHANICAL SPECIFICATIONS 8.000 ~ 133.000 MHz (See options below) (See options below) (See options below) -55°C ~ +150°C 7 pF (See options below) 100µW ±5 PPM 260°C / 10 Seconds x 2 N/A Au (0.3~1µm) over Ni (1.27~8.89µm) Seam Yes Yes, no exemptions Yes Frequency Range (MHz) Operating Mode Max ESR Ω 8.000 ~ 9.749999 9.750 ~ 9.999999 10.000 ~ 11.999999 12.000 ~ 15.999999 16.000 ~ 19.999999 20.000 ~ 49.999999 50.000 ~ 54.000 40.000 ~ 79.999999 80.000 ~ 99.999999 100.000 ~ 133.000 Fundamental Fundamental Fundamental Fundamental Fundamental Fundamental Fundamental 3RD OT 3RD OT 3RD OT 70 60 45 35 30 25 20 100 80 60 Note: Dimensional drawing is for reference to critical specifications defined by size measurements. AVAILABLE OPERATING TEMPERATURES AND STABILITIES Operating Temperature -40°C ~ +85°C -40°C ~ +105°C -40°C ~ +125°C -55°C ~ +125°C Revised A: 7/21/2020 ±20 PPM ±25 PPM ±30 PPM O O O X X O X X X X X X Key: O = Available, X = Not Available Page 1 of 2 ±50 PPM O O O O ±100 PPM O O O O www.foxonline.com FC5BA 5mm x 3.2mm Auto Grade Crystal (Former FXA5032B) TAPE SPECIFICATIONS (mm) REEL SPECIFICATIONS (mm) A B C D E F REEL QTY G H I J K L M ø1.55 4.0 8.0 5.5 12.0 1.4 -T1 = 1,000 2.0 Ø13 Ø21 Ø62 Ø180 13.5 2.0 Available Options & Part Identification for Automotive Crystal Model C5BA1 Sample PN: FC5BABCVI40.0-T1 F C5BA Fox Model Number B C Tolerance Stability B = ±50 PPM A = ±100 PPM C = ±30 PPM B = ±50 PPM D = ±25 PPM C = ±30 PPM E = ±20 PPM D = ±25 PPM F = ±15 PPM E = ±20 PPM H = ±10 PPM V I 40.0 -T1 Load Capacitance2 V = 7pF D = 8pF E = 10pF G = 12pF J = 15pF K = 16pF L = 18pF M = 20pF Operating Temperature M = -40 to +85°C P = -40 to +105°C I = -40 to +125°C T = -55 to +125°C Frequency (MHz) Values Added Options Blank = Bulk T1 = 1,000 pcs 1 Not all frequency, tolerance, stability, load, and operating temperature combinations may be available. 2 Listed load capacitances represent the most commonly used. Other load capacitances are available. Contact us for assistance Reliability Test Conditions Please contact Abracon Quality Assurance department Revised A: 7/21/2020 Page 2 of 2 www.foxonline.com
