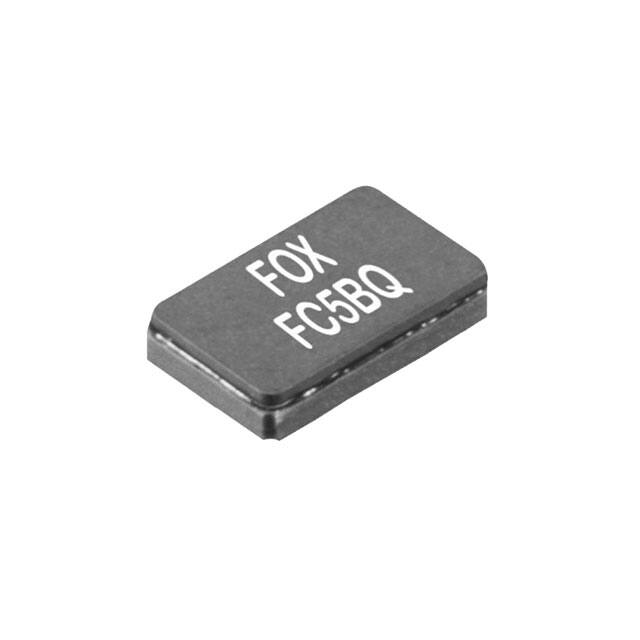

FC5BQCCMC20.0-T1

FC5BQ 5.0mm x 3.2mm SMD Crystal (Former FQ5032B) Features • • Tolerances down to ±20 PPM Stabilities down to ±10 PPM STANDARD SPECIFICATIONS PARAMETERS Frequency Range Frequency Tolerance @ 25°C Frequency Stability, ref 25°C Temperature Range Operating (TOPR) Storage (TSTG) Shunt Capacitance (CO) Load Capacitance (CL) Drive Level Aging per year (@ 25°C) Termination Finish Seal Method Lead (Pb) Free RoHS Compliant MAX (Unless otherwise noted) DIMENSIONS / MECHANICAL SPECIFICATIONS 8.000 ~ 48.000 MHz (See options below) (See options below) (See options below) -40°C ~ +85°C 5 pF (See options below) 0.5mW ±5 PPM Ag Resin Yes Yes ` 1.2 Max Frequency Range (MHz) Operating Mode Max ESR Ω 8.000000 ~ 11.999999 12.000000 ~ 16.000 16.000001 ~ 48.000 Fundamental Fundamental Fundamental 100 80 50 All dimensions are in millimeters. Note: Dimensional drawing is for reference to critical specifications defined by size measurements. Certain non-critical visual attributes, such as side castellations, etc. may vary AVAILABLE OPERATING TEMPERATURES AND STABILITIES* Operating Temperature ±10 PPM ±15 PPM ±20 PPM ±25 PPM ±30 PPM ±50 PPM 0 ~+70°C O O O O O O -20 ~+70°C O O O O O O -40 ~+85°C X X X X O O Key: O = Available, X = Not Available, ∆ = Consult Fox Technical Support *Does not imply a stocked part. Revised B: 11/16/2021 Page 1 of 2 www.foxonline.com FC5BQ 5.0mm x 3.2mm SMD Crystal (Former FQ5032B) TAPE SPECIFICATIONS (mm) REEL SPECIFICATIONS (mm) A B C D E F REEL QTY G H I J K L M ø1.55 4.0 8.0 5.5 12.0 1.4 -T1 = 1,000 2.0 Ø13 Ø21 Ø62 Ø180 13.5 2.0 Available Options & Part Identification for SMD Crystal C5BQ1 Sample PN: FC5BQCCMC25.0-T1 F Fox C5BQ C Model Tolerance Number B = ±50 PPM C = ±30 PPM D = ±25 PPM E = ±20 PPM C M C 25.0 -T1 Stability B = ±50 PPM C = ±30 PPM D = ±25 PPM E = ±20 PPM F = ±15 PPM H = ±10 PPM Load Capacitance2 V = 7pF D = 8pF E = 10pF G = 12pF J = 15pF K = 16pF L = 18pF M = 20pF Operating Temperature C = 0 to +70°C F = -20 to +70°C M = -40 to +85°C Frequency (MHz) Values Added Options Blank = Bulk T1 = 1,000 pcs 1 Not all frequency, tolerance, stability, load, and operating temperature combinations may be available. 2 Listed load capacitances represent the most commonly used. Other load capacitances are available. Contact us for assistance Reliability Test Conditions Please contact Abracon Quality Assurance department Revised B: 11/16/2021 Page 2 of 2 www.foxonline.com
