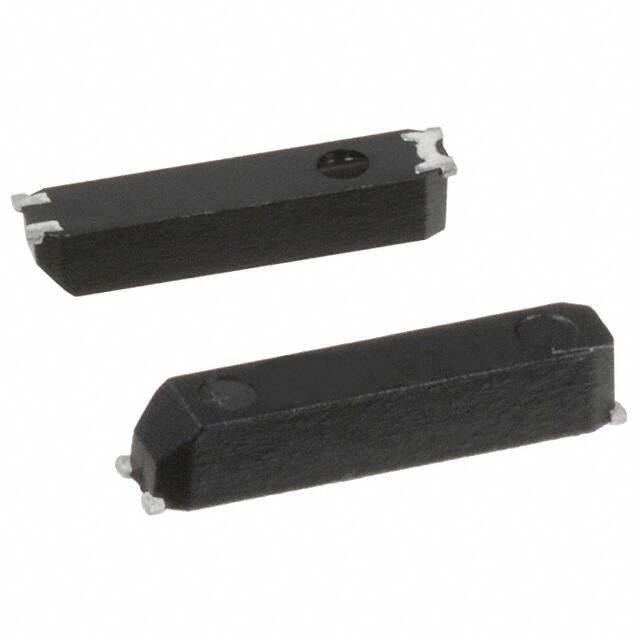

FKFSXEIHM0.032768-T3

FKFSX 7mm x 1.5mm SMD Tuning Fork Crystal (Former FSXLF) STANDARD SPECIFICATIONS PARAMETERS Frequency Range Frequency Tolerance @ 25°C Frequency Stability, ref 25°C (Temperature Coefficient) Temperature Range Turnover (TO) Operating (TOPR) Storage (TSTG) Equivalent Series Resistance (RS) Load Capacitance (CL) Insulation Resistance @ 100VDC Drive Level Aging per year (@ 25°C) Maximum Soldering Temp / Time Moisture Sensitivity Level (MSL) per J-STD-033 Termination Finish Lead (Pb) Free RoHS Compliant REACH Compliance MAX (Unless otherwise noted) 32.768 kHz (See options below) DIMENSIONS / MECHANICAL SPECIFICATIONS Dimensions (mm) -0.04 PPM / (∆°C)2 +20°C ~ +30°C -40°C ~ +85°C -55°C ~ +125°C 65 kΩ (See options below) 500MΩ Min 1.0µW ±3 PPM 260°C / 10 Seconds 1 Matte Sn Exemption 7a Yes Notification of Lead (Pb) >0.1%(w/w) Temperature Coefficient 0 -20 -40 -60 ppm -80 -100 RoHS EXEMPTION 7a: High Temperature solder (>85% Pb) in crystal seal -120 -140 -160 -180 -40-30-20-10 0 10 20 30 40 50 60 70 80 Note: Dimensional drawing is for reference to critical specifications defined by size measurements. Certain non-critical visual attributes, such as side castellations, etc. may vary. °C Revised A: 02/03/2020 Page 1 of 2 www.foxonline.com FKFSX 7mm x 1.5mm SMD Tuning Fork Crystal (Former FSXLF) TAPE SPECIFICATIONS (mm) A Ø1.55 B 4.0 C 4.0 D 7.5 E 16.0 F 1.6 REEL SPECIFICATIONS (mm) REEL QTY -T3 = 3,000 G 2.0 H Ø13 I Ø21 J Ø50 K Ø180 L 17.0 M 2.2 Available Options & Part Identification for SMD Tuning Fork Crystal FKFSX Sample PN: FKFSXEIHM0.032768-T3 F KFSX Fox Model Number E I Tolerance Stability E = ±20ppm I = -0.04 PPM/ (∆°C)2 H M 0.032768 -T3 Load Capacitance V = 7pF H = 12.5pF Operating Temperature M = -40 ~ +85°C Frequency (MHz) Values Added Options Blank = Bulk T3 = 3,000 pcs Reliability Test Conditions Please contact Abracon Quality Assurance department Revised A: 02/03/2020 Page 2 of 2 www.foxonline.com
