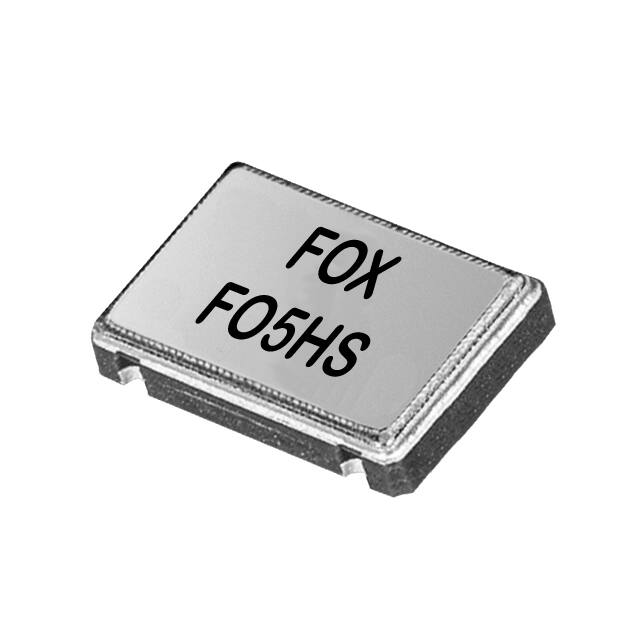

FO5HSCDM33.333333-T1 数据手册
FO5HS
5mm x 3.2mm
HCMOS SMD Oscillator
(Former F510L, F540L, F530L, F550L)
Features
•
•
•
•
HCMOS Output
Stabilities to ±20 PPM
Temperature Ranges from -40°C to +85°C
Supply Voltages: 1.8V, 2.5V, 3.3V, 5.0V
1.8V ELECTRICAL CHARACTERISTICS
PARAMETERS
Frequency Range (FO)
Temperature Range
Storage (TSTG)
Supply Voltage (VDD)
Input Current
(IDD)
1.000 ~ 32.000MHz
>32.000 ~ 70.000MHz
>70.000 ~ 120.000MHz
>120.000 ~ 160.000MHz
Standby Current
Output Symmetry (50% VDD)
Rise/Fall Time (20%~80%VDD Levels) (TR/TF)
1.000 ~ 32.000MHz
>32.000 ~ 120.000MHz
>120.000 ~ 160.000MHz
Output Voltage (VOL)
(VOH)
Output Load
(HCMOS)
Start-up Time
(TS)
Output Disable Time 1
Output Enable Time 1
MAX (Unless otherwise noted)
1.000 ~ 160 MHz
-55°C ~ +125°C
1.8V±5%
5 mA
10 mA
15 mA
30 mA
10µA
40 % ~ 60 %
5 nS
3.5 nS
3 nS
20 % VDD
80 % VDD Min
15 pF
10 mS
300 nS
10 mS
ENABLE / DISABLE FUNCTION
Pin1
OPEN 1
‘1’ Level VIH ≥ 70%VDD
‘0’ Level VIL ≤ 30%VDD
Revised F: 11/12/2020
Output (pin 3)
Active
Active
High Z
Page 1 of 7
www.foxonline.com
FO5HS
(Former F510L, F540L, F530L, F550L)
5mm x 3.2mm
HCMOS SMD Oscillator
Available Options by Stability & Operating Temp for 1.8V
Frequency Stability
±100PPM2
±100PPM2
±100PPM2
±50PPM2
±50PPM2
±50PPM2
±25PPM2
±25PPM2
±25PPM3
±20PPM3
±20PPM3
Operating Temperature (°C)
-10 ~ +70
-20 ~ +70
-40 ~ +85
-10 ~ +70
-20 ~ +70
-40 ~ +85
-10 ~ +70
-20 ~ +70
-40 ~ +85
-10 ~ +70
-20 ~ +70
Frequency Range (MHz)
1.000 ~ 160.000
1.000 ~ 160.000
1.000 ~ 160.000
1.000 ~ 160.000
1.000 ~ 160.000
1.000 ~ 160.000
1.000 ~ 160.000
1.000 ~ 160.000
1.000 ~ 160.000
1.000 ~ 160.000
1.000 ~ 160.000
An internal pull-up resistor from pin 1 to pin 4 allows active output if pin 1 is left open
Inclusive of 25°C tolerance, operating temperature range, input voltage change, load change,
Reflow, one-year aging, shock, and vibration.
3 Inclusive of 25°C tolerance and operating temperature range.
1
2
Revised F: 11/12/2020
Page 2 of 7
www.foxonline.com
FO5HS
5mm x 3.2mm
HCMOS SMD Oscillator
(Former F510L, F540L, F530L, F550L)
2.5V ELECTRICAL CHARACTERISTICS
PARAMETERS
Frequency Range (FO)
Temperature Range
Storage (TSTG)
Supply Voltage (VDD)
Input Current
(IDD)
1.000 ~ 32.000MHz
>32.000 ~ 50.000MHz
>50.000 ~ 125.000MHz
>125.000 ~ 160.000MHz
Standby Current (IST)
Output Symmetry (50% VDD)
1.000 ~ 50.000MHz
> 50.000 ~ 160.000MHz
Rise/Fall Time (10%~90%VDD Levels) (TR/TF)
MAX (Unless otherwise noted)
1 ~ 160 MHz
Output Voltage
10 % VDD
90 % VDD Min
15 pF
10 mS
150 nS
10 mS
(VOL)
(VOH)
Output Load
(HCMOS)
Start-up Time
(TS)
Output Disable Time 1
Output Enable Time 1
-55°C ~ +125°C
2.5V±5%
7 mA
12 mA
26 mA
35 mA
10µA
45 % ~ 55 %
40 % ~ 60 %
5 nS
ENABLE / DISABLE FUNCTION
Pin1
OPEN 1
‘1’ Level VIH ≥ 70%VDD
‘0’ Level VIL ≤ 30%VDD
Output (pin 3)
Active
Active
High Z
Available Options by Stability & Operating Temp for 2.5V
Frequency Stability Operating Temperature (°C)
±100PPM2
-10 ~ +70
±100PPM2
-20 ~ +70
±100PPM2
-40 ~ +85
±50PPM2
-10 ~ +70
±50PPM2
-20 ~ +70
2
±50PPM
-40 ~ +85
±25PPM2
-10 ~ +70
±25PPM2
-20 ~ +70
±25PPM2
-40 ~ +85
±20PPM3
-10 ~ +70
3
±20PPM
-20 ~ +70
Frequency Range (MHz)
1.000 ~ 160.000
1.000 ~ 160.000
1.000 ~ 160.000
1.000 ~ 160.000
1.000 ~ 160.000
1.000 ~ 160.000
1.000 ~ 160.000
1.000 ~ 160.000
1.000 ~ 160.000
1.000 ~ 160.000
1.000 ~ 160.000
An internal pull-up resistor from pin 1 to pin 4 allows active output if pin 1 is left open
Inclusive of 25°C tolerance, operating temperature range, input voltage change, load change,
Reflow, one-year aging, shock, and vibration.
3 Inclusive of 25°C tolerance and operating temperature range.
1
2
Revised F: 11/12/2020
Page 3 of 7
www.foxonline.com
FO5HS
5mm x 3.2mm
HCMOS SMD Oscillator
(Former F510L, F540L, F530L, F550L)
3.3V ELECTRICAL CHARACTERISTICS
PARAMETERS
Frequency Range (FO)
Temperature Range
Storage (TSTG)
Supply Voltage (VDD)
Input Current
(IDD)
1.000 ~ 32.000MHz
>32.000 ~ 50.000MHz
>50.000 ~ 67.000MHz
>67.000 ~ 170.000MHz
Standby Current (IST)
Output Symmetry (50% VDD)
1.000 ~ 50.000MHz
>50.000 ~ 170.000MHz
Rise/Fall Time (10%~90%VDD Levels) (TR/TF)
1.000 ~ 80.000MHz
>80.000 ~ 125.000MHz
>125.000 ~ 170.000MHz
Output Voltage (VOL)
(VOH)
Output Load
(HCMOS)
Start-up Time
(TS)
Output Disable Time 1
Output Enable Time 1
MAX (Unless otherwise noted)
1 ~ 170MHz
-55°C ~ +125°C
3.3V±10%
15 mA
20 mA
25 mA
40 mA
10µA
45 % ~ 55 %
40 % ~ 60 %
6 nS
4 nS
3 nS
10 % VDD
90 % VDD Min
15 pF
10 mS
150 nS
10 mS
ENABLE / DISABLE FUNCTION
Pin1
OPEN 1
‘1’ Level VIH ≥ 70%VDD
‘0’ Level VIL ≤ 30%VDD
Output (pin 3)
Active
Active
High Z
Available Options by Stability & Operating Temp for 3.3V
Frequency Stability Operating Temperature (°C)
±100PPM2
-10 ~ +70
2
±100PPM
-20 ~ +70
±100PPM2
-40 ~ +85
±50PPM2
-10 ~ +70
±50PPM2
-20 ~ +70
±50PPM2
-40 ~ +85
±25PPM2
-10 ~ +70
2
±25PPM
-20 ~ +70
±25PPM2
-40 ~ +85
±20PPM3
-10 ~ +70
±20PPM3
-20 ~ +70
1
2
Frequency Range (MHz)
1.000 ~ 170.000
1.000 ~ 170.000
1.000 ~ 170.000
1.000 ~ 170.000
1.000 ~ 170.000
1.000 ~ 170.000
1.000 ~ 170.000
1.000 ~ 170.000
1.000 ~ 170.000
1.000 ~ 170.000
1.000 ~ 170.000
An internal pull-up resistor from pin 1 to pin 4 allows active output if pin 1 is left open
Inclusive of 25°C tolerance, operating temperature range, input voltage change, load change,
Reflow, one-year aging, shock, and vibration.
Revised F: 11/12/2020
Page 4 of 7
www.foxonline.com
FO5HS
5mm x 3.2mm
HCMOS SMD Oscillator
(Former F510L, F540L, F530L, F550L)
3
Inclusive of 25°C tolerance and operating temperature range.
5.0V ELECTRICAL CHARACTERISTICS
PARAMETERS
Frequency Range (FO)
Temperature Range
Storage (TSTG)
Supply Voltage (VDD)
Input Current
(IDD)
Output Symmetry (50% VDD)
Rise/Fall Time (10%~90%VDD Levels) (TR/TF)
Output Voltage
(VOL)
(VOH)
Output Load
(HCMOS)
Start-up Time
(TS)
Output Disable Time 1
Output Enable Time 1
MAX (Unless otherwise noted)
1.544 ~ 50MHz
-55 ~ +125°C
5.0V ± 10%
35 mA
40% ~ 60%
10 nS
10% VDD
90% VDD Min
15 pF
10 mS
100 nS
100 nS
ENABLE / DISABLE FUNCTION
Pin1
OPEN 1
‘1’ Level VIH ≥ 70%VDD
‘0’ Level VIL ≤ 30%VDD
Output (pin 3)
Active
Active
High Z
Available Options by Stability & Operating Temp for 5.0V
Frequency Stability Operating Temperature (°C)
±100PPM2
-10 ~ +70
±100PPM2
-40 ~ +85
±50PPM2
-10 ~ +70
2
±50PPM
-40 ~ +85
±25PPM2
-10 ~ +70
±25PPM3
-40 ~ +85
±25PPM3
-10 ~ +70
Frequency Range (MHz)
1.544 ~ 50.000
1.544 ~ 50.000
1.544 ~ 50.000
1.544 ~ 50.000
1.544 ~ 50.000
1.544 ~ 50.000
1.544 ~ 50.000
An internal pull-up resistor from pin 1 to pin 4 allows active output if pin 1 is left open
Inclusive of 25°C tolerance, operating temperature range, input voltage change, load change,
Reflow, one-year aging, shock, and vibration.
3 Inclusive of 25°C tolerance and operating temperature range.
1
2
Revised F: 11/12/2020
Page 5 of 7
www.foxonline.com
FO5HS
5mm x 3.2mm
HCMOS SMD Oscillator
(Former F510L, F540L, F530L, F550L)
DIMENSIONS / MECHANICAL
SPECIFICATIONS
`
Note:
1, A 0.01μF capacitor should be placed between VDD
(Pin 4) and GND (Pin2) to minimize power supply line
noise.
2, Dimensional drawing is for reference to critical
specifications defined by size measurements. Certain
non-critical visual attributes, such as side castellation’s,
etc. may vary.
STANDARD SPECIFICATIONS
PARAMETERS
Maximum Soldering Temp / Time
Moisture Sensitivity Level (MSL)
Termination Finish
Seal Method
Lead (Pb) Free
ROHS Compliant
Revised F: 11/12/2020
MAX (Unless otherwise noted)
260°C / 10 Seconds x 2
N/A
Au (0.3~1µm) over Ni (1.27~8.89µm)
Seam
Yes
Yes
Page 6 of 7
www.foxonline.com
FO5HS
(Former F510L, F540L, F530L, F550L)
5mm x 3.2mm
HCMOS SMD Oscillator
TAPE SPECIFICATIONS (mm)
REEL SPECIFICATIONS (mm)
A
B
C
D
E
F
REEL QTY
G
H
I
J
K
L
M
ø1.5
4.0
8.0
5.5
12.0
1.5
-T1 = 1,000
2.0
Ø13
Ø21
Ø62
Ø180
13.5
2.0
Available Options & Part Identification*
Sample PN: FO5HSCBM25.0-T1
F
O5HS
Fox
Model
Number
C
B
M
25.0
-T1
Voltage
Stability
Operating
Frequency Values Added
K = 1.8V±5%
A = ±100 PPM
Temperature
(MHz)
Options
E = -10 to +70˚C
H = 2.5V±5%
B = ±50 PPM
Blank = Bulk
F = -20 to +70˚C
C = 3.3V±10%
D = ±25 PPM
T1 = 1,000 pcs
A = 5.0V±10%
E = ±20 PPM
M = -40 to +85˚C
*Not all frequencies in the frequency range, or every combination of stability, temp range, and voltage available
See stabilities and op temps for each VDD.
Reliability Test Conditions
Please contact Abracon Quality Assurance department
Revised F: 11/12/2020
Page 7 of 7
www.foxonline.com
