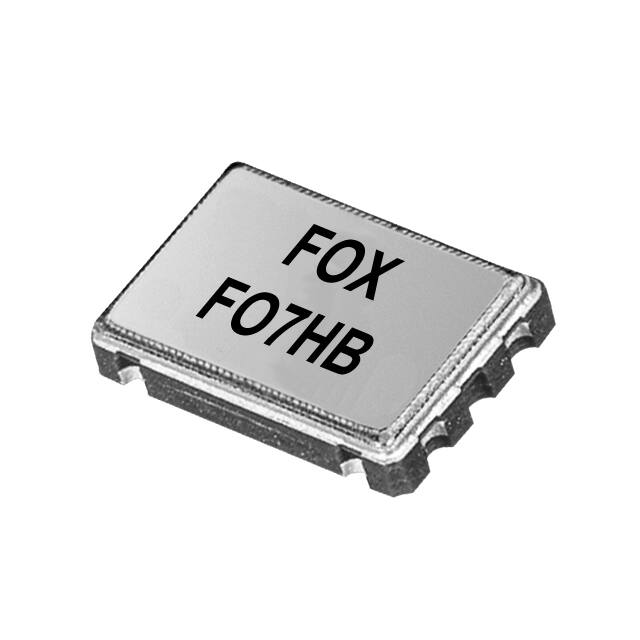

FO7HBAAM25.0-T2

FO7HB 7mm x 5mm HCMOS SMD Oscillator (Former F4101 Series) Features • • • • Standby Enable Disable Stabilities to ±25 PPM Temperature Ranges to -40°C to +85°C Supply Voltage: 5.0V 5.0V ELECTRICAL CHARACTERISTICS PARAMETERS Frequency Range (FO) Storage Temperature Range (TSTG) Supply Voltage (VDD) Input Current (IDD) 0.012 ~ 32.000MHz 32.000+ ~ 67.000MHz 67.000+ ~ 125.000MHz 125.000+ ~ 170.000MHz Standby Current Output Symmetry (50% VDD) Rise/Fall Time (10%/90% VDD Levels) (TR/TF) 0.012 ~ 79.999999MHz > 80.000 ~ 170.000MHz Output Voltage (VOL) (VOH) Output Load (HCMOS) Start-up Time (TS) Output Disable Time 1 Output Enable Time 1 MAX (Unless otherwise noted) 0.012 ~ 170.000MHz -55 ~ +125°C 5.0V±10% 18mA 50mA 80mA 90mA 10µA 40% ~ 60% 5nS 4nS 10% VDD 90% VDD Min 15pF 10mS 150nS 10mS ENABLE / DISABLE FUNCTION Pin 1 OPEN 1 ‘1’ Level VIH ≥ 70%VDD ‘0’ Level VIL ≤ 30%VDD Output (pin 3) Active Active High Z Available Options by Stability & Operating Temp for 5.0V Frequency Stability ±100PPM2 ±100PPM2 ±50PPM2 ±50PPM2 ±25PPM2 ±25PPM3 ±25PPM3 Operating Temperature (°C) -10 ~ +70 -40 ~ +85 -10 ~ +70 -40 ~ +85 -10 ~ +70 -40 ~ +85 -10 ~ +70 Frequency Range (MHz) 0.012 ~ 170.000 0.012 ~ 170.000 0.012 ~ 170.000 0.012 ~ 170.000 0.012 ~ 162.000 0.012 ~ 156.000 0.012 ~ 162.000 1 An internal pull-up resistor from pin 1 to pin 4 allows active output if pin 1 is left open Inclusive of 25°C tolerance, operating temperature range, input voltage change, load change, Reflow, and one-year aging. 3 Inclusive of 25°C tolerance and operating temperature rang. 2 Revised B: 01/21/2022 Page 1 of 3 www.foxonline.com FO7HB 7mm x 5mm HCMOS SMD Oscillator (Former F4101 Series) DIMENSIONS / MECHANICAL SPECIFICATIONS Note: *A 0.01μF capacitor should be placed between VDD (Pin 4) and GND (Pin2) to minimize power supply line noise. *Dimensional drawing is for reference to critical specifications defined by size measurements. Certain non-critical visual attributes, such as side castellation’s, reference pin shape, etc. may vary. STANDARD SPECIFICATIONS PARAMETERS Maximum Soldering Temp / Time Moisture Sensitivity Level Termination Finish Seal Method Lead (Pb) Free ROHS/REACH Compliant Revised B: 01/21/2022 MAX (Unless otherwise noted) 260°C / 10 Seconds x 2 1 Au (0.3~1µm) over Ni (1.27~8.89µm) Seam Yes Yes Page 2 of 3 www.foxonline.com FO7HB 7mm x 5mm HCMOS SMD Oscillator (Former F4101 Series) TAPE SPECIFICATIONS (mm) A ø1.5 B 4.0 C 8.0 D 7.5 E 16.0 F 2.15 REEL SPECIFICATIONS (mm) REEL QTY 1,000 G 2.0 H Ø13 I Ø21 J Ø80 K Ø255 L 17.5 M 2.0 * Not all frequencies in the frequency range, or every combination of stability, temp range, and voltage available. See stabilities and op temps for each VDD. Available Options & Part Identification for HCMOS SMD Oscillator FO7HB* Sample PN: FO7HBABM25.0-T1 F O7HB A B M 25.0 -T1 Fox Model Number Voltage A = 5V±10% Stability A = ±100 PPM B = ±50 PPM D = ±25 PPM E = ±20 PPM Operating Temperature E = -10 to +70ºC M = -40 to +85°C Frequency (MHz) Values Added Options Blank = Bulk T1 = 1,000 pcs Reliability Test Conditions Please contact Abracon Quality Assurance department Revised B: 01/21/2022 Page 3 of 3 www.foxonline.com
