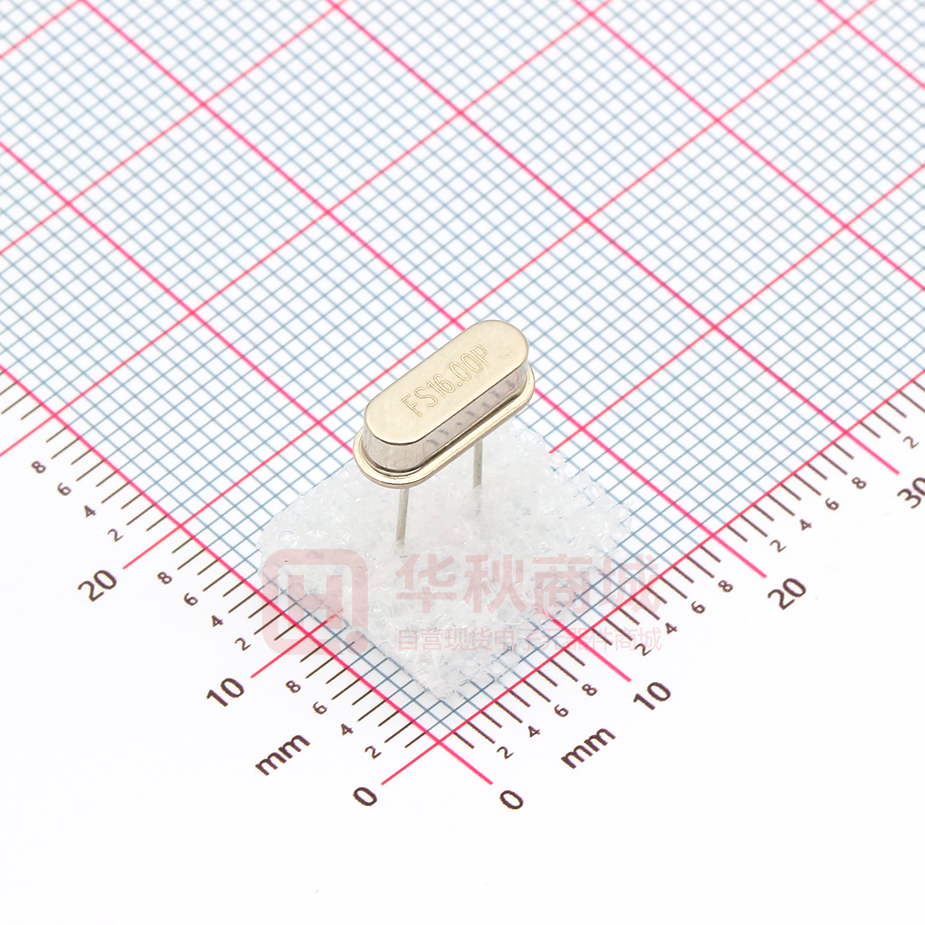

FOXSLF/160-20

Resistance Weld Thru-Hole Crystal RoHS Compliant / Pb Free Model: HC49SLF Rev. 3/30/2015 Page 1 of 2 http://www.foxonline.com/need_a_sample.htm FEATURES OPTIONS • • • • • • • • Low Cost Stocking Standard (see page 2) Fundamental to 40 MHz Resistance Weld Tolerances to 10 PPM Stabilities to 5 PPM Temperatures to -55ºC ~ +125ºC 2.5mm Height Max (HC49SSLF) • PART NUMBER Part Number 277LF-Frequency-xxxxx Model Number Frequency Range (MHz) HC49SLF 3.200 ~ 80.000 • STANDARD SPECIFICATIONS1 PARAMETERS Frequency Range Frequency Tolerance @ 25ºC Frequency Stability, ref @ 25ºC Temperature Range Operating (TOPR) Storage (TSTG) Shunt Capacitance (Co) Load Capacitance (CL) Drive Level Aging per year Maximum Soldering Temp / Time Moisture Sensitivity Level (MSL) Termination Finish: MAX (unless otherwise noted) 3.200 ~ 80.000 MHz ±50 PPM 1,3 ±50 PPM 1 -20ºC ~ +70ºC 2 -40ºC ~ +125ºC 7pF 10 pF ~ Series (Customer Specified) 0.5 mW (0.1 mW Typical) ±3 PPM 260ºC / 10 Seconds 1 Sn/Ag/Cu 1 Other tolerances, stabilities available. Consult Fox Customer Service for specific requirements. Operating temperature ranges to -55ºC ~ +125ºC available. 3 Crystal has a ±30ppm tolerance specification for all standard part numbers. These part numbers are listed on page 2 of this datasheet. 2 All dimensions are in millimeters. TERMINATION FINISH: Sn/3.0Ag/0.5Cu Note: Dimensional drawing is for reference to critical specifications defined by size measure¬ments. Certain non-critical visual attributes, such as side castellations, etc. may vary. All specifications subject to change without notice. Frequency Range (MHz) 3.200 ~ 3.500 3.500+ ~ 4.000 4.000+ ~ 5.000 5.000+ ~ 6.000 6.000+ ~ 7.000 7.000+ ~ 9.000 9.000+ ~ 13.000 13.000+ ~ 20.000 20.000+ ~ 40.000 27.000 ~ 70.000 70.000+ ~ 80.000 Fox Electronics Operating Mode Max ESR Ω Fundamental Fundamental Fundamental Fundamental Fundamental Fundamental Fundamental Fundamental Fundamental 3rd OT 3rd OT 300 200 150 120 100 80 60 40 30 100 80 5570 Enterprise Parkway Fort Myers, Florida 33905 An Integrated Device Technology, Inc. company USA +1.239.693.0099 FOXonline.com FAX +1.239.693.1554 Resistance Weld Thru-Hole Crystal RoHS Compliant / Pb Free Model: HC49SLF Page 2 of 2 Rev. 3/30/2015 http://www.foxonline.com/need_a_sample.htm All specifications subject to change without notice. • HC49SLF Standard Crystals Part Number FOXSLF/036S FOXSLF/0368S FOXSLF/0368-20 FOXSLF/040A FOXSLF/040 FOXSLF/073-20 FOXSLF/080 FOXSLF/080-20 FOXSLF/100-20 FOXSLF/115 FOXSLF/115-20 FOXSLF/120 FOXSLF/120-20 FOXSLF/147-20 FOXSLF/160 FOXSLF/160-20 FOXSLF/184-20 FOXSLF/200 FOXSLF/200-20 FOXSLF/250F-20 Fox Electronics Frequency 3.579545 3.686400 3.686400 4.000000 4.000000 7.372800 8.000000 8.000000 10.000000 11.059200 11.059200 12.000000 12.000000 14.745600 16.000000 16.000000 18.432000 20.000000 20.000000 25.000000 5570 Enterprise Parkway Tolerance ± 30 ppm ± 30 ppm ± 30 ppm ± 30 ppm ± 30 ppm ± 30 ppm ± 30 ppm ± 30 ppm ± 30 ppm ± 30 ppm ± 30 ppm ± 30 ppm ± 30 ppm ± 30 ppm ± 30 ppm ± 30 ppm ± 30 ppm ± 30 ppm ± 30 ppm ± 30 ppm Fort Myers, Florida 33905 An Integrated Device Technology, Inc. company Stability ± 50 ppm ± 50 ppm ± 50 ppm ± 50 ppm ± 50 ppm ± 50 ppm ± 50 ppm ± 50 ppm ± 50 ppm ± 50 ppm ± 50 ppm ± 50 ppm ± 50 ppm ± 50 ppm ± 50 ppm ± 50 ppm ± 50 ppm ± 50 ppm ± 50 ppm ± 50 ppm USA +1.239.693.0099 FOXonline.com Temp Range -20 to +70 C -20 to +70 C -20 to +70 C -20 to +70 C -20 to +70 C -20 to +70 C -20 to +70 C -20 to +70 C -20 to +70 C -20 to +70 C -20 to +70 C -20 to +70 C -20 to +70 C -20 to +70 C -20 to +70 C -20 to +70 C -20 to +70 C -20 to +70 C -20 to +70 C -20 to +70 C FAX +1.239.693.1554 CL 18pF Series 20pF Series 20pF 20pF Series 20pF 20pF Series 20pF Series 20pF 20pF Series 20pF 20pF Series 20pF 20pF 43
