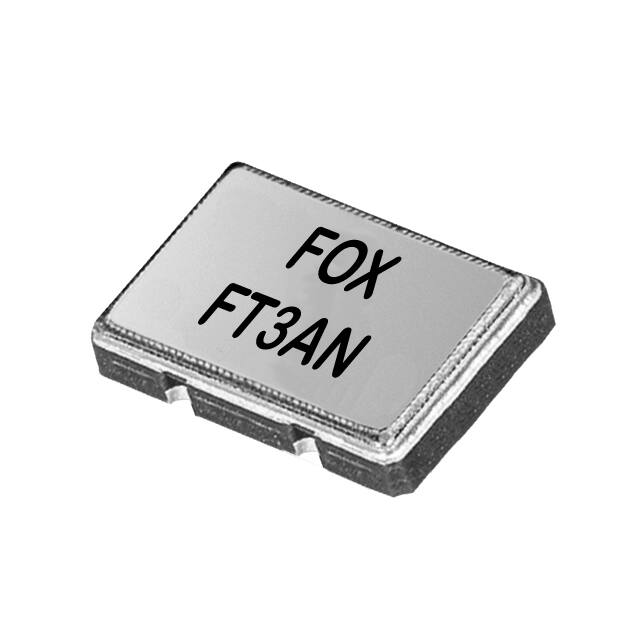

FT3AN 3.2mm x 2.5mm CSW-Sine TCXO (Former FOX923_A) Features • Analog Temperature Compensation STANDARD SPECIFICATIONS PARAMETERS Frequency Range (MHz) Temperature Range Operating (TOPR) Storage (TSTG) Supply Voltage (VDD) (±5%) MAX (Unless otherwise noted) 8 ~ 52.000 DIMENSIONS / MECHANICAL SPECIFICATIONS (See table below) -40°C ~ +90°C 1.8V; 2.5V; 2.7V; 2.8V; 3.0V; 3.3V 2.0 mA Input Current (IDD) Initial Frequency Tolerance @ 25°C ±2.0 PPM (after reflow) Frequency Stability (See table below) Over Temperature Range Over Supply Voltage Change (VDD±5%) ±0.2 PPM Over Load Change [10kΩ//10pF]+-10% ±0.2 PPM 0.8Vp-p min Output Voltage Level (VOL) 0.4V Output Voltage (VOL) [10kΩ//10pF]+-10% Output Load Pullability (T3AV: Vc = VDD ±1.0V;T3AVK 0.9V±0.9V)1 ±3 ~ ±15 PPM Aging per year (@ 25°C) ±1.0 PPM Startup Time (TS) 3.0 mS Phase Noise -130 dBc/Hz Typical @ 1kHz offset Reflow Soldering Temp 260˚C / 10 Seconds x 2 Moisture Sensitivity Level (MSL) 1 Termination Finish Au over Ni Lead-Free Yes RoHS/REACH Compliant Yes Available Options by Stability & Operating Temp Operating Temperature ±1 PPM ±1.5 PPM ±2 PPM ±2.5 PPM -30 ~+85˚C O O O O -40 ~+85˚C O O O ∆ -40 ~+105˚C X X X X Key: O=Available, X=Not Available, NA=Not Applicable, ∆ = Consult Fox Engineering All specifications subject to change without notice. Revised A: 08/06/2019 Page 1 of 2 ±15 PPM NA NA O www.foxonline.com FT3AN 3.2mm x 2.5mm CSW-Sine TCXO (Former FOX923_A) TAPE SPECIFICATIONS (mm) A B C D E F ø1.5 4.0 4.0 3.5 8.0 1.4 REEL SPECIFICATIONS (mm) REEL QTY -T3 = 3,000 default -T2 = 2,000 -T1 = 1,000 G H I J K L M 2.0 Ø13 Ø21 Ø60 Ø180 9.0 1.5 Available Options & Part Identification for TCXO Model T3AN 1 Sample PN: FT3ANBPK25.0-T3 F Fox 1 T3AN Model Number T3AN = TCXO B Tolerance B = +3.3V±5% D = +3.0V±5% Q = +2.8V±5% S = +2.7V±5% H = +2.5V±5% K = +1.8V±5% P Stability T = ±1.0 PPM S = ±1.5 PPM R = ±2.0 PPM P = ±2.5 PPM F = ±15 PPM K Operating Temperature K = -30 to +85°C M = -40 to +85°C P = -40 to +105°C 25.0 Frequency (MHz) -T3 Values Added Options Blank = Bulk T1 = 1,000 pcs T2 = 2,000 pcs T3 = 3,000 pcs Not all frequencies in the frequency range, or every combination of stability, temp range, and voltage available. See stabilities/operating temp table. Reliability Test Conditions Please contact Abracon Quality Assurance department INTERNAL ONLY INFORMATION Revised A: 08/06/2019 Page 2 of 2 www.foxonline.com
