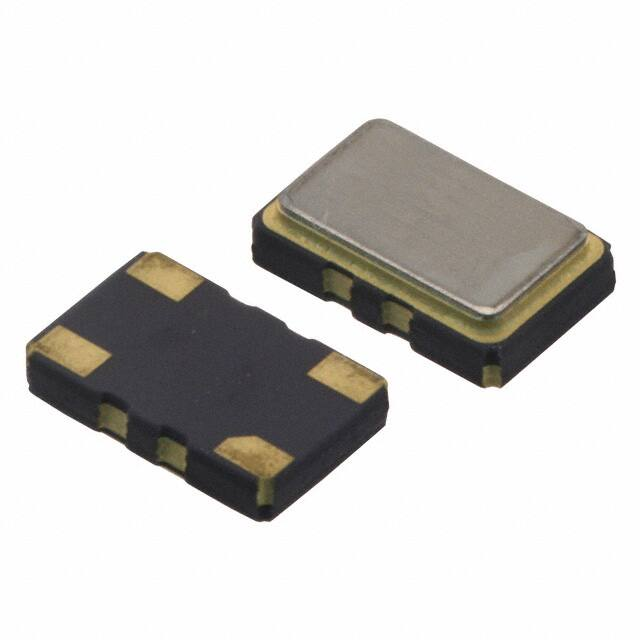

FT5HNBPK16.0-T1

3.3V ULTRA MINIATURE SMD HCMOS TCXO/VCTCXO MODEL: FOX924 SERIES FEATURES OPTIONS • • • • • • Voltage Control (FOX924E) 3.3V Operation 1.5mm Height Max HCMOS Output Low Cost Tape and Reel (2,000 pcs. STD) PRELIMINARY • PART NUMBER SELECTION Learn More - Internet Required Operating Frequency Model Frequency Number Stability Temperature(ºC) Range (MHz) -40 ~ +85 718-Frequency-xxxxx FOX924B See table 10.000~30.000 -40 ~ +85 719-Frequency-xxxxx FOX924E See table 10.000~30.000 Part Number Learn more about: Part Marking Identification Tape and Reel Specification Internet required • ELECTRICAL CHARACTERISTICS PARAMETERS MAX Frequency Range (FO) Temperature Range Operating (TOPR) Storage (TSTG) Supply Voltage (VDD) Input Current (IDD) Initial Frequency Tolerance @ 25ºC (after 2 reflows) Frequency Stability Over Temperature Range Over Supply Voltage Change (3.3V ± 5%) Output Voltage (HCMOS) (VOL) (VOH) Output Load Aging per year Startup Time (Ts) Pullability (Vc = 1.65 ± 1.5V) (unless otherwise noted) 10.000 ~ 30.000 MHz -40ºC ~ +85ºC -40ºC ~ +85ºC 3.3V ± 5% 5.0mA ±1.5PPM ±2.0PPM ±0.3PPM 10% VDD 90% VDD Min 15pF ±1.0PPM 5mS Max ±5.0 ~ ±15.0 PPM All specifications subject to change without notice. Rev. 9/7/04 All dimensions are in millimeters. 8 FOXElectronics 5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1(239)693-0099 FAX +1(239)693-1554 http://www.foxonline.com © 2004 FOX ELECTRONICS
