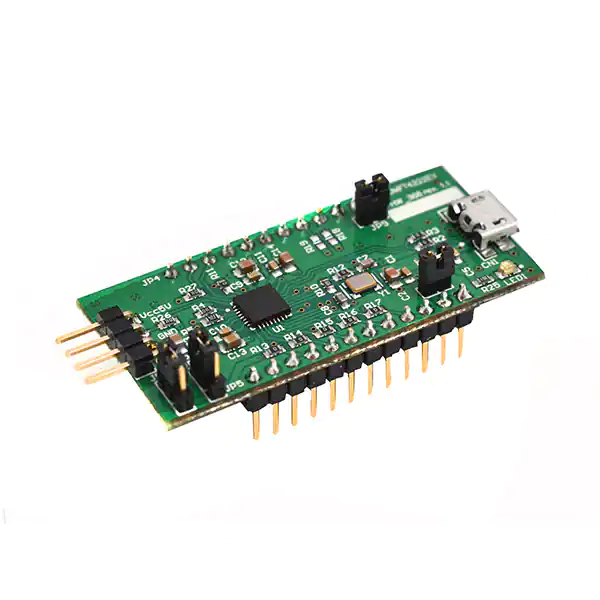

UMFT4222EV-D

UMFT4222EV - USB2.0 to QuadSPI/I2C Bridge Development Module Datasheet Version 1.4 Document No.: FT_001057 Clearance No.: FTDI#407 Future Technology Devices International Ltd UMFT4222EV USB2.0 to QuadSPI/I2C Bridge Development Module Datasheet Neither the whole nor any part of the information contained in, or the product described in this manual, may be adapted or reproduced in any material or electronic form without the prior written consent of the copyright holder. This product and its documentation are supplied on an as-is basis and no warranty as to their suitability for any particular purpose is either made or implied. Future Technology Devices International Ltd will not accept any claim for damages howsoever arising as a result of use or failure of this product. Your statutory rights are not affected. This product or any variant of it is not intended for use in any medical appliance, device or system in which the failure of the product might reasonably be expected to result in personal injury. This document provides preliminary information that may be subject to change without notice. No freedom to use patents or other intellectual property rights is implied by the publication of this document. Future Technology Devices International Ltd, Unit 1, 2 Seaward Place, Centurion Business Park, Glasgow G41 1HH United Kingdom. Scotland Registered Company Number: SC136640 Copyright © Future Technology Devices International Limited 1 UMFT4222EV - USB2.0 to QuadSPI/I2C Bridge Development Module Datasheet Version 1.4 Document No.: FT_001057 Clearance No.: FTDI#407 1 Introduction The UMFT4222EV is a development module which uses FTDI’s FT4222H, a Hi-Speed USB2.0 to QuadSPI/I2C Bridge in compact 32-pin QFN package. FT4222H requires an external Crystal (12MHz) for the internal PLL to operate. It supports multi-voltage IO, 3.3V, 2.5V or 1.8V. It also provides 128 Bytes one-time-programmable (OTP) memory space for storing vendor specific information. The FT4222H contains SPI/ I2C configurable interfaces. The SPI interface can be configured as master mode with single, dual, or quad bits data width transfer or slave mode with single bit data width transfer. The I2C interface can be configured as master or slave mode. The UMFT4222EV is supplied as a small PCB which is designed to plug into a standard 0.8” wide 24 pin DIP socket. All components are Pb-free (RoHS compliant). 1.1 USB Compliant The UMFT4222EV is fully compliant with the USB 2.0 specification and has been given the USB-IF Test-ID (TID) 10007740. Copyright © Future Technology Devices International Ltd 2 UMFT4222EV - USB2.0 to QuadSPI/I2C Bridge Development Module Datasheet Version 1.4 Document No.: FT_001057 Clearance No.: FTDI#407 Table of Contents 1 Introduction .................................................................... 2 1.1 2 USB Compliant .......................................................................... 2 Features .......................................................................... 5 2.1 Typical Applications .................................................................. 6 2.2 Driver Support .......................................................................... 6 2.3 Ordering information ................................................................ 6 3 FT4222H Features and Enhancement .............................. 7 4 UMFT4222EV Pin Out and Signal Descriptions ................. 8 5 4.1 UMFT4222EV Pin Out ................................................................ 8 4.2 Signal Descriptions ................................................................... 9 4.3 Jumper Configuration Options ................................................ 12 UMFT4222EV Mode Configuration ................................. 13 5.1 Mode Configuration ................................................................. 13 5.2 SPI Pin Definition .................................................................... 15 5.3 I2C Pin Definition .................................................................... 16 5.4 GPIO Pin Definition ................................................................. 16 5.5 Other Pin Definitions ............................................................... 17 6 Module Dimensions ....................................................... 18 7 Power Configurations .................................................... 19 7.1 BUS Powered Configuration .................................................... 19 7.2 Self Powered Configuration .................................................... 20 7.3 Using internal regulator of FT4222H ....................................... 21 7.4 Using external power source for FT4222H IO Supply Voltage . 22 8 UMFT4222EV Module Circuit Schematic......................... 23 9 Internal OTP Memory Configuration .............................. 24 9.1 Method of Programming the OTP Memory ............................... 24 Copyright © Future Technology Devices International Ltd 3 UMFT4222EV - USB2.0 to QuadSPI/I2C Bridge Development Module Datasheet Version 1.4 Document No.: FT_001057 Clearance No.: FTDI#407 10 Contact Information ...................................................... 25 Appendix A – References ................................................... 26 Document References ..................................................................... 26 Acronyms and Abbreviations ........................................................... 26 Appendix B – List of Tables and Figures ............................. 28 List of Tables ................................................................................... 28 List of Figures ................................................................................. 28 Appendix C – Revision History ........................................... 29 Copyright © Future Technology Devices International Ltd 4 UMFT4222EV - USB2.0 to QuadSPI/I2C Bridge Development Module Datasheet Version 1.4 Document No.: FT_001057 Clearance No.: FTDI#407 2 Features The UMFT4222EV has the following features:  Single Hi-Speed USB 2.0 chip (FT4222H) to flexible and configurable      SPI/I2C interfaces. SPI interface support for Single / Dual / Quad self-powered.  On board jumper for FT4222H configuration mode, USB power configuration and VCCIO operating speed. source selection Up to 28Mbps data transfer rate in SPI mode  Integrated power-on-reset circuit. with quad data mode.  True 3.3V CMOS drive output and TTL input. Support up to 4 slave selection control pins (operates down to 1.8V with external 1.8V in SPI master mode. power input to VCCIO) Support Single SPI Slave Mode with SCK  USB2.0 Low operating and suspend current; operating frequency up to 20MHz. 68mA I2C (suspend-typ.). I2C interface support 7-bits address and fully  Master/Slave Mode with configurable target operating speed for 100kbit/S standard mode, 400kbit/S fast mode 1Mbit/S Fast mode plus and 3.4Mbit/S high speed (active-typ.) and 375uA Configurable I/O pin output drive strength: 4 mA(min) and 16 mA(max)  UHCI / OHCI / EHCI / XHCI host controller compatible  FTDI’s royalty-free Direct (D2XX) drivers mode. eliminate the requirement for USB driver Configurable GPIOs controlled by application development in most cases software via USB bus  USB Power Configurations; bus-powered and SPI Master Mode with configurable target compatible to v2.1 and v3 specification for    Supplied PCB designed to fit a standard Fully support USB2.0 suspend/resume and 20.2mm (0.8”) wide 24 pin DIP socket. Pins remote wakeup are on a 2.54mm (0.1”) pitch.  Support Battery Charger Detection  OTP memory inside for USB Vendor ID (VID), Product ID (PID), device  On board USB Micro-B receptacle allows module to be connected to a PC. serial number, product description string and various other vendor specific data. Copyright © Future Technology Devices International Ltd 5 UMFT4222EV - USB2.0 to QuadSPI/I2C Bridge Development Module Datasheet Version 1.4 Document No.: FT_001057 Clearance No.: FTDI#407 2.1 Typical Applications  USB to single mode SPI master controller  USB to dual mode SPI master controller  USB to quad mode SPI master controller  USB to single SPI slave controller  USB to I2C master interface controller  USB to I2C slave interface controller  Utilising USB to add system modularity  Incorporate USB interface to enable PC transfers for development system communication  USB Industrial Control  USB Data Acquisition  USB dongle implementations for Software/ Hardware Encryption and Wireless Modules  Detect USB dedicated charging ports, to allow for high current battery charging in portable devices. 2.2 Driver Support Royalty free D2XX Direct Drivers (USB Drivers + DLL S/W Interface)  Windows 10 32, 64-bit  Server 2012 R2  Windows 8.1 32, 64-bit  Linux  Windows 8 32, 64-bit  MAC OSX  Windows 7 32, 64-bit  Android  Server 2008 R2 The drivers listed above are all available to download for free from FTDI website (www.ftdichip.com). For driver installation, please refer to http://www.ftdichip.com/Documents/InstallGuides.htm 2.3 Ordering information The following table gives details of the available UMFT4222EV. Part Number Description UMFT4222EV-D FT4222H evaluation module with D version chip. Table 1 UMFT4222EV Descriptions & Part Numbers Copyright © Future Technology Devices International Ltd 6 UMFT4222EV - USB2.0 to QuadSPI/I2C Bridge Development Module Datasheet Version 1.4 Document No.: FT_001057 Clearance No.: FTDI#407 3 FT4222H Features and Enhancement Functional Integration: The FT4222H is a USB 2.0 Hi-Speed (480Mbits/s) to flexible and configurable SPI/I2C interfaces device. The FT4222H includes an integrated +1.8V and +3.3V Low Drop-Out (LDO) regulator and a 12MHz to 480MHz PLL. It also includes Power-On-Reset (POR), VBUS detection with 5V-tolerance and 128 bytes one-time-programmable (OTP) memory which simplifies external circuit design and reduces external component count. USB2.0 Hi-Speed Device Controller: The FT4222H integrates a USB protocol engine which controls the physical Universal Transceiver Macro cell Interface (UTMI) and handles all aspects of the USB 2.0 Hi-Speed interface. The device contains one control endpoint and 4 IN and OUT endpoint pairs. These endpoints can be configured to implement up to 4 independent interfaces/applications mapped to I2C+GPIO or SPI+GPIO. Highly Integrated USB2.0 to Configurable SPI Bridge: The FT4222H provides the bridge function between a USB2.0 and SPI Master/Slave. The support library, LibFT4222, based on FTDI’s D2XX driver, enables easy configuration of the SPI as a master or slave. Operating clock frequency on the SPI bus, clock phase and polarity, transfer data bit width mode, and the number of slave selection controls are also configurable. The max SPI interface operating clock can be set up to 30MHz in master mode and 20MHz in slave mode. With quad mode (4-bits) data bus width, the max data transfer throughput can be up to 28Mbps. USB to Configurable I2C Controller: The FT4222H also provides the bridge function between a USB2.0 and an I2C Master/Slave. The support library, LibFT4222, based on FTDI’s D2XX driver, enables easy configuration of the I2C as either a master or slave, including target operating speed and bus protocol on I2C bus. The device can run at common I2C bus speeds, 100kbit/s standard mode (SM), 400 Kbit/s fast mode (FM), 1 Mbit/s Fast mode plus (FM+), and 3.4 Mbit/s High Speed mode (HS). Clock stretching is also supported to conform to v2.1 and v3.0 of the I2C specification. Configurable GPIOs: The GPIOs in the FT4222H can be fully controlled by an application utility over USB. There are 4 GPIO pins that can be configured for different purposes, such as a suspend indicator output, and remote wake up input. The signal drive strength and slew rate can be configured via USB vendor commands for different design needs. Embedded OTP memory: The internal OTP memory in the FT4222H is used to store USB Vendor ID (VID), Product ID (PID), device serial number, product description string and various other USB configuration descriptors. With this embedded OTP memory, the device can store vendor specific information and save BOM cost. The descriptors can be programmed using the FTDI utility software called FT_PROG, which can be downloaded from FTDI Utilities on the FTDI website (www.ftdichip.com). Power management: Fully supports USB2.0 suspend/resume and remote wakeup. The PHY will be put to a power saving mode and the clock to most of the digital circuits will be stopped when the device is suspended. Source Power and Power Consumption: The FT4222H is capable of operating at a voltage supply +3.3V or +5.0V with a nominal operational mode current of 68mA and a nominal USB suspend mode current of 375µA. This allows greater margin for peripheral designs to meet the USB suspend mode current limit of 2.5mA. An integrated level converter within the FT4222H allows the interface logic to run at +1.8V, 2.5V or +3.3V. (Note: External pull-ups are recommended for IO
