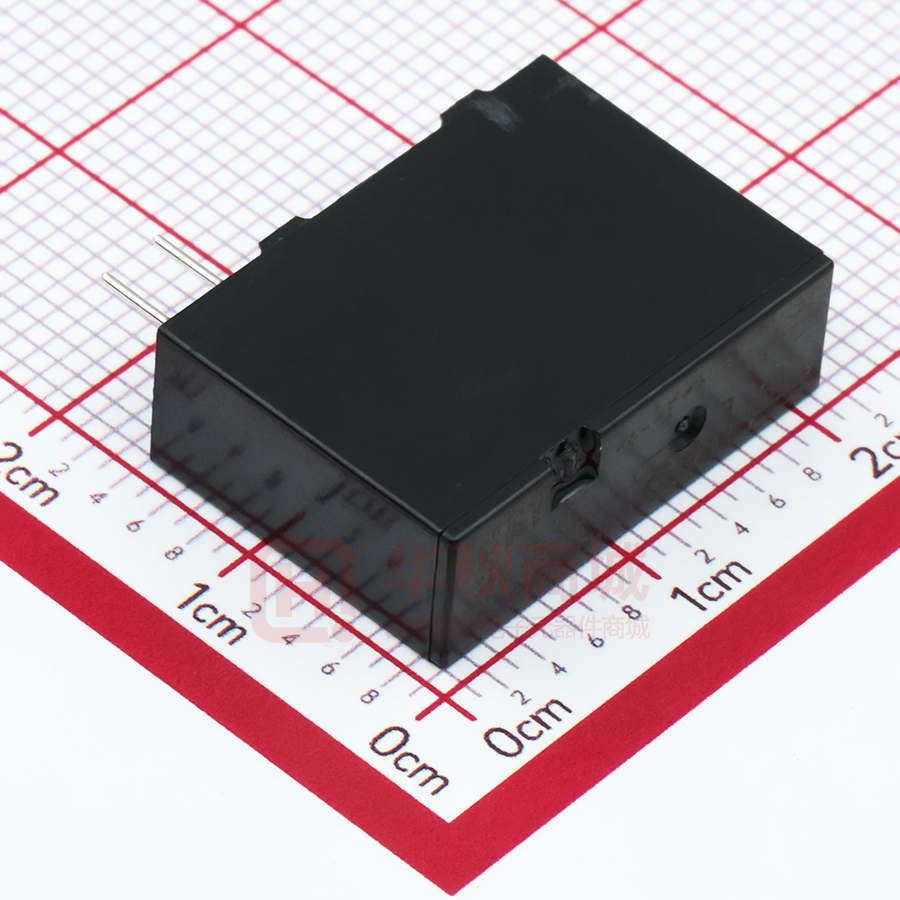

POWER RELAY 1 POLE 5A SLIM TYPE RELAY FTR-F3-HA Series RoHS compliant n Features HIGH DENSITY MOUNTING Slim type with 7mm width and 142mm2 mounting space l HIGH ISOLATION Insulation Distance: Minimum 6mm between coil and contact (conforms to IEC 60065) Dielectric Strength: 4KV Surge Strength: 10KV l HIGH COIL SENSITIVITY Nominal coil power consumption of 200mW l CADMIUM FREE CONTACT FOR ECO-PROGRAM l SAFETY STANDARDS UL, CSA, VDE, SEMKO, CQC l Plastic sealed relay l RoHS compliant since date code: 0435R1, 0432R2, 0429R3, 0434R4, 0437L2 Please see page 6 for more information l n ORDERING INFORMATION [Example] FTR-F3 A A 012 E –HA (a) (b) (c) (d) (e) (f ) (a) Series Nam e FTR-F 3 (b) Contact Arrangemen t A : 1 Form A (SPST-NO ) (c) Coil Typ e A : Standard (200mW ) (d) Coil Nominal Voltag e 005 : 5DC 006 : 6DC 009 : 9DC (e) Contact Materia l E : Silver nickel (f) Contact Ratin g HA : 5A sealing confirmed 012 : 12DC 018 : 18DC 024 : 24DC Remarks: Actual marking on relay would not carry code FTR and be as below: Ordering code FTR-F3AA012E → Actual marking F3AA012E  FTR-F3-HA SERIES n PART NUMBERS Ordering Part Number Series Coil Power Contact Coil Voltage FTR-F3AA005E-HA 5 FTR-F3AA006E-HA 6 FTR-F3AA009E-HA FTR-F3AA012E-HA FTR-F3 1 form A Standard (200 mW) 9 12 FTR-F3AA018E-HA 18 FTR-F3AA024E-HA 24 Contact Material Contact Rating Silver nickel 5A n COIL DATA CHART Coil Voltage Nominal Voltage (VDC) Max. Coil Voltage*1 Coil Resistance ( ±10%) Must Operate Voltage*2 Must Release Voltage*2 005 5 12.0 VDC 125 Ω 3.75 VDC 0.5 VDC 006 6 14.4 VDC 180 Ω 4.5 VDC 0.6 VDC 009 9 21.6 VDC 405 Ω 6.75 VDC 0.9 VDC 012 12 28.8 VDC 720 Ω 9.0 VDC 1.2 VDC 018 18 43.2 VDC 1,620 Ω 13.5 VDC 1.8 VDC 024 24 57.6 VDC 2,880 Ω 18.0 VDC 2.2 VDC Coil Power 200 mW Note: All values in the table are measured at 20°C. *1: No contact current at 20°C *2: Specified values are subject to pulse wave voltage  FTR-F3-HA SERIES n specifications Item Contact Coil FTR-F3 AA ( ) E-HA Arrangement 1 form A (SPST-NO) Material Silver nickel Configuration Single Resistance (initial) Maximum 100 mΩ at 6 VDC, 1 A Rating 5 A, 250 VAC / 30 VDC Maximum Carry Current 5A Maximum Switching Power 1,250 VA / 150 W Maximum Switching Voltage 277 VAC / 30VDC Maximum Switching Load*1 10 mA 5 VDC Rating Power 200 mW Must Operate Power 113 mW Operating Temperature -40ºC to +70ºC (no frost) Time Value Operate Time (without diode) Maximum 10 ms Release Time (without diode) Maximum 10 ms Mechanical 5 x 106 operations minimum Electrical 100 x 103 operations minimum Life Other Vibration Resistance Misoperation 10 to 55 Hz, at double amplitude of 1.5 mm Endurance 10-55Hz, at double amplitude of 1.5 mm Shock Resistance Misoperation Endurance Weight Min. 100m/s2 (11±1ms) Min. 1,000m/s2 (6±1ms) Approximately 4g *1 Minimum switching loads mentioned above are reference values. Please perform the confirmation test with the actual load before production since reference values may vary according to switching frequencies, environmental conditions and expected reliability levels. n INSULATION Item FTR-F3 Resistance (500 VDC) Minimum 1,000 MΩ Dielectric Strength open contacts 750 VAC (50/60 Hz) 1 min. coil and contacts 4,000 VAC (50/60 Hz) 1 min. Surge Voltage (coil and contact) 10,000 V (1.2 x 50µs standard wave) Clearance/Creepage 6 mm / 6 mm Insulation (DIN EN61810-1 VDE0435) Voltage Pollution Isolation material group 250 V 2 IIa Isolation category / Reference voltage (VDE01106) C / 250 V  FTR-F3-HA SERIES SAFETY STANDARDS n Type Compliance Contact rating UL UL 508 Flammability: UL 94-V0 (plastics) 5A, 30 VDC/ 277 VAC (resistive) 1/10 HP, 250VAC /125VAC 1/8 HP, 277VAC Pilot duty: D300, 120 VAC / 240 VAC E63614 CSA C22.2 No. 14 LR 40304 VDE 0435 5A, 250 VAC / 30 VDC 85ºC 4A, 250 VAC break 1A cosØ=0.8, 85C SEMKO EN 61058-1: 1992 +A1:1993 EN 61095:1993+A11 5A, 250 VAC 40T70 n CHARACTERISTIC DATA Non carrying current on contact 0 0.1 0.2 0.3 0.4 Coil power (W) 0.5 3A 0A FTR-F3 5A 2.0 1.8 1.6 1.4 1.2 il) hot co ltage ( ting vo ra e p O ol coil) ge (co g volta n ti ra e Op 1.0 0.8 0.6 100 AC250V/DC30V AC125V cosφ=0.4 DC30V τ=7ms 1 2 3 20 40 60 80 100 Nominal voltage multiplying factor (%) 4 5 Contact load current (A) 6 50 100 100 200 500 Distribution of contact resistance FTR-F3AA012E n=100 80 40 20 20 Contact Voltage (V) FTR-F3AA012E-HA n=100 60 0 DC30V τ=15ms DC Resistive 0.5 10 Distribution (%) AC250V cosφ=0.4 0 Operate Release 80 10 2 1 0.2 Distribution of operate and release voltage 20 5 2 0 10 20 30 40 50 60 70 80 90 100 110 Distribution (%) AC125 V 3 Ambient Temperature (ºC) FTR-F3-HA FTR-F3 AC Resistive 5 Life Curve 50 1 2.2 Maximum Switching Power 10 2.4 Contact Current (A) 3A carrying current on contact Nominal Voltage Mult. Factor 5A carrying current on contact 100 Service life (x104 operations) Operating Range Coil temperature rise Temperature rise (°C) 100 90 80 70 60 50 40 30 20 10 0 Make 60 40 20 0 4 8 12 16 20 Contact resistance (mΩ)  FTR-F3-HA SERIES n DIMENSIONS l PC board mounting hole layout (BOTTOM VIEW) l Schematics (BOTTOM VIEW) l Dimensions 20.3 +0.2(.799+.008) 7.0+0.2 (.275+.012) 0.35(.014) 1.32(.052) 2.7 (.106) 8.8(.346) 3 2.7 (.106) 8.8(.346) 7(.276) 1.25(.049) 4 0.8(.031) 4.7 (.185) f0.45(.017) NO 1.32(.052) 0.35(.014) f0.45(.017) 4-ø1.1(.043) 2 4.7(.185) 15.0 +0.3(.590+.012) COM 3.3 (.138) 0.5(.020) 1 1.25(.049) 7.0(.276)  FTR-F3-HA SERIES RoHS Compliance and Lead Free Relay Information 1. General Information Relays produced after the specific date code that is indicated on each data sheet are lead-free now. All of our signal and power relays are lead-free. Please refer to Lead-Free Status Info. (http://www.fujitsu.com/us/downloads/MICRO/fcai/relays/lead-free-letter.pdf) l Lead free solder paste currently used in relays is Sn-3.0Ag-0.5Cu. l All signal and power relays also comply with RoHS. Please refer to individual data sheets. Relays that are RoHS compliant do not contain the 5 hazardous materials that are restricted by RoHS directive (lead, mercury, chromium IV, PBB, PBDE). l It has been verified that using lead-free relays in leaded assembly process will not cause any problems (compatible). l “LF” is marked on each outer and inner carton. (No marking on individual relays). l To avoid leaded relays (for lead-free sample, etc.) please consult with area sales office. l We will ship leaded relays as long as the leaded relay inventory exists. Note: Cadmium was exempted from RoHS on October 21, 2005. (Amendment to Directive 2002/95/EC) l 2. Recommended Lead Free Solder Profile l Recommended solder paste Sn-3.0Ag-0.5Cu. Reflow Solder condition Flow Solder condition: Pre-heating: Soldering: maximum 120˚C dip within 5 sec. at 260˚C soler bath Solder by Soldering Iron: Soldering Iron Temperature: maximum 360˚C Duration: maximum 3 sec. We highly recommend that you confirm your actual solder conditions 3. Moisture Sensitivity l Moisture Sensitivity Level standard is not applicable to electromechanical realys. 4. Tin Whisker l Dipped SnAgCu solder is known as low risk tin whisker. No considerable length whisker was found by our in house test.  FTR-F3-HA SERIES Fujitsu Components International Headquarter Offices Japan Fujitsu Component Limited Gotanda-Chuo Building 3-5, Higashigotanda 2-chome, Shinagawa-ku Tokyo 141, Japan Tel: (81-3) 5449-7010 Fax: (81-3) 5449-2626 Email: promothq@ft.ed.fujitsu.com Web: www.fcl.fujitsu.com Europe Fujitsu Components Europe B.V. Diamantlaan 25 2132 WV Hoofddorp Netherlands Tel: (31-23) 5560910 Fax: (31-23) 5560950 Email: info@fceu.fujitsu.com Web: emea.fujitsu.com/components/ North and South America Fujitsu Components America, Inc. 250 E. Caribbean Drive Sunnyvale, CA 94089 U.S.A. Tel: (1-408) 745-4900 Fax: (1-408) 745-4970 Email: components@us.fujitsu.com Web: http://www.fujitsu.com/us/services/edevices/components/ Asia Pacific Fujitsu Components Asia Ltd. 102E Pasir Panjang Road #01-01 Citilink Warehouse Complex Singapore 118529 Tel: (65) 6375-8560 Fax: (65) 6273-3021 Email: fcal@fcal.fujitsu.com Web: http://www.fujitsu.com/sg/services/micro/components/ ©2008 Fujitsu Components America, Inc. All rights reserved. All trademarks or registered trademarks are the property of their respective owners. Fujitsu Components America or its affiliates do not warrant that the content of datasheet is error free. In a continuing effort to improve our products Fujitsu Components America, Inc. or its affiliates reserve the right to change specifications/datasheets without prior notice. Rev. January 7, 2008.
