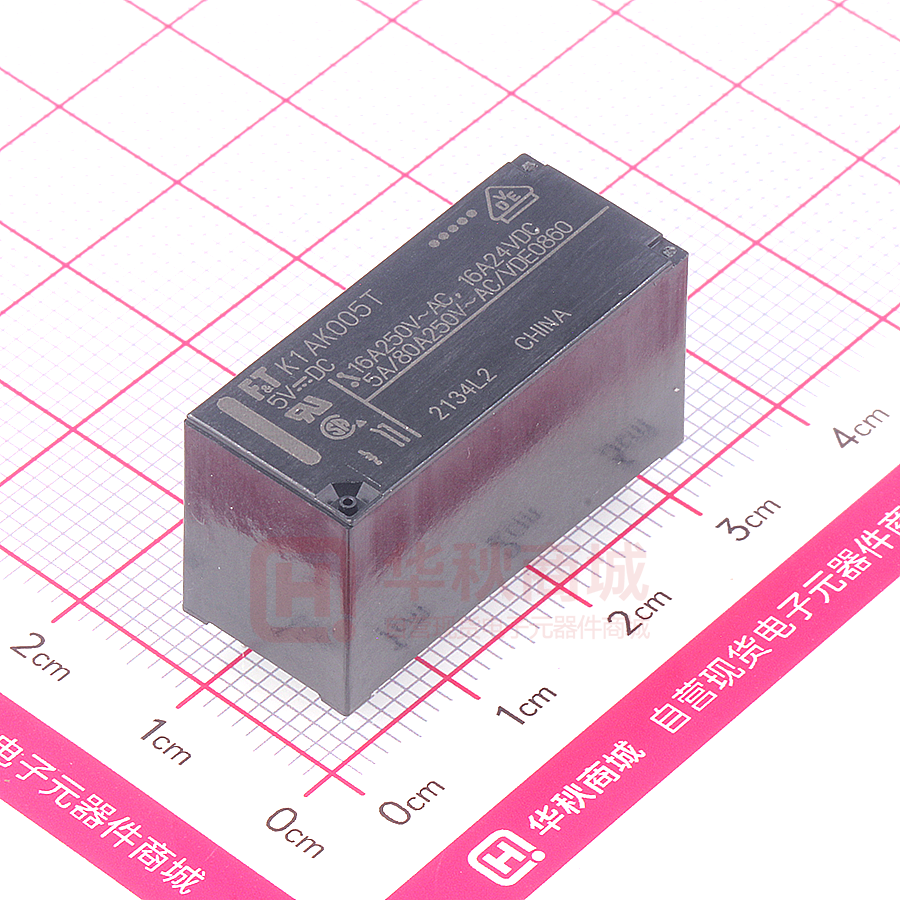

FTR-K1AK005T

POWER RELAY 1 POLE - 16A 80A Inrush type FTR-K1 Series ■■ FEATURES • Peak 80A inrush current (1 form A type) • Low profile (height: 15.7mm) • High insulation Insulation distance (between coil and contacts): 10mm min. Dielectric strength: 5KV Surge strength: 10KV • Class F coil wire • Low coil power (400mW) • Cadmium free contacts • Safety standards UL, CSA, VDE, CQC approved UL, CSA TV-5 rating approved (make contact) • Flux proof, RTII • RoHS compliant Please see page 6 for more information ■■ Part Numbers [Example] FTR-K1 C K 012 W (a) (b) (c) (d) (e) - BG (f) (a) Relay type (b) Contact configuration A : 1 form A (SPST-NO) C : 1 form C (SPDT) (standard type "K" only) (c) Coil type K : Standard type (400mW) / Flux proof (d) Coil rated voltage (e) Contact material (f) Special type FTR-K1 : FTR-K1 series 012 : 5..... 110VDC Coil rating table at page 3 T : AgSnO2 (1 form C, TV-5 contact (make contact only) W : AgSnO2 / TV-5 rated (1form A / TV-5 contact Nil : Standard type (without gold plate) Actual marking does not carry the type name: "FTR" E.g.: Ordering code: FTR-K1CK012W Actual marking: K1CK012W 1 FTR-K1 Series ■■ Specifications Item Contact Configuration data Construction FTR-K1 AK ( ) T FTR-K1 CK ( ) W 1 form A 1 form C Single Material AgSnO2 Resistance Max. 100mOhm at 1A, 6VDC Contact rating 16A, 250VAC / 24VDC Max. carrying current Max. inrush current Initial Resistive 20A 80A, 250VAC Max. switching voltage 440VAC / 300VDC Max. switching power 4,000VA / 384W Min. switching load Coil Remarks / conditions *1 100mA, 5VDC Rated power (20 C) 400mW (430mW at 48V coil, 420mW at 60V/110V coil) Operate power (20oC) 196mW (211mW at 48V coil, 206mW at 60V/110V coil) o Operating temperature range -40ºC ~ +85ºC No frost Timing data Operate Max. 15ms without bounce Release Max. 5ms without bounce, no diode Life Mechanical Electrical Min. 20 x 10⁶ operations AC contact rating Min. 100 x 10³ ops. Min. 50 x 10³ ops. DC contact rating Min. 100 x 10³ ops. Min. 30 x 10³ ops. Peak inrush Lamp (UL TV-5) Insulation Insulation resistance Dielectric strength Min. 25 x 10³ ops. Min. 1000MΩ at 500VDC 1000VAC (50/60Hz), 1 minute Coil contact 5000VAC (50/60Hz), 1 minute 10mm Creepage 10mm Voltage 250V Pollution 3 Material group Category Vibration resis- Misoperation ≥1us tance Endurance Shock resistance Sealing III a C / 250 (reference voltage) (VDE0110b) 10 to 55 to 10Hz single amplitude 0.35mm 10 to 55 to 10Hz single amplitude 0.75mm Misoperation ≥1us Min. 100m/s² (11 ± 1ms) Endurance Min. 1,000m/s² (6 ± 1ms) Dimensions / weight Initial 10,000V / 1.2 x 50μs standard wave Clearance EN61810-1, VDE0435 at 85°C, VDE#0435 (80A 250VAC) Min. 25 x 10³ ops. (only make contact) Open contacts Surge strength Coil to contacts Other Min. 10 x 10³ ops. (only make contact) 12.7 x 29.0 x 15.7 mm / approx. 13g Flux proof, RTII Need to consider the heat from PCB when max. current is more than 10A. *1 : Minimum switching loads mentioned above are reference values. Please perform the confirmation test with actual load before production since reference values may vary according to switching frequencies, environmental contions 2 FTR-K1 Series ■■ Coil Data Coil code Rated Coil Voltage Coil Resistance +/-10% Must Operate Voltage* Must Release Voltage* (VDC) (Ω) (VDC) (VDC) 005 5 62 3.5 0.5 006 6 90 4.2 0.6 009 9 202 6.3 0.9 012 12 360 8.4 1.2 018 18 810 12.6 1.8 022 22 1,210 15.4 2.2 024 24 1,440 16.8 2.4 028 28 1,960 19.6 2.8 048 48 5,360 33.6 4.8 060 60 8,570 42.0 6.0 110 110 28,800 77.0 11.0 Rated Power (mW) 400 430 420 Note: All values in the table are valid at 20oC and zero contact current, unless otherwise specified. * : Specified operated values are valid for pulse wave voltage. Note: Please use at rated coil voltage. Please refer to characteristic data and set up adequate voltage in case of use at over voltage. ■■ Safety Standards Type Compliance Contact rating 1A UL UL 508 E63614 CSA C22.2 No. 14 Flammability: UL 94-V0 (plastics) FTR-K1AK ( ) T 16A, 24VDC (resistive) 16A, 277VAC (resistive) 20A, 277VAC (resistive) 1 hp, 277VAC 1/2 hp, 125VAC TV-5, 120VAC 25,000 cycles Pilot duty: A300 IEC/EN61810-1 EN60065 clause 14.6.1 (1a only) EN60335-1 clause 15.3; 16.3; 29.1; 29.2; 29.3 EN60730-1 clause 12.2; 13.2; 20.1; 20.2; 20.3 CQC GB/T21711.1 GB15092 12002083788 FTR-K1CK ( ) W 16A, 277VAC/24VDC (resistive) 20A, 277VAC (resistive) 1 hp 277VAC 1/2 hp, 125VAC 1/8 hp, 125VAC TV-5, 250VAC, 25,000 cycles (make contact) Pilot duty: B300 FTR-K1CK ( ) W 16A, 277VAC/24VDC (resistive) 20A, 277VAC (resistive) LR 40304 VDE 1C FTR-K1AK ( ) T 16A, 250VAC (cosφ=1), 85˚C 3.5A, 250VAC (cosφ=0.4), 85˚C 16A, 24VDC (0ms), 85˚C 5A/80A, 250VAC 10,000 times, 85˚C FTR-K1CK ( ) W 16A, 250VAC (cosφ=1), 85˚C 3.5A, 250VAC (cosφ=0.4), 85˚C 16A, 24VDC (0ms), 85˚C FTR-K1AK ( ) T 12A, 240VAC 72LRA/12FLA 240VAC FTR-K1CK ( ) W 16A, 250VAC 3 FTR-K1 Series ■■ Dimensions • Dimensions (FTR-K1AK( )T) • Dimensions (FTR-K1CK( )W) 12.7+0.3 12.7 +0.3 29 +0.3 15.7 +0.3 15.7+0.3 29 +0.3 φ0.45 0.3 0.5 20 5 3.3 φ 0.45 (2.6) 2.6 0.5 0.5 0.3 0.9 0.9 3.3 8- pre solder 6- pre solder 5 7.5 0.9 0.9 2.6 5 7.5 20 (2.6) *Dimensions of the terminals do not include thickness of pre-solder. • Schematics (BOTTOM VIEW) (FTR-K1AK( )T) 7 COM 8 NO 3 2 1 5 4 Orientation mark Connect terminal #1 and #8 on the PC board 4-φ1.3 5 8 NC 3 COM 2 NO 1 • PC Board Mounting Hole Layout (BOTTOM VIEW) (FTR-K1CK( )W) (2.6) 7.5 20 (2.6) (BOTTOM VIEW) (FTR-K1AK( )T) 2-φ1 7 Connect terminal #1 and #8 on the PC board • PC Board Mounting Hole Layout (2.6) 6 2-φ1 20 6-φ1.3 5 5 (2.6) 4 Orientation mark 6 (BOTTOM VIEW) (FTR-K1CK( )W) 7.5 5 • Schematics Tolerance of PC board mounting hole layout : ±0.1 unless otherwise specified. ( ): Reference value Unit: mm 4 FTR-K1 Series ■■ Characteristic Data (Reference) * Characteristic data is not guaranteed value but measured values of samples from production line. 5 FTR-K1 Series GENERAL INFORMATION 1. ROHS Compliance • All relays produced by Fujitsu Components are compliant with RoHS directive 2011/65/EU including amendments. • Use of Cadmium in electrical contacts is exempted as per Annex III of the RoHS directive 2001/65/EU. • Please consider expiry date of exemption. Relays with Cadmium containing contacts are not to be used for new designs. All relays are lead-free. Please refer to Lead-Free Status Info for older date codes at: http://www.fujitsu.com/downloads/MICRO/fcai/relays/lead-free-letter.pdf Characteristic data is not guaranteed values, but measured values of samples from production line. • 2. Recommended lead free solder condition • Lead free solder plating on relay terminals is Sn-3.0Ag-0.5Cu, unless otherwise specified. This material has been verified to be compatible with PbSn assembly process. • Recommended solder for assembly: Sn-3.0Ag-0.5Cu. Flow Solder Condition: Pre-Heating: maximum 120˚C within 90 sec. Soldering: dip within 5 sec. at 255˚C ± 5˚C solder bath Relay must be cooled by air immediately after soldering Solder by Soldering Iron: Soldering Iron: 30-60W Temperature: maximum 340-360˚C Duration: maximum 3 sec. We highly recommend that you confirm your actual solder conditions 3. Moisture Sensitivity • Moisture Sensitivity Level standard is not applicable to electromechanical relays, unless otherwise indicated. 4. Tin Whiskers • Dipped SnAgCu solder is known as presenting a low risk to tin whisker development. No considerable length whisker was found by our in house test. 6 FTR-K1 Series Fujitsu Components International Headquarter Offices Japan FUJITSU COMPONENT LIMITED Shinagawa Seaside Park Tower 19F, 12-4, Higashi-shinagawa 4-chome, Shinagawa-ku, Tokyo,140-0002, Japan Tel: (81-3) 3450-1682 Fax: (81-3) 3474-2385 Email: fcl-contact@cs.jp.fujitsu.com Web: www.fujitsu.com/jp/fcl/ Asia Pacific FUJITSU COMPONENTS ASIA, LTD. 102E Pasir Panjang Road #01-01 Citilink Warehouse Complex Singapore 118529 Tel: (65) 6375-8560 Fax: (65) 6273-3021 Email: fcal@sg.fujitsu.com Web: www.fujitsu.com/sg/products/devices/components North and South America FUJITSU COMPONENTS AMERICA, INC 2290 North First Street, Suite 212 San Jose, CA 95131, USA Tel: (1-408) 745-4900 Fax: (1-408) 745-4970 Email: components@us.fujitsu.com Web: us.fujitsu.com/components China FUJITSU ELECTRONIC COMPONENTS (SHANGHAI) CO., LTD. Unit 4306, InterContinental Center 100 Yu Tong Road, Shanghai 200070, China Tel: (86-21) 3253 0998 Fax: (86-21) 3253 0997 Email: fcal@sg.fujitsu.com Web: www.fujitsu.com/sg/products/devices/components Europe FUJITSU COMPONENTS EUROPE B.V. Diamantlaan 25 2132 WV Hoofddorp Netherlands Tel: (31-23) 5560910 Fax: (31-23) 5560950 Email: info@fceu.fujitsu.com Web: www.fujitsu.com/uk/components Hong Kong FUJITSU COMPONENTS HONG KONG CO., LTD Unit 506, Inter-Continental Plaza No.94 Granville Road, Tsim Sha Tsui, Kowloon, Hong Kong Tel: (852) 2881-8495 Tex: (852) 2894-9512 Email: fcal@sg.fujitsu.com Web: www.fujitsu.com/sg/products/devices/components/ Korea FUJITSU COMPONENTS KOREA LIMITED Alpha Tower #403, 645 Sampyeong-dong, Bundang-gu, Seongnam-si, Gyeonggi-do, 13524 Korea Tel: (82) 31-708-7108 Fax: (82) 31-709-7108 Email: fcal@sg.fujitsu.com www.fujitsu.com/sg/products/devices/components/ ©2017 Fujitsu Components Europe B.V. All rights reserved. All trademarks or registered trademarks are the property of their respective owners. The contents, data and information in this datasheet are provided by Fujitsu Component Ltd. as a service only to its user and only for general information purposes. The use of the contents, data and information provided in this datasheet is at the users’ own risk. Fujitsu has assembled this datasheet with care and will endeavor to keep the contents, data and information correct, accurate, comprehensive, complete and up to date. Fujitsu Components Europe B.V. and affiliated companies do however not accept any responsibility or liability on their behalf, nor on behalf of its employees, for any loss or damage, direct, indirect or consequential, with respect to this datasheet, its contents, data, and information and related graphics and the correctness, reliability, accuracy, comprehensiveness, usefulness, availability and completeness thereof. Nor do Fujitsu Components Europe B.V. and affiliated companies accept on their behalf, nor on behalf of its employees, any responsibility or liability for any representation or warrant of any kind, express or implied, including warranties of any kind for merchantability or fitness for particular use, with respect to these datasheets, its contents, data, information and related graphics and the correctness, reliability, accuracy, comprehensiveness, usefulness, availability and completeness thereof. Rev. December 13th, 2017 7
