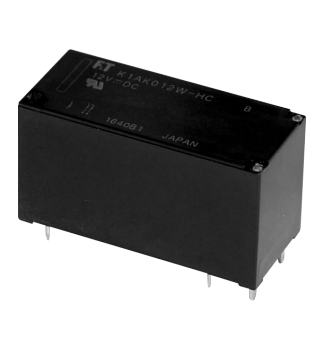

FTR-K1 HIGH CAPACITY 20A TYPE
1 POLE - Power Relay
FTR-K1 Series
■■ FEATURES
• High capacity 20A (1 form A type)
• Low profile (height: 15.7mm)
• High insulation.
•
•
•
•
•
• Insulation distance: min. 10mm between coil and contact.
• Dielectric strength: 5,000VAC.
• Surge strength: 10,000V.
Class F coil wire
Low coil power (Approx. 400mW)
Safety standards: UL
Flux proof, RT II
RoHS compliant
■■ Applications
•
•
•
•
Oven controls
Electric heating controls
Power supplies
Air conditioning
■■ Part Numbers
[Example]
FTR-K1
A
K
012
W
(a)
(b)
(c)
(d)
(e)
(a)
Relay type
(b)
Contact configuration
(c)
Coil type
(d)
Coil voltage
(e)
Contact material
(f)
Special type
-
HC
(f)
FTR-K1 : FTR-K1 series
A : 1 form A
K : Standard Sensitive
012 : 5.....18VDC
See coil data chart
W : Silver alloy
HC : High capacity type (20A)
Actual marking does not carry the type name: "FTR"
E.g.: Ordering code: FTR-K1AK012W-HC Actual marking: K1AK012W-HC
1
FTR-K1 Series
■■ Specifications
Item
FTR-K1AK( )W-HC
Contact Configuration
data
Material
1 form A (SPST-NO)
Silver alloy
Construction
Single
Contact rating
20A, 250VAC
Max. carrying current
24A
Max. switching power
5.000VA
Max. switching voltage
440VAC
Min. switching load
Coil
Life
At 20ºC
Operate power consumption
196mW
At 20ºC
-40ºC ~ +85ºC
No frost, no condense dew
Operate
Max. 15ms (without diode)
Nominal voltage, without bounce
Release
Max. 5ms (without diode)
Nominal voltage, without bounce
Mechanical
Min. 20 x 10⁶ operations
Electrical
Min. 100 x 10³ operations
Dielectric
Open conwithstanding tacts
voltage
Coil contact
Insulation
100mA 5VDC
400mW
Insulation resistance
Other
Resistive
Rated power consumption
Operating temperature
range
Time
Remark
Surge strength
Clearance / Creepage
Insulation
(IEC/
EN61810-1)
Min. 1.000MΩ
At room temperature
At 500VDC
1.000VAC (50/60 Hz), 1 minute
5.000VAC (50/60 Hz), 1 minute
10,000V (1.2 × 50 μs)
Between coil and contacts
10.0 / 10.0mm
Between coil and contacts
Voltage
250V
Pollution
degree
3
Material
group
IIIa
Vibration
resistance
Misoperation
10 to 55 Hz at single amplitude of 0.75mm
Endurance
10 to 55 Hz at single amplitude of 0.75mm
Shock resistance
Misoperation
100m/s² (11±1ms)
Endurance
1.000m/s² (6±1ms)
.
2
FTR-K1 Series
■■ Coil Data
Coil
code
Rated Coil
Voltage
(VDC)
Coil Resistance
+/-10%
(Ω)
Must Operate
Voltage*
(VDC)
Must Release
Voltage*
(VDC)
005
5
62
3.5
0.5
006
6
90
4.2
0.6
012
12
360
8.4
1.2
018
18
810
12.6
1.8
Nomal Power (mW)
Approx. 400
Note: All values in the table are valid for 20degC and zero contact current unless otherwise specified.
*
:
Specified operated values are valid for pulse wave voltage.
■■ Safety Standards
Type
Compliance
Contact Rating
UL
UL 508
E63614
Flammability: UL 94-V0 (plastics)
20A, 277VAC , Resistive
100k operations at 85°C
■■ Dimensions
3.3
15.7+0.3
• Dimensions
6 -Pre solder
(2.6)
φ0.45
0.3
20
0.5
5
29+0.3
2.6
0.9
7.5
0.9
12.7+0.3
Note: Dimensions of the terminals do not include thickness of pre-solder.
3
FTR-K1 Series
• Schematics
(BOTTOM VIEW)
5
7
COM
8
NO
4
2
1
Orientation mark
Connect terminals #2 and #7,
#1 and #8 on the PCB
• PC Board Mouting Hole Layout
(BOTTOM VIEW)
5
7.5
20
(2.6)
(2.6)
2 -φ1
4 -φ1.3
Torelance: ±0.1 unless otherwise specified.
( ): Reference value
Unit: mm
4
FTR-K1 Series
GENERAL INFORMATION
1. ROHS Compliance
• All relays produced by Fujitsu Components are compliant with RoHS directive 2011/65/EU including amendments.
• Use of Cadmium in electrical contacts is exempted as per Annex III of the RoHS directive 2001/65/EU.
•
•
Please consider expiry date of exemption. Relays with Cadmium containing contacts are not to be used for
new designs.
All relays are lead-free. Please refer to Lead-Free Status Info for older date codes at:
http://www.fujitsu.com/downloads/MICRO/fcai/relays/lead-free-letter.pdf
Lead free solder plating on relay terminals is Sn-3.0Ag-0.5Cu, unless otherwise specified. This material has
been verified to be compatible with PbSn assembly process.
2. Recommended Lead Free Solder Profile
• Recommended solder for assembly: Sn-3.0Ag-0.5Cu.
Solder by Soldering Iron:
Soldering Iron 30-60W
Temperature: maximum 350-360˚C
Duration:
maximum 3 sec.
Flow Solder condition:
Pre-heating:
maximum 120˚C
within 90 sec.
Soldering:
dip within 5 sec. at
255˚C ± 5˚C solder bath
Relay must be cooled by air immediately
after soldering
We highly recommend that you confirm your actual solder conditions
3. Moisture Sensitivity
• Moisture Sensitivity Level standard is not applicable to electromechanical relays, unless otherwise indicated
4. Tin Whiskers
• Dipped SnAgCu solder is known as presenting a low risk to tin whisker development. No considerable
length whisker was found by our in house test.
5
