FTR-MYAA024D

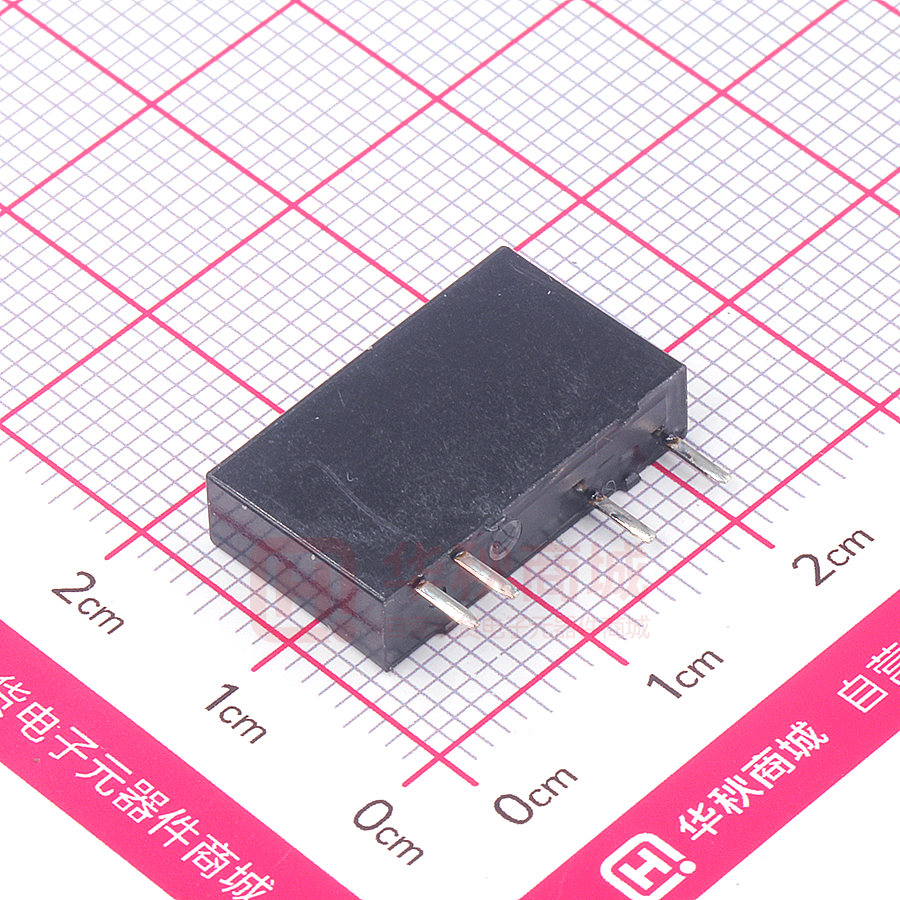

FTR-K1 SERIES POWER RELAY 1 POLE - 5A Slim Power Relay FTR-MY Series n FEATURES Width 5mm, height 12mm (31% smaller than NY series) area 100 mm2, super slim , low power, compact and light weight 2.5gr. l Nominal power: 110mW (8% less than NY series), Operate power: 54mW High sensitive l High reliable contacts, bifurcated gold overlay silver alloy (cadmium free) l Conform to UL61010-1, UL61010-2-201, IEC/EN61010-1, IEC/EN61010-2-201 (max. 277VAC) l Dielectric strength: 3,000VAC l Surge strength: 5,080V l Safety standards UL, CSA, VDE, CQC l RoHS compliant Please see page 6 for more information l Plastic sealed type, RTIII l n APPLICATIONS n PARTNUMBER INFORMATION [Example] FTR-MY A (a) (b) A (c) 012 D (d) (e) (a) Relay type FTR-MY : FTR-MY-Series (b) Contact configuration A : 1 form A (c) Coil type A : Standard type (110mW) (d) Coil rated voltage 012 : 4.5.....24 VDC Coil rating table at page 3 (e) : Gold overlay AgNi Contact material D Actual marking does not carry the type name : "FTR" E.g.: Ordering code: FTR-MYAA012D Actual marking: MYAA012D 1 FTR-K1 SERIES FTR-MY SERIES n SPECIFICATION Item Contact Data FTR-MY Configuration 1 form A Construction Bifurcated (cross bar) Material Gold overlay silver alloy Resistance (initial) Max. 30 mΩ at 6VDC, 1A Contact rating 5A, 250VAC / 30VDC Max. carrying current 5A Max. switching current 5A Max. switching voltage 277VAC / 125VDC Max. switching power 1,250VA / 150W Min. switching load * 1 mA, 5VDC Mechanical Min. 20 x 106 operations Electrical Min. 100 × 103 operations (at 3A 250VAC, 30VDC resistive) Min. 50 × 103 operations (at 5A 250VAC, 30VDC resistive) Rated power (at 20 °C) 110 mW Operate power (at 20 °C) 54 mW Operating temperature range -40 °C to +90 °C (no frost) Timing Data Operate (at nominal voltage) Max. 10 ms (without bounce) Release (at nominal voltage) Max. 5 ms (without bounce) Insulation Resistance (initial) Min. 1,000MΩ at 500VDC Life Coil Data Dielectric strength Open contacts Remarks / Conditions 750VAC (50/60Hz) 1min Contacts to 3,000VAC (50/60Hz) 1min coil Surge strength Other Coil to contacts 5,080V / 1.2 x 50µs standard wave Clearance Min. 5.6mm Creepage Min. 5.6mm Vibration resistance Shock Misoperation 10 to 55 to 10 single amplitude 0.75mm Coil ON/OFF, 3 axes, total 6 cycles Endurance 10 to 55 to 10 single amplitude 2.5mm Coil OFF, 3 axes, total 6 hours Misoperation Min. 100m/s² (11 ± 1ms) Coil ON/OFF, 3 axes, total 36 operations Endurance Min. 1,000m/s² (6 ± 1ms) Coil OFF, 3 axes, total 18 operations Weight Approximately 2.5 g Sealing Plastic sealed RTIII * Minimum switching loads mentioned above are reference values. Please perform the confirmation test with actual load before production since reference values may vary according to switching frequencies, environmental conditions and expected reliability levels. 2 FTR-K1 SERIES FTR-MY SERIES n COIL RATING Coil Code Rated Coil Voltage (VDC) Coil Resistance +/- 10% (Ohm) Must Operate Voltage (VDC) * Must ReleaseVoltage (VDC) * 4.5 4.5 185 3.15 0.225 005 5 230 3.5 0.25 006 6 330 4.2 0.3 009 9 740 6.3 0.45 012 12 1,310 8.4 0.6 018 18 2,950 12.6 0.9 024 24 5,240 16.8 1.2 Rated Power (mW) 110 Note: All values in the table are valid for 20°C and zero contact current. * Specified operate values are valid for pulse wave voltage. Please use at rated coil voltage. Please refer to characteristic data and set up adequate voltage in case of use at over voltage. n SAFETY STANDARDS Type Compliance Contact rating UL UL 508 ANSI/ISA 12.12.01 Flammability: UL 94-V0 (plastics) E63614, E225300 5A, 277 VAC (resistive) 5A, 30 VDC 1/10 HP, 277VAC /125VAC Pilot duty: D300, C300, R300 CSA C22.2 No. 14 LR 40304 VDE IEC/EN61810-1 5A, 250VAC, cosφ1 CQC GB15092.1 11001063129, 17001164877 5A 250VAC Also conform to UL61010-1, UL61010-2-201, IEC/EN61010-1, IEC/EN61010-2-201 (max. 277VAC) 3 FTR-K1 SERIES FTR-MY SERIES n CHARACTERISTIC DATA (Characteristic data is not guaranteed value but measured values of samples from production line.) Operate 9 90 8 80 7 70 6 60 50 5 Operate 4 40 5A 30 3 Release 2 10 0 0 0.1 3A 20 1 0.2 0.3 Coil power (W) 0.4 0.5 0A 0 0.05 500 300 200 3 AC resistive Operation (x10 4 ) 2 1 DC resistive 0.5 5A 1.8 1.6 1.4 Must operate voltage (hot coil) 1.2 1.0 0.8 0.6 0 20 40 Must operate voltage (cool coil) 60 80 100 120 30VDC/250VAC resistive 30VDC L/R=7ms 50 30 20 10 5 3 2 20 30 50 100 1 0.1 200 300 500 0.2 0.3 0.5 Contact voltage (V) Operate voltage Release voltage 100 FTR-MYAA024D n =300 5 10 60 40 20 Distribution of contact resistance 100 FTR-MYAA024D n =300 80 Distribution (%) 80 2 3 Distribution of operate/relase time Distribution of operate/relase voltage 100 1 Contact current (A) Operate time Release time 60 40 20 0 20 40 60 80 100 0 Voltage (V) 12 Contact resistance (mΩ) Release 4 FTR-MYAA024D n=20 20Hz (Duty 50%) Initial 5 10 Operation (x10 6) 15 40 2 4 6 8 10 0 10 Electrical life test Operate 8 60 20 20 30 40 50 Time (ms) Mechanical life test 16 メーク接点 20 Nominal voltage multiplying factor (%) 20 FTR-MYAA024D n =300 80 Distribution (%) 0.1 10 Distribution (%) 3A 2.0 100 0.3 0.2 Voltage (V) 0A 2.2 0.2 20 Electrical life test 20 Operate 16 Voltage (V) Contact current (A) 5 Contact resistance (mΩ) 0.1 0.15 Coil power (W) 2.4 Life curve Maximum switching power 10 0 20 10 7 5 3 2 1 0.7 0.5 Operating range Nominal voltage multiplying factor Coil temperature rise 100 12 8 Release 4 0 20 10 7 5 3 2 1 0.7 0.5 FTR-MYAA024D n=8 Duty cycle: 1sec. ON/1sec. OFF 250VDC, 3A (resistive) Initial 10 Operation (x10 4) Contact resistance (mΩ) Time (ms) Timing 10 Operate 16 12 8 Release 4 0 20 10 7 5 3 2 1 0.7 0.5 FTR-MYAA024D n=8 Duty cycle: 1sec. ON/1sec. OFF 30VDC, 3A (resistive) Initial 10 Operation (x10 4) 4 FTR-K1 SERIES FTR-MY SERIES n DIMENSIONS l Dimensions l Schematics l PC board mounting hole layout (BOTTOM VIEW) Unit: mm * Dimensions of the terminals do not include thickness of pre-solder. * Tolerance of PC board mounting hole layout : ±0.1 unless otherwise specified. 5 FTR-K1 SERIES FTR-MY SERIES RoHS Compliance and Lead Free Information 1. General Information All relays produced by Fujitsu Components are compliant with RoHS directive 2011/65/EU including amendments. l Cadmium as used in electrical contacts is exempted from the RoHS directives. As per Annex III of directive 2011/65/EU. l All relays are lead-free. Please refer to Lead-Free Status Info for older date codes at: http://www.fujitsu.com/downloads/MICRO/fcai/relays/lead-free-letter.pdf l Lead free solder plating on relay terminals is Sn-3.0Ag-0.5Cu, unless otherwise specified. This material has been verified to be compatible with PbSn assembly process. l 2. Recommended Lead Free Solder Condition l Recommended solder Sn-3.0Ag-0.5Cu. Flow Solder Condition: Pre-heating: maximum 120˚C within 90 sec. Soldering: dip within 5 sec. at 255˚C ± 5˚C solder bath Relay must be cooled by air immediately after soldering Solder by Soldering Iron: Soldering Iron 30-60W Temperature: maximum 350-360˚C Duration: maximum 3 sec. We highly recommend that you confirm your actual solder conditions 3. Moisture Sensitivity l Moisture Sensitivity Level standard is not applicable to electromechanical relays, unless otherwise indicated. 4. Tin Whiskers l Dipped SnAgCu solder is known as presenting a low risk to tin whisker development. No considerable length whisker was found by our in house test. Cautions * All values mentioned in this datasheet are provided under ideal conditions. Please perform the confirmation test before actual use. * Reflow soldering is prohibited. * Do not use relays in the atmosphere with sulfide gas, chloride gas or nitric oxide. Contact resistance may increase. * Do not use silicon or silicon-containing product or materials near relays. It may cause contact failure. 6 FTR-K1 SERIES FTR-MY SERIES Fujitsu Components International Headquarter Offices Japan FUJITSU COMPONENT LIMITED Shinagawa Seaside Park Tower 19F, 12-4, Higashi-shinagawa 4-chome, Shinagawa-ku, Tokyo,140-0002, Japan Tel: (81-3) 3450-1682 Fax: (81-3) 3474-2385 Email: fcl-contact@cs.jp.fujitsu.com Web: www.fujitsu.com/jp/fcl/ Asia Pacific FUJITSU COMPONENTS ASIA, LTD. 102E Pasir Panjang Road #01-01 Citilink Warehouse Complex Singapore 118529 Tel: (65) 6375-8560 Fax: (65) 6273-3021 Email: fcal@sg.fujitsu.com Web: www.fujitsu.com/sg/products/devices/components North and South America FUJITSU COMPONENTS AMERICA, INC 2290 North First Street, Suite 212 San Jose, CA 95131, USA Tel: (1-408) 745-4900 Fax: (1-408) 745-4970 Email: components@us.fujitsu.com Web: us.fujitsu.com/components China FUJITSU ELECTRONIC COMPONENTS (SHANGHAI) CO., LTD. Unit 4306, InterContinental Center 100 Yu Tong Road, Shanghai 200070, China Tel: (86-21) 3253 0998 Fax: (86-21) 3253 0997 Email: fcal@sg.fujitsu.com Web: www.fujitsu.com/sg/products/devices/components Europe FUJITSU COMPONENTS EUROPE B.V. Diamantlaan 25 2132 WV Hoofddorp Netherlands Tel: (31-23) 5560910 Fax: (31-23) 5560950 Email: info@fceu.fujitsu.com Web: www.fujitsu.com/uk/components Hong Kong FUJITSU COMPONENTS HONG KONG CO., LTD Unit 506, Inter-Continental Plaza No.94 Granville Road, Tsim Sha Tsui, Kowloon, Hong Kong Tel: (852) 2881-8495 Tex: (852) 2894-9512 Email: fcal@sg.fujitsu.com Web: www.fujitsu.com/sg/products/devices/components/ Korea FUJITSU COMPONENTS KOREA LIMITED Alpha Tower #403, 645 Sampyeong-dong, Bundang-gu, Seongnam-si, Gyeonggi-do, 13524 Korea Tel: (82) 31-708-7108 Fax: (82) 31-709-7108 Email: fcal@sg.fujitsu.com www.fujitsu.com/sg/products/devices/components/ ©2018 Fujitsu Components Europe B.V. All rights reserved. All trademarks or registered trademarks are the property of their respective owners. The contents, data and information in this datasheet are provided by Fujitsu Component Ltd. as a service only to its user and only for general information purposes. The use of the contents, data and information provided in this datasheet is at the users’ own risk. Fujitsu has assembled this datasheet with care and will endeavor to keep the contents, data and information correct, accurate, comprehensive, complete and up to date. Fujitsu Components Europe B.V. and affiliated companies do however not accept any responsibility or liability on their behalf, nor on behalf of its employees, for any loss or damage, direct, indirect or consequential, with respect to this datasheet, its contents, data, and information and related graphics and the correctness, reliability, accuracy, comprehensiveness, usefulness, availability and completeness thereof. Nor do Fujitsu Components Europe B.V. and affiliated companies accept on their behalf, nor on behalf of its employees, any responsibility or liability for any representation or warrant of any kind, express or implied, including warranties of any kind for merchantability or fitness for particular use, with respect to these datasheets, its contents, data, information and related graphics and the correctness, reliability, accuracy, comprehensiveness, usefulness, availability and completeness thereof. Rev. April 5th, 2018 7
