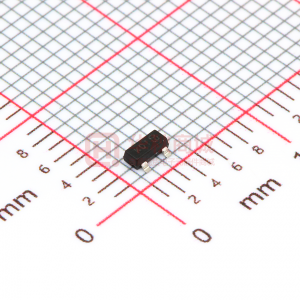

AZ23-C13

AZ23-C2V7 THRU AZ23-C51 DUAL ZENER DIODES FEATURES SOT-23 .122 (3.1) .118 (3.0) .016 (0.4) 3 .056 (1.43) .052 (1.33) ♦ Dual Silicon Planar Zener Diodes, Common Anode ♦ The Zener voltages are graded according to the international E 24 standard. Other voltage tolerances and other Zener voltages are available upon request. ♦ The parameters are valid for both diodes in one case. ∆VZ and ∆rzj of the two diodes in one case is ≤ 5%. ♦ This diode is also available in other case styles and configurations including: the dual diode common cathode configuration with type designation DZ23, the single diode SOT-23 case with the type designation BZX84C, and the single diode SOD-123 case with the type designation BZT52C. .045 (1.15) .037 (0.95) .102 (2.6) .094 (2.4) Top View 1 2 max. .004 (0.1) .016 (0.4) .016 (0.4) Dimensions in inches and (millimeters) 3 .007 (0.175) .005 (0.125) .037(0.95) .037(0.95) Top View 1 2 MECHANICAL DATA Case: SOT-23 Plastic Package Weight: approx. 0.008 g Dimensions are in inches and (millimeters) MAXIMUM RATINGS Ratings at 25°C ambient temperature unless otherwise specified. SYMBOL VALUE UNIT Power Dissipation at Tamb = 25°C Junction Temperature Storage Temperature Range Ptot Tj TS 300(1) 150 – 65 to +150 mW °C °C SYMBOL MIN. TYP. MAX. UNIT Thermal Resistance Junction to Ambient Air RthJA – – 420(1) °C/W NOTES: Device on fiberglass substrate, see layout .30 (7.5) .12 (3) .04 (1) .08 (2) .04 (1) .08 (2) .59 (15) .47 (12) .03 (0.8) Layout for R thJA test Thickness: Fiberglass 0.059 in (1.5 mm) Copper leads 0.012 in (0.3 mm) 0.2 (5) .06 (1.5) .20 (5.1) Dimensions in inches (millimeters) 12/8/98 AZ23-C2V7 THRU AZ23-C51 ELECTRICAL CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified. Dynamic Resistance Zener Voltage(1) at IZ = 5 mA Type AZ23-C2V7 AZ23-C3 AZ23-C3V3 AZ23-C3V6 AZ23-C3V9 AZ23-C4V3 AZ23-C4V7 AZ23-C5V1 AZ23-C5V6 AZ23-C6V2 AZ23-C6V8 AZ23-C7V5 AZ23-C8V2 AZ23-C9V1 AZ23-C10 AZ23-C11 AZ23-C12 AZ23-C13 AZ23-C15 AZ23-C16 AZ23-C18 AZ23-C20 AZ23-C22 AZ23-C24 AZ23-C27 AZ23-C30 AZ23-C33 AZ23-C36 AZ23-C39 AZ23-C43 AZ23-C47 AZ23-C51 Marking D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 D16 D17 D18 D19 D20 D21 D22 D23 D24 D25 D26 D27 D28 D29 D30 D31 D32 VZ (V) 2.5 … 2.9 2.8 … 3.2 3.1 … 3.5 3.4 … 3.8 3.7 … 4.1 4.0 … 4.6 4.4 … 5.0 4.8 … 5.4 5.2 … 6.0 5.8 … 6.6 6.4 … 7.2 7.0 … 7.9 7.7 … 8.7 8.5 … 9.6 9.4 … 10.6 10.4 … 11.6 11.4 … 12.7 12.4 … 14.1 13.8 … 15.6 15.3 … 17.1 16.8 … 19.1 18.8 … 21.2 20.8 … 23.3 22.8 … 25.6 25.1 … 28.9 28 … 32 31 … 35 34 … 38 37 … 41 40 … 46 44 … 50 48 … 54 at IZ = 5 mA f = 1 kHz rzj (Ω) 75 (
