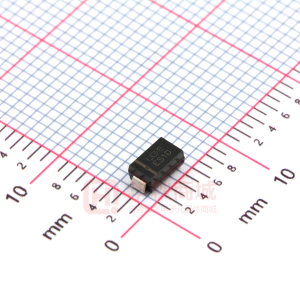

ES1D

ES1A THRU ES1D SURFACE MOUNT ULTRAFAST EFFICIENT PLASTIC RECTIFIER Reverse Voltage - 50 to 200 Volts DO-214AC Forward Current - 1.0 Ampere ♦ Plastic package has Underwriters Laboratory Flammability Classification 94V-0 ♦ For surface mount applications ♦ Low profile package ♦ Ideally suited for use in very high frequency switching power supplies, inverters and as a free wheeling diodes ♦ Ultrafast recovery times for high efficiency ♦ Low forward voltage ♦ Low leakage current ♦ Glass passivated chip junction ♦ High temperature soldering guaranteed: 250°C/10 seconds on terminals FEATURES 0.065 (1.65) 0.049 (1.25) 0.110 (2.79) 0.100 (2.54) 0.177 (4.50) 0.157 (3.99) 0.012 (0.305) 0.006 (0.152) 0.090 (2.29) 0.078 (1.98) MECHANICAL DATA 0.060 (1.52) 0.030 (0.76) 0.008 (0.203) MAX. 0.208 (5.28) 0.194 (4.93) Dimensions in inches and (millimeters) Case: JEDEC DO-214AC molded plastic body over passivated chip Terminals: Solder plated, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Weight: 0.002 ounces, 0.064 gram MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified. SYMBOLS ES1A ES1B ES1C ES1D UNITS Device marking code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TL=120°C Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Maximum instantaneous forward voltage at 0.6A at 1.0A Maximum DC reverse current at rated DC blocking voltage Maximum reverse recovery time (NOTE 1) Maximum reverse recovery time (NOTE 2) EA VRRM VRMS VDC I(AV) IFSM 50 35 50 EB 100 70 100 1.0 30.0 0.865 0.920 5.0 100 15.0 25.0 35.0 10.0 25.0 7.0 85.0 35.0 EC 150 105 150 ED 200 140 200 Volts Volts Volts Amp Amps VF IR trr Volts µA ns ns nC pF °C/W °C TA=25°C TA=100°C TA=25°C TA=100°C TA=25°C TA=100°C trr Qrr CJ RΘJA RΘJL TJ, TSTG Maximum stored charge (NOTE 2) Typical junction capacitance (NOTE 3) Maximum thermal resistance (NOTE 4) Operating and storage temperature range -55 to +150 NOTES: (1) Reverse recovery test conditions: IF=0.5A, IR=1.0A, Irr=0.25A (2) trr and Qrr measured at: IF=0.6A, VR=30V, di/dt=50A/µs, Irr =10% IRM for measurement of trr (3) Measured at 1.0 MHZ and applied reverse voltage of 4.0 volts (4) P.C.B. mounted on 0.2 x 0.2” (5.0 x 5.0mm) copper pad area 4/98 RATINGS AND CHARACTERISTIC CURVES ES1A THRU ES1D FIG. 1 - MAXIMUM FORWARD CURRENT DERATING CURVE 1.2 PEAK FORWARD SURGE CURRENT, AMPERES AVERAGE FORWARD RECTIFIED CURRENT, AMPERES FIG. 2 - MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 30 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) at TL=120°C RESISTIVE OR INDUCTIVE LOAD 0.2 x 0.2” (5.0 x 5.0mm) COPPER PAD AREAS 1.0 0.8 0.6 0.4 0.2 0 80 25 20 15 10 5.0 0 1 10 NUMBER OF CYCLES AT 60 HZ FIG. 4 - TYPICAL REVERSE LEAKAGE CHARACTERISTICS 90 100 110 120 130 140 150 100 LEAD TEMPERATURE, °C FIG. 3 - TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS 1,000 50 INSTANTANEOUS REVERSE LEAKAGE CURRENT, MICROAMPERES 100 TJ=125°C INSTANTANEOUS FORWARD CURRENT, AMPERES 10 TJ=25°C PULSE WIDTH=300µs 1% DUTY CYCLE 10 TJ=85°C 1 1 0.1 TJ=25°C 0.1 0.01 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 INSTANTANEOUS FORWARD VOLTAGE, VOLTS 0.01 0 20 40 60 80 100 PERCENT OF RATED PEAK REVERSE VOLTAGE, % FIG. 5 - TYPICAL THERMAL IMPEDANCE TRANSIENT THERMAL IMPEDANCE, °C/W FIG. 5 - TYPICAL JUNCTION CAPACITANCE 14 JUNCTION CAPACITANCE, pF 100 12 10 8.0 6.0 4.0 2.0 0 0.1 1 TJ=25°C f=1.0 MHZ Vsig=50mVp-p MOUNTED on 0.2 x 0.2”(5 x 7mm) COPPER PAD AREAS 10 10 100 1 0.1 1 10 100 REVERSE VOLTAGE, VOLTS t, PULSE DURATION, SEC
