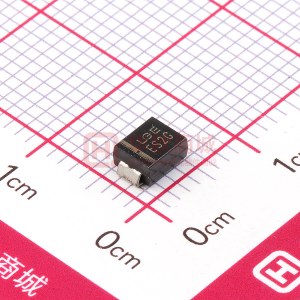

ES2G

NEW PRODUCT NEW PRODUCT NEW PRODUCT ES2F AND ES2G SURFACE MOUNT FAST EFFICIENT PLASTIC RECTIFIER Reverse Voltage - 300 to 400 Volts DO-214AA Forward Current - 2.0 Amperes FEATURES 0.086 (2.20) 0.077 (1.95) 0.155 (3.94) 0.130 (3.30) 0.180 (4.57) 0.160 (4.06) 0.012 (0.305) 0.006 (0.152) 0.096 (2.44) 0.084 (2.13) ♦ Plastic package has Underwriters Laboratory Flammability Classification 94V-0 ♦ For surface mount applications ♦ Low profile package ♦ Built-in strain relief ♦ Ideal for automated placement ♦ Easy pick and place ♦ Glass passivated chip junction ♦ Superfast recovery times for high efficiency ♦ Low power loss, high efficiency ♦ High temperature soldering: 250°C/10 seconds at terminals MECHANICAL DATA 0.008 (0.203) MAX. 0.220 (5.59) 0.205 (5.21) 0.060 (1.52) 0.030 (0.76) Dimensions in inches and (millimeters) Case: JEDEC DO-214AA molded plastic body over passivated chip Terminals: Solder plated solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Weight: 0.003 ounces, 0.093 gram MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified. SYMBOLS ES2F ES2G UNITS Device marking code Maximum repetitive peak reverse voltage Working peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TL=110°C Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) at TL=110°C Maximum instantaneous forward voltage at 2.0A Maximum DC reverse current at working peak reverse voltage TA=25°C TA=100°C VRRM VRWM VRMS VDC I(AV) IFSM VF IR trr trr IRM Qrr CJ RΘJA RΘJL TJ, TSTG EF 300 225 210 300 2.0 50 1.10 10 200 35 50 3.0 50 15 75 25 -55 to +150 EG 400 300 280 400 Volts Volts Volts Volts Amps Amps Volts µA ns ns Amps nC pF °C/W °C Maximum reverse recovery time (NOTE 1) Maximum reverse recovery time (NOTE 2) Maximum reverse recovery current (NOTE 2) Maximum stored charge (NOTE 2) Typical junction capacitance (NOTE 3) Typical thermal resistance (NOTE 4) Operating junction and storage temperature range NOTES: (1) Reverse recovery test conditions: IF=0.5A, IR= I.0A, lrr=0.25A (2) Measured at IF=1.0A, di/dt=100A/µs, VR=30V, Irr=0.1IRM (3) Measured at 1.0 MHZ and applied reverse voltage of 4.0 Volts (4) Units mounted on P.C.B. 5.0 x 5.0mm (0.013mm thick) land areas NOTICE: Advanced product information is subject to change without notice 4/98 RATING AND CHARACTERISTIC CURVES ES2F AND ES2G FIG. 1 - MAXIMUM FORWARD CURRENT DERATING CURVE FIG. 2 - MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 3.0 RESISTIVE OR INDUCTIVE LOAD 60 PEAK FORWARD SURGE CURRENT, AMPERES 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) at TL=110°C AVERAGE FORWARD RECTIFIED CURRENT, AMPERES 50 40 30 20 10 0 1 10 NUMBER OF CYCLES AT 60 HZ 2.0 1.0 0 80 90 100 110 120 130 140 150 100 LEAD TEMPERATURE, °C FIG. 3 - TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS PER LEG 100 INSTANTANEOUS REVERSE LEAKAGE CURRENT, MICROAMPERES TJ=25°C PULSE WIDTH=300µs 1% DUTY CYCLE FIG. 4 - TYPICAL REVERSE CHARACTERISTICS PER LEG 1,000 INSTANTANEOUS FORWARD CURRENT, AMPERES TJ=125°C 10 TJ=125°C 100 TJ=100°C 1 TJ=100°C 10 0.1 TJ=25°C 1 TJ=25°C 0.1 0.01 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 20 40 60 80 100 INSTANTANEOUS FORWARD VOLTAGE, VOLTS FIG. 5 - REVERSE SWITCHING CHARACTERISTICS PER LEG PERCENT OF RATED PEAK REVERSE VOLTAGE, % FIG. 6 - TYPICAL JUNCTION CAPACITANCE PER LEG STORED CHARGE/REVERSE RECOVERY TIME, nC/ns 200 @5A, 50A/µs 100 160 TJ=125°C f=1.0 MHz Vsig=50MVp-p 120 @2A, 20A/µs @5A, 50A/µs CAPACITANCE, pF trr QRR 10 80 @2A, 20A/µs @1A, 100A/µs 40 @1A, 100A/µs 0 25 50 75 100 125 150 175 1 0.1 1 10 100 1,000 JUNCTION TEMPERATURE, °C REVERSE VOLTAGE, VOLTS
