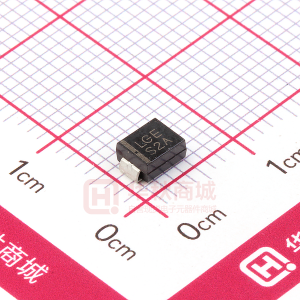

S2A THRU S2M SURFACE MOUNT GLASS PASSIVATED SILICON RECTIFIER Reverse Voltage - 50 to 1000 Volts DO-214AA MODIFIED J-BEND Forward Current - 1.5 Amperes FEATURES ♦ Plastic package has Underwriters Laboratory Flammability Classification 94V-0 ♦ For surface mounted applications ♦ Low profile package ♦ Built-in strain relief, ideal for automated placement ♦ Glass passivated chip junction ♦ High temperature soldering: 250°C/10 seconds at terminals 0.086 (2.20) 0.077 (1.95) 0.155 (3.94) 0.130 (3.30) 0.180 (4.57) 0.160 (4.06) 0.012 (0.305) 0.006 (0.152) 0.096 (2.44) 0.084 (2.13) MECHANICAL DATA Case: JEDEC DO-214AA molded plastic body over passivated chip Terminals: Solder plated, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Weight: 0.003 ounce, 0.093 gram 0.060 (1.52) 0.030 (0.76) 0.220 (5.59) 0.205 (5.21) 0.008 (0.203) MAX. Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified. SYMBOLS S2A SA S2B SB S2D SD S2G SG S2J SJ S2K SK S2M SM UNITS Device marking code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TL=100°C Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) TL=100°C Maximum instantaneous forward voltage at 1.5 A Maximum DC reverse current at Rated DC blocking voltage Typical reverse recovery time (NOTE 1) Typical junction capacitance (NOTE 2) Typical thermal resistance (NOTE 3) Operating and storage temperature range NOTES: (1) Reverse recovery test conditions: IF=0.5A, IR=1.0A, Irr=0.25A (2) Measured at 1.0 MHz and applied reverse voltage of 4.0 Volts (3) Thermal resistance from junction to ambient and junction to lead P.C.B. mounted on 0.27 x 0.27” (7.0 x 7.0mm) copper pad areas VRRM VRMS VDC I(AV) 50 35 50 100 70 100 200 140 200 400 280 400 1.5 600 420 600 800 560 800 1000 700 1000 Volts Volts Volts Amps IFSM VF IR trr CJ RΘJA RΘJL TJ, TSTG 50.0 1.15 1.0 125.0 2.0 30.0 53.0 16.0 -55 to +150 Amps Volts µA µs pF °C/W °C TA=25°C TA=125°C 4/98 RATINGS AND CHARACTERISTIC CURVES S2A THRU S2M FIG. 1 - FORWARD CURRENT DERATING CURVE FIG. 2 - MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 50 1.5 PEAK FORWARD SURGE CURRENT, MICROAMPERES AVERAGE FORWARD CURRENT, AMPERES 60 HZ RESISTIVE OR INDUCTIVE LOAD TL=100°C 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) 40 30 20 1.0 0.5 60 HZ RESISTIVE OR INDUCTIVE LOAD P.C.B. MOUNTED 0.27 x 0.27” (7.0 x 7.0mm) COPPER PAD AREAS 10 0 0 50 60 70 80 90 100 110 120 130 140 150 LEAD TEMPERATURE, °C 1 10 NUMBER OF CYCLES AT 60 HZ 100 FIG. 3 - TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS FIG. 4 - TYPICAL REVERSE CHARACTERISTICS 10 TJ=25°C PULSE WIDTH=300µs 1% DUTY CYCLE 10 INSTANTANEOUS REVERSE CURRENT, MICROAMPERES INSTANTANEOUS FORWARD CURRENT, AMPERES TJ=125°C 1 1 TJ=100°C 0.1 0.1 TJ=25°C 0.01 0.01 0 20 40 60 80 100 0.4 0.6 0.8 1 1.0 1.2 1.4 1.6 INSTANTANEOUS FORWARD VOLTAGE, VOLTS PERCENT OF RATED PEAK REVERSE VOLTAGE, % FIG. 5 - TYPICAL JUNCTION CAPACITANCE 100 JUNCTION CAPACITANCE, pF TJ=25°C f=1.0 MHZ Vsig=50mVp-p 10 1 0.1 1 10 100 REVERSE VOLTAGE, VOLTS
