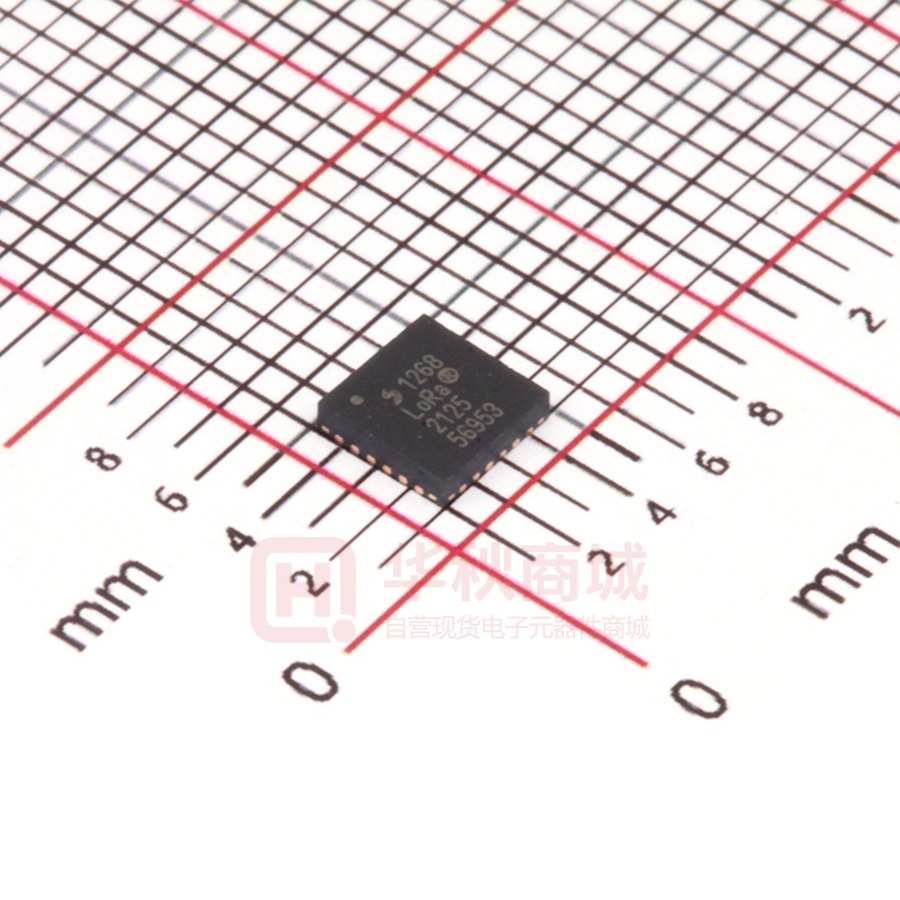

SX1268IMLTRT

SX1268 Long Range, Low Power, sub-GHz RF Transceiver Analog Front End & Data Conversion LNA LoRaTM Modem ADC Matching + LPF PA Protocol Engine SPI PLL FSK Modem OSC Data Buffer DC-DC LDO Figure A: SX1268 Block Diagram General Description Applications The SX1268 sub-GHz radio transceiver is the ideal device for long range wireless applications. It is designed for long battery life with just 4.2 mA of active receive current consumption. The SX1268 can transmit up to +22 dBm at 490 MHz with highly efficient integrated power amplifiers. At 780 MHz, the SX1268 consumes less than 20 mA to transmit a +10 dBm signal at its antenna port. The level of integration and the low consumption of the SX1268 enable a new generation of Internet of Things applications. • Smart meters • Supply chain and logistics • Building automation SX1268 supports LoRa® modulation for LPWAN use cases and (G)FSK modulation for legacy use cases. It is highly configurable to meet different application requirements utilizing the LoRaWANTM standard or proprietary protocols. • Agricultural sensors • Smart cities • Retail store sensors • Asset tracking The device is designed to comply with the physical layer requirements of the LoRaWANTM specification released by the LoRa AllianceTM. • Street lights • Parking sensors • Environmental sensors The radio is suitable for systems targeting compliance with radio regulations including but not limited to China regulatory requirements and ETSI EN 300 220 (434 MHz). Continuous frequency coverage from 410 MHz to 810 MHz allows the support of the 490 and 780 MHz Chinese low-power short-range device bands. • Healthcare • Safety and security sensors • Remote control applications SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 1 of 109 Semtech Ordering Information Part Number Delivery Minimum Order Quantity SX1268IMLTRT Tape & Reel 3’000 pieces QFN 24 Package, Pb-free, Halogen free, RoHS/WEEE compliant product. Revision History Version ECO Date 1.0 041309 March 2018 Modifications First release Miscellaneous typographical error corrections Addition of a “Known Limitations” section, see details in Section 15. Clarification of the XOSC_START_ERR usage in Section 13.3.6 Rename variable timeout(23:0) to delay(23:0) for clarification in Section 13.3.6 Description of how to include RxGain register in the retention memory, see Section 9.6 Correction of the ClearDeviceError command 1.1 047267 June 2019 Correction made to SetTxParams in Table 13-21 Clarification of the maximum packet length in FSK mode with address filtering configuration Clarification of the SignalRssiPkt calculation Update of the sequence in section 14.2 Circuit Configuration for Basic Tx Operation Clarification of the Rx and Sleep periods in RxDutyCycle mode with TCXO enabled SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 2 of 109 Semtech Table of Contents 1. Architecture .................................................................................................................................................... 11 2. Pin Connection .............................................................................................................................................. 12 2.1 I/O Description ................................................................................................................................. 12 2.2 Package View .................................................................................................................................... 13 3. Specifications ................................................................................................................................................. 14 3.1 ESD Notice .......................................................................................................................................... 14 3.2 Absolute Maximum Ratings ........................................................................................................ 14 3.3 Operating Range .............................................................................................................................. 14 3.4 Crystal Specifications ..................................................................................................................... 15 3.5 Electrical Specifications ................................................................................................................. 15 3.5.1 Power Consumption .......................................................................................................... 16 3.5.2 General Specifications ....................................................................................................... 17 3.5.3 Receive Mode Specifications........................................................................................... 18 3.5.4 Transmit Mode Specifications ........................................................................................ 20 3.5.5 Digital I/O Specifications .................................................................................................. 20 4. Circuit Description........................................................................................................................................ 21 4.1 Clock References .............................................................................................................................. 21 4.1.1 RC Frequency References................................................................................................. 21 4.1.2 High-Precision Frequency Reference........................................................................... 21 4.1.3 XTAL Control Block ............................................................................................................. 22 4.1.4 TCXO Control Block ............................................................................................................ 23 4.2 Phase-Locked Loop (PLL) .............................................................................................................. 23 4.3 Receiver ............................................................................................................................................... 24 4.3.1 Intermediate Frequencies ................................................................................................ 24 4.4 Transmitter ......................................................................................................................................... 25 4.4.1 Power Amplifier Specifics up to +14 dBm.................................................................. 26 4.4.2 Power Amplifier Specifics above +14 dBm ................................................................ 28 4.4.3 Power Amplifier Summary ............................................................................................... 30 5. Power Distribution ....................................................................................................................................... 31 5.1 Selecting DC-DC Converter or LDO Regulation ................................................................... 31 5.1.1 Option A: DC-DC Regulator up to +14 dBm .............................................................. 32 5.1.2 Option B: LDO Regulator up to +14 dBm ................................................................... 33 5.1.3 Option C: DC-DC Regulator above +14 dBm............................................................. 33 5.1.4 Option D: LDO Regulator above +14 dBm................................................................. 34 5.1.5 Consideration on the DC-DC Inductor Selection..................................................... 34 5.2 Flexible DIO Supply ........................................................................................................................ 35 6. Modems ........................................................................................................................................................... 36 6.1 LoRa® Modem ................................................................................................................................... 36 6.1.1 Modulation Parameter ...................................................................................................... 36 6.1.2 LoRa® Packet Engine .......................................................................................................... 38 6.1.3 LoRa® Frame .......................................................................................................................... 39 6.1.4 LoRa® Time-on-Air............................................................................................................... 40 6.1.5 LoRa® Channel Activity Detection (CAD) .................................................................... 40 SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 3 of 109 Semtech 6.2 FSK Modem ........................................................................................................................................ 41 6.2.1 Modulation Parameter ...................................................................................................... 41 6.2.2 FSK Packet Engine............................................................................................................... 42 6.2.3 FSK Packet Format .............................................................................................................. 43 7. Data Buffer ...................................................................................................................................................... 46 7.1 Principle of Operation .................................................................................................................... 46 7.2 Data Buffer in Receive Mode ....................................................................................................... 47 7.3 Data Buffer in Transmit Mode ..................................................................................................... 47 7.4 Using the Data Buffer ..................................................................................................................... 47 8. Digital Interface and Control .................................................................................................................... 48 8.1 Reset ..................................................................................................................................................... 48 8.2 SPI Interface ....................................................................................................................................... 48 8.2.1 SPI Timing When the Transceiver is in Active Mode............................................... 48 8.2.2 SPI Timing When the Transceiver Leaves Sleep Mode .......................................... 49 8.3 Multi-Purpose Digital Input/Output (DIO) ............................................................................. 50 8.3.1 BUSY Control Line ............................................................................................................... 50 8.3.2 Digital Input/Output .......................................................................................................... 52 8.4 Digital Interface Status versus Chip modes ........................................................................... 52 8.5 IRQ Handling ..................................................................................................................................... 53 9. Operational Modes ...................................................................................................................................... 54 9.1 Startup ................................................................................................................................................. 54 9.2 Calibration .......................................................................................................................................... 54 9.2.1 Image Calibration for Specific Frequency Bands ..................................................... 54 9.3 Sleep Mode ........................................................................................................................................ 55 9.4 Standby (STDBY) Mode ................................................................................................................. 55 9.5 Frequency Synthesis (FS) Mode ................................................................................................. 56 9.6 Receive (RX) Mode .......................................................................................................................... 56 9.7 Transmit (TX) Mode ........................................................................................................................ 57 9.7.1 PA Ramping........................................................................................................................... 57 9.8 Active Mode Switching Time ...................................................................................................... 57 9.9 Transceiver Circuit Modes Graphical Illustration ................................................................. 58 10. Host Controller Interface ......................................................................................................................... 59 10.1 Command Structure .................................................................................................................... 59 10.2 Transaction Termination ............................................................................................................ 59 11. List of Commands ...................................................................................................................................... 60 11.1 Operational Modes Commands ............................................................................................... 60 11.2 Register and Buffer Access Commands ................................................................................ 61 11.3 DIO and IRQ Control ..................................................................................................................... 61 11.4 RF, Modulation and Packet Commands ................................................................................ 61 11.5 Status Commands ......................................................................................................................... 62 12. Register Map ................................................................................................................................................ 63 12.1 Register Table ................................................................................................................................. 63 13. Commands Interface................................................................................................................................. 65 13.1 Operational Modes Functions .................................................................................................. 65 13.1.1 SetSleep................................................................................................................................ 65 13.1.2 SetStandby .......................................................................................................................... 66 SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 4 of 109 Semtech 13.1.3 SetFs....................................................................................................................................... 66 13.1.4 SetTx ...................................................................................................................................... 66 13.1.5 SetRx...................................................................................................................................... 67 13.1.6 StopTimerOnPreamble ................................................................................................... 68 13.1.7 SetRxDutyCycle ................................................................................................................. 69 13.1.8 SetCAD.................................................................................................................................. 71 13.1.9 SetTxContinuousWave.................................................................................................... 71 13.1.10 SetTxInfinitePreamble .................................................................................................. 72 13.1.11 SetRegulatorMode......................................................................................................... 72 13.1.12 Calibrate Function.......................................................................................................... 73 13.1.13 CalibrateImage ................................................................................................................ 73 13.1.14 SetPaConfig ...................................................................................................................... 74 13.1.15 SetRxTxFallbackMode................................................................................................... 76 13.2 Registers and Buffer Access ....................................................................................................... 77 13.2.1 WriteRegister Function ................................................................................................... 77 13.2.2 ReadRegister Function.................................................................................................... 77 13.2.3 WriteBuffer Function ....................................................................................................... 77 13.2.4 ReadBuffer Function ........................................................................................................ 78 13.3 DIO and IRQ Control Functions ................................................................................................ 78 13.3.1 SetDioIrqParams................................................................................................................ 78 13.3.2 IrqMask ................................................................................................................................. 78 13.3.3 GetIrqStatus ........................................................................................................................ 79 13.3.4 ClearIrqStatus ..................................................................................................................... 80 13.3.5 SetDIO2AsRfSwitchCtrl ................................................................................................... 80 13.3.6 SetDIO3AsTCXOCtrl ......................................................................................................... 80 13.4 RF Modulation and Packet-Related Functions ................................................................... 82 13.4.1 SetRfFrequency.................................................................................................................. 82 13.4.2 SetPacketType.................................................................................................................... 82 13.4.3 GetPacketType................................................................................................................... 83 13.4.4 SetTxParams ....................................................................................................................... 83 13.4.5 SetModulationParams..................................................................................................... 84 13.4.6 SetPacketParams............................................................................................................... 87 13.4.7 SetCadParams .................................................................................................................... 91 13.4.8 SetBufferBaseAddress ..................................................................................................... 92 13.4.9 SetLoRaSymbNumTimeout........................................................................................... 93 13.5 Communication Status Information ...................................................................................... 94 13.5.1 GetStatus.............................................................................................................................. 94 13.5.2 GetRxBufferStatus............................................................................................................. 95 13.5.3 GetPacketStatus ................................................................................................................ 95 13.5.4 GetRssiInst ........................................................................................................................... 96 13.5.5 GetStats ................................................................................................................................ 96 13.5.6 ResetStats ............................................................................................................................ 96 13.6 Miscellaneous ................................................................................................................................. 97 13.6.1 GetDeviceErrors................................................................................................................. 97 13.6.2 ClearDeviceErrors.............................................................................................................. 97 14. Application ................................................................................................................................................... 98 SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 5 of 109 Semtech 14.1 HOST API Basic Read Write Function ..................................................................................... 98 14.2 Circuit Configuration for Basic Tx Operation ...................................................................... 98 14.3 Circuit Configuration for Basic Rx Operation ...................................................................... 99 14.4 Issuing Commands in the Right Order .................................................................................. 99 14.5 Application Schematics ............................................................................................................100 14.5.1 Application Design of the SX1268 for Operation at 434 and 780 MHz Bands100 14.5.2 Application Design of the SX1268 for Operation at 490 MHz Band.............100 15. Known Limitations...................................................................................................................................101 15.1 Modulation Quality with 500 kHz LoRa Bandwidth .......................................................101 15.1.1 Description........................................................................................................................101 15.1.2 Workaround......................................................................................................................101 15.2 Better Resistance of the SX1268 Tx to Antenna Mismatch ..........................................101 15.2.1 Description........................................................................................................................101 15.2.2 Workaround......................................................................................................................102 15.3 Implicit Header Mode Timeout Behavior ...........................................................................102 15.3.1 Description........................................................................................................................102 15.3.2 Workaround......................................................................................................................102 15.4 Optimizing the Inverted IQ Operation ................................................................................102 15.4.1 Description........................................................................................................................102 15.4.2 Workaround......................................................................................................................103 16. Packaging Information...........................................................................................................................104 16.1 Package Outline Drawing ........................................................................................................104 16.2 Package Marking .........................................................................................................................105 16.3 Land Pattern .................................................................................................................................105 16.4 Reflow Profiles ..............................................................................................................................106 SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 6 of 109 Semtech List of Figures Figure 2-1: SX1268 Top View Pin Location QFN 4x4 24L ................................................................... 13 Figure 4-1: SX1268 Block Diagram............................................................................................................. 21 Figure 4-2: TCXO Control Block................................................................................................................... 23 Figure 4-3: PA Supply Scheme in DC-DC Mode .................................................................................... 26 Figure 4-4: VR_PA versus Output Power up to +14 dBm................................................................... 26 Figure 4-5: Current versus Output Power with DC-DC Regulation up to +14 dBm ................. 27 Figure 4-6: Current versus Output Power with LDO Regulation up to +14 dBm...................... 27 Figure 4-7: Power Linearity up to +14 dBm with either LDO or DC-DC Regulation................. 28 Figure 4-8: VR_PA versus Output Power above +14 dBm................................................................. 28 Figure 4-9: Power Linearity above +14 dBm .......................................................................................... 29 Figure 4-10: Current versus Programmed Output Power above +14 dBm................................. 29 Figure 5-1: SX1268 Diagram with the DC-DC Regulator Power Option....................................... 32 Figure 5-2: SX1268 Diagram with the LDO Regulator Power Option............................................ 33 Figure 5-3: SX1268 Diagram with the DC-DC Regulator Power Option....................................... 33 Figure 5-4: SX1268 Diagram with the LDO Regulator Power Option............................................ 34 Figure 5-5: Separate DIO Supply................................................................................................................. 35 Figure 6-1: LoRa® Signal Bandwidth.......................................................................................................... 37 Figure 6-2: LoRa® Packet Format ................................................................................................................ 39 Figure 6-3: Fixed-Length Packet Format ................................................................................................. 43 Figure 6-4: Variable-Length Packet Format ............................................................................................ 43 Figure 6-5: Data Whitening LFSR................................................................................................................ 44 Figure 7-1: Data Buffer Diagram ................................................................................................................. 46 Figure 8-1: SPI Timing Diagram................................................................................................................... 48 Figure 8-2: SPI Timing Transition................................................................................................................ 49 Figure 8-3: Switching Time Definition ...................................................................................................... 50 Figure 8-4: Switching Time Definition in Active Mode....................................................................... 51 Figure 9-1: Transceiver Circuit Modes ...................................................................................................... 58 Figure 13-1: Stopping Timer on Preamble or Header Detection .................................................... 69 Figure 13-2: RX Duty Cycle Energy Profile............................................................................................... 70 Figure 13-3: RX Duty Cycle when Receiving........................................................................................... 71 Figure 14-1: Application Schematic of the SX1268 for +10 dBm Operation with RF Switch 100 Figure 14-2: Application Schematic of the SX1268 for +22 dBm Operation with RF Switch 100 Figure 16-1: QFN 4x4 Package Outline Drawing................................................................................. 104 Figure 16-2: SX1268 Marking ..................................................................................................................... 105 Figure 16-3: QFN 4x4mm Land Pattern.................................................................................................. 105 SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 7 of 109 Semtech List of Tables Table 2-1: SX1268 Pinout in QFN 4x4 24L ............................................................................................... Table 3-1: ESD and Latch-up Notice .......................................................................................................... Table 3-2: Absolute Maximum Ratings..................................................................................................... Table 3-3: Operating Range.......................................................................................................................... Table 3-4: Crystal Specifications ................................................................................................................. Table 3-5: Power Consumption................................................................................................................... Table 3-6: Power Consumption in Transmit Mode .............................................................................. Table 3-7: General Specifications ............................................................................................................... Table 3-8: Receive Mode Specifications................................................................................................... Table 3-9: Transmit Mode Specifications................................................................................................. Table 3-10: Digital I/O Specifications ........................................................................................................ Table 4-1: Internal Foot Capacitor Configuration................................................................................. Table 4-2: Intermediate Frequencies in FSK Mode .............................................................................. Table 4-3: Intermediate Frequencies in LoRa® Mode.......................................................................... Table 4-4: Power Amplifier Summary ....................................................................................................... Table 5-1: Regulation Type versus Circuit Mode................................................................................... Table 5-2: OCP Configuration ...................................................................................................................... Table 5-3: Recommended 15 μH Inductors ............................................................................................ Table 6-1: Range of Spreading Factors (SF) ............................................................................................ Table 6-2: Signal Bandwidth Setting in LoRa® Mode........................................................................... Table 6-3: Coding Rate Overhead .............................................................................................................. Table 6-4: Bandwidth Definition in FSK Packet Type .......................................................................... Table 6-5: Whitening Initial Value .............................................................................................................. Table 6-6: CRC Type Configuration............................................................................................................ Table 6-7: CRC Initial Value ........................................................................................................................... Table 6-8: CRC Polynomial ............................................................................................................................ Table 8-1: SPI Timing Requirements.......................................................................................................... Table 8-2: Switching Time............................................................................................................................. Table 8-3: Digital Pads Configuration for each Chip Mode............................................................... Table 8-4: IRQ Status Registers .................................................................................................................... Table 9-1: SX1268 Operating Modes......................................................................................................... Table 9-2: Image Calibration Over the ISM Bands ................................................................................ Table 9-3: Rx Gain Configuration................................................................................................................ Table 10-1: SPI Interface Command Sequence ..................................................................................... Table 11-1: Commands Selecting the Operating Modes of the Radio ......................................... Table 11-2: Commands to Access the Radio Registers and FIFO Buffer....................................... Table 11-3: Commands Controlling the Radio IRQs and DIOs......................................................... Table 11-4: Commands Controlling the RF and Packets Settings .................................................. Table 11-5: Commands Returning the Radio Status............................................................................ Table 12-1: List of Registers .......................................................................................................................... Table 13-1: SetSleep SPI Transaction ........................................................................................................ Table 13-2: Sleep Mode Definition............................................................................................................. Table 13-3: SetConfig SPI Transaction ...................................................................................................... Table 13-4: STDBY Mode Configuration .................................................................................................. Table 13-5: SetFs SPI Transaction ............................................................................................................... Table 13-6: SetTx SPI Transaction............................................................................................................... Table 13-7: SetTx Timeout Duration.......................................................................................................... Table 13-8: SetRx SPI Transaction............................................................................................................... Table 13-9: SetRx Timeout Duration ......................................................................................................... Table 13-10: StopTimerOnPreamble SPI Transaction ......................................................................... SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 12 14 14 14 15 16 16 17 18 20 20 22 24 25 30 31 31 34 37 38 38 41 44 45 45 45 49 51 52 53 54 55 56 59 60 61 61 61 62 63 65 65 66 66 66 66 67 67 68 68 8 of 109 Semtech Table 13-11: StopOnPreambParam Definition ...................................................................................... Table 13-12: SetRxDutyCycle SPI Transaction........................................................................................ Table 13-13: SetCAD SPI Transaction ........................................................................................................ Table 13-14: SetTxContinuousWave SPI Transaction.......................................................................... Table 13-15: SendTxInfinitePreamble SPI Transaction ....................................................................... Table 13-16: SetRegulatorMode SPI Transaction.................................................................................. Table 13-17: Calibrate SPI Transaction ..................................................................................................... Table 13-18: Calibration Setting ................................................................................................................. Table 13-19: CalibrateImage SPI Transaction......................................................................................... Table 13-20: SetPaConfig SPI Transaction............................................................................................... Table 13-21: PA Operating Modes with Optimal Settings................................................................. Table 13-22: SetRxTxFallbackMode SPI Transaction ........................................................................... Table 13-23: Fallback Mode Definition..................................................................................................... Table 13-24: WriteRegister SPI Transaction ............................................................................................ Table 13-25: ReadRegister SPI Transaction............................................................................................. Table 13-26: WriteBuffer SPI Transaction ................................................................................................ Table 13-27: ReadBuffer SPI Transaction ................................................................................................. Table 13-28: SetDioIrqParams SPI Transaction...................................................................................... Table 13-29: IRQ Registers............................................................................................................................. Table 13-30: GetIrqStatus SPI Transaction .............................................................................................. Table 13-31: ClearIrqStatus SPI Transaction ........................................................................................... Table 13-32: SetDIO2AsRfSwitchCtrl SPI Transaction ......................................................................... Table 13-33: Enable Configuration Definition ....................................................................................... Table 13-34: SetDIO3asTCXOCtrl SPI Transaction ................................................................................ Table 13-35: tcxoVoltage Configuration Definition............................................................................. Table 13-36: SetRfFrequency SPI Transaction........................................................................................ Table 13-37: SetPacketType SPI Transaction.......................................................................................... Table 13-38: PacketType Definition........................................................................................................... Table 13-39: GetPacketType SPI Transaction ......................................................................................... Table 13-40: SetTxParams SPI Transaction.............................................................................................. Table 13-41: RampTime Definition ............................................................................................................ Table 13-42: SetModulationParams SPI Transaction........................................................................... Table 13-43: GFSK ModParam1, ModParam2 & ModParam3 - br................................................... Table 13-44: GFSK ModParam4 - PulseShape ........................................................................................ Table 13-45: GFSK ModParam5 - Bandwidth ......................................................................................... Table 13-46: GFSK ModParam6, ModParam7 & ModParam8 - Fdev ............................................. Table 13-47: LoRa® ModParam1- SF .......................................................................................................... Table 13-48: LoRa® ModParam2 - BW ....................................................................................................... Table 13-49: LoRa® ModParam3 - CR......................................................................................................... Table 13-51: SetPacketParams SPI Transaction..................................................................................... Table 13-52: GFSK PacketParam1 & PacketParam2 - PreambleLength ........................................ Table 13-53: GFSK PacketParam3 - PreambleDetectorLength ........................................................ Table 13-50: LoRa® ModParam4 - LowDataRateOptimize................................................................. Table 13-54: GFSK PacketParam4 - SyncWordLength ........................................................................ Table 13-55: Sync Word Programming .................................................................................................... Table 13-56: GFSK PacketParam5 - AddrComp ..................................................................................... Table 13-57: Node Address Programming.............................................................................................. Table 13-58: Broadcast Address Programming..................................................................................... Table 13-59: GFSK PacketParam6 - PacketType .................................................................................... Table 13-60: GFSK PacketParam7 - PayloadLength............................................................................. Table 13-61: GFSK PacketParam8 - CRCType ......................................................................................... Table 13-62: CRC Initial Value Programming ......................................................................................... Table 13-63: CRC Polynomial Programming .......................................................................................... Table 13-64: GFSK PacketParam9 - Whitening ...................................................................................... SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 68 69 71 71 72 72 73 73 73 74 74 76 76 77 77 77 78 78 79 79 80 80 80 80 81 82 82 82 83 83 83 84 84 84 85 85 86 86 86 87 87 87 87 88 88 88 88 89 89 89 89 90 90 90 9 of 109 Semtech Table 13-65: Whitening Initial Value ......................................................................................................... Table 13-66: LoRa® PacketParam1 & PacketParam2 - PreambleLength....................................... Table 13-67: LoRa® PacketParam3 - HeaderType ................................................................................. Table 13-68: LoRa® PacketParam4 - PayloadLength............................................................................ Table 13-69: LoRa® PacketParam5 - CRCType........................................................................................ Table 13-70: LoRa® PacketParam6 - InvertIQ.......................................................................................... Table 13-71: SetCadParams SPI Transaction .......................................................................................... Table 13-72: CAD Number of Symbol Definition.................................................................................. Table 13-73: CAD Exit Mode Definition.................................................................................................... Table 13-74: SetBufferBaseAddress SPI Transaction ........................................................................... Table 13-75: SetLoRaSymbNumTimeout SPI Transaction................................................................. Table 13-76: Status Byte Definition ........................................................................................................... Table 13-77: GetStatus SPI Transaction.................................................................................................... Table 13-78: GetRxBufferStatus SPI Transaction................................................................................... Table 13-79: GetPacketStatus SPI Transaction ...................................................................................... Table 13-80: Status Fields.............................................................................................................................. Table 13-81: GetRssiInst SPI Transaction ................................................................................................. Table 13-82: GetStats SPI Transaction ...................................................................................................... Table 13-83: ResetStats SPI Transaction................................................................................................... Table 13-84: GetDeviceErrors SPI Transaction....................................................................................... Table 13-85: OpError Bits............................................................................................................................... Table 13-86: ClearDeviceErrors SPI Transaction.................................................................................... SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 90 90 91 91 91 91 91 92 92 92 93 94 94 95 95 95 96 96 96 97 97 97 10 of 109 Semtech 1. Architecture The SX1268 is a half-duplex transceiver capable of low power operation in the 400 to 800 MHz ISM frequency band. The radio comprises four main blocks: 1. Analog Front End: the transmit and receive chains, as well as the data converter interface to ensuing digital blocks. The last stage of the transmit chain can be used in two different ways according to the expected RF output power. The SX1268 transceiver is capable of outputting up to +14 dBm maximum output power with the DC-DC converter or LDO supply and up to +22 dBm with the battery supply. 2. Digital Modem Bank: a range of modulation options is available in the SX1268:  LoRa® Rx/Tx, BW = 7.8 - 500 kHz, SF5 to SF12, BR = 0.018 - 62.5 kb/s  (G)FSK Rx/Tx, with BR = 0.6 - 300 kb/s 3. Digital Interface and Control: this comprises all payload data and protocol processing as well as access to configuration of the radio via the SPI interface. 4. Power Distribution: two forms of voltage regulation, DC-DC or linear regulator LDO, are available depending upon the design priorities of the application. SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 11 of 109 Semtech 2. Pin Connection 2.1 I/O Description Table 2-1: SX1268 Pinout in QFN 4x4 24L Pin Number Pin Name Type (I = input O = Ouptut) 0 GND - 1 VDD_IN I 2 GND - Ground 3 XTA - Crystal oscillator connection, can be used to input external reference clock 4 XTB - Crystal oscillator connection 5 GND - Ground 6 DIO3 I/O Multi-purpose digital I/O - external TCXO supply voltage 7 VREG O Regulated output voltage from the internal regulator LDO / DC-DC 8 GND - Ground 9 DCC_SW O DC-DC Switcher Output 10 VBAT I Supply for the RFIC 11 VBAT_IO I Supply for the Digital I/O interface pins (except DIO3) 12 DIO2 I/O Multi-purpose digital I/O / RF Switch control 13 DIO1 I/O Multi-purpose digital IO 14 BUSY O Busy indicator 15 NRESET I Reset signal, active low 16 MISO O SPI slave output 17 MOSI I SPI slave input 18 SCK I SPI clock 19 NSS I SPI Slave Select 20 GND - Ground 21 RFI_P I RF receiver input 22 RFI_N I RF receiver input 23 RFO O RF transmitter output 24 VR_PA - Regulated power amplifier supply SX1268 Data Sheet DS.SX1268.W.APP Description Exposed Ground pad Input voltage for power amplifier regulator, VR_PA Connected to pin 10 or pin 7 www.semtech.com Rev. 1.1 June 2019 12 of 109 Semtech GND NSS 20 19 RFI_N 22 RFI_P RFO 23 21 VR_PA 24 2.2 Package View VDD_IN 1 18 SCK GND 2 17 MOSI XTA 3 16 MISO XTB 4 15 NRESET GND 5 14 BUSY DIO3 6 13 DIO1 11 12 VBAT_IO DIO2 9 DCC_SW 10 8 GND VBAT 7 VREG 0 GND Figure 2-1: SX1268 Top View Pin Location QFN 4x4 24L SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 13 of 109 Semtech 3. Specifications 3.1 ESD Notice The SX1268 transceiver is a high-performance radio frequency device, with high ESD and latch-up resistance. The chip should be handled with all the necessary ESD precautions to avoid any permanent damage. Table 3-1: ESD and Latch-up Notice Symbol ESD_HBM Description Class 2 of ANSI/ESDA/JEDEC Standard JS-001-2014 (Human Body Model) Min Typ Max Unit - - 2.0 kV ESD_CDM ESD Charged Device Model, JEDEC standard JESD22-C101D, class III - - 1000 V LU Latch-up, JEDEC standard JESD78 B, class I level A - - 100 mA 3.2 Absolute Maximum Ratings Stresses above the values listed below may cause permanent device failure. Exposure to absolute maximum ratings for extended periods may affect device reliability, reducing product life time. Table 3-2: Absolute Maximum Ratings Symbol Description Min Typ Max Unit VDDmr Supply voltage, applies to VBAT and VBAT_IO -0.5 - 3.9 V Tmr Temperature -55 - 125 °C Pmr RF Input level - - 10 dBm 3.3 Operating Range Operating ranges define the limits for functional operation and parametric characteristics of the device. Functionality outside these limits is not guaranteed. Table 3-3: Operating Range Symbol Description Min Typ Max Unit VDDop Supply voltage, applies to VBAT and VBAT_IO 1.8 - 3.7 V Top Temperature under bias -40 - 85 °C Clop Load capacitance on digital ports - - 20 pF ML RF Input power - - 0 dBm VSWR Voltage Standing Wave Ratio at antenna port - - 10:1 - SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 14 of 109 Semtech 3.4 Crystal Specifications Table 3-4: Crystal Specifications Symbol Description Min Typ Max Unit FXOSC Crystal oscillator frequency - 32 - MHz CLOAD Crystal load capacitance - 10 - pF C0XTAL Crystal shunt capacitance 0.3 0.6 2 pF RSXTAL Crystal series resistance - 30 60  CMXTAL Crystal motional capacitance 1.3 1.89 2.5 fF DRIVE Drive level - - 100 W The reference frequency accuracy is defined by the complete system, and should take into account precision of the transmitter and the receiver, as well as environmental parameters such as extreme temperature limits. In a LoRaWANTM system, the expected reference frequency accuracy on the end-device should be about +/- 30 ppm under all operating conditions. This includes initial error, temperature drift and ageing over the lifetime of the product. 3.5 Electrical Specifications The electrical specifications are given with the following conditions unless otherwise specified: • VBAT_IO = VBAT = 3.3 V, all current consumptions are given for VBAT connected to VBAT_IO • Temperature = 25 °C • FXOSC = 32 MHz, with specified crystal • fRF = 434/490/780 MHz • All RF impedances matched • Transmit mode output power defined into a 50 load impedance • FSK BER = 0.1%, 2-level FSK modulation without pre-filtering, BR = 4.8 kb/s, FDA = ± 5 kHz, BW_F = 20 kHz double-sided • LoRa® PER = 1%, packet 64 bytes, preamble 8 symbols, CR = 4/5, CRC on payload enabled, explicit header mode • RX/TX specifications given using default RX gain step and direct tie connection between Rx and Tx • Blocking immunity, ACR and co-channel rejection are given for a single tone (CW) interferer and referenced to sensitivity +3 dB • Optional TCXO and RF Switch power consumption always excluded Caution! Throughout this document, all receiver bandwidths are expressed as “double-sideband”. This is valid for LoRa® and FSK modulations. SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 15 of 109 Semtech 3.5.1 Power Consumption Table 3-5: Power Consumption Symbol Mode Conditions Min Typ Max Unit IDDOFF OFF mode (cold start 1) All blocks off - 160 - nA IDDSL SLEEP mode (warm start 2) IDDSBR Configuration retained - 600 - nA Configuration retained + RC64k - 1.2 - A STDBY_RC mode RC13M, XOSC OFF - 0.6 - mA IDDSBX STDBY_XOSC mode XOSC ON - 0.8 - mA IDDFS Synthesizer mode DC-DC mode used - 2.1 - mA LDO mode used - 3.55 - mA FSK 4.8 kb/s - 4.2 - mA LoRa® 125 kHz - 4.6 - mA Rx Boosted3, FSK 4.8 kb/s - 4.8 - mA Rx Boosted, LoRa® 125 kHz - 5.3 - mA LoRa® 125 kHz, VBAT = 1.8 V - 8.2 - mA FSK 4.8 kb/s - 8 - mA Receive mode LoRa® 125 kHz - 8.8 - mA LDO mode used Rx Boosted, FSK 4.8 kb/s - 9.3 - mA Rx Boosted, LoRa® 125 kHz - 10.1 - mA Receive mode DC-DC mode used IDDRX 1. Cold start is equivalent to the device at POR or when it wakes up from Sleep mode with all blocks OFF, see Section 13.1.1 "SetSleep" on page 65 2. Warm start only happens when the device is woken from Sleep mode with its configuration retained, see Section 13.1.1 "SetSleep" on page 65 3. For more details on how to set the device in Rx Boosted gain mode, see Section 9.6 "Receive (RX) Mode" on page 56 Table 3-6: Power Consumption in Transmit Mode Symbol Frequency Band IDDTX 1 780 MHz PA Match / Condition Power Output Typical Unit +14 dBm matching2 +14 dBm, VBAT = 3.3 V 36 mA +10 dBm matching2 +10 dBm, VBAT = 3.3 V 20 mA +22 dBm 107 mA +20 dBm 90 mA +17 dBm 75 mA +14 dBm 63 mA +20 dBm / optimal settings 4 +20 dBm 65 mA +17 dBm / optimal settings 4 +17 dBm 42 mA +14 dBm / optimal settings 4 +14 dBm 32 mA +22 dBm IDDTX 3 490 MHz 1. DC-DC mode is used for the whole IC, see Section 5.1 "Selecting DC-DC Converter or LDO Regulation" on page 31 2. For more details on optimal settings, see Section 13.1.14.1 "PA Optimal Settings" on page 74. 3. DC-DC mode is used for the IC core but the PA is supplied from VBAT, see Section 5.1 "Selecting DC-DC Converter or LDO Regulation" on page 31. 4. Optimal settings adapted to the specified output power. For more details, see Section 13.1.14.1 "PA Optimal Settings" on page 74 SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 16 of 109 Semtech 3.5.2 General Specifications Table 3-7: General Specifications Symbol Description Conditions Min Typ Max Unit FR Synthesizer frequency range - 410 - 810 MHz FSTEP Synthesizer frequency step Bit 2 of TxModulation = 1 (main use) - 0.95 - Hz Bit 2 of TxModulation = 0 (see Section 15.) - 61.03 - Hz 1 kHz offset - -75 - dBc/Hz Synthesizer phase noise PHN1 2 (for 780 MHz) 10 kHz offset - -95 - dBc/Hz 100 kHz offset - -100 - dBc/Hz 1MHz offset - -120 - dBc/Hz 10 MHz offset - -135 - dBc/Hz TS_FS Synthesizer wake-up time From STDBY_XOSC mode - 40 - s TS_OSC Crystal oscillator wake-up time from STDBY_RC3 - 150 - s +/-15 +/-30 - ppm 0.6 - 300 5 kb/s 0.6 - 200 kHz 0.018 - 62.5 kb/s Crystal oscillator trimming OSC_TRM range for crystal frequency error compensation 4 BR_F Bit rate, FSK FDA Frequency deviation, FSK BR_L Bit rate LoRa® BW_L Signal BW, LoRa® Programmable 7.8 - 500 kHz SF Spreading factor for LoRa® Programmable, chips/symbol = 2^SF 5 - 12 - VTCXO Regulated voltage range for TCXO voltage supply 1.6 1.7 3.3 V - 1.5 4 mA - - 100 s Programmable Minimum modulation index is 0.5 Programmable FDA + BR_F / 2  250 kHz Min. for SF12, BW_L = 7.8 kHz Max. for SF5, BW_L = 500 kHz Min/Max values in typical conditions, Typ value for default setting VDDop > VTCXO + 200 mV ILTCXO Load current for TCXO regulator TSVTCXO Start-up time for TCXO regulator IDDTCXO Current consumption of the TCXO regulator ATCXO Amplitude voltage for external TCXO applied to XTA pin SX1268 Data Sheet DS.SX1268.W.APP From enable to regulated voltage within 25 mV from target Quiescent current - - 70 A Relative to load current - 1 2 % 0.4 - 1.2 Vpk-pk provided through a 220  resistor in series with a 10 pF capacitance See Section 4.1.4 "TCXO Control Block" on page 23 www.semtech.com Rev. 1.1 June 2019 17 of 109 Semtech 1. Phase Noise specifications are given for the recommended PLL BW to be used for the specific modulation/BR, optimized settings may be used for specific applications 2. Phase Noise is not constant over frequency, due to the topology of the PLL, for two frequencies close to each other, the phase noise could change significantly 3. Wake-up time till crystal oscillator frequency is within +/- 10 ppm 4. OSC_TRIM is the available trimming range to compensate for crystal initial frequency error and to allow crystal temperature compensation implementation; the total available trimming range is higher and allows the compensation for all IC process variations 5. Maximum bit rate is assumed to scale with the RF frequency; for example 300 kb/s at 780 MHz frequency bands and 150 kb/s at 434/490 MHz 3.5.3 Receive Mode Specifications Table 3-8: Receive Mode Specifications Symbol RXS_2FB RXS_LB Description Conditions Min Typ Max Unit Sensitivity 2-FSK, BR_F = 0.6 kb/s, FDA = 0.8 kHz, BW_F = 4 kHz - -125 - dBm RX Boosted gain, see Section 9.6 "Receive (RX) Mode" on page 56, split RF paths for Rx and Tx, RF switch insertion loss excluded BR_F = 1.2 kb/s, FDA = 5 kHz, BW_F = 20 kHz - -123 - dBm BR_F = 4.8 kb/s, FDA = 5 kHz, BW_F = 20 kHz - -118 - dBm BR_F = 38.4 kb/s, FDA = 40 kHz, BW_F = 160 kHz - -109 - dBm BR_F = 250 kb/s, FDA = 125 kHz, BW_F = 500 kHz - -104 - dBm BW_L = 10.4 kHz, SF = 7 - -134 - dBm BW_L = 10.4 kHz, SF = 12 - -148 - dBm Sensitivity LoRa®, BW_L = 125 kHz, SF = 7 - -124 - dBm Rx Boosted gain, see Section 9.6 "Receive (RX) Mode" on page 56, split RF paths for Rx and Tx, RF switch insertion loss excluded BW_L = 125 kHz, SF = 12 - -137 - dBm BW_L = 250 kHz, SF = 7 - -121 - dBm BW_L = 250 kHz, SF = 12 - -134 - dBm BW_L = 500 kHz, SF = 7 - -117 - dBm BW_L = 500 kHz, SF = 12 - -129 - dBm BR_F = 4.8 kb/s, FDA = 5 kHz, BW_F = 20 kHz - -115 - dBm BW_L = 125 kHz, SF = 12 - -133 - dBm - -9 - dB Sensitivity 2-FSK Rx Power Saving gain RXS_2F with direct tie connection between Rx and Tx Sensitivity LoRa® Rx Power Saving gain RXS_L with direct tie connection between Rx and Tx CCR_F Co-channel rejection, FSK CCR_L Co-channel rejection, LoRa® ACR_F ACR_L SF = 7 - 5 - dB SF = 12 - 19 - dB Adjacent channel rejection, FSK Offset = +/- 50 kHz - 45 - dB Adjacent channel rejection, LoRa® BW_L = 125 kHz, SF = 7 - 60 - dB BW_L = 125 kHz, SF = 12 - 72 - dB Offset = +/- 1.5 x BW_L SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 18 of 109 Semtech Table 3-8: Receive Mode Specifications Symbol Description Conditions Min Typ Max Unit Offset = +/- 1 MHz - 68 - dB Offset = +/- 2 MHz - 70 - dB Offset = +/- 10 MHz - 80 - dB Offset = +/- 1 MHz - 88 - dB Offset = +/- 2 MHz - 90 - dB Offset = +/- 10 MHz - 99 - dB - -5 - dBm Without IQ calibration - 35 - dB With IQ calibration - 54 - dB BR_F = 4.8 kb/s, FDA = 5 kHz, BW_F = 20 kHz BI_F Blocking immunity, FSK BW_L = 125 kHz, SF =12 BI_L Blocking immunity, LoRa® Unwanted tones are 1 MHz and IIP3 3rd order input intercept point IMA Image attenuation BW_F DSB channel filter BW, FSK Programmable, typical values 4.8 - 467 kHz TS_RX Receiver wake-up time FS to RX - 41 - s Maximum tolerated frequency offset between transmitter and receiver, no sensitivity degradation, SF5 to SF12 1.96 MHz above LO All bandwidths, ±25% of BW ±25% The tighter limit applies (see below) BW FERR_L Maximum tolerated frequency offset between transmitter and receiver, no sensitivity degradation, SF10 to SF12 SX1268 Data Sheet DS.SX1268.W.APP SF12 -50 - 50 ppm SF11 -100 - 100 ppm SF10 -200 - 200 ppm www.semtech.com Rev. 1.1 June 2019 19 of 109 Semtech 3.5.4 Transmit Mode Specifications Table 3-9: Transmit Mode Specifications Symbol Description Conditions Min Typ Max Unit TXOP Maximum RF output power Highest power step setting - +22 - dBm - 0.5 - dB at +22 dBm, VBAT = 2.7 V - 2 - dB at +22 dBm, VBAT = 2.4 V - 3 - dB at +22 dBm, VBAT = 1.8 V - 6 - dB Programmable in 31 steps, typical value TXOP-31 - TXOP dBm - ±2 - dB under DC-DC or LDO VDDop range from 1.8 to 3.7 V RF output power drop versus supply voltage TXDRP TXPRNG RF output power range TXACC RF output power step accuracy TXRMP Power amplifier ramping time Programmable 10 - 3400 s TS_TX Tx wake-up time Frequency Synthesizer enabled - 36 + PA ramping - s 3.5.5 Digital I/O Specifications Table 3-10: Digital I/O Specifications Symbol Description Conditions Min Typ Max Unit VIH Input High Voltage - 0.7*VBAT_IO 1 - VBAT_IO 1+0.3 V VIL Input Low Voltage - -0.3 - 0.3*VBAT_IO 1 V VIL_N Input Low Voltage for pin NRESET - -0.3 - 0.2*VBAT V VOH Output High Voltage Imax = -2.5 mA 0.9*VBAT_IO 1 - VBAT_IO 1 V VOL Output Low Voltage Imax = 2.5 mA 0 - 0.1*VBAT_IO 1 V - -1 - 1 A Ileak Digital input leakage current (NSS, MOSI, SCK) 1. excluding following pins: NRESET and DIO3, which are referred to VBAT SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 20 of 109 Semtech 4. Circuit Description Analog Front End & Data Conversion ADC LNA LoRaTM Modem Matching + LPF PA Protocol Engine SPI PLL FSK Modem OSC DC-DC Data Buffer LDO Figure 4-1: SX1268 Block Diagram SX1268 is a half-duplex RF transceiver operating in the sub-GHz frequency bands which supports LoRa® and FSK constant envelope modulations schemes. 4.1 Clock References 4.1.1 RC Frequency References Two RC oscillators are available: 64 kHz and 13 MHz RC oscillators. The 64 kHz RC oscillator (RC64k) is optionally used by the circuit in SLEEP mode to wake-up the transceiver when performing periodic or duty cycled operations. Several commands make use of this 64 kHz RC oscillator (called RTC across this document) to generate time-based events. The 13 MHz RC oscillator (RC13M) is enabled for all SPI communication to permit configuration of the device without the need to start the crystal oscillator. Both RC oscillators are supplied directly from the battery. 4.1.2 High-Precision Frequency Reference In SX1268 the high-precision frequency reference can come either from an on-chip crystal oscillator (OSC) using an external crystal resonator or from an external TCXO (Temperature Compensated Crystal Oscillator), supplied by an internal regulator. The SX1268 comes in a small form factor 4 x 4 mm QFN package with the ability to transmit up to +22 dBm. When in transmit mode the circuit may heat up depending on the output power and current consumption. Careful PCB design using thermal isolation techniques must be applied between the circuit and the crystal resonator to avoid transferring the heat to the external crystal resonator. SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 21 of 109 Semtech When using the LoRa® modulation with LowDataRateOptimize set to 0x00 (see Section Table 13-50: "LoRa® ModParam4 LowDataRateOptimize" on page 87), the total frequency drift over the packet transmission time should be minimized and kept lower than Freq_drift_max: When possible, using LowDataRateOptimize set to 0x01 will significantly relax the total frequency drift over the packet transmission requirement to 16 x Freq_drift_max. Note: Recommendations for heat dissipation techniques to be applied to the PCB designs are given in detail in the application note AN1200.37 “Recommendations for Best Performance” on www.semtech.com. In miniaturized design implementations where heat dissipations techniques cannot be implemented or the use of the LowDataRateOptimize is not supported, the use of a TCXO will provide a more stable clock reference. 4.1.3 XTAL Control Block The SX1268 does not require the user to set external foot capacitors on the XTAL supplying the 32 MHz clock. Indeed, the device is fitted with internal programmable capacitors connected independently to the pins XTA and XTB of the device. Each capacitor can be set independently, balanced or unbalanced to each other, by 0.47 pF typical steps. Table 4-1: Internal Foot Capacitor Configuration Pin Register Address Typical Values XTA 0x0911 Each capacitor can be controlled independently 0x0912 0x00 sets the trimming cap to 11.3 pF (minimum) in steps of 0.47 pF added to the minimal value: XTB 0x2F sets the trimming cap to 33.4 pF (maximum) Note when using an XTAL: At POR or when waking-up from Sleep in cold start mode, the trimming cap registers will be initialized at the value 0x05 (13.6 pF). Once the device is set in STDBY_XOSC mode, the internal state machine will overwrite both registers to the value 0x12 (19.7pF). Therefore, the user must ensure the device is already in STDBY_XOSC mode before changing the trimming cap values so that they are not overwritten by the state machine. Note when using a TCXO: Once the command SetDIO3AsTCXOCtrl(...) is sent to the device, the register controlling the internal cap on XTA will be automatically changed to 0x2F (33.4 pF) to filter any spurious transitions which could occur and be propagated to the PLL. SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 22 of 109 Semtech 4.1.4 TCXO Control Block Under certain circumstances, typically small form factor designs with reduced heat dissipation or environments with extreme temperature variation, it may be required to use a TCXO (Temperature Compensated Crystal Oscillator) to achieve better frequency accuracy. This depends on the complete system, transmitter and receiver. The specification FERR_L in Table 3-8: "Receive Mode Specifications" on page 18 provides information on the maximum tolerated frequency offset for optimal receiver performance. WƌŽŐƌĂŵŵĂďůĞ ǀŽůƚĂŐĞϭ͘ϲƚŽϯ͘ϯs /Kϯ ϭϬϬŶ& ϭ͘ϱƚŽϰ ŵ ϮϮϬƉ& ϮϮϬ: ^yϭϮϲϴ ϭϬƉ& yd dyK yd;ůĞĂǀĞŽƉĞŶͿ Figure 4-2: TCXO Control Block When a TCXO is used, it should be connected to pin 3 XTA, through a 220  resistor and a10 pF DC-cut capacitor. Pin 4 XTB should be left not connected. Pin 6 DIO3 can be used to provide a regulated DC voltage to power the TCXO, programmable from 1.6 to 3.3 V. VBAT should always be 200 mV higher than the programmed voltage to ensure proper operation. The nominal current drain is 1.5 mA, but the regulator can support up to 4 mA of load. A clipped-sinewave output TCXO is required, with the output amplitude not exceeding 1.2 V peak-to-peak. The commands to enable TCXO mode are described in Section 13.3.6 "SetDIO3AsTCXOCtrl" on page 80, and that includes DC voltage and timing information. Note: A complete Reset of the chip as described in Section 8.1 "Reset" on page 48 is required to get back to normal XOSC operation, after the chip has been set to TCXO mode with the command SetDIO3AsTCXOCtrl. 4.2 Phase-Locked Loop (PLL) A fractional-N third order sigma-delta PLL acts as the frequency synthesizer for the LO of both receiver and transmitter chains. SX1268 is able to cover continuously all the sub-GHz frequency range 410 MHz to 810 MHz. The PLL is capable of auto-calibration and has low switching-on or hopping times. Frequency modulation is performed inside the PLL bandwidth. The PLL frequency is derived from the crystal oscillator circuit which uses an external 32 MHz crystal reference. SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 23 of 109 Semtech 4.3 Receiver The received RF signal is first amplified by a differential Low Noise Amplifier (LNA), then down-converted to low- IF intermediate frequency by mixers operating in quadrature configuration. The I and Q signals are low-pass filtered and then digitized by a continuous time feedback architecture  converter (ADC) allowing more than 80 dB dynamic range. Once in the digital domain the signal is then decimated, down-converted again, decimated again, channel filtered and finally demodulated by the selected modem depending on modulation scheme: FSK modem or LoRa® modem. 4.3.1 Intermediate Frequencies The SX1268 receiver mostly operates in low-IF configuration, expect for specific high-bandwidth settings. Table 4-2: Intermediate Frequencies in FSK Mode Setting Name Bandwidth [kHz DSB] Intermediate Frequency [kHz] RX_BW_467 467.0 250 RX_BW_234 234.3 250 RX_BW_117 117.3 250 RX_BW_58 58.6 250 RX_BW_29 29.3 250 RX_BW_14 14.6 250 RX_BW_7 7.3 250 RX_BW_373 373.6 200 RX_BW_187 187.2 200 RX_BW_93 93.8 200 RX_BW_46 46.9 200 RX_BW_23 23.4 200 RX_BW_11 11.7 200 RX_BW_5 5.8 200 RX_BW_312 312.0 167 RX_BW_156 156.2 167 RX_BW_78 78.2 167 RX_BW_39 39.0 167 RX_BW_19 19.5 167 RX_BW_9 9.7 167 RX_BW_4 4.8 167 SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 24 of 109 Semtech Table 4-3: Intermediate Frequencies in LoRa® Mode BW Setting Bandwidth [kHz DSB] Intermediate Frequency [kHz] LORA_BW_500 500 0 LORA_BW_250 250 250 LORA_BW_125 125 250 LORA_BW_62 62.5 250 LORA_BW_41 41.67 167 LORA_BW_31 31.25 250 LORA_BW_20 20.83 167 LORA_BW_15 15.63 250 LORA_BW_10 10.42 167 LORA_BW_7 7.81 250 4.4 Transmitter The transmit chain uses the modulated output from the modem bank which directly modulates the fractional-N PLL. An optional pre-filtering of the bit stream can be enabled to reduce the power in the adjacent channels, also dependent on the selected modulation type. The default maximum RF output power of the transmitter is +22 dBm. The RF output power is programmable with 32 dB of dynamic range, in 1 dB steps. The power amplifier ramping time is also programmable to meet regulatory requirements. The power amplifier is supplied by the regulator VR_PA and the connection between VR_PA and RFO is done externally to the chip. As illustrated in Figure 4-3: PA Supply Scheme in DC-DC Mode, the supply used for VR_PA is different according to the desired RF output power: • Up to +14 dBm: VR_PA, supplied through VDD_IN, is taken from a voltage regulator (DC-DC or LDO), allowing a very small variation of the output power versus supply voltage; • Above +14 dBm: VR_PA, supplied through VDD_IN, is taken directly from the battery and in this case maximum output power is limited by supply voltage at VDD_IN. SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 25 of 109 Semtech 1.8 to 3.7 V LDO DC-DC VBAT 1.8 to 3.7 V DCC_SW LDO DC-DC VREG (1.55 V) DCC_SW VREG (1.55 V) (1.55 V) (1.55 V) VDD_IN (1.55 V) CORE VBAT VDD_IN (1.8 to 3.7 V) CORE (RX) (RX) REG PA (PLL) PA LP Up to +14 dBm VR_PA (up to 1.35 V) REG PA (PLL) RFO PA LP VR_PA (up to 3.1 V) RFO Above +14 dBm Figure 4-3: PA Supply Scheme in DC-DC Mode 4.4.1 Power Amplifier Specifics up to +14 dBm Caution! All figures in this chapter are indicative and typical, and are not a specification. These figures only highlight behavior of the PA over voltage and current. The power efficiency of the transmitter is maximized when the internal DC-DC regulator is used. The voltage on VR_PA varies from about 20 mV to 1.40 V to achieve the programmed Output Power (Pout). Figure 4-4: VR_PA versus Output Power up to +14 dBm SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 26 of 109 Semtech With this method, the output power is kept almost constant with VBAT from 1.8 to 3.7 V. When the DC-DC regulator is used the total power consumption will directly be impacted by the supply voltage. For instance, when 18 mA are needed on VBAT to output +10 dBm with VBAT = 3.7 V, the same output and will require 35 mA when VBAT = 1.8 V. Figure 4-5: Current versus Output Power with DC-DC Regulation up to +14 dBm However, when LDO is chosen, the current drain will remain flat for VBAT between 1.8 V and 3.7 V, at the expense of a much lower energy efficiency: Figure 4-6: Current versus Output Power with LDO Regulation up to +14 dBm SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 27 of 109 Semtech The following plot also confirms the linearity of the output power curve at nominal and extreme voltage levels: Figure 4-7: Power Linearity up to +14 dBm with either LDO or DC-DC Regulation 4.4.2 Power Amplifier Specifics above +14 dBm Caution! All figures below are indicative and typical, and are not a specification. These figures only highlight behavior of the PA over voltage and current. Figures are given with DC-DC regulation enabled, which applies only to the circuit core. The PA is optimized for maximum output power whilst maximizing the efficiency, which makes it mandatory to supply the power amplifier with fairly high voltages to maintain an high output power. To summarize: • the current efficiency of the PA is optimal at the highest output power step • output power will be limited by the voltage supplied to VBAT. This is illustrated in the following figure: Figure 4-8: VR_PA versus Output Power above +14 dBm SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 28 of 109 Semtech The internal regulator for VR_PA has a little less than 200 mV of drop-out, which means VBAT must be 200 mV higher than the published VR_PA voltages in order to attain the corresponding output power. For example, for Pout = +20 dBm, VR_PA = 2.5 V is required, which means that the SX1268 will be able to maintain Pout = +20 dBm on the 2.7 V < VBAT < 3.7 V voltage range. Below 2.7 V, the output power will degrade as VBAT reduces. As can be seen from the blue curve on Figure 4-8: VR_PA versus Output Power above +14 dBm, the SX1268 will be capable of supplying almost 1.7 V when VBAT = 1.8 V, which, in turn, will make the output power plateau at +17 dBm for all power settings above +17 dBm. The following plot confirms the linearity of the output power, as long as the VBAT voltage is high enough to supply the required VR_PA voltage: Figure 4-9: Power Linearity above +14 dBm The power consumption evolves with the programmed output power, as follows (DC-DC regulation): Figure 4-10: Current versus Programmed Output Power above +14 dBm SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 29 of 109 Semtech 4.4.3 Power Amplifier Summary The following table summarizes the power amplifier optimization keys between both PA supply modes: Table 4-4: Power Amplifier Summary PA Summary Conditions Up to +14 dBm Above +14 dBm Max Power with relevant matching and settings +14 dBm + 22 dBm at + 22 dBm and 490 MHz - 107 mA at +10 dBm and 780 MHz 20 mA - IDDTX in DC - DC mode, flat from 3.3 V to 3.7 V Output Power vs VBAT flat from VBAT = 1.8 V to 3.7 V VBAT = 3.1 V for +22 dBm VBAT = 2.7 V for +20 dBm VBAT = 1.8 V for +16 dBm inversely proportional to VBAT, IDDTX vs VBAT DC - DC buck converter - is used for PA supply SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 30 of 109 Semtech 5. Power Distribution 5.1 Selecting DC-DC Converter or LDO Regulation Two forms of voltage regulation (DC-DC buck converter or linear LDO regulator) are available depending upon the design priorities of the application. The linear LDO regulator is always present in all modes but the transceiver will use DC-DC when selected. Alternatively a high efficiency DC to DC buck converter can be enabled in FS, Rx and Tx modes. The DC-DC can be driven by two clock sources: • in STDBY_XOSC: RC13M is used to supply clock and the frequency is RC13M / 4 so the switching frequency of the DC-DC converter will be 3.25 MHz • in FS, RX, TX: the PLL is used to supply clock and the frequency is ~5MHz; every time the command SetRFFrequency(...) is called the divider ratio is recalculated so that the switching frequency is as close as possible to the 5 MHz target. Unless specified, all specifications of the transceiver are given with the DC-DC regulator enabled. For applications where cost and size are constrained, LDO-only operation is possible which negates the need for the 47nH inductor before pin 1 and the 15 μH inductor between pins 7 and 9, conferring the benefits of a reduced bill of materials and reduced board space. The following table illustrates the power regulation options for different modes and user settings. Table 5-1: Regulation Type versus Circuit Mode Circuit Mode Sleep STDBY_RC STDBY_XOSC FS Rx Tx Regulator Type = 0 - LDO LDO LDO LDO LDO Regulator Type = 1 - LDO DC-DC + LDO DC-DC + LDO DC-DC + LDO DC-DC + LDO The user can specify the use of DC-DC by using the command SetRegulatorMode(...). This operation must be carried out in STDBY_RC mode only. When the DC-DC is enabled, the LDO will remain ON and its target voltage is set 50 mV below the DC-DC voltage to ensure voltage stability for high current peaks. If the DC-DC voltage drops to this level due to high current peak, the LDO will cover for the current need at the expense of the energy consumption of the radio which will be increased. However, to avoid consuming too much energy, the user is free to configure the Over Current Protection (OCP) register manually. At Reset, the OCP is configured to limit the current at 60 mA. Table 5-2: OCP Configuration Configuration Register Address OCP default Recommended Value Up to +14 dBm 0x08E7 0x38 (140 mA) 0x18 (60 mA) Above +14 dBm 0x08E7 0x38 (140 mA) 0x38 (140 mA) The OCP is configurable by steps of 2.5 mA and the default value is re-configured automatically each time the function SetPaConfig(...) is called. If the user wants to adjust the OCP value, it is necessary to change the register as a second step after calling the function SetPaConfig(...). SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 31 of 109 Semtech Note: The user should pay attention to the dependency of the current drain versus VBAT when using the SX1268 in DC-DC mode. Because the current drained is inversely proportional to VBAT (for instance for Pout = +14 dBm, 25.5 mA at 3.3 V, and 48 mA at 1.8 V), the OCP current limit should be set high enough to accommodate a current increase or be dynamically set. Another strategy is to set the OCP to a specific limit and accept a drop of the output power of the device when the OCP starts limiting the current consumption. 5.1.1 Option A: DC-DC Regulator up to +14 dBm The DC-DC Regulator is used with about 90% of efficiency, for the chip core and Power Amplifier (PA). Advantage of this option: VDD_IN The power consumption is drastically reduced at 3.3 V, output power is maintained from VBAT = 1.8 V to 3.7 V. VBAT DCC_SW VREG PA Supply SX1268 Main supply 1.8 to 3.7 V Figure 5-1: SX1268 Diagram with the DC-DC Regulator Power Option SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 32 of 109 Semtech 5.1.2 Option B: LDO Regulator up to +14 dBm The LDO Regulator is used, for both the core of the chip and the PA. Advantage of this option: VDD_IN The cost and space for the external 15 H and 47 nH inductors are spared. VBAT VREG PA Supply SX1268 Main supply 1.8 to 3.7 V Figure 5-2: SX1268 Diagram with the LDO Regulator Power Option 5.1.3 Option C: DC-DC Regulator above +14 dBm The DC-DC Regulator is used with about 90% of efficiency, for the chip core only. The PA regulator is supplied with VBAT. VDD_IN Advantage of this option: The power consumption of the core is reduced. *VBAT=3.3 V min. to reach +22 dBm VBAT DCC_SW VREG PA Supply SX1268 Main supply 1.8* to 3.7 V Figure 5-3: SX1268 Diagram with the DC-DC Regulator Power Option SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 33 of 109 Semtech 5.1.4 Option D: LDO Regulator above +14 dBm The LDO Regulator is used. Power consumption of the core is slightly higher than in Option C. Advantage of this option: VDD_IN The cost and space for an external 15 H inductor are spared. VBAT VREG PA Supply SX1268 Main supply 1.8* to 3.7 V * VBAT=3.3 V min. to reach +22 dBm Figure 5-4: SX1268 Diagram with the LDO Regulator Power Option 5.1.5 Consideration on the DC-DC Inductor Selection The selection of the inductor is essential to ensure optimal performance of the DC-DC internal block. Selecting an incorrect inductor could cause various unwanted effects ranging from ripple currents to early aging of the device, as well as a degradation of the efficiency of the DC-DC regulator. The preferred inductor will be shielded, presenting a low internal series resistance and a resonance frequency much higher than the DC-DC switching frequency. When selecting the 15 μH inductor, the user should therefore select a part with the following considerations: • DCR (max) = 2 ohms • Idc (min) = 100 mA • Freq (min) = 20 MHz Table 5-3: Recommended 15 μH Inductors Reference Manufacturer Value (μH) Idc max (mA) Freq (MHz) DCR (ohm) Package (L x W x H in mm) LPS3010-153 Coilcraft 15 370 43 0.95 2.95 x 2.95 x 0.9 MLZ2012N150L TDK 15 90 40 0.47 2 x 1.25 x 1.25 MLZ2012M150W TDK 15 120 40 0.95 2 x 1.25 x 1.25 VLS2010ET-150M TDK 15 440 40 1.476 2x2x1 VLS2012ET-150M TDK 15 440 40 1.062 2 x 2 x 1.2 SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 34 of 109 Semtech 5.2 Flexible DIO Supply The transceiver has two power supply pins, one for the core of the transceiver called VBAT and one for the host controller interface (SPI, DIOs, BUSY) called VBAT_IO. Both power supplies can be connected together. In case a low voltage micro-controller (typically with IO pads at 1.8 V) is used to control the transceiver, the user can choose to: • use VBAT at 3.3 V for optimal RF performance • directly connect VBAT_IO to the same supply used for the micro-controller • connect the digital IOs directly to the micro-controller DIOs. At any time, VBAT_IO must be lower than or equal to VBAT. Regulator 1.8 V VBAT_IO Battery Typ. 1.8 to 3.7 V Controller VBAT Transceiver SPI DIOx NRESET Requirement: VBAT ≥ VBAT_IO Figure 5-5: Separate DIO Supply SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 35 of 109 Semtech 6. Modems The SX1268 contains different modems capable of handling LoRa® and FSK modulations. LoRa® and FSK are associated with their own frame and modem. • LoRa® modem  LoRa® Frame • FSK modem  FSK Frame The user specifies the modem and frame type by using the command SetPacketType(...). This command specifies the frame used and consequently the modem implemented. This function is the first one to be called before going to Rx or Tx and before defining frequency, modulation and packet parameters. The command GetPacketType() returns the current protocol of the radio. 6.1 LoRa® Modem The LoRa® modem uses spread spectrum modulation and forward error correction techniques to increase the range and robustness of radio communication links compared to traditional FSK based modulation. An important facet of the LoRa® modem is its increased immunity to interference. The LoRa® modem is capable of co-channel GMSK rejection of up to 19 dB. This immunity to interference permits the simple coexistence of LoRa® modulated systems either in bands of heavy spectral usage or in hybrid communication networks that use LoRa® to extend range when legacy modulation schemes fail. 6.1.1 Modulation Parameter It is possible to optimize the LoRa® modulation for a given application, access is given to the designer to four critical design parameters, each one permitting a trade-off between the link budget, immunity to interference, spectral occupancy and nominal data rate. These parameters are: • Modulation BandWidth (BW_L) • Spreading Factor (SF) • Coding Rate (CR) • Low Data Rate Optimization (LDRO) These parameters are set using the command SetModulationParams(...) which must be called after SetPacketType(...). 6.1.1.1 Spreading Factor The spread spectrum LoRa® modulation is performed by representing each bit of payload information by multiple chips of information. The rate at which the spread information is sent is referred to as the symbol rate (Rs). The ratio between the nominal symbol rate and chip rate is the spreading factor and it represents the number of symbols sent per bit of information. Consideration on SF5 and SF6 In the SX1268, two spreading factors have been added compared to the previous device family, SF5 and SF6. These two spreading factors have been modified slightly for the SX1261/2 and will now be able to operate in both implicit and explicit mode. However, these modification have made the new spreading factor incompatible with previous device generations. Especially, SF6 on the SX1268 will not be backward compatible with the SF6 used on the SX1276. Furthermore, due to the SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 36 of 109 Semtech higher symbol rate, the minimum recommended preamble length needed to ensure correct detection and demodulation from the receiver is increased compared to other Spreading Factors. For SF5 and SF6, the user is invited to use 12 symbols of preamble to have optimal performances over the dynamic range or the receiver. Note: The spreading factor must be known in advance on both transmit and receive sides of the link as different spreading factors are orthogonal to each other. Note also the resulting Signal to Noise Ratio (SNR) required at the receiver input. It is the capability to receive signals with negative SNR that increases the sensitivity as well as link budget and range of the LoRa® receiver. Table 6-1: Range of Spreading Factors (SF) Spreading Factor (SF) 5 6 7 8 9 10 11 12 2^SF (Chips / Symbol) 32 64 128 256 512 1024 2048 4096 Typical LoRa® Demodulator SNR [dB] -2.5 -5 -7.5 -10 -12.5 -15 -17.5 -20 A higher spreading factor provides better receiver sensitivity at the expense of longer transmission times (time-on-air). With a knowledge of the key parameters that can be selected by the user, the LoRa® symbol rate is defined as: BW Rs = --------2 SF where BW is the programmed bandwidth and SF is the spreading factor. The transmitted signal is a constant envelope signal. Equivalently, one chip is sent per second per Hz of bandwidth. 6.1.1.2 Bandwidth An increase in signal bandwidth permits the use of a higher effective data rate, thus reducing transmission time at the expense of reduced sensitivity improvement. LoRa® modem operates at a programmable bandwidth (BW_L) around a programmable central frequency fRF BW_L BWL f RF – -----------2 f RF BWL f RF + -----------2 f Figure 6-1: LoRa® Signal Bandwidth An increase in LoRa® signal bandwidth (BW_L) permits the use of a higher effective data rate, thus reducing transmission time at the expense of reduced sensitivity improvement. There are regulatory constraints in most countries on the SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 37 of 109 Semtech permissible occupied bandwidth. The LoRa® modem bandwidth always refers to the double side band (DSB). The range of LoRa® signal bandwidths available is given in the table below: Table 6-2: Signal Bandwidth Setting in LoRa® Mode Signal Bandwidth 0 1 2 3 4 5 6 7 8 9 BW_L [kHz] 0 7.810 10.420 15.630 20.830 31.250 41.670 62.50 1250 2500 500 For BW_L up to 250 kHz, the receiver performs a double conversion. The first down conversion to low- IF is performed inside the RF chain, a second conversion to baseband is performed digitally inside the baseband modem. When the 500 kHz bandwidth is used, a single down-conversion to zero-IF is performed in the RF part. 6.1.1.3 FEC Coding Rate To further improve the robustness of the link the LoRa® modem employs cyclic error coding to perform forward error detection and correction. Forward Error Correction (FEC) is particularly efficient in improving the reliability of the link in the presence of interference. So that the coding rate and robustness to interference can be changed in response to channel conditions, the coding rate selected on the transmitter side is communicated to the receiver through the header (when present). Table 6-3: Coding Rate Overhead Coding Rate Cyclic Coding Rate CR [in raw bits / total bits] Overhead Ratio 1 4/5 1.25 2 4/6 1.5 3 4/7 1.75 4 4/8 2 A higher coding rate provides better noise immunity at the expense of longer transmission time. In normal conditions a factor of 4/5 provides the best trade-off; in the presence of strong interferers a higher coding rate may be used. Error correction code does not have to be known in advance by the receiver since it is encoded in the header part of the packet. 6.1.1.4 Low Data Rate Optimization For low data rates (typically for high SF or low BW) and very long payloads which may last several seconds in the air, the low data rate optimization (LDRO) can be enabled. This reduces the number of bits per symbol to the given SF minus two (see Section 6.1.4 "LoRa® Time-on-Air" on page 40) in order to allow the receiver to have a better tracking of the LoRa® signal. Depending on the payload size, the low data rate optimization is usually recommended when a LoRa® symbol time is equal or above 16.38 ms. 6.1.2 LoRa® Packet Engine LoRa® has it own packet engine that supports the LoRa® PHY as described in the following section. SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 38 of 109 Semtech 6.1.3 LoRa® Frame The LoRa® modem employs two types of packet formats: explicit and implicit. The explicit packet includes a short header that contains information about the number of bytes, coding rate and whether a CRC is used in the packet. The packet format is shown in the following figure. Figure 6-2: LoRa® Packet Format The LoRa® packet starts with a preamble sequence which is used to synchronize the receiver with the incoming signal. By default the packet is configured with a 12-symbol long sequence. This is a programmable variable so the preamble length may be extended; for example, in the interest of reducing the receiver duty cycle in receive intensive applications. The transmitted preamble length may vary from 10 to 65535 symbols, once the fixed overhead of the preamble data is considered. This permits the transmission of near arbitrarily long preamble sequences. The receiver undertakes a preamble detection process that periodically restarts. For this reason the preamble length should be configured as identical to the transmitter preamble length. Where the preamble length is not known, or can vary, the maximum preamble length should be programmed on the receiver side. The preamble is followed by a header which contain information about the following payload. The packet payload is a variable-length field that contains the actual data coded at the error rate either as specified in the header in explicit mode or as selected by the user in implicit mode. An optional CRC may be appended. Depending upon the chosen mode of operation two types of header are available. 6.1.3.1 Explicit Header Mode This is the default mode of operation. Here the header provides information on the payload, namely: • The payload length in bytes • The forward error correction coding rate • The presence of an optional 16-bit CRC for the payload The header is transmitted with maximum error correction code (4/8). It also has its own CRC to allow the receiver to discard invalid headers. 6.1.3.2 Implicit Header Mode In certain scenarios, where the payload, coding rate and CRC presence are fixed or known in advance, it may be advantageous to reduce transmission time by invoking implicit header mode. In this mode the header is removed from the packet. In this case the payload length, error coding rate and presence of the payload CRC must be manually configured identically on both sides of the radio link. SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 39 of 109 Semtech 6.1.4 LoRa® Time-on-Air The packet format for the LoRa® modem is detailed in Figure 6-3: Fixed-Length Packet Format and Figure 6-4: Variable-Length Packet Format. The equation to obtain Time On Air (ToA) is: with: • SF: Spreading Factor (5 to 12) • BW: Bandwidth (in kHz) • ToA: the Time on Air in ms • Nsymbol: number of symbols The computation of the number of symbols differs depending on the parameters of the modulation. For SF5 and SF6: FFor CR being legacy coding rate (ie. Not Long Interleaving): For all other SF: For all other SF with Low Data Rate Optimization activated: With: • N_bit_CRC = 16 if CRC activated, 0 if not • N_symbol_header = 20 with explicit header, 0 with implicit header • CR is 1, 2, 3 or 4 for respective coding rates 4/5, 4/6, 4/7 or 4/8 6.1.5 LoRa® Channel Activity Detection (CAD) The use of a spread spectrum modulation technique presents challenges in determining whether the channel is already in use by a signal that may be below the noise floor of the receiver. The use of the RSSI in this situation would clearly be impracticable. To this end the channel activity detector is used to detect the presence of other LoRa® signals. On the SX1268, the channel activity detection mode is designed to detect the presence of a LoRa® preamble or data symbols while the previous generations of products were only able to detect LoRa® preamble symbols. Once in CAD mode, the SX1268 will perform a scan of the band for a user-selectable duration (defined in number of symbols) and will then return with the Channel Activity Detected IRQ if LoRa® symbols have been detected during the CAD. The time taken for the channel activity detection is dependent upon the LoRa® modulation settings used. For a given configuration (SF/BW) the typical CAD detection time can be selected to be either 1, 2, 4, 8 or 16 symbols. Once the duration of the selected number of symbols has passed, the radio remains for around half a symbol in Rx to post-process the measurement. SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 40 of 109 Semtech 6.2 FSK Modem 6.2.1 Modulation Parameter The FSK modem is able to perform transmission and reception of 2-FSK modulated packets over a range of data rates from 0.6 kbps to 300 kbps. All parameters are set by using the command SetModulationParams(...). This function should be called only after defining the protocol. The bitrate setting is referenced to the crystal oscillator and provides a precise means of setting the bit rate (or equivalently chip) rate of the radio. In the command SetModulationParams(...), the bitrate is expressed as 32 times the XTAL frequency divided the real bit rate used by the device. The generic formula is: F XOSC BR = ------------------- *32 BitRate FSK modulation is performed inside the PLL bandwidth, by changing the fractional divider ratio in the feedback loop of the PLL. The high resolution of the sigma-delta modulator, allows for very narrow frequency deviation. The frequency deviation Fdev is one of the parameters of the function SetModulationParams(...) and is expressed as: FdevHzFdev = ----------------------FreqStep where: FreqStep = XtalFreq -----------------------2 25 Additionally, in transmission mode, several shaping filters can be applied to the signal. In reception mode, the user needs to select the best reception bandwidth depending on its conditions. To ensure correct demodulation, the following limit must be respected for the selection of the bandwidth:  2*Fdev + BR  < BW The bandwidth is defined by parameter BW as described in the following table. Table 6-4: Bandwidth Definition in FSK Packet Type SX1268 Data Sheet DS.SX1268.W.APP BW Value Bandwidth [kHz DSB] BW4 0x1F 4.8 BW5 0x17 5.8 BW7 0x0F 7.3 BW9 0x1E 9.7 BW11 0x16 11.7 BW14 0x0E 14.6 BW19 0x1D 19.5 BW23 0x15 23.4 BW29 0x0D 29.3 www.semtech.com Rev. 1.1 June 2019 41 of 109 Semtech Table 6-4: Bandwidth Definition in FSK Packet Type BW Value Bandwidth [kHz DSB] BW39 0x1C 39.0 BW46 0x14 46.9 BW58 0x0C 58.6 BW78 0x1B 78.2 BW93 0x13 93.8 BW117 0x0B 117.3 BW156 0x1A 156.2 BW187 0x12 187.2 BW234 0x0A 234.3 BW312 0x19 312.0 BW373 0x11 373.6 BW467 0x09 467.0 The bandwidth must be chosen so that Bandwidth[DSB] ≥ BR + 2*frequency deviation + frequency error where the frequency error is two times the crystal frequency error used. The SX1268 offers several pulse shaping options defined by the parameter PulseShape. If other unspecified values are given as parameters, then no filtering is used. See Table 13-44: "GFSK ModParam4 - PulseShape" on page 84. 6.2.2 FSK Packet Engine The SX1268 is designed for packet-based transmission. The packet controller block is responsible for assembly of the received data bit-stream into packets and their storage into the data buffer. It also performs the bit-stream decoding operations such as de-whitening & CRC-checks on the received bit-stream. On the transmit side, the packet handler can construct a packet and send it bit by bit to the modulator for transmission. It can whiten the payload and append the CRC-checksum to the end of the packet. The packet controller only works in half-duplex mode i.e. either in transmit or receive at a time. The packet controller is configured using the command SetPacketParams(...) as in Section 13.4.6 "SetPacketParams" on page 87. This function can be called only after defining the protocol. The next chapters describe in detail the different frames available in the SX1268. 6.2.2.1 Preamble Detection in Receiver Mode The SX1268 is able to gate the reception of a packet if an insufficient number of alternating preamble symbols (usually referred to 0x55 or 0xAA in hexadecimal form) has been detected. This can be selected by the user by using the parameter PreambleDetectorLength used in the command SetPacketParams(...). The user can select a value ranging from “Preamble detector length off” - where the radio will not perform any gating and will try to lock directly on the following Sync Word - SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 42 of 109 Semtech to “Preamble detector length 32 bits” where the radio will be expecting to receive 32 bits of preamble before the following Sync Word. In this case, if the 32 bits of preamble are not detected, the radio will either drop the reception in RxSingle mode, or restart its tracking loop in RxContinuous mode. To achieve best performance of the device, it is recommended to set PreambleDetectorLength to “Preamble detector length 8 bits” or “Preamble detector length 16 bits” depending of the complete size of preamble which is sent by the transmitter. Note: In all cases, PreambleDetectorLength must be smaller than the size of the following Sync Word to achieve proper detection of the packets. If the preamble length is greater than the following Sync Word length (typically when no Sync Word is used) the user should fill some of the Sync Word bytes with 0x55. 6.2.3 FSK Packet Format The FSK packet format provides a conventional packet format for application in proprietary NRZ coded, low energy communication links. The packet format has built in facilities for CRC checking of the payload, dynamic payload size and packet acknowledgement. Optionally whitening based upon pseudo random number generation can be enabled. Two principle packet formats are available in the FSK protocol: fixed length and variable length packets. 6.2.3.1 Fixed-Length Packet If the packet length is fixed and known on both sides of the link then the packet length does not need to be transmitted over the air. Instead the packet length is written to the parameter packetLength which determines the packet length in bytes (0 to 255, but limited to 254 when the address filtering is activated, see Table 13-56). Preamble 8 to 65535 bits Sync Word Address 0 to 8 bytes 0 to 1 byte Payload 1 to 255 bytes CRC 0, 1 or 2 bytes CRC Checksum Whitening Figure 6-3: Fixed-Length Packet Format The preamble length is set from 8 to 65535 bits using the parameter PreambleLen. It is usually recommended to use a minimum of 16 bits for the preamble to guarantee a valid reception of the packet on the receiver side. The CRC operation, packet length and preamble length are defined using the command SetPacketParams(...) as defined in Section 11. "List of Commands" on page 60. 6.2.3.2 Variable-Length Packet Where the packet is of uncertain or variable size, then information about the packet length (0 to 255, but limited to 254 when the address filtering is activated, see Table 13-56) must be transmitted within the packet. The format of the variable-length packet is shown below. Preamble 8 to 65535 bits Sync Word 0 to 8 bytes Length 1 byte Address 0 to 1 byte Payload 0 to 255 bytes CRC 0, 1 or 2 bytes CRC Checksum Whitening Figure 6-4: Variable-Length Packet Format SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 43 of 109 Semtech 6.2.3.3 Setting the Packet Length or Node Address The packet length and Node or Broadcast address are not considered part of the payload and they are added automatically in hardware. The packet length is added automatically in the packet when the packetType field is set to variable size in the command SetPacketParam(...). The node or broadcast address can be enabled by using the AddrComp field is in the command SetPacketParam(...). This field allow the user to enable and select an additional packet filtering at the payload level. 6.2.3.4 Whitening The whitening process is built around a 9-bit LFSR which is used to generate a pseudo-random sequence and the payload (including the payload length, the Node or Broadcast address and CRC checksum when needed) is then XORed with this random sequence to generate the whitened payload. The data is de-whitened on the receiver side by XORing with the same random sequence. This setup limits the number of consecutive 1’s or 0’s to 9. Note that the data whitening is only required when the user data has high correlation with long strings of 0’s and 1’s. If the data is already random then the whitening is not required. For example a random source generating the Transmit data, when whitened, could produce longer strings of 1’s and 0’s, thus it’s not required to randomize an already random sequence. L F S R P o ly n o m ia l = X 9 + X 5 + 1 X8 X7 X6 X5 X4 X3 T ra n sm it d a ta X2 X1 X0 W h ite n e d d a ta Figure 6-5: Data Whitening LFSR The whitening is based around the 9-bit LFSR polynomial x^9+x^5+1. With this structure, the least significant bit (LSB) at the output of the LFSR is XORed with the most significant bit (MSB) of the data. At the initial stage, each flip-flop of the LFSR can be initialized through the registers at addresses 0x06B8 and 0x6B9. Table 6-5: Whitening Initial Value Whitening Initial Value Register Address Default Value Whitening initial value MSB 0x06B8 0x01 Whitening initial value LSB 0x06B9 0x00 SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 44 of 109 Semtech 6.2.3.5 CRC The SX1268 offers full flexibility to select the polynomial and initial value of the selected polynomial. In additions, the user can also select a complete inversion of the computed CRC to comply with some international standards. The CRC can be enabled and configured by using the CRCType field in the command SetPacketParam(...). This field allows the user to enable and select the length and configuration of the CRC. Table 6-6: CRC Type Configuration CRCType Description 0x01 CRC_OFF (No CRC) 0x00 CRC_1_BYTE (CRC computed on 1 byte) 0x02 CRC_2_BYTE (CRC computed on 2 bytes) 0x04 CRC_1_BYTE_INV (CRC computed on 1 byte and inverted) 0x06 CRC_2_BYTE_INV (CRC computed on 2 bytes and inverted) The CRC selected must be modified together with the CRC initial value and CRC polynomial. Table 6-7: CRC Initial Value Register Address Default Value CRC MSB Initial Value [15:8] 0x06BC 0x1D CRC LSB Initial Value [7:0] 0x06BD 0x0F Table 6-8: CRC Polynomial Register Address Default Value CRC MSB Polynomial Value [15:8] 0x06BE 0x10 CRC LSB Polynomial Value [7:0] 0x06BF 0x21 This flexibility permits the user to select any standard CRC or to use his own CRC allowing a specific detection of a given packet. Examples: To use the IBM CRC configuration, the user must select: • 0x8005 for the CRC polynomial • 0xFFFF for the initial value • CRC_2_BYTE for the field CRCType in the command SetPacketParam(...). For the CCIT CRC configuration the user must select: • 0x1021 for the CRC polynomial • 0x1D0F for the initial value • CRC_2_BYTE_INV for the field CRCType in the command SetPacketParam(...) SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 45 of 109 Semtech 7. Data Buffer The transceiver is equipped with a 256-byte RAM data buffer which is accessible in all modes except sleep mode. This RAM area is fully customizable by the user and allows access to either data for transmission or from the last packet reception. 7.1 Principle of Operation 0xFF USER TRANSCEIVER txBaseAddress + txPayloadLength WriteBuffer() TxBufferPointer Transmitted Payload SetBufferBaseAddress() rxBaseAddress + rxPayloadLength Received Payload GetRxBufferStatus() RxStartBufferPointer SetBufferBaseAddress() 0x00 Data buffer Capacity = 256 bytes Figure 7-1: Data Buffer Diagram The data buffer can be configured to store both transmit and receive payloads. SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 46 of 109 Semtech 7.2 Data Buffer in Receive Mode In receive mode RxBaseAddr specifies the buffer offset in memory at which the received packet payload data will be written. The buffer offset of the last byte written in receive mode is then stored in RxDataPointer which is initialized to the value of RxBaseAddr at the beginning of the reception. The pointer to the first byte of the last packet received and the packet length can be read with the command GetRxbufferStatus(). In single mode, RxDataPointer is automatically initialized to RxBaseAddr each time the transceiver enters Rx mode. In continuous mode the pointer is incremented starting from the previous position. 7.3 Data Buffer in Transmit Mode Upon each transition to transmit mode TxDataPointer is initialized to TxBaseAddr and is incremented each time a byte is sent over the air. This operation stops once the number of bytes sent equals the payloadlength parameter as defined in the function SetPacketParams(...). 7.4 Using the Data Buffer Both, RxBaseAddr and TxBaseAddr are set using the command SetBufferBaseAddresses(...). By default RxBaseAddr and TxBaseAddr are initialized at address 0x00. Due to the contiguous nature of the data buffer, the base addresses for Tx and Rx are fully configurable across the 256-byte memory area. Each pointer can be set independently anywhere within the buffer. To exploit the maximum data buffer size in transmit or receive mode, the whole data buffer can be used in each mode by setting the base addresses TxBaseAddr and RxBaseAddr at the bottom of the memory (0x00). The data buffer is cleared when the device is put into Sleep mode (implying no access). The data is retained in all other modes of operation. The data buffer is accessed via the command WriteBuffer(...) and ReadBuffer(...). In this function the parameter offset defines the address pointer of the first data to be written or read. Offset zero defines the first position of the data buffer. Before any read or write operation it is hence necessary to initialize this offset to the corresponding beginning of the buffer. Upon reading or writing to the data buffer the address pointer will then increment automatically. Two possibilities exist to obtain the offset value: • First is to use the RxBaseAddr value since the user defines it before receiving a payload. • Second, offset can be initialized with the value of RxStartBufferPointer returned by GetRxbufferStatus(...) command. Note: All the received data will be written to the data buffer even if the CRC is invalid, permitting user-defined post processing of corrupted data. When receiving, if the packet size exceeds the buffer memory allocated for the Rx, it will overwrite the transmit portion of the data buffer. SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 47 of 109 Semtech 8. Digital Interface and Control The SX1268 is controlled via a serial SPI interface and a set of general purpose input/output (DIOs). At least one DIO must be used for IRQ and the BUSY line is mandatory to ensure the host controller is ready to accept the commands. The SX1268 uses an internal controller (CPU) to handle communication and chip control (mode switching, API etc...). BUSY is used as a busy signal indicating that the chip is ready for new command only if this signal is low. When BUSY is high, the host controller must wait until it goes down again before sending another command. Through SPI the application sends commands to the internal chip or access directly the data memory space. 8.1 Reset A complete “factory reset” of the chip can be issued on request by toggling pin 15 NRESET of the SX1268. It will be automatically followed by the standard calibration procedure and any previous context will be lost. The pin should be held low for more typically 100 μs for the Reset to happen. 8.2 SPI Interface The SPI interface gives access to the configuration register via a synchronous full-duplex protocol corresponding to CPOL = 0 and CPHA = 0 in Motorola/Freescale nomenclature. Only the slave side is implemented. An address byte followed by a data byte is sent for a write access whereas an address byte is sent and a read byte is received for the read access. The NSS pin goes low at the beginning of the frame and goes high after the data byte. MOSI is generated by the master on the falling edge of SCK and is sampled by the slave (i.e. this SPI interface) on the rising edge of SCK. MISO is generated by the slave on the falling edge of SCK. A transfer is always started by the NSS pin going low. MISO is high impedance when NSS is high. The SPI runs on the external SCK clock to allow high speed up to 16 MHz. 8.2.1 SPI Timing When the Transceiver is in Active Mode In this mode the chip is able to handle SPI command in a standard way i.e. no extra delay needed at the first SPI transaction. Figure 8-1: SPI Timing Diagram SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 48 of 109 Semtech All timings in following table are given for a max load cap of 10 pF. Table 8-1: SPI Timing Requirements Symbol Description Minimum Typical Maximum Unit t1 NSS falling edge to SCK setup time 32 - - ns t2 SCK period 62.5 - - ns t3 SCK high time 31.25 - - ns t4 MOSI to SCK hold time 5 - - ns t5 MOSI to SCK setup time 5 - - ns t6 NSS falling to MISO delay 0 - 15 ns t7 SCK falling to MISO delay, 0 - 15 ns t8 SCK to NSS rising edge hold time 31.25 - - ns t9 NSS high time 125 - - ns t10 NSS falling edge to SCK setup time when switching from SLEEP to STDBY_RC mode 100 - - s t11 NSS falling to MISO delay when switching from SLEEP to STDBY_RC mode 0 - 150 s 8.2.2 SPI Timing When the Transceiver Leaves Sleep Mode One way for the chip to leave Sleep mode is to wait for a falling edge of NSS. At falling edge, all necessary internal regulators are switched On; the chip starts chip initialization before being able to accept first SPI command. This means that the delay between the falling edge of NSS and the first rising edge of SCK must take into account the wake-up sequence and the chip initialization. In Sleep mode and during the initialization phase, the busy signal mapped on BUSY pin, is set high indicating to the host that the chip is not able to accept a new command. Once the chip is in STDBY_RC mode, the busy signal goes low and the host can start sending a command. This is also true for startup at battery insertion or after a hard reset. Figure 8-2: SPI Timing Transition SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 49 of 109 Semtech 8.3 Multi-Purpose Digital Input/Output (DIO) The chip is interfaced through the 4 control lines which are composed of the BUSY pin and 3 DIOs pins that can be configured as interrupt, debug or to control the radio immediate peripherals (TCXO or RF Switch). 8.3.1 BUSY Control Line The BUSY control line is used to indicate the status of the internal state machine. When the BUSY line is held low, it indicates that the internal state machine is in idle mode and that the radio is ready to accept a command from the host controller. The BUSY control line is set back to zero once the chip has reached a stable mode and it is ready for a new command. Inherently, the amount of time the BUSY line will stay high depends on the nature of the command. For example, setting the device into TX mode from the STDBY_RC mode will take much more time than simply changing some radio parameters because the internal state machine will maintain the BUSY line high until the radio is effectively transmitting the packet. BUSY NSS SPI (MOSI, MISO, SCK) opcode Param1 Param… ࢀ࢙࢝ Figure 8-3: Switching Time Definition For the internal state machine, all “write” commands will cause the BUSY line to be asserted high after time TSW, as per the graph above. TSW represents the time required for the internal state machine to wake-up and start processing the command. Conversely, the “read” command will be handled directly without the help of the internal state machine and thus the BUSY line will remains low after a “read” command. The max value for TSW from NSS rising edge to the BUSY rising edge is, in all cases, 600 ns. In Sleep mode, the BUSY pin is held high through a 20 kΩ resistor and the BUSY line will go low as soon as the radio leaves the Sleep mode. In FS, BUSY will go low when the PLL is locked. In RX, BUSY will go to low as soon as the RX is up and ready to receive data. In TX, BUSY will go low when the PA has ramped-up and transmission of preamble starts. SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 50 of 109 Semtech In additon to this, the BUSY will also go high to handle its internal IRQ. In this scenario, it is essential to wait for the BUSY line to go low before sending an SPI command (either a “read” or “write” command). BUSY NSS SPI opcode (MOSI, MISO, SCK) Param1 Param… ࢀ࢙࢝ ࢀ࢙࢝ Mode Figure 8-4: Switching Time Definition in Active Mode The following table gives the value of TSWMode for all possible transitions. The switching time is defined as the time between the rising edge of the NSS ending the SPI transaction and the falling edge of BUSY. Table 8-2: Switching Time Transition TSWMode Typical Value [s] SLEEP to STBY_RC cold start (no data retention) 3500 SLEEP to STBY_RC warm start (with data retention) 340 STBY_RC to STBY_XOSC 31 STBY_RC to FS 50 STBY_RC to RX 83 STBY_RC to TX 126 STBY_XOSC to FS 40 STBY_XOSC to TX 105 STBY_XOSC to RX 62 FS to RX 41 FS to TX 76 RX to FS 15 RX to TX 92 SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 51 of 109 Semtech 8.3.2 Digital Input/Output Any of the 3 DIOs can be selected as an output interrupt source for the application. When the application receives an interrupt, it can determine the source by using the command GetIrqStatus(...). The interrupt can then be cleared using the ClearIrqStatus(...) command. The Pin Description is as follows: DIO1 is the generic IRQ line, any interrupt can be mapped to DIO1. The complete list of available IRQ can be found in Section 8.4 "Digital Interface Status versus Chip modes" on page 52. DIO2 has a double functionality. As DIO1, DIO2 can be used as a generic IRQ line and any IRQ can be routed through this pin. Also, DIO2 can be configured to drive an RF switch through the use of the command SetDio2AsRfSwitchCtrl(...). In this mode, DIO2 will be at a logical 1 during Tx and at a logical 0 in any other mode. DIO3 also has a double functionality and as DIO1 or DIO2, it can be used as a generic IRQ line. Also, DIO3 can be used to automatically control a TCXO through the command SetDio3AsTCXOCtrl(...). In this case, the device will automatically power cycle the TCXO when needed. 8.4 Digital Interface Status versus Chip modes Table 8-3: Digital Pads Configuration for each Chip Mode Mode DIO3 DIO2 DIO1 BUSY MISO MOSI SCK NSS NRESET Reset PD PD PD PU HIZ HIZ HIZ IN - Start-up HIZ PD HIZ PD HIZ PD HIZ PU HIZ HIZ HIZ IN IN PU Sleep HIZ PD HIZ PD HIZ PD HIZ PU HIZ HIZ HIZ IN IN PU STBY_RC OUT OUT OUT OUT OUT IN IN IN IN PU STBY_XOSC OUT OUT OUT OUT OUT IN IN IN IN PU FS OUT OUT OUT OUT OUT IN IN IN IN PU RX OUT OUT OUT OUT OUT IN IN IN IN PU TX OUT OUT OUT OUT OUT IN IN IN IN PU Note: • PU = pull up with 50 kat typical conditions • PD = pull down with 50 k at typical conditions (the resistor value varies with the supply voltage) SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 52 of 109 Semtech 8.5 IRQ Handling In total there are 10 possible interrupt sources depending on the selected frame and chip mode. Each one can be enabled or masked. In addition, each one can be mapped to DIO1, DIO2 or DIO3. Table 8-4: IRQ Status Registers Bit IRQ Description Modulation 0 TxDone Packet transmission completed All 1 RxDone Packet received All 2 PreambleDetected Preamble detected All 3 SyncWordValid Valid Sync Word detected FSK 4 HeaderValid Valid LoRa® Header received LoRa® 5 HeaderErr LoRa® Header CRC error LoRa® 6 CrcErr Wrong CRC received All 7 CadDone Channel activity detection finished LoRa® 8 CadDetected Channel activity detected LoRa® 9 Timeout Rx or Tx Timeout All For more information on how to setup IRQ and DIOs, refer to the function SetDioIrqParams() in Section 13.3.1 "SetDioIrqParams" on page 78. SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 53 of 109 Semtech 9. Operational Modes The SX1268 features six operating modes. The analog front-end and digital blocks that are enabled in each operating mode are explained in the following table. Table 9-1: SX1268 Operating Modes Mode Enabled Blocks SLEEP Optional registers, backup regulator, RC64k oscillator, data RAM STDBY_RC Top regulator (LDO), RC13M oscillator STDBY_XOSC Top regulator (DC-DC or LDO), XOSC FS All of the above + Frequency synthesizer at Tx frequency Tx Frequency synthesizer and transmitter, Modem Rx Frequency synthesizer and receiver, Modem 9.1 Startup At power-up or after a reset, the chip goes into STARTUP state, the control of the chip being done by the sleep state machine operating at the battery voltage. The BUSY pin is set to high indicating that the chip is busy and cannot accept a command. When the digital voltage and RC clock become available, the chip can boot up and the CPU takes control. At this stage the BUSY line goes down and the device is ready to accept commands. 9.2 Calibration The calibration procedure is automatically called in case of POR or via the calibration command. Parameters can be added to the calibrate command to identify which section of calibration should be repeated. The following blocks can be calibrated: • RC64k using the 32 MHz crystal oscillator as reference • RC13M using the 32 MHz crystal oscillator as reference • PLL to select the proper VCO frequency and division ratio for any RF frequency • RX ADC • Image (RX mode with defined tone) Once the calibration is finished, the chip enters STDBY_RC mode. 9.2.1 Image Calibration for Specific Frequency Bands Image calibration is done through the command CalibrateImage(...) for a given range of frequencies defined by the parameters freq1 and freq2. Once performed, the calibration is valid for all frequencies between the two extremes used as parameters. Typically, the user can select the parameters freq1 and freq2 to cover any specific ISM band. SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 54 of 109 Semtech Table 9-2: Image Calibration Over the ISM Bands Frequency Band [MHz] Freq1 Freq2 430 - 440 0x6B 0x6F 470 - 510 0x75 0x81 779 - 787 0xC1 0xC5 In case of POR or when the device is recovering from Sleep mode in cold start mode, the image calibration is performed as part of the initial calibration process and for optimal image rejection in the band 470 - 510 MHz. However at this stage the internal state machine has no information whether an XTAL or a TCXO is fitted. When the 32 MHz clock is coming from a TCXO, the calibration will fail and the user should request a complete calibration after calling the function SetDIO3AsTcxoCtrl(...). By default, the image calibration is made in the band 470 - 510 MHz. Nevertheless, it is possible to request the device to perform a new image calibration at other frequencies. Note: Contact your Semtech representative for the other optimal calibration settings outside of the given frequency bands. 9.3 Sleep Mode In this mode, most of the radio internal blocks are powered down or in low power mode and optionally the RC64k clock and the timer are running. The chip may enter this mode from STDBY_RC and can leave the SLEEP mode if one of the following events occurs: • NSS pin goes low in any case • RTC timer generates an End-Of-Count (corresponding to Listen mode) When the radio is in Sleep mode, the BUSY pin is held high. 9.4 Standby (STDBY) Mode In standby mode the host should configure the chip before going to RX or TX modes. By default in this state, the system is clocked by the 13 MHz RC oscillator to reduce power consumption (in all other modes except SLEEP the XTAL is turned ON). However if the application is time critical, the XOSC block can be turned or left ON. XOSC or RC13M selection in standby mode is determined by mode parameter in the command SetStandby(...). The mode where only RC13M is used is called STDBY_RC and the one with XOSC ON is called STDBY_XOSC. If DC-DC is to be used, the selection should be made while the circuit is in STDBY_RC mode by using the SetRegulatorMode(...) command, then the DC-DC will automatically switch ON when entering STDBY_XOSC mode. The DC-DC will be clocked by the RC13M. The LDO will remain active with a target voltage 50 mV lower than the DC-DC one. SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 55 of 109 Semtech 9.5 Frequency Synthesis (FS) Mode In FS mode, PLL and related regulators are switched ON. The BUSY goes low as soon as the PLL is locked or timed out. For debugging purposes the chip may be requested to remain in this mode by using the SetFs() command. Since the SX1268 uses low IF architecture, the RX and TX frequencies are different. The RX frequency is equal to TX one minus the intermediate frequency (IF). In FS or TX modes, the RF frequency is directly programmed by the user. 9.6 Receive (RX) Mode In RX mode, the RF front-end, RX ADC and the selected modem (LoRa® or FSK) are turned ON. In RX mode the circuit can operate in different sub-modes: • Continuous mode: the device remains in RX mode and waits for incoming packet reception until the host requests a different mode, • Single mode: the device returns automatically to STDBY_RC mode after packet reception, • Single mode with timeout: the device returns automatically to STDBY_RC mode after packet reception or after the selected timeout, • Listen mode: the device alternate between Sleep and Rx mode until an IRQ is triggered. In RX mode, BUSY will go low as soon as the RX is enabled and ready to receive data. The SX1268 can operate in Rx Boosted gain setup or in Rx power saving gain setup. In the Rx power saving gain, the radio will consume less power at a small cost in sensitivity. In Rx Boosted gain, the radio will consume more power to improve the sensitivity. Table 9-3: Rx Gain Configuration Rx Gain Register Address Rx Gain 0x08AC Value Rx Power Saving gain: 0x94 (default) Rx Boosted gain: 0x96 The Rx Gain register is not part of the retention memory when waking-up from a warm-start mode. To include this register in the retention memory, the following steps are required: • Set register 0x029F to 0x01 • Set register 0x02A0 to 0x08 • Set register 0x02A1 to 0xAC This procedure is mandatory when using the SetRxDutyCycle method, to keep on using the Rx Boosted gain. Note: In LoRa® mode, the user can also use the command SetLoRaSymbNumTimeout(...) to perform a quick and immediate assessment of the presence (or not) of LoRa preamble symbols. If the user defined parameter SymbNum is different from 0, the modem will wait for a total of SymbNum LoRa® symbol to validate, or not, the correct detection of a LoRa® packet. If the various states of the demodulator are not locked at this moment, the radio will generate the RxTimeout IRQ. Otherwise, the radio will stay in Rx for the full duration of the packet. For more information, please see Section 13.4.9 "SetLoRaSymbNumTimeout" on page 93. SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 56 of 109 Semtech 9.7 Transmit (TX) Mode In TX mode, after enabling and ramping-up the Power Amplifier (PA), the contents of the data buffer are transmitted. The circuit can operate in different sub-modes: single mode or single with timeout mode. The timeout in Tx mode can be used as a security to ensure that if for any reason the Tx is aborted or does not succeed (ie. the TxDone IRQ never is never triggered), the TxTimeout will prevent the system from waiting for an undefined amount of time. Using the timeout while in Tx mode removes the need to use resources from the host MCU to perform the same task. In TX mode, BUSY will go low as soon as the PA has ramped-up and transmission of preamble starts. 9.7.1 PA Ramping The ramping of the PA can be selected while setting the output power by using the command SetTxParams(...). The PA ramp time can be selected to go from 10 s up to 3.4 ms. 9.8 Active Mode Switching Time For more details on active mode switching time, see Section 8.3.1 "BUSY Control Line" on page 50. SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 57 of 109 Semtech 9.9 Transceiver Circuit Modes Graphical Illustration The device operating modes and the states through which each mode transitions are illustrated here: reset POWER ON or RESET RTC or NSS (SPI Operation) startup sleep SetStandby() SetS leep () STDBY tT Se Se tR x() SetStandby() TxDone, TxTimeout SetStanby() SetStandby() RxDone, RxTimeout SetFs() RxTxTimeout (duty cycled operation) x() FS SetT x () SetR SetF x() SetF s () s() SetRx() Rx SetTx() Tx RxDone Figure 9-1: Transceiver Circuit Modes SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 58 of 109 Semtech 10. Host Controller Interface Through the SPI interface, the host can issue commands to the chip or access the data memory space to directly retrieve or write data. In normal operation, a reduced number of direct data write operations is required except when accessing the data buffer. The user interacts with the circuit through an API (instruction set). The SX1268 uses the pin BUSY to indicate the status of the chip and its ability (or not) to receive another command while internal processing occurs. Prior to executing one of the generic functions, it is thus necessary to check the status of BUSY to make sure the chip is in a state where it can process another function. 10.1 Command Structure In case of a command that does not require any parameter, the host sends only the opcode (1 byte). In case of a command which requires one or several parameters, the opcode byte is followed immediately by parameter bytes with the NSS rising edge terminating the command. Table 10-1: SPI Interface Command Sequence Byte 0 [1:n] Data from host Opcode Parameters Data to host RFU Status 10.2 Transaction Termination The host terminates an SPI transaction with the rising NSS signal; the host does not explicitly send the command length as a parameter. The host must not raise NSS within the bytes of a transaction. If a transaction sends a command requiring parameters, all the parameters must be sent before rising NSS. If not the chip will take some unknown value for the missing parameters. SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 59 of 109 Semtech 11. List of Commands The following tables give the list of commands and their corresponding opcode. Unless specified, all parameters are 8-bit values. 11.1 Operational Modes Commands These functions have a direct impact on the behaviour of the device. They control the internal state machine to transmit or receive packets, and all the modes in-between. Table 11-1: Commands Selecting the Operating Modes of the Radio Command Opcode Parameters Description SetSleep 0x84 sleepConfig Set Chip in SLEEP mode SetStandby 0x80 standbyConfig Set Chip in STDBY_RC or STDBY_XOSC mode SetFs 0xC1 - Set Chip in Freqency Synthesis mode SetTx 0x83 timeout[23:0] Set Chip in Tx mode SetRx 0x82 timeout[23:0] Set Chip in Rx mode StopTimerOnPreamble 0x9F StopOnPreambleParam Stop Rx timeout on Sync Word/Header or preamble detection SetRxDutyCycle 0x94 rxPeriod[23:0], sleepPeriod[23:0] Store values of RTC setup for listen mode and if period parameter is not 0, set chip into RX mode SetCad 0xC5 - Set chip into RX mode with passed CAD parameters SetTxContinuousWave 0xD1 - Set chip into TX mode with infinite carrier wave settings SetTxInfinitePreamble 0xD2 - Set chip into TX mode with infinite preamble settings SetRegulatorMode 0x96 regModeParam Select LDO or DC_DC+LDO for CFG_XOSC, FS, RX or TX mode Calibrate 0x89 calibParam Calibrate the RC13, RC64, ADC, PLL, Image according to parameter CalibrateImage 0x98 freq1, freq2 Launches an image calibration at the given frequencies SetPaConfig 0x95 paDutyCycle, HpMax, deviceSel, paLUT Configure the Duty Cycle, Max output power, device for the PA SetRxTxFallbackMode 0x93 fallbackMode Defines into which mode the chip goes after a TX / RX done. SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 60 of 109 Semtech 11.2 Register and Buffer Access Commands Table 11-2: Commands to Access the Radio Registers and FIFO Buffer Command Opcode Parameters Description WriteRegister 0x0D address[15:0], data[0:n] Write into one or several registers ReadRegister 0x1D address[15:0] Read one or several registers WriteBuffer 0x0E offset, data[0:n] Write data into the FIFO ReadBuffer 0x1E offset Read data from the FIFO 11.3 DIO and IRQ Control Table 11-3: Commands Controlling the Radio IRQs and DIOs Command Opcode Parameters Description IrqMask[15:0], SetDioIrqParams 0x08 Dio1Mask[15:0], Configure the IRQ and the DIOs attached to each IRQ Dio2Mask[15:0], Dio3Mask[15:0], GetIrqStatus 0x12 - Get the values of the triggered IRQs ClearIrqStatus 0x02 - Clear one or several of the IRQs SetDIO2AsRfSwitchCtrl 0x9D enable Configure radio to control an RF switch from DIO2 SetDIO3AsTcxoCtrl 0x97 tcxoVoltage, timeout[23:0] Configure the radio to use a TCXO controlled by DIO3 11.4 RF, Modulation and Packet Commands Table 11-4: Commands Controlling the RF and Packets Settings Command Opcode Parameters Description SetRfFrequency 0x86 rfFreq[23:0] Set the RF frequency of the radio SetPacketType 0x8A protocol Select the packet type corresponding to the modem GetPacketType 0x11 - Get the current packet configuration for the device SetTxParams 0x8E power, rampTime Set output power and ramp time for the PA SetModulationParams 0x8B modParam1, modParam2, modParam3 Compute and set values in selected protocol modem for given modulation parameters SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 61 of 109 Semtech Table 11-4: Commands Controlling the RF and Packets Settings Command Opcode Parameters Description SetPacketParams 0x8C packetParam1, packetParam2, packetParam3, packetParam4, packetParam5, packetParam6, packetParam7, packetParam8, packetParam9 Set values on selected protocol modem for given packet parameters SetCadParams 0x88 cadSymbolNum, cadDetPeak, cadDetMin, cadExitMode, cadTimeout Set the parameters which are used for performing a CAD (LoRa® only) SetBufferBaseAddress 0x8F TxbaseAddr, RxbaseAddr Store TX and RX base address in register of selected protocol modem SetLoRaSymbNumTimeout 0xA0 SymbNum Set the number of symbol the modem has to wait to validate a lock 11.5 Status Commands Table 11-5: Commands Returning the Radio Status Command Opcode Parameters Description GetStatus 0xC0 - Returns the current status of the device GetRssiInst 0x15 - Returns the instantaneous measured RSSI while in Rx mode GetRxBufferStatus 0x13 - Returns PaylaodLengthRx(7:0), RxBufferPointer(7:0) GetPacketStatus 0x14 - Returns RssiAvg, RssiSync, PStatus2, PStaus3, PStatus4 in FSK protocol, returns RssiPkt, SnrPkt in LoRa® protocol GetDeviceErrors 0x17 - Returns the error which has occurred in the device ClearDeviceErrors 0x07 0x00 Clear all the error(s). The error(s) cannot be cleared independently GetStats 0x10 - Returns statistics on the last few received packets ResetStats 0x00 - Resets the value read by the command GetStats SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 62 of 109 Semtech 12. Register Map 12.1 Register Table Table 12-1: List of Registers Register Name Address Reset Value DIOx output enable 0x0580 0x00 DIOx input enable 0x0583 0x00 DIOx pull-up control 0x0584 0x00 DIOx pull-down control 0x0585 0x00 Whitening initial value MSB 0x06B8 0xX1 Whitening initial value LSB 0x06B9 0x00 Function Non-standard DIOx control1 Initial value used for the whitening LFSR in FSK mode. The user should not change the value of the 7 MSB of this register Note: X is here an undefined value CRC MSB Initial Value [0] 0x06BC 0x1D CRC LSB Initial Value [1] 0x06BD 0x0F CRC MSB polynomial Value [0] 0x06BE 0x10 CRC LSB polynomial Value [1] 0x06BF 0x21 Polynomial used to compute the CRC in FSK mode SyncWord[0] 0x06C0 - 1st byte of the Sync Word in FSK mode SyncWord[1] 0x06C1 - 2nd byte of the Sync Word in FSK mode SyncWord[2] 0x06C2 - 3rd byte of the Sync Word in FSK mode SyncWord[3] 0x06C3 - 4th byte of the Sync Word in FSK mode SyncWord[4] 0x06C4 - 5th byte of the Sync Word in FSK mode SyncWord[5] 0x06C5 - 6th byte of the Sync Word in FSK mode SyncWord[6] 0x06C6 - 7th byte of the Sync Word in FSK mode SyncWord[7] 0x06C7 - 8th byte of the Sync Word in FSK mode Node Address 0x06CD 0x00 Node Address used in FSK mode Broadcast Address 0x06CE 0x00 Broadcast Address used in FSK mode IQ Polarity Setup 0x0736 0x0D Optimize the inverted IQ operation LoRa Sync Word MSB 0x0740 0x14 Differentiate the LoRa® signal for Public or Private Network LoRa Sync Word LSB 0x0741 0x24 Set to 0x3444 for Public Network Initial value used for the polynomial used to compute the CRC in FSK mode Set to 0x1424 for Private Network SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 63 of 109 Semtech Table 12-1: List of Registers Register Name Address Reset Value RandomNumberGen[0] 0x0819 - RandomNumberGen[1] 0x081A - RandomNumberGen[2] 0x081B - RandomNumberGen[3] 0x081C - TxModulation 0x0889 0x01 Function Can be used to get a 32-bit random number Refer to Section 15. Set the gain used in Rx mode: Rx Gain 0x08AC 0x94 Rx Power Saving gain: 0x94 Rx Boosted gain: 0x96 TxClampConfig 0x08D8 0xC8 Refer to Section 15. 0x18 The value is changed internally depending on the device selected. Set the Over Current Protection level. OCP Configuration 0x08E7 Default value is 0x38 (140 mA) RTC Control2 0x0902 0x00 Enable or disable RTC Time XTA trim 0x0911 0x05 This register should only be changed while the radio is in STDBY_XOSC mode. XTB trim 0x0912 0x05 This register should only be changed while the radio is in STDBY_XOSC mode. DIO3 output voltage control 0x920 0x01 Non-standard DIO3 control1 Event Mask 0x944 0x00 Used to clear events1 Value of the trimming cap on XTA pin Value of the trimming cap on XTB pin 1. Use only with Semtech-provided code samples 2. Use only with Semtech-provided workaround of Section 15.3 SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 64 of 109 Semtech 13. Commands Interface 13.1 Operational Modes Functions 13.1.1 SetSleep The command SetSleep(...) is used to set the device in SLEEP mode with the lowest current consumption possible. This command can be sent only while in STDBY mode (STDBY_RC or STDBY_XOSC). After the rising edge of NSS, all blocks are switched OFF except the backup regulator if needed and the blocks specified in the parameter sleepConfig. Table 13-1: SetSleep SPI Transaction Byte 0 1 Data from host Opcode = 0x84 sleepConfig The sleepConfig argument is defined in Table 13-2. Table 13-2: Sleep Mode Definition SleepConfig[7:3] SleepConfig [2] SleepConfig [1] SleepConfig [0] RESERVED 0: cold start 0: RFU 0: RTC timeout disable RESERVED (device configuration in retention) 1 0: RFU 1: wake-up on RTC timeout (RC64k) 1: warm start 1. Note that only configuration for the activated modem before going to sleep is retained. Configuration of the other modems is lost and must be re-configured. When entering SLEEP mode, the BUSY line is asserted high and stays high for the duration of the SLEEP period. Once in SLEEP mode, it is possible to wake the device up from the host processor with a falling edge on the NSS line. The device can also wake up automatically based on a counter event driven by the RTC 64 kHz clock. If the RTC is used, a rising edge of NSS will still wake up the chip (the host keeps control of the chip). By default, when entering into SLEEP mode, the chip configuration is lost. However, being able to store chip configuration to lower host interaction or during RxDutyCycle mode can be implemented using the register in retention mode during SLEEP state. This is available when the SetSleep(...) command is sent with sleepConfig[2] set to 1. Once the chip leaves SLEEP mode (by NSS or RTC event), the chip will first restore the registers with the value stored into the retention register. Caution: Once the command SetSleep(...) has been sent, the device will become unresponsive for around 500 s, time needed for the configuration saving process and proper switch off of the various blocks. The user must thus make sure the device will not be receiving SPI command during these 500 s to ensure proper operations of the device. SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 65 of 109 Semtech 13.1.2 SetStandby The command SetStandby(...) is used to set the device in a configuration mode which is at an intermediate level of consumption. In this mode, the chip is placed in halt mode waiting for instructions via SPI. This mode is dedicated to chip configuration using high level commands such as SetPacketType(...). By default, after battery insertion or reset operation (pin NRESET goes low), the chip will enter in STDBY_RC mode running with a 13 MHz RC clock. Table 13-3: SetConfig SPI Transaction Byte 0 1 Data from host Opcode = 0x80 StdbyConfig The StdbyConfig byte definition is as follows: Table 13-4: STDBY Mode Configuration StdbyConfig Value Description STDBY_RC 0 Device running on RC13M, set STDBY_RC mode STDBY_XOSC 1 Device running on XTAL 32MHz, set STDBY_XOSC mode 13.1.3 SetFs The command SetFs() is used to set the device in the frequency synthesis mode where the PLL is locked to the carrier frequency. This mode is used for test purposes of the PLL and can be considered as an intermediate mode. It is automatically reached when going from STDBY_RC mode to TX mode or RX mode. Table 13-5: SetFs SPI Transaction Byte 0 Data from host Opcode = 0xC1 In FS mode, the PLL will be set to the frequency programmed by the function SetRfFrequency(...) which is the same used for TX or RX operations. 13.1.4 SetTx The command SetTx() sets the device in transmit mode. Table 13-6: SetTx SPI Transaction Byte 0 1-3 Data from host Opcode = 0x83 timeout(23:0) SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 66 of 109 Semtech • Starting from STDBY_RC mode, the oscillator is switched ON followed by the PLL, then the PA is switched ON and the PA regulator starts ramping according to the ramping time defined by the command SetTxParams(...) • When the ramping is completed the packet handler starts the packet transmission • When the last bit of the packet has been sent, an IRQ TX_DONE is generated, the PA regulator is ramped down, the PA is switched OFF and the chip goes back to STDBY_RC mode • A TIMEOUT IRQ is triggered if the TX_DONE IRQ is not generated within the given timeout period • The chip goes back to STBY_RC mode after a TIMEOUT IRQ or a TX_DONE IRQ. The timeout duration can be computed with the formula: Timeout duration = Timeout * 15.625 µs Timeout is a 23-bit parameter defining the number of step used during timeout as defined in the following table. Table 13-7: SetTx Timeout Duration Timeout(23:0) Timeout Duration 0x000000 Timeout disable, Tx Single mode, the device will stay in TX Mode until the packet is transmitted and returns in STBY_RC mode upon completion. Others Timeout active, the device remains in TX mode, it returns automatically to STBY_RC mode on timer end-of-count or when a packet has been transmitted. The maximum timeout is then 262 s. The value given for the timeout should be calculated for a given packet size, given modulation and packet parameters. The timeout behaves as a security in case of conflicting commands from the host controller. The timeout in Tx mode can be used as a security to ensure that if for any reason the Tx is aborted or does not succeed (ie. the TxDone IRQ never is never triggered), the TxTimeout will prevent the system from waiting for an undefined amount of time. Using the timeout while in Tx mode removes the need to use resources from the host MCU to perform the same task. 13.1.5 SetRx The command SetRx() sets the device in receiver mode. Table 13-8: SetRx SPI Transaction Byte 0 1-3 Data from host Opcode = 0x82 timeout(23:0) SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 67 of 109 Semtech This command sets the chip in RX mode, waiting for the reception of one or several packets. The receiver mode operates with a timeout to provide maximum flexibility to end users. Table 13-9: SetRx Timeout Duration Timeout(23:0) Timeout Duration 0x000000 No timeout. Rx Single mode. The device will stay in RX Mode until a reception occurs and the devices return in STBY_RC mode upon completion 0xFFFFFF Rx Continuous mode. The device remains in RX mode until the host sends a command to change the operation mode. The device can receive several packets. Each time a packet is received, a packet done indication is given to the host and the device will automatically search for a new packet. Others Timeout active. The device remains in RX mode, it returns automatically to STBY_RC mode on timer end-of-count or when a packet has been received. As soon as a packet is detected, the timer is automatically disabled to allow complete reception of the packet. The maximum timeout is then 262 s. When the timeout is active (0x000000 < timeout < 0xFFFFFF), the radio will stop the reception at the end of the timeout period unless a preamble and Sync Word (in GFSK) or Header (in LoRa®) has been detected. This is to ensure that a valid packet will not be dropped in the middle of the reception due to the pre-defined timeout. By default, the timer will be stopped only if the Sync Word or header has been detected. However, it is also possible to stop the timer upon preamble detection by using the command StopTimerOnPreamble(...). 13.1.6 StopTimerOnPreamble The command StopTimerOnPreamble(...) allows the user to select if the timer is stopped upon preamble detection of Sync Word / header detection. Table 13-10: StopTimerOnPreamble SPI Transaction Byte 0 1 Data from host Opcode = 0x9F StopOnPreambleParam The enable byte definition is given in the following table. Table 13-11: StopOnPreambParam Definition StopOnPreambleParam Value Description disable 0x00 Timer is stopped upon Sync Word or Header detection enable 0x01 Timer is stopped upon preamble detection By default, the timer is stopped only when the Sync Word (in GFSK) or Header (in LoRa®) has been detected. When the function StopTimerOnPreamble(...) is used with the value enable at 0x01, then the timer will be stopped upon preamble detection and the device will stay in RX mode until a packet is received. It is important to notice that stopping the timer upon preamble may cause the device to stay in Rx for an unexpected long period of time in case of false detection. SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 68 of 109 Semtech Radio Current Preamble Detected Or SyncWord / Header Detected timeout time Radio in STDBY_RC Radio in RX mode Radio in STDBY_RC Radio in RX mode Figure 13-1: Stopping Timer on Preamble or Header Detection 13.1.7 SetRxDutyCycle This command sets the chip in sniff mode so that it regularly looks for new packets. This is the listen mode. Table 13-12: SetRxDutyCycle SPI Transaction Byte 0 1-3 4-6 Data from host Opcode= 0x94 rxPeriod(23:0) sleepPeriod(23:0) When this command is sent in STDBY_RC mode, the context (device configuration) is saved and the chip enters in a loop defined by the following steps: • The chip enters RX and listens for a packet for a period of time defined by rxPeriod • The chip is looking for a preamble in either LoRa® or FSK • Upon preamble detection, the timeout is stopped and restarted with the value 2 * rxPeriod + sleepPeriod • If no packet is received during the RX window (defined by rxPeriod), the chip goes into SLEEP mode with context saved for a period of time defined by sleepPeriod • At the end of the SLEEP window, the chip automatically restarts the process of restoring context and enters the RX mode, and so on. At any time, the host can stop the procedure. The loop is terminated if either: • A packet is detected during the RX window, at which moment the chip interrupts the host via the RX_DONE flag and returns to STBY_RC mode • The host issues a SetStandby(...) command during the RX window (during SLEEP mode, the device is unable to receive commands straight away and must first be waken up by a falling edge of NSS). The SLEEP mode duration is defined by: SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 69 of 109 Semtech Sleep Duration = sleepPeriod * 15.625 µs The RX mode duration is defined by Rx Duration = rxPeriod * 15.625 µs The following figure highlights operations being performed while in RxDutyCycle mode. It can be observed that the radio will spend around 1 ms to save the context and go into SLEEP mode and then re-initialize the radio, lock the PLL and go into RX. The delay is not accurate and may vary depending on the time needed for the XTAL to start, the PLL to lock, etc. Radio Current rxPeriod sleepPeriod time Radio in STDBY_RC Radio in RX mode 500 us Radio in SLEEP mode 500 us Radio in RX mode Figure 13-2: RX Duty Cycle Energy Profile Upon preamble detection, the radio is set to look for a Sync Word (in GFSK) or a header (in LoRa®) and the timer is restarted with a new value which is computed as 2 * rxPeriod + sleepPeriod. This is to ensure that the radio does not spend an indefinite amount of time waiting in Rx for a packet which may never arrive (false preamble detection). This implies a strong relationship between the time-on-air of the packet to be received, and the amount of time the radio spends in RX and in SLEEP mode. If a long preamble is used on the TX side, care must be taken that the formula below is respected: Tpreamble + Theader ≤ 2 * rxPeriod + sleepPeriod SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 70 of 109 Semtech Radio Current Preamble Detected 2 x rxPeriod + sleepPeriod time Radio in STDBY_RC Radio in RX mode 500 us Radio in SLEEP mode Figure 13-3: RX Duty Cycle when Receiving Note: when using a TCXO controlled by the SX1268 itself, the startup delay defined in delay(23:0) will be added between the Sleep and Rx periods 13.1.8 SetCAD The command SetCAD() can be used only in LoRa® packet type. The Channel Activity Detection is a LoRa® specific mode of operation where the device searches for the presence of a LoRa® preamble signal. After the search has completed, the device returns in STDBY_RC mode. The length of the search is configured via the command SetCadParams(...). At the end of the search period, the device triggers the IRQ CADdone if it has been enabled. If a valid signal has been detected it also generates the IRQ CadDetected. Table 13-13: SetCAD SPI Transaction Byte 0 Data from host Opcode = 0xC5 13.1.9 SetTxContinuousWave SetTxContinuousWave() is a test command available for all packet types to generate a continuous wave (RF tone) at selected frequency and output power. The device stays in TX continuous wave until the host sends a mode configuration command. Table 13-14: SetTxContinuousWave SPI Transaction Byte 0 Data from host Opcode = 0xD1 SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 71 of 109 Semtech While this command has no real use case in real life, it can provide valuable help to the developer to check and monitor the performances of the radio while in Tx mode. 13.1.10 SetTxInfinitePreamble SetTxInfinitePreamble() is a test command to generate an infinite sequence of alternating zeros and ones in FSK modulation. In LoRa®, the radio constantly modulates LoRa® preamble symbols. The device will remain in TX infinite preamble until the host sends a mode configuration command. While this command has no real use case in real life, it can provide valuable help to the developer to check and monitor the performances of the radio while modulating in Tx mode. Table 13-15: SendTxInfinitePreamble SPI Transaction Byte 0 Data from host Opcode = 0xD2 However, when using this function, it is impossible to define any data sent by the device. In LoRa® mode, the radio is only able to constantly modulate LoRa preamble symbols and, in FSK mode, the radio is only able to generate FSK preamble (0x55). Nevertheless, the end user will be able to easily monitor the spectral impact of its modulation parameters. 13.1.11 SetRegulatorMode By default only the LDO is used. This is useful in low cost applications where the cost of the extra components needed for a DC-DC converter is prohibitive. Using only a linear regulator implies that the RX or TX current is almost doubled. This function specifies if DC-DC or LDO is used for power regulation. The regulation mode is defined by parameter regModeParam. Note: This function is clearly related to the hardware implementation of the device. The user should always use this command knowing what has been implemented at the hardware level. Table 13-16: SetRegulatorMode SPI Transaction Byte Data from host SX1268 Data Sheet DS.SX1268.W.APP 0 1 Opcode= 0x96 regModeParam 0: Only LDO used for all modes 1: DC_DC+LDO used for STBY_XOSC,FS, RX and TX modes www.semtech.com Rev. 1.1 June 2019 72 of 109 Semtech 13.1.12 Calibrate Function At power up the radio performs calibration of RC64k, RC13M, PLL and ADC. It is however possible to launch a calibration of one or several blocks at any time starting in STDBY_RC mode. The calibrate function starts the calibration of a block defined by calibParam. Table 13-17: Calibrate SPI Transaction Byte 0 1 Data from host Opcode = 0x89 calibParam The total calibration time if all blocks are calibrated is 3.5 ms. The calibration must be launched in STDBY_RC mode and the BUSY pins will be high during the calibration process. A falling edge of BUSY indicates the end of the procedure. Table 13-18: Calibration Setting CalibParam Calibration Setting 0: RC64k calibration disabled Bit 0 1: RC64k calibration enabled 0: RC13Mcalibration disabled Bit 1 1: RC13M calibration enabled 0: PLL calibration disabled Bit 2 1: PLL calibration enabled 0: ADC pulse calibration disabled Bit 3 1: ADC pulse calibration enabled 0: ADC bulk N calibration disabled Bit 4 1: ADC bulk N calibration enabled 0: ADC bulk P calibration disabled Bit 5 1: ADC bulk P calibration enabled 0: Image calibration disabled Bit 6 1: Image calibration enabled Bit 7 0: RFU 13.1.13 CalibrateImage The function CalibrateImage(...) allows the user to calibrate the image rejection of the device for the device operating frequency band. Table 13-19: CalibrateImage SPI Transaction Byte 0 1 2 Data from host Opcode = 0x98 freq1 freq2 SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 73 of 109 Semtech For more details on the specific frequency bands, see Section 9.2.1 "Image Calibration for Specific Frequency Bands" on page 54. 13.1.14 SetPaConfig SetPaConfig must always be set to 0. Table 13-20: SetPaConfig SPI Transaction Byte 0 1 2 Data from host Opcode = 0x95 paDutyCycle hpMax 3 4 deviceSel paLut reserved and always 0x00 reserved and always 0x01 paDutyCycle controls the duty cycle (conduction angle). The maximum output power, the power consumption, and the harmonics will drastically change with paDutyCycle. The values given across this datasheet are the recommended settings to achieve the best efficiency of the PA. Changing the paDutyCycle will affect the distribution of the power in the harmonics and should be selected to work in conjunction with a given matching network. hpMax selects the size of the PA. The maximum output power can be reduced by reducing the value of hpMax. The valid range is between 0x00 and 0x07 and 0x07 is the maximum supported value to achieve +22 dBm output power. Increasing hpMax above 0x07 could cause early aging of the device could damage the device when used in extreme temperatures. deviceSel is reserved and has always the value 0x00. paLut is reserved and has always the value 0x01. 13.1.14.1 PA Optimal Settings PA optimal settings are used to maximize the PA efficiency when the requested output power is lower than the nominal +22 dBm or +14 dBm. For example, the maximum output power in Japan is +10 dBm, and in China it is +17 dBm in some bands. Those optimal settings require: • a dedicated matching / PA load impedance • a specific tweaking of the PA settings, described in Table 13-21: PA Operating Modes with Optimal Settings Table 13-21: PA Operating Modes with Optimal Settings Output Power paDutyCycle hpMax deviceSel paLut Value in SetTxParams1 +22 dBm 0x04 0x07 0x00 0x01 +22 dBm +20 dBm 0x03 0x05 0x00 0x01 +22 dBm +17 dBm 0x02 0x03 0x00 0x01 +22 dBm SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 74 of 109 Semtech Table 13-21: PA Operating Modes with Optimal Settings Output Power paDutyCycle hpMax deviceSel paLut Value in SetTxParams1 +14 dBm 0x04 0x06 0x00 0x01 +15 dBm2 +10 dBm 0x00 0x03 0x00 0x01 +15 dBm 2 1. See Section 13.4.4 "SetTxParams" on page 83. 2. DC-DC mode is used for the whole IC, see Section 5.1 "Selecting DC-DC Converter or LDO Regulation" on page 31 SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 75 of 109 Semtech Note: These changes make the use of nominal power either sub-optimal or unachievable. Caution! The following restrictions must be observed to avoid voltage overstress on the PA, exceeding the maximum rating may cause irreversible damage to the device: • paDutyCycle should not be higher than 0x04. 13.1.15 SetRxTxFallbackMode The command SetRxTxFallbackMode defines into which mode the chip goes after a successful transmission or after a packet reception. Table 13-22: SetRxTxFallbackMode SPI Transaction Byte 0 1 Data from host Opcode = 0x93 fallbackMode The fallbackMode byte definition is given as follows: Table 13-23: Fallback Mode Definition Fallback Mode Value Description FS 0x40 The radio goes into FS mode after Tx or Rx STDBY_XOSC 0x30 The radio goes into STDBY_XOSC mode after Tx or Rx STDBY_RC 0x20 The radio goes into STDBY_RC mode after Tx or Rx By default, the radio will always return in STDBY_RC unless the configuration is changed by using this command. Changing the default mode from STDBY_RC to STDBY_XOSC or FS will also have an impact on the switching time of the radio. SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 76 of 109 Semtech 13.2 Registers and Buffer Access 13.2.1 WriteRegister Function The command WriteRegister(...) allows writing a block of bytes in a data memory space starting at a specific address. The address is auto incremented after each data byte so that data is stored in contiguous memory locations. The SPI data transfer is described in the following table. Table 13-24: WriteRegister SPI Transaction Byte 0 1 2 3 4 ... n Data from host Opcode = 0x0D address[15:8] address[7:0] data@address data@address+1 ... data@address+ (n-3) Data to host RFU Status Status Status Status ... Status 13.2.2 ReadRegister Function The command ReadRegister(...) allows reading a block of data starting at a given address. The address is auto-incremented after each byte. The SPI data transfer is described in Table 13-25. Note that the host has to send an NOP after sending the 2 bytes of address to start receiving data bytes on the next NOP sent. Table 13-25: ReadRegister SPI Transaction Byte 0 1 2 3 4 5 ... n Data from host Opcode = 0x1D address[15:8] address[7:0] NOP NOP NOP ... NOP Data to host RFU Status Status Status data@address data@address+1 ... data@address+ (n-4) 13.2.3 WriteBuffer Function This function is used to store data payload to be transmitted. The address is auto-incremented; when it exceeds the value of 255 it is wrapped back to 0 due to the circular nature of the data buffer. The address starts with an offset set as a parameter of the function. Table 13-26 describes the SPI data transfer. Table 13-26: WriteBuffer SPI Transaction Byte 0 1 2 3 ... n Data from host Opcode = 0x0E offset data@offset data@offset+1 ... data@offset+(n-2) Data to host RFU Status Status Status ... Status SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 77 of 109 Semtech 13.2.4 ReadBuffer Function This function allows reading (n-3) bytes of payload received starting at offset. Note that NOP must be sent after sending the offset. Table 13-27: ReadBuffer SPI Transaction Byte 0 1 2 3 4 ... n Data from host Opcode = 0x1E offset NOP NOP NOP ... NOP Data to host RFU Status Status data@offset data@offset+1 ... data@offset+(n-3) 13.3 DIO and IRQ Control Functions 13.3.1 SetDioIrqParams This command is used to set the IRQ flag. Table 13-28: SetDioIrqParams SPI Transaction Byte 0 1-2 3-4 5-6 7-8 Data from host SetDioIrqParams (0x08) Irq Mask(15:0) DIO1Mask(15:0) DIO2Mask(15:0) DIO3Mask(15:0) 13.3.2 IrqMask The IrkMask masks or unmasks the IRQ which can be triggered by the device. By default, all IRQ are masked (all ‘0’) and the user can enable them one by one (or several at a time) by setting the corresponding mask to ‘1’. 13.3.2.1 DioxMask The interrupt causes a DIO to be set if the corresponding bit in DioxMask and the IrqMask are set. As an example, if bit 0 of IrqMask is set to 1 and bit 0 of DIO1Mask is set to 1 then, a rising edge of IRQ source TxDone will be logged in the IRQ register and will appear at the same time on DIO1. One IRQ can be mapped to all DIOs, one DIO can be mapped to all IRQs (an OR operation is done) but some IRQ sources will be available only on certain modes of operation and frames. SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 78 of 109 Semtech In total there are 10 possible interrupt sources depending on the chosen frame and chip mode. Each one of them can be enabled or masked. In addition, every one of them can be mapped to DIO1, DIO2 or DIO3. Note that if DIO2 or DIO3 are used to control the RF Switch or the TCXO, the IRQ will not be generated even if it is mapped to the pins. Table 13-29: IRQ Registers Bit IRQ Description Modulation 0 TxDone Packet transmission completed All 1 RxDone Packet received All 2 PreambleDetected Preamble detected All 3 SyncWordValid Valid sync word detected FSK 4 HeaderValid Valid LoRa header received LoRa® 5 HeaderErr LoRa header CRC error LoRa® 6 CrcErr Wrong CRC received All 7 CadDone Channel activity detection finished LoRa® 8 CadDetected Channel activity detected LoRa® 9 Timeout Rx or Tx timeout All A dedicated 10-bit register called IRQ_reg is used to log IRQ sources. Each position corresponds to one IRQ source as described in the table above. A set of user commands is used to configure IRQ mask, DIOs mapping and IRQ clearing as explained in the following chapters. 13.3.3 GetIrqStatus This command returns the value of the IRQ register. Table 13-30: GetIrqStatus SPI Transaction Byte 0 1 2-3 Data from host Opcode = 0x12 NOP NOP Data to host RFU Status IrqStatus(15:0) SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 79 of 109 Semtech 13.3.4 ClearIrqStatus This command clears an IRQ flag in the IRQ register. Table 13-31: ClearIrqStatus SPI Transaction Byte 0 1-2 Data from host Opcode = 0x02 ClearIrqParam(15:0) This function clears an IRQ flag in the IRQ register by setting to 1 the bit of ClearIrqParam corresponding to the same position as the IRQ flag to be cleared. As an example, if bit 0 of ClearIrqParam is set to 1 then IRQ flag at bit 0 of IRQ register is cleared. If a DIO is mapped to one single IRQ source, the DIO is cleared if the corresponding bit in the IRQ register is cleared. If DIO is set to 0 with several IRQ sources, then the DIO remains set to one until all bits mapped to the DIO in the IRQ register are cleared. 13.3.5 SetDIO2AsRfSwitchCtrl This command is used to configure DIO2 so that it can be used to control an external RF switch. Table 13-32: SetDIO2AsRfSwitchCtrl SPI Transaction Byte 0 1 Data from host Opcode = 0x9D enable When controlling the external RX switch, the pin DIO2 will toggle accordingly to the internal state machine. DIO2 will be asserted high a few microseconds before the ramp-up of the PA and will be set to zero after the ramp-down of the PA. The enable byte definition is given as follows: Table 13-33: Enable Configuration Definition Enable Description 0 DIO2 is free to be used as an IRQ DIO2 is selected to be used to control an RF switch. In this case: 1 DIO2 = 0 in SLEEP, STDBY_RX, STDBY_XOSC, FS and RX modes, DIO2 = 1 in TX mode 13.3.6 SetDIO3AsTCXOCtrl This command is used to configure the chip for an external TCXO reference voltage controlled by DIO3. Table 13-34: SetDIO3asTCXOCtrl SPI Transaction Byte 0 1 2-4 Data from host Opcode = 0x97 tcxoVoltage delay(23:0) SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 80 of 109 Semtech When this command is used, the device now controls the TCXO itself through DIO3. When needed (in mode STDBY_XOSC, FS, TX and RX), the internal state machine will set DIO3 to a predefined output voltage (control through the parameter tcxoVoltage). Internally, the clock controller will wait for the 32 MHz to appear before releasing the internal state machine. The time needed for the 32 MHz to appear and stabilize can be controlled through the parameter delay(23:0). If the 32 MHz from the TCXO is not detected internally at the end the delay period, the error XOSC_START_ERR will be flagged in the error controller. The XOSC_START_ERR flag will be raised at POR or at wake-up from Sleep mode in a cold-start condition, when a TCXO is used. It is an expected behaviour since the chip is not yet aware of being clocked by a TCXO. The user should simply clear this flag with the ClearDeviceErrors command. The tcxoVoltage byte definition is given in as follows: Table 13-35: tcxoVoltage Configuration Definition tcxoVoltage Description 0x00 DIO3 outputs 1.6 V to supply the TCXO 0x01 DIO3 outputs 1.7 V to supply the TCXO 0x02 DIO3 outputs 1.8 V to supply the TCXO 0x03 DIO3 outputs 2.2 V to supply the TCXO 0x04 DIO3 outputs 2.4 V to supply the TCXO 0x05 DIO3 outputs 2.7 V to supply the TCXO 0x06 DIO3 outputs 3.0 V to supply the TCXO 0x07 DIO3 outputs 3.3 V to supply the TCXO The power regulation for tcxoVoltage is configured to be 200 mV below the supply voltage. This means that even if tcxoVoltage is configured above the supply voltage, the supply voltage will be limited by: VDDop > VTCXO + 200 mV The timeout duration is defined by Delay duration = Delay(23:0)*15.625 µs Most TCXO will not be immediately ready at the desired frequency and will suffer from an initial setup time where the frequency is gently drifting toward the wanted frequency. This setup time is different from one TCXO to another and is also dependent on the TCXO manufacturer. To ensure this setup time does not have any effect on the modulation or packets, the delay value will internally gate the 32 MHz coming from the TCXO to give enough time for this initial drift to stabilize. At the end of the delay period, the internal block will stop gating the clock and the radio will carry on to the next step. Note: The user should take the delay period into account when going into Tx or Rx mode from STDBY_RC mode. Since the time needed to switch modes will increase with the duration of delay. To avoid increasing the switching mode time, the user can first set the device in STDBY_XOSC which will switch on the TCXO and wait for the delay period. Then, the user can set the device into Tx or Rx mode without suffering from any delay additional to the internal processing. SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 81 of 109 Semtech 13.4 RF Modulation and Packet-Related Functions 13.4.1 SetRfFrequency The command SetRfFrequency(...) is used to set the frequency of the RF frequency mode. Table 13-36: SetRfFrequency SPI Transaction Byte 0 1-4 Data from host Opcode = 0x86 RfFreq(31:0) The LSB of Freq is equal to the PLL step giving: RF Freq *F XTAL RF frequency = -----------------------------------------25 2 SetRfFrequency(...) defines the chip frequency in FS, TX and RX modes. In RX, the frequency is internally lowered to IF (250 kHz by default). 13.4.2 SetPacketType The command SetPacketType(...) sets the SX1268 radio in LoRa® or in FSK mode. The command SetPacketType(...) must be the first of the radio configuration sequence. The parameter for this command is PacketType. Table 13-37: SetPacketType SPI Transaction Byte 0 1 Data from host Opcode = 0x8A PacketType Table 13-38: PacketType Definition PacketType Value Modem Mode of Operation PACKET_TYPE_GFSK 0x00 GFSK packet type PACKET_TYPE_LORA 0x01 LORA mode Changing from one mode of operation to another is done using the command SetPacketType(...). The parameters from the previous mode are not kept internally. The switch from one packet type to another must be done in STDBY_RC mode. SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 82 of 109 Semtech 13.4.3 GetPacketType The command GetPacketType() returns the current operating packet type of the radio. Table 13-39: GetPacketType SPI Transaction Byte 0 1 2 Data from host Opcode = 0x11 NOP NOP Data to host RFU Status packetType 13.4.4 SetTxParams This command sets the TX output power by using the parameter power and the TX ramping time by using the parameter RampTime. This command is available for all protocols selected. Table 13-40: SetTxParams SPI Transaction Byte 0 1 2 Data from host Opcode = 0x8E power RampTime The output power is defined as power in dBm in a range of • - 17 (0xEF) to +14 (0x0E) dBm by step of 1 dB if low power PA is selected • - 9 (0xF7) to +22 (0x16) dBm by step of 1 dB if high power PA is selected Selection between high power PA and low power PA is done with the command SetPaConfig and the parameter deviceSel. By default low power PA and +14 dBm are set. The power ramp time is defined by the parameter RampTime as defined in the following table: Table 13-41: RampTime Definition RampTime Value RampTime (μs) SET_RAMP_10U 0x00 10 SET_RAMP_20U 0x01 20 SET_RAMP_ 40U 0x02 40 SET_RAMP_80U 0x03 80 SET_RAMP_200U 0x04 200 SET_RAMP_800U 0x05 800 SET_RAMP_1700U 0x06 1700 SET_RAMP_3400U 0x07 3400 SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 83 of 109 Semtech 13.4.5 SetModulationParams The command SetModulationParams(...) is used to configure the modulation parameters of the radio. Depending on the packet type selected prior to calling this function, the parameters will be interpreted differently by the chip. Table 13-42: SetModulationParams SPI Transaction Byte 0 1 2 3 4 5 6 7 8 Data from host for Modulation Params Opcode 0x8B Mod Param1 Mod Param2 Mod Param3 Mod Param4 Mod Param5 Mod Param6 Mod Param7 Mod Param8 The meaning of the parameter depends on the selected protocol. In FSK bitrate (BR) and Frequency Deviation (Fdev) are used for the transmission or reception. Bandwidth is used for reception purpose. The pulse represents the Gaussian filter used to filter the modulation stream on the transmitter side. In LoRa® packet type, SF corresponds to the Spreading Factor used for the LoRa® modulation. SF is defined by the parameter Param[1]. BW corresponds to the bandwidth onto which the LoRa® signal is spread. BW in LoRa® is defined by the parameter Param[2]. The LoRa® payload includes a forward error correcting mechanism which has several levels of encoding. The Coding Rate (CR) is defined by the parameter Param[3] in LoRa®. The parameter LdOpt corresponds to the Low Data Rate Optimization (LDRO). This parameter is usually set when the LoRa® symbol time is equal or above 16.38 ms (typically for SF11 with BW125 and SF12 with BW125 and BW250). See Section 6.1.1.4 "Low Data Rate Optimization" on page 38. 13.4.5.1 GFSK Modulation Parameters The tables below provide more details on the GFSK modulation parameters: Table 13-43: GFSK ModParam1, ModParam2 & ModParam3 - br BR(23:0) Description 0x000001 to 0xFFFFFF br = 32 * Fxtal / bit rate The bit rate is entered with the parameter br which is related to the frequency of the main oscillator (32 MHz). The bit rate range is from 600 b/s up to 300 kb/s with a default value at 4.8 kb/s. Table 13-44: GFSK ModParam4 - PulseShape SX1268 Data Sheet DS.SX1268.W.APP PulseShape Description 0x00 No Filter applied 0x08 Gaussian BT 0.3 0x09 Gaussian BT 0.5 0x0A Gaussian BT 0.7 0x0B Gaussian BT 1 www.semtech.com Rev. 1.1 June 2019 84 of 109 Semtech Table 13-45: GFSK ModParam5 - Bandwidth Bandwidth Description 0x1F RX_BW_4800 (4.8 kHz DSB) 0x17 RX_BW_5800 (5.8 kHz DSB) 0x0F RX_BW_7300 (7.3 kHz DSB) 0x1E RX_BW_9700 (9.7 kHz DSB) 0x16 RX_BW_11700 (11.7 kHz DSB) 0x0E RX_BW_14600 (14.6 kHz DSB) 0x1D RX_BW_19500 (19.5 kHz DSB) 0x15 RX_BW_23400 (23.4 kHz DSB) 0x0D RX_BW_29300 (29.3 kHz DSB) 0x1C RX_BW_39000 (39 kHz DSB) 0x14 RX_BW_46900 (46.9 kHz DSB) 0x0C RX_BW_58600 (58.6 kHz DSB) 0x1B RX_BW_78200 (78.2 kHz DSB) 0x13 RX_BW_93800 (93.8 kHz DSB) 0x0B RX_BW_117300 (117.3 kHz DSB) 0x1A RX_BW_156200 (156.2 kHz DSB) 0x12 RX_BW_187200 (187.2 kHz DSB) 0x0A RX_BW_234300 (232.3 kHz DSB) 0x19 RX_BW_312000 (312 kHz DSB) 0x11 RX_BW_373600 (373.6 kHz DSB) 0x09 RX_BW_467000 (467 kHz DSB) Table 13-46: GFSK ModParam6, ModParam7 & ModParam8 - Fdev Fdev(23:0) Description 0x000000 to 0xFFFFFF Fdev = (Frequency Deviation * 2^25) / Fxtal F dev *F XTAL Frequencydeviation = ---------------------------------25 2 SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 85 of 109 Semtech 13.4.5.2 LoRa® Modulation Parameters The tables below provide more details on the LoRa® modulation parameters: Table 13-47: LoRa® ModParam1- SF SF Description 0x05 SF5 0x06 SF6 0x07 SF7 0x08 SF8 0x09 SF9 0x0A SF10 0x0B SF11 0x0C SF12 Table 13-48: LoRa® ModParam2 - BW BW Description 0x00 LORA_BW_7 (7.81 kHz real) 0x08 LORA_BW_10 (10.42 kHz real) 0x01 LORA_BW_15 (15.63 kHz real) 0x09 LORA_BW_20 (20.83 kHz real) 0x02 LORA_BW_31 (31.25 kHz real) 0x0A LORA_BW_41 (41.67 kHz real) 0x03 LORA_BW_62 (62.50 kHz real) 0x04 LORA_BW_125 (125 kHz real) 0x05 LORA_BW_250 (250 kHz real) 0x06 LORA_BW_500 (500 kHz real) Table 13-49: LoRa® ModParam3 - CR SX1268 Data Sheet DS.SX1268.W.APP CR Description 0x01 LORA_CR_4_5 0x02 LORA_CR_4_6 0x03 LORA_CR_4_7 0x04 LORA_CR_4_8 www.semtech.com Rev. 1.1 June 2019 86 of 109 Semtech Table 13-50: LoRa® ModParam4 - LowDataRateOptimize LowDataRateOptimize Description 0x00 LowDataRateOptimize OFF 0x01 LowDataRateOptimize ON 13.4.6 SetPacketParams This command is used to set the parameters of the packet handling block. Table 13-51: SetPacketParams SPI Transaction Byte 0 1 2 3 4 5 6 7 8 9 Data from host for packet type Opcode = 0x8C packet Param1 packet Param2 packet Param3 packet Param4 packet Param5 packet packet Param7 packet packet Param8 Param9 Param6 13.4.6.1 GFSK Packet Parameters The tables below provide more details on the GFSK packets parameters: Table 13-52: GFSK PacketParam1 & PacketParam2 - PreambleLength PreambleLength (15:0) Description 0x0001 to 0xFFFF Transmitted preamble length: number of bits sent as preamble The preamble length is a 16-bit value which represents the number of bytes which will be sent by the radio. Each preamble byte represents alternating 0 and 1 and each byte is coded as 0x55. Table 13-53: GFSK PacketParam3 - PreambleDetectorLength PreambleDetector Description 0x00 Preamble detector length off 0x04 Preamble detector length 8 bits 0x05 Preamble detector length 16 bits 0x06 Preamble detector length 24 bits 0x07 Preamble detector length 32 bits The preamble detector acts as a gate to the packet controller, when different from 0x00 (preamble detector length off ), the packet controller will only become active if a certain number of preamble bits have been successfully received by the radio. SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 87 of 109 Semtech Table 13-54: GFSK PacketParam4 - SyncWordLength SyncWordLength Description 0x00 to 0x40 Sync Word length in bits (going from 0 to 8 bytes) The Sync Word is directly programmed into the device through simple register access. The table below provide the addresses to program the Sync Word value. Table 13-55: Sync Word Programming Sync Word Register Address Byte 0 0x06C0 Byte 1 0x06C1 Byte 2 0x06C2 Byte 3 0x06C3 Byte 4 0x06C4 Byte 5 0x06C5 Byte 6 0x06C6 Byte 7 0x06C7 Table 13-56: GFSK PacketParam5 - AddrComp AddrComp Description 0x00 Address Filtering Disable 0x01 Address Filtering activated on Node address 0x02 Address Filtering activated on Node and broadcast addresses The node address and the broadcast address are directly programmed into the device through simple register access. The tables below provide the addresses to program the values. Table 13-57: Node Address Programming NodeAddrReg SX1268 Data Sheet DS.SX1268.W.APP Register Address Default value 0x06CD 0x00 www.semtech.com Rev. 1.1 June 2019 88 of 109 Semtech Table 13-58: Broadcast Address Programming BroadcastReg Register Address Default value 0x06CE 0x00 Table 13-59: GFSK PacketParam6 - PacketType PacketType Description 0x00 The packet length is known on both sides, the size of the payload is not added to the packet 0x01 The packet is on variable size, the first byte of the payload will be the size of the packet Table 13-60: GFSK PacketParam7 - PayloadLength AddrComp Description 0x00 to 0xFF Size of the payload (in bytes) to transmit or maximum size of the payload that the receiver can accept. Table 13-61: GFSK PacketParam8 - CRCType SX1268 Data Sheet DS.SX1268.W.APP CRCType Description 0x01 CRC_OFF (No CRC) 0x00 CRC_1_BYTE (CRC computed on 1 byte) 0x02 CRC_2_BYTE(CRC computed on 2 byte) 0x04 CRC_1_BYTE_INV(CRC computed on 1 byte and inverted) 0x06 CRC_2_BYTE_INV(CRC computed on 2 byte and inverted) www.semtech.com Rev. 1.1 June 2019 89 of 109 Semtech In the SX1268, the CRC can be fully configured and the polynomial used, as well as the initial values can be entered directly through register access. Table 13-62: CRC Initial Value Programming Register Address Default Value CRC MSB Initial Value [15:8] 0x06BC 0x1D CRC LSB Initial Value [7:0] 0x06BD 0x0F Table 13-63: CRC Polynomial Programming Register Address Default Value CRC MSB polynomial value [15:8] 0x06BE 0x10 CRC LSB polynomial value [7:0] 0x06BF 0x21 Table 13-64: GFSK PacketParam9 - Whitening AddrComp Description 0x00 No encoding 0x01 Whitening enable Table 13-65: Whitening Initial Value Whitening initial value Register Address Default Value Whitening initial value MSB 0x06B8 0x01 Whitening initial value LSB 0x06B9 0x00 13.4.6.2 LoRa® Packet Parameters The tables below provide more details on the LoRa® packets parameters: Table 13-66: LoRa® PacketParam1 & PacketParam2 - PreambleLength PreambleLength (15:0) Description 0x0001 to 0xFFFF preamble length: number of symbols sent as preamble SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 90 of 109 Semtech The preamble length is a 16-bit value which represents the number of LoRa® symbols which will be sent by the radio. Table 13-67: LoRa® PacketParam3 - HeaderType HeaderType Description 0x00 Variable length packet (explicit header) 0x01 Fixed length packet (implicit header) When the byte headerType is at 0x00, the payload length, coding rate and the header CRC will be added to the LoRa® header and transported to the receiver. Table 13-68: LoRa® PacketParam4 - PayloadLength Payloadlength Description 0x00 to 0xFF Size of the payload (in bytes) to transmit or maximum size of the payload that the receiver can accept. Table 13-69: LoRa® PacketParam5 - CRCType CRCType Description 0x00 CRC OFF 0x01 CRC ON Table 13-70: LoRa® PacketParam6 - InvertIQ AddrComp Description 0x00 Standard IQ setup 0x01 Inverted IQ setup 13.4.7 SetCadParams The command SetCadConfig(...) defines the number of symbols on which CAD operates. Table 13-71: SetCadParams SPI Transaction Byte 0 1 2 3 4 5-7 Data from host Opcode = 0x88 cadSymbolNum cadDetPeak cadDetMin cadExitMode cadTimeout(23:0) SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 91 of 109 Semtech The number of symbols used is defined in the following table. Table 13-72: CAD Number of Symbol Definition cadSymbolNum Value Number of Symbols used for CAD CAD_ON_1_SYMB 0x00 1 CAD_ON_2_SYMB 0x01 2 CAD_ON_4_SYMB 0x02 4 CAD_ON_8_SYMB 0x03 8 CAD_ON_16_SYMB 0x04 16 Parameters cadDetPeak and cadDetMin define the sensitivity of the LoRa modem when trying to correlate to actual LoRa preamble symbols. These two settings depend on the LoRa spreading factor and Bandwidth, but also depend on the number of symbols used to validate or not the detection. Choosing the right value is not easy and the values selected must be carefully tested to ensure a good detection at sensitivity level, and also to limit the number of false detections. Application note AN1200.48 provides guidance for the selection of these parameters. The parameter cadExitMode defines the action to be done after a CAD operation. This is optional. Table 13-73: CAD Exit Mode Definition cadExitMode Value Operation CAD_ONLY 0x00 The chip performs the CAD operation in LoRa®. Once done and whatever the activity on the channel, the chip goes back to STBY_RC mode. CAD_RX The chip performs a CAD operation and if an activity is detected, it stays in RX until a packet is detected or the timer reaches the timeout defined by 0x01 cadTimeout * 15.625 us The parameter cadTimeout is only used when the CAD is performed with cadExitMode = CAD_RX. Here, the cadTimeout indicates the time the device will stay in Rx following a successful CAD. Rx Timeout = cadTimeout * 15.625 13.4.8 SetBufferBaseAddress This command sets the base addresses in the data buffer in all modes of operations for the packet handing operation in TX and RX mode. The usage and definition of those parameters are described in the different packet type sections. Table 13-74: SetBufferBaseAddress SPI Transaction Byte 0 1 2 Data from host Opcode = 0x8F TX base address RX base address SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 92 of 109 Semtech 13.4.9 SetLoRaSymbNumTimeout This command sets the number of symbols used by the modem to validate a successful reception. Table 13-75: SetLoRaSymbNumTimeout SPI Transaction Byte 0 1 Data from host Opcode = 0xA0 SymbNum In LoRa® mode, when going into Rx, the modem will lock as soon as a LoRa® symbol has been detected which may lead to false detection. This phenomena is quite rare but nevertheless possible. To avoid this, the command SetLoRaSymbNumTimeout can be used to define the number of symbols which will be used to validate the correct reception of a packet. When the SymbNum parameter is set the 0, the modem will validate the reception as soon as a LoRa® Symbol has been detected. When SymbNum is different from 0, the modem will wait for a total of SymbNum LoRa® symbol to validate, or not, the correct detection of a LoRa® packet. If the various states of the demodulator are not locked at this moment, the radio will generate the RxTimeout IRQ. SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 93 of 109 Semtech 13.5 Communication Status Information These commands return the information about the chip status, and received packet such a packet length, received power during packet, several flags indicating if the packet as been correctly received. The returned parameters differ for the LoRa® protocol. 13.5.1 GetStatus The host can retrieve chip status directly through the command GetStatus(): this command can be issued at any time and the device returns the status of the device. The command GetStatus() is not strictly necessary since device returns status information also on command bytes. The status byte returned is described in Table 13-76. Table 13-76: Status Byte Definition 7 6:4 3:1 0 Reserved Chip mode Command status Reserved 0x0: Unused 0x0: Reserved RFU RFU 0x2: STBY_RC 0x2: Data is available to host1 0x3: STBY_XOSC 0x3: Command timeout2 0x4: FS 0x4: Command processing error3 0x5: RX 0x5: Failure to execute command4 0x6: TX 0x6: Command TX done5 - - 1. A packet has been successfully received and data can be retrieved 2. A transaction from host took too long to complete and triggered an internal watchdog. The watchdog mechanism can be disabled by host; it is meant to ensure all outcomes are flagged to the host MCU. 3. Processor was unable to process command either because of an invalid opcode or because an incorrect number of parameters has been provided. 4. The command was successfully processed, however the chip could not execute the command; for instance it was unable to enter the specified device mode or send the requested data, 5. The transmission of the current packet has terminated The SPI transaction for the command GetStatus() is given in the following table. Table 13-77: GetStatus SPI Transaction Byte 0 1 Data from host Opcode = 0xC0 NOP Data to host RFU Status SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 94 of 109 Semtech 13.5.2 GetRxBufferStatus This command returns the length of the last received packet (PayloadLengthRx) and the address of the first byte received (RxStartBufferPointer). It is applicable to all modems. The address is an offset relative to the first byte of the data buffer. Table 13-78: GetRxBufferStatus SPI Transaction Byte 0 1 2 3 Data from host Opcode = 0x13 NOP NOP NOP Data to host RFU Status PayloadLengthRx RxStartBufferPointer 13.5.3 GetPacketStatus Table 13-79: GetPacketStatus SPI Transaction Byte 0 1 2 3 4 Data from host Opcode = 0x14 NOP NOP NOP NOP Data to host for FSK packet type RFU Status RxStatus RssiSync RssiAvg Data to host for LORA packet type RFU Status RssiPkt SnrPkt SignalRssiPkt The next table gives the description of the different RSSI and SNR available on the chip depending on the packet type. Table 13-80: Status Fields RSSI Description bit 7: preamble err bit 6: sync err bit 5: adrs err RxStatus bit 4: crc err FSK bit 3: length err bit 2: abort err bit 1: pkt received bit 0: pkt sent RSSI value latched upon the detection of the sync address. RssiSync [negated, dBm, fixdt(0,8,1)] FSK RssiAvg Actual signal power is –RssiSync/2 (dBm) RSSI average value over the payload of the received packet. Latched upon the pkt_done IRQ. FSK [negated, dBm, fixdt(0,8,1)] Actual signal power is –RssiAvg/2 (dBm) RssiPkt Average over last packet received of RSSI LoRa® Actual signal power is –RssiPkt/2 (dBm) SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 95 of 109 Semtech Table 13-80: Status Fields RSSI Description SnrPkt Estimation of SNR on last packet received in two’s compliment format multiplied by 4. LoRa® Actual SNR in dB =SnrPkt/4 SignalRssiPkt Estimation of RSSI of the LoRa® signal (after despreading) on last packet received. LoRa® Actual Rssi in dB = -SignalRssiPkt/2 13.5.4 GetRssiInst This command returns the instantaneous RSSI value during reception of the packet. The command is valid for all protocols. Table 13-81: GetRssiInst SPI Transaction Byte 0 1 2 Data from host Opcode = 0x15 NOP NOP Data to host RFU Status RssiInst Signal power in dBm = –RssiInst/2 (dBm) 13.5.5 GetStats This command returns the number of informations received on a few last packets. The command is valid for all protocols. Table 13-82: GetStats SPI Transaction Byte 0 1 2-3 4-5 6-7 Data from host Opcode = 0x10 NOP NOP NOP NOP Data to host in GFSK packet type RFU Status NbPktReceived(15:0) NbPktCrcError(15:0) NbPktLengthError(15:0) Data to host in LoRa® packet type RFU Status NbPktReceived(15:0) NbPktCrcError(15:0) NbPktHeaderErr(15:0) 13.5.6 ResetStats This command resets the value read by the command GetStats. To execute this command, the opCode is 0x00 followed by 6 zeros (so 7 zeros in total). Table 13-83: ResetStats SPI Transaction Byte 0 1-6 Data from host opCode = 0x00 0x00 SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 96 of 109 Semtech 13.6 Miscellaneous 13.6.1 GetDeviceErrors This commands returns possible errors flag that could occur during different chip operation as described below. Table 13-84: GetDeviceErrors SPI Transaction Byte 0 1 2-3 Data from host Opcode= 0x17 NOP NOP Data to host RFU Status OpError(15:0) The following table gives the meaning of each OpError. Table 13-85: OpError Bits OpError 0 1 bit 0 RC64K_CALIB_ERR RC64k calibration failed bit 1 RC13M_CALIB_ERR RC13M calibration failed bit 2 PLL_CALIB_ERR PLL calibration failed bit 3 ADC_CALIB_ERR ADC calibration failed bit 4 IMG_CALIB_ERR IMG calibration failed bit 5 XOSC_START_ERR XOSC failed to start bit 6 PLL_LOCK_ERR PLL failed to lock bit 7 RFU RFU bit 8 PA_RAMP_ERR PA ramping failed bit 15:9 RFU RFU 13.6.2 ClearDeviceErrors This commands clears all the errors recorded in the device. The errors can not be cleared independently. Table 13-86: ClearDeviceErrors SPI Transaction Byte 0 1 2 Data from host Opcode= 0x07 0x00 0x00 Data to host RFU Status Status SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 97 of 109 Semtech 14. Application 14.1 HOST API Basic Read Write Function The communication with the SX1268 is organized around generic functions which allow the user to control the device behavior. Each function is based on an Operational Command (refer throughout this document as “Opcode”), which is then followed by a set of parameters. The SX1268 use the BUSY pin to indicate the status of the chip. In the following chapters, it is assumed that host microcontroller has an SPI and access to it via spi.write(data). Data is an 8-bit word. The SPI chip select is defined by NSS, active low. 14.2 Circuit Configuration for Basic Tx Operation This chapter describes the sequence of operations needed to send or receive a frame starting from a power up. After power up (battery insertion or hard reset) the chip runs automatically a calibration procedure and goes to STDBY_RC mode. This is indicated by a low state on BUSY pin. From this state the steps are: 1. If not in STDBY_RC mode, then go to this mode with the command SetStandby(...) 2. Define the protocol (LoRa® or FSK) with the command SetPacketType(...) 3. Define the RF frequency with the command SetRfFrequency(...) 4. Define the Power Amplifier configuration with the command SetPaConfig(...) 5. Define output power and ramping time with the command SetTxParams(...) 6. Define where the data payload will be stored with the command SetBufferBaseAddress(...) 7. Send the payload to the data buffer with the command WriteBuffer(...) 8. Define the modulation parameter according to the chosen protocol with the command SetModulationParams(...)1 9. Define the frame format to be used with the command SetPacketParams(...)2 10. Configure DIO and IRQ: use the command SetDioIrqParams(...) to select TxDone IRQ and map this IRQ to a DIO (DIO1, DIO2 or DIO3) 11. Define Sync Word value: use the command WriteReg(...) to write the value of the register via direct register access 12. Set the circuit in transmitter mode to start transmission with the command SetTx(). Use the parameter to enable Timeout 13. Wait for the IRQ TxDone or Timeout: once the packet has been sent the chip goes automatically to STDBY_RC mode 14. Clear the IRQ TxDone flag 1. 2. Please refer to Section 15.1 Please refer to Section 15.2 SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 98 of 109 Semtech 14.3 Circuit Configuration for Basic Rx Operation This chapter describes the sequence of operations needed to receive a frame starting from a power up. This sequence is valid for all protocols. After power up (battery insertion or hard reset) the chip runs automatically a calibration procedure and goes to STDBY_RC mode. This is indicated by a low state on BUSY pin. From this state the steps are: 1. If not in STDBY_RC mode, then set the circuit in this mode with the command SetStandby() 2. Define the protocol (LoRa® or FSK) with the command SetPacketType(...) 3. Define the RF frequency with the command SetRfFrequency(...) 4. Define where the data will be stored inside the data buffer in Rx with the command SetBufferBaseAddress(...) 5. Define the modulation parameter according to the chosen protocol with the command SetModulationParams(...)1 6. Define the frame format to be used with the command SetPacketParams(...) 7. Configure DIO and irq: use the command SetDioIrqParams(...) to select the IRQ RxDone and map this IRQ to a DIO (DIO1 or DIO2 or DIO3), set IRQ Timeout as well. 8. Define Sync Word value: use the command WriteReg(...) to write the value of the register via direct register access. 9. Set the circuit in reception mode: use the command SetRx(). Set the parameter to enable timeout or continuous mode 10. Wait for IRQ RxDone2 or Timeout: the chip will stay in Rx and look for a new packet if the continuous mode is selected otherwise it will goes to STDBY_RC mode. 11. In case of the IRQ RxDone, check the status to ensure CRC is correct: use the command GetIrqStatus() Note: The IRQ RxDone means that a packet has been received but the CRC could be wrong: the user must check the CRC before validating the packet. 12. Clear IRQ flag RxDone or Timeout: use the command ClearIrqStatus(). In case of a valid packet (CRC OK), get the packet length and address of the first byte of the received payload by using the command GetRxBufferStatus(...) 13. In case of a valid packet (CRC OK), start reading the packet 14.4 Issuing Commands in the Right Order Most of the commands can be sent in any order except for the radio configuration commands which will set the radio in the proper operating mode. Indeed, it is mandatory to set the radio protocol using the command SetPacketType(...) as a first step before issuing any other radio configuration commands. In a second step, the user should define the modulation parameter according to the chosen protocol with the command SetModulationParams(...). Finally, the user should then select the packet format with the command SetPacketParams(...). Note: If this order is not respected, the behavior of the device could be unexpected. 1. Please refer to Section 15.4 2. Please refer to Section 15.3 SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 99 of 109 Semtech 14.5 Application Schematics 14.5.1 Application Design of the SX1268 for Operation at 434 and 780 MHz Bands VR_PA R4 ANT_SW 100R L1 Q1 Xtal C4 GND 32.0MHz 3 C16 1 GND GND C6 U1 L3 L4 C5 4 GND XTA XTB L8 DIO3 L7 15uH VDD_RADIO C17 470nF C18 100nF DIO2 C7 U2 1 VDD_IN VR_PA GND RFO XTA RFI_N XTB RFI_P GND GND DIO3 NSS VREG SCK GND MOSI DCC_SW GND MISO VBAT NRESET VBAT_IO BUSY DIO2 DIO1 GND 1 2 3 4 5 6 7 8 9 10 11 12 GND 25 2 24 23 22 21 20 19 18 17 16 15 14 13 GND GND GND C11 NSS SCK MOSI MISO SX_NRESET BUSY DIO1 2 3 RF1 CTRL GND RF2 RFC CTRL C8 GND RFIO L5 SMA C9 C10 PE4259 RF Switch GND GND GND L6 GND R3 DIO2 100R SX126 GND 6 5 4 C13 C12 GND C14 1nF C2 C1 C15 1nF GND GND GND Figure 14-1: Application Schematic of the SX1268 for +10 dBm Operation with RF Switch 14.5.2 Application Design of the SX1268 for Operation at 490 MHz Band VR_PA ANT_SW R4 100R C14 1nF VDD_RADIO C1 C2 L1 Q1 Xtal 1 GND U1 GND C6 L3 L2 C3 4 GND XTA XTB DIO3 L7 15uH VDD_RADIO C17 470nF C18 100nF DIO2 L4 C5 C7 24 23 22 21 20 19 18 17 16 15 14 13 GND GND NSS SCK MOSI MISO SX_NRESET BUSY DIO1 GND RF1 CTRL GND RF2 RFC CTRL 6 C8 RFIO L5 5 4 SMA C9 C10 PE4259 RF Switch GND C13 GND GND GND L6 GND DIO2 R3 100R SX126 GND 2 3 GND C11 C12 GND U2 1 VDD_IN VR_PA GND RFO XTA RFI_N XTB RFI_P GND GND DIO3 NSS VREG SCK GND MOSI DCC_SW GND MISO VBAT NRESET VBAT_IO BUSY DIO2 DIO1 GND 1 2 3 4 5 6 7 8 9 10 11 12 GND 25 2 C4 GND 32.0MHz 3 C16 C15 1nF GND GND GND Figure 14-2: Application Schematic of the SX1268 for +22 dBm Operation with RF Switch Note: The application schematics presented here are for information only. Always refer to the latest reference designs posted on www.semtech.com. Note: Recommendations for heat dissipation techniques to be applied to the PCB designs are given in detail in the application note AN1200.37 “Recommendations for Best Performance” on www.semtech.com. In miniaturized design implementations where heat dissipations techniques cannot be implemented or the use of the LowDataRateOptimize is not supported, the use of a TCXO will provide a more stable clock reference. SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 100 of 109 Semtech 15. Known Limitations This section summarizes the known limitations of the SX1268 chips, and the related workarounds. 15.1 Modulation Quality with 500 kHz LoRa Bandwidth 15.1.1 Description Some sensitivity degradation may be observed on any LoRa device, when receiving signals transmitted by the SX1268 with LoRa BW of 500 kHz. 15.1.2 Workaround Before any packet transmission, bit #2 at address 0x0889 shall be set to: • 0 if the LoRa BW = 500 kHz • 1 for any other LoRa BW • 1 for any (G)FSK configuration The following pseudo-code can be used before each packet transmission, to properly configure the chip: 15.2 Better Resistance of the SX1268 Tx to Antenna Mismatch 15.2.1 Description The SX1268 platform embeds a Power Amplifier (PA) clamping mechanism, backing-off the power when over-voltage conditions are detected internally. This method is put in place to protect the internal devices and ensure long-term reliability of the chip. Considering a high-power operation of the SX1268(supporting +22dBm on-chip), these “clamping” devices are overly protective, causing the chip to back-down its output power when even a reasonable mismatch is detected at the PA output. The observation is typically 5 to 6 dB less output power than the expected. SX1268 Data Sheet DS.SX1261-2.W.APP www.semtech.com Rev. 1.2 June 2019 101 of 109 Semtech Note: using the described workaround will improve the chip functionality, but is not required to ensure long-term reliability, which is guaranteed with or without workaround. 15.2.2 Workaround On the SX1262, during the chip initialization, the register TxClampConfig should be modified to optimize the PA clamping threshold. Bits 4-1 must be set to “1111” (default value “0100”). This register modification must be done after a Power On Reset, or a wake-up from cold Start. The following pseudo-code can be used as a reference to implement the fix: 15.3 Implicit Header Mode Timeout Behavior 15.3.1 Description When receiving LoRa® packets in Rx mode with Timeout active, and no header (Implicit Mode), the timer responsible for generating the Timeout (based on the RTC timer) is not stopped on RxDone event. Therefore, it may trigger an unexpected timeout in any subsequent mode where the RTC isn’t re-invoked, and therefore reset and re-programmed. 15.3.2 Workaround It is advised to add the following commands after ANY Rx with Timeout active sequence, which stop the RTC and clear the timeout event, if any. The register at address 0x0902 will be used to stop the counter, while the register at address 0x0944 will clear the potential event. The following pseudo-code can be used as a reference to implement the fix: 15.4 Optimizing the Inverted IQ Operation 15.4.1 Description When exchanging LoRa® packets with inverted IQ polarity, some packet losses may be observed for longer packets. SX1268 Data Sheet DS.SX1261-2.W.APP www.semtech.com Rev. 1.2 June 2019 102 of 109 Semtech 15.4.2 Workaround Bit 2 at address 0x0736 must be set to: • “0” when using inverted IQ polarity (see the SetPacketParam(...) command) • “1” when using standard IQ polarity The following pseudo-code can be used as a reference to implement the fix: SX1268 Data Sheet DS.SX1261-2.W.APP www.semtech.com Rev. 1.2 June 2019 103 of 109 Semtech 16. Packaging Information 16.1 Package Outline Drawing The transceiver is delivered in a 4x4mm QFN package with 0.5 mm pitch: Figure 16-1: QFN 4x4 Package Outline Drawing SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 104 of 109 Semtech 16.2 Package Marking Figure 16-2: SX1268 Marking 16.3 Land Pattern The recommended land pattern is as follows: Figure 16-3: QFN 4x4mm Land Pattern SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 105 of 109 Semtech 16.4 Reflow Profiles Reflow process instructions are available from the Semtech website, at the following address: http://www.semtech.com/quality/ir_reflow_profiles.html The transceiver uses a QFN24 4x4 mm package, also named MLP package. SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 106 of 109 Semtech Glossary List of Acronyms and their Meaning Acronym Meaning ACR Adjacent Channel Rejection ADC Analog-to-Digital Converter API Application Programming Interface β Modulation Index BER Bit Error Rate BR Bit Rate BT Bandwidth-Time bit period product BW BandWidth CAD Channel Activity Detection CPOL Clock Polarity CPHA Clock Phase CR Coding Rate CRC Cyclical Redundancy Check CW Continuous Wave DC-DC Direct Current to Direct Current converter DIO Digital Input / Output DSB Double Side Band ECO Engineering Change Order FDA Frequency Deviation FEC Forward Error Correction FIFO First In First Out FSK Frequency Shift Keying GFSK Gaussian Frequency Shift Keying GMSK Gaussian Minimum Shift Keying IF Intermediate Frequencies IRQ Interrupt Request ISM Industrial, Scientific and Medical (radio spectrum) LDO Low-Dropout LDRO Low Data Rate Optimization SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 107 of 109 Semtech List of Acronyms and their Meaning Acronym Meaning LFSR Linear-Feedback Shift Register LNA Low-Noise Amplifier LO Local Oscillator Long Range Communication LoRa® the LoRa® Mark is a registered trademark of the Semtech Corporation LSB Least Significant Bit MISO Master Input Slave Output MOSI Master Output Slave Input MSB Most Significant Bit NOP No Operation (0x00) NRZ Non-Return-to-Zero NSS Slave Select active low OCP Over Current Protection PA Power Amplifier PER Packet Error Rate PHY Physical Layer PID Product Identification PLL Phase-Locked Loop POR Power On Reset RC13M 13 MHz Resistance-Capacitance Oscillator RC64k 64 kHz Resistance-Capacitance Oscillator RFO Radio Frequency Output RFU Reserved for Future Use RTC Real-Time Clock SCK Serial Clock SF Spreading Factor SNR Signal to Noise Ratio SPI Serial Peripheral Interface STDBY Standby TCXO Temperature-Compensated Crystal Oscillator XOSC Crystal Oscillator SX1268 Data Sheet DS.SX1268.W.APP www.semtech.com Rev. 1.1 June 2019 108 of 109 Semtech Important Notice Information relating to this product and the application or design described herein is believed to be reliable, however such information is provided as a guide only and Semtech assumes no liability for any errors in this document, or for the application or design described herein. Semtech reserves the right to make changes to the product or this document at any time without notice. Buyers should obtain the latest relevant information before placing orders and should verify that such information is current and complete. Semtech warrants performance of its products to the specifications applicable at the time of sale, and all sales are made in accordance with Semtech’s standard terms and conditions of sale. SEMTECH PRODUCTS ARE NOT DESIGNED, INTENDED, AUTHORIZED OR WARRANTED TO BE SUITABLE FOR USE IN LIFE-SUPPORT APPLICATIONS, DEVICES OR SYSTEMS, OR IN NUCLEAR APPLICATIONS IN WHICH THE FAILURE COULD BE REASONABLY EXPECTED TO RESULT IN PERSONAL INJURY, LOSS OF LIFE OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. INCLUSION OF SEMTECH PRODUCTS IN SUCH APPLICATIONS IS UNDERSTOOD TO BE UNDERTAKEN SOLELY AT THE CUSTOMER’S OWN RISK. Should a customer purchase or use Semtech products for any such unauthorized application, the customer shall indemnify and hold Semtech and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs damages and attorney fees which could arise. The Semtech name and logo are registered trademarks of the Semtech Corporation. The LoRa® Mark is a registered trademark of the Semtech Corporation. All other trademarks and trade names mentioned may be marks and names of Semtech or their respective companies. Semtech reserves the right to make changes to, or discontinue any products described in this document without further notice. Semtech makes no warranty, representation or guarantee, express or implied, regarding the suitability of its products for any particular purpose. All rights reserved. © Semtech 2019 Contact Information Semtech Corporation Wireless & Sensing Products 200 Flynn Road, Camarillo, CA 93012 Phone: (805) 498-2111, Fax: (805) 498-3804 www.semtech.com SX1268 Data Sheet DS.SX1268.W.APP 109 of 109 Semtech Rev. 1.1 June 2019 109
