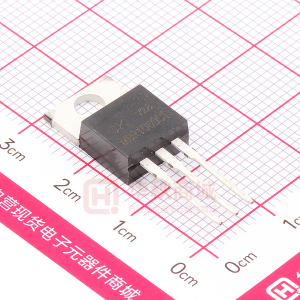

MBR1060

MBR10xx, MBRF10xx & MBRB10xx Series Reverse Voltage 35 to 60 Volts Schottky Barrier Rectifiers Forward Current 10.0 Amperes Features Plastic package has Underwriters Laboratory Flammability Classifications 94V-0 Metal silicon junction, majority carrier conduction Low power loss, high efficiency Guardring for overvoltage protection For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications High temperature soldering guaranteed: 250°C/10 seconds, 0.25" (6.35mm) from case Mechanical Data Case: JEDEC TO-220AC, ITO-220AC & TO-263AB molded plastic body Terminals: Plated leads, solderable per MIL-STD-750, Method 2026 Polarity: As marked Mounting Position: Any Mounting Torque: 10 in-lbs maximum Weight: 0.08 ounce, 2.24 grams TO-220AC ITO-220AC TO-263AB(D2PAK) Mounting Pad Layout TO-263AB Dimensions in inches and (millimeters) 344 Maximum Ratings and Electrical Characteristics ( TC = 25oC unless otherwise noted ) Parameter Maximum repetitive peak reverse voltage Working peak reverse voltage Maximum DC blocking voltage Maximum average forward rectified current (See Fig. 1) Peak repetitive forward current (sq. wave, 20KHz) at TC=135oC Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Peak repetitive reverse current at tp = 2.0us, 1KHz Voltage rate of change (rated VR) Maximum instantaneous forward voltage (Note 4) at IF=10A, TC=25oC at IF=10A, TC=125oC at IF=20A, TC=25oC at IF=20A, TC=125oC Maximum instantaneous reverse current at rated DC blocking voltage (Note 4) TC=25 C TC=125oC o Symbol VRRM VRWM V DC IF(AV) IFRM IFSM IRRM dv/dt MBR1035 35 35 35 MBR1045 45 45 45 10 20 150 1.0 MBR1050 50 50 50 MBR1060 60 60 60 Unit Volts Volts Volts Amps Amps Amps 0.5 10,000 Amps V/us VF 0.57 0.84 0.72 0.10 IR 15 RθJC VISOL TJ TSTG 0.80 0.70 0.95 0.85 mA Volts Maximum thermal resistance from junction to case RMS Isolation voltage (MBRF type only) from terminals to heatsink with t = 1.0 second, RH < 30% Operating junction temperature range Storage temperature range Notes: MBR 2.0 / MBRF 4.0 / MBRB 2.0 4500 (Note 1) 3500 (Note 2) 1500 (Note 3) -55 to +150 -55 to +150 o C/W Volts o C C o 1. Clip mounting (on case), where lead does not overlap heatsink with 0.110" offset 2. Clip mounting (on case), where leads do overlap heatsink 3. Screw mounting with 4-40 screw, where washer diameter is < 4.9 mm (0.19") 4. Pulse test: 300us pulse width, 1% duty cycle 345 RATINGS AND CHARACTERISTIC CURVES ( TA = 25oC unless otherwise noted ) 346
