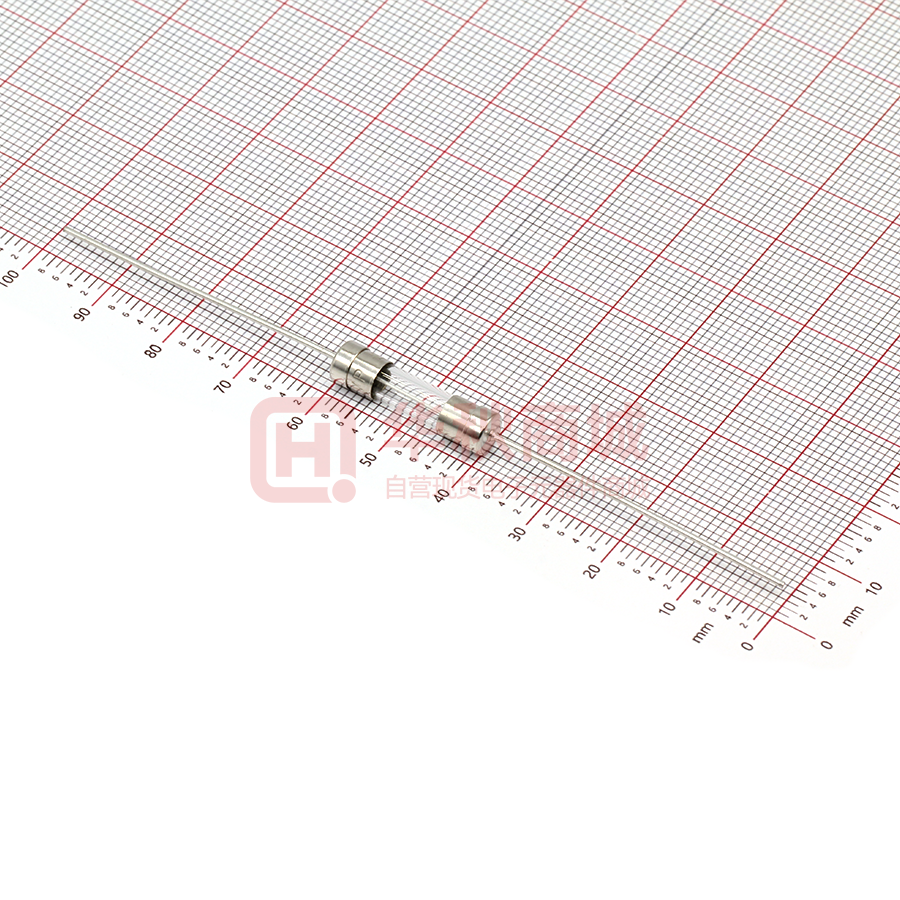

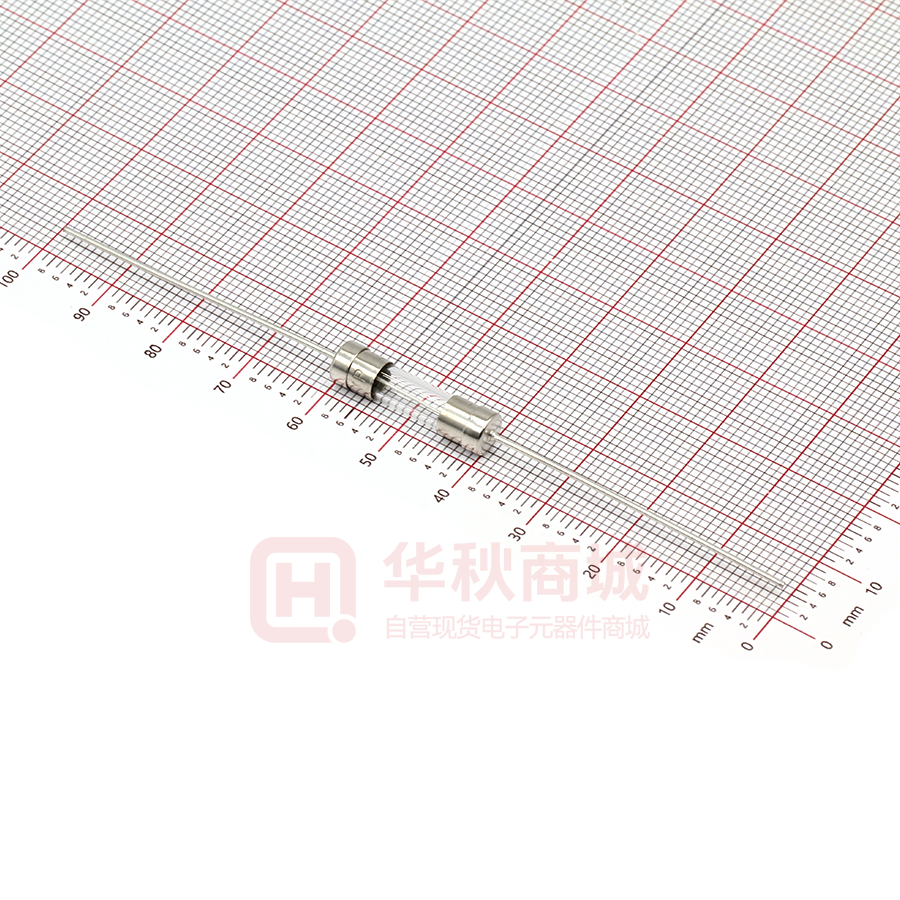

Axial Lead & Cartridge Fuses 5×20 mm > Time-Lag > 218 Series 218 Series, PS E 5 x 20 mm, Time-Lag (Slo-Blo®) Fuse Description 5x20mm time-Lag glass body cartridge fuse designed to IEC specification. Features specification for timeLag fuses t
%FTJHOFE
UP
International (IEC ) Standards for use globally t
"WBJMBCMF
JO
DBSUSJEHF
and axial lead form t
.FFUT
UIF
*&$
60127-2, Sheet 3 t
3P)4
DPNQMJBOU
BOE
lead-free Agency Approvals PS E Agency File Number Cartridge Certificates: NBK120802-E10480 A&C Leaded Certificates: NBK120802-E10480 B&D Certificates: 2002010207007596 Applications Ampere Range Used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits. 1A – 5A 6.3A – 15A 32mA – 6.3A Electrical Characteristics Certificates: SU05001-3005 SU05001-2008 SU05001-2009 32mA – 40mA 50mA – 800mA 1A – 10A Recognised File: E10480 Guide: JDYX2 32mA – 16A File: 029862 Acc. Class: LR1422-30 32mA – 15A License: KM41462 80mA – 6.3A File: 9850004, 9843043, 811742, 304650, 416270 32mA – 6.3A License: 40013496 32mA – 10A License: 40016604 15A* % of Ampere Rating 150% 210% 275% 400% 1000% 32mA – 16A Ampere Rating Opening Time 32mA–100mA 60 minutes, Minimum 125mA-6.3A 60 minutes, Minimum 8A-15A 30 minutes, Minimum 32mA-100mA 30 minutes, Maximum 125mA-6.3A 30 minutes, Maximum 8A-15A 30 minutes, Maximum 32mA-100mA 0.01 sec., Min.; .5 sec. Max. 125mA-6.3A 0.05 sec., Min.; 2 sec. Max. 8A-15A 0.05 sec., Min.; 2 sec. Max. 32mA-100mA .003 sec., Min.; 0.1 sec. Max. 125mA-6.3A .01 sec., Min.; 0.3 sec. Max. 8A-15A .01 sec., Min.; 0.4 sec. Max. 32mA-100mA .02 second, Maximum 125mA-6.3A .02 second, Maximum 8A-15A .04 second, Maximum * Approval for Cartridge versions only © 2009 Littelfuse, Inc. Specifications are subject to change without notice. Please refer to www.littelfuse.com/series/218.html for current information. 269 Revised: January 7, 2009 218 Series 218 Series Agency Introduction to & Circuit Protection Axial Lead Cartridge Fuses Transientology 5×20 mm > Time-Lag > 218 Series Electrical Characteristics Voltage Rating (V) Nominal Cold Resistance (Ohms) Nominal Power Dissipation At Rated Current (W) Agency Approvals Amp Code .032 0.032 250 58.4500 0.00297 5000 1.6 x x x x x x x .040 0.04 250 35.7000 0.00536 4000 1.6 x x x x x x x Interrupting Rating Nominal Melting I2t (A2 sec) Nominal Voltage Drop at Rated Current (mV) Amp Rating (A) PS E .050 0.05 250 23.3000 0.00692 3500 1.6 x x x x x x x .063 0.063 250 17.6500 0.0117 3000 1.6 x x x x x x x .080 0.08 250 12.6000 0.0258 2500 1.6 x x x x x x x x .100 0.1 250 8.9050 0.0482 2000 1.6 x x x x x x x x .125 0.125 250 4.2000 0.1465 1900 1.6 x x x x x x x x .160 0.16 250 2.5500 0.2190 1500 1.6 x x x x x x x x .200 0.2 250 1.6000 0.3410 1300 1.6 x x x x x x x x .250 0.25 250 1.0495 0.5405 1100 1.6 x x x x x x x x .315 0.315 250 0.8475 1.1100 1000 1.6 x x x x x x x x .400 0.4 250 0.5350 1.3250 900 1.6 x x x x x x x x 35A@250Vac .500 0.5 250 0.3700 2.8250 300 1.6 x x x x x x x x .630 0.63 250 0.2750 4.6750 250 1.6 x x x x x x x x .800 0.8 250 0.0813 3.370 150 1.6 x x 001. 1 250 0.0613 6.730 150 1.6 x x 1.25 1.25 250 0.0446 12.650 150 1.6 x x x x x x x x x 01.6 1.6 250 0.0336 23.350 150 1.6 x x x x x x x x x x x x x x x x x x x x x x 002. 2 250 0.0293 14.450 150 1.6 x x x x x x x x x 02.5 2.5 250 0.0219 23.250 120 1.6 x x x x x x x x x 3.15 3.15 250 0.0173 38.150 100 1.6 x x x x x x x x x 004. 4 250 40A @ 250Vac 0.0129 69.10 100 1.6 x x x x x x x x x 005. 5 250 50A @ 250Vac 0.0104 111.00 100 1.6 x x x x x x x x x 06.3 6.3 250 63A @ 250Vac 0.0076 198.50 100 1.6 x x x x x x x x x 008. 8 250 80A @ 250Vac 0.0059 341.50 100 4 x x x x x x 010. 10 250 100A @ 250Vac 0.0045 568.00 100 4 x x x x x x 12.5 12.5 250 63A @ 250Vac 0.0034 889.00 100 4 x x x x 015. 15 250 100A @ 250Vac 0.0028 1405.00 100 4 016. 16 250 63A @ 250Vac 0.0021 1955.00 100 4 x x* x x * Approval for cartidge versions only. Temperature Rerating Curve 15A 0.032A 0.040A 0.050A 0.063A 0.080A 0.100A 0.125A 0.160A 0.200A 0.250A 0.315A 0.400A 0.500A 0.630A 0.800A 1A 1.25A 1.6A 2A 2.5A 3.15A 4A 5A 6.3A 8A 10A Average Time Current Curves 10000 1000 TIME IN SECONDS 100 10 1 0.1 0.01 0.001 0.01 0.1 1 10 100 1000 CURRENT IN AMPERES 218 Series 270 Revised: January 7, 2009 © 2009 Littelfuse, Inc. Specifications are subject to change without notice. Please refer to www.littelfuse.com/series/218.html for current information. Axial Lead & Cartridge Fuses 5×20 mm > Time-Lag > 218 Series Soldering Parameters - Wave Soldering Recommended Process Parameters: 280 260 Wave Parameter 240 220 Lead-Free Recommendation 200 Preheat: 180 (Depends on Flux Activation Temperature) 160 140 120 100 80 60 40 (Typical Industry Recommendation) Temperature Minimum: 100° C Temperature Maximum: Preheat Time: 150° C 60-180 seconds Solder Pot Temperature: 260° C Maximum Solder Dwell Time: 2-5 seconds 240 230 220 210 200 190 180 170 160 140 150 130 120 110 90 100 80 70 60 50 40 30 0 0 20 20 10 Temperature (°C) - Measured on bottom side of board 300 Recommended Hand-Solder Parameters: Time (Seconds) Cooling Time Preheat Time Solder Iron Temperature: 350° C +/- 5°C Heating Time: 5 seconds max. Dwell Time Note: These devices are not recommended for IR or Convection Reflow process. Material Body: Glass Cap: Nickel–plated brass Leads: Tin–plated Copper Terminal Strength MIL-STD-202G, Method 211A, Test Condition A Solderability Reference IEC 60127 Second Edition 2003-01 Annex A Cap1: Brand logo, current and voltage ratings Cap2: Agency approval marks Packaging Available in Bulk (M=1000 pcs/pkg) or on Tape/Reel (MRET1=1000 pcs/ reel) Specifications are subject to change without notice. Please refer to www.littelfuse.com/series/218.html for current information. –55ºC to +125ºC Thermal Shock MIL-STD-202G, Method 107G, Test Condition B: (5 cycles –65°C to +125°C) Vibration MIL-STD-202G, Method 201A Humidity Product Marking © 2009 Littelfuse, Inc. Operating Temperature Salt Spray 271 Revised: January 7, 2009 MIL-STD-202G, Method 103B, Test Condition A. high RH (95%) and elevated temperature (40°C) for 240 hours. MIL-STD-202G, Method 101D, Test Condition B 218 Series 218 Series Product Characteristics Introduction to & Circuit Protection Axial Lead Cartridge Fuses Transientology 5×20 mm > Time-Lag > 218 Series Dimensions Part Numbering System 0218 xxxx M X E P 20+0.5 5.2+0.1 -0.2 0218 000P 5.1+0.6 Series 5.1+0.6 Amp Code Refer to Amp Code column of Electrical Characteristics Table 0218.032 XEP to 0218.100XEP 40 6.0 MAX 22.5 MAX Quantity Code M = 1000 0.65 Packaging Code X = Filler 0218.125 XEP to 0218015. XEP 40 Option Codes 5.8 MAX 22.5 MAX Blank : Cartidge Type Fuse E : Axial Leaded Fuse Lead-free 0.65* All dimensions in mm Notes: * Ratings above 6.3A have 0.8 mm dia lead Packaging 218 Series Packaging Option Packaging Specification Quantity Quantity & Packaging Code Taping Width Bulk N/A 1000 MX N/A Bulk N/A 1000 MXE N/A Reel and Tape EIA 296-E 1000 MRET1 T1=52mm (2.062”) 272 Revised: January 7, 2009 © 2009 Littelfuse, Inc. Specifications are subject to change without notice. Please refer to www.littelfuse.com/series/218.html for current information.
