Surface Mount Fuses
NANO2® Fuse > Very Fast-Acting > 448 Series
448 Series Fuse
RoHS Pb
PS
E
Description

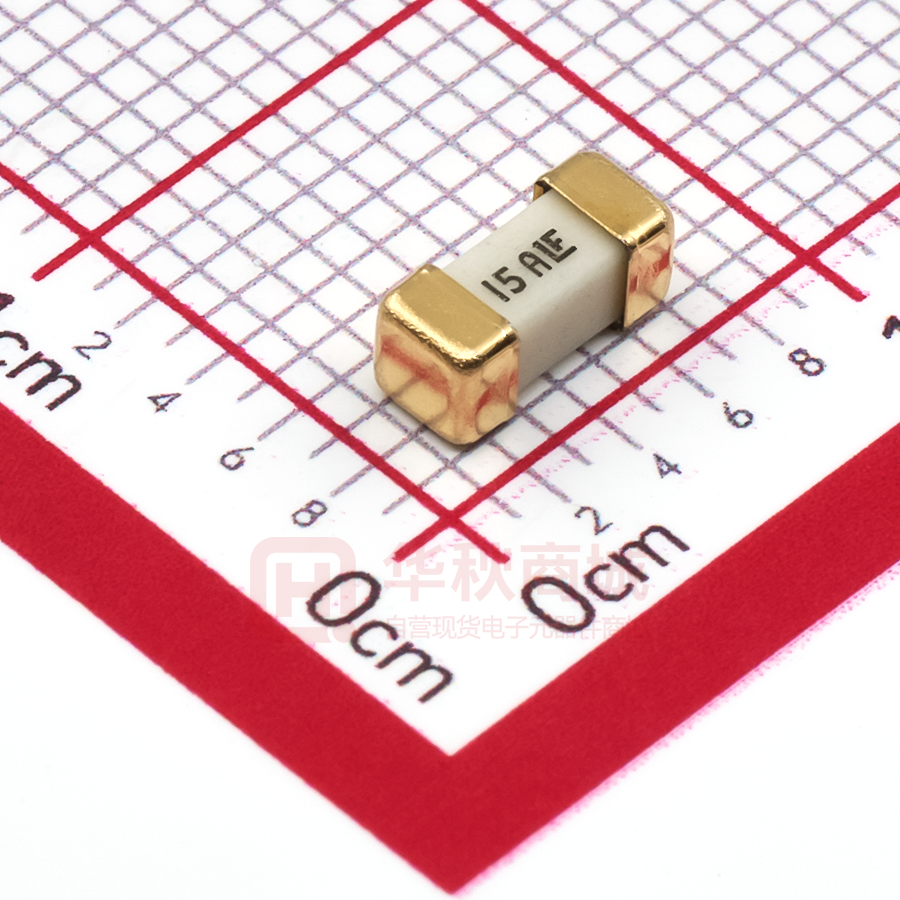

The lead-free Nano2® SMF Fuse is a very small, square
surface mount fuse that is RoHS compliant, Halogen Free
and 100% lead-free. This product is fully compatible with
lead-free solder alloys and higher temperature profiles
associated with lead-free assembly.
Features
Agency Approvals
Agency
PS
E
• Wide operating
temperature range
• Very fast-acting
• UL Recognized to UL/
CSA/NMX UL 248-1 and
UL/CSA/NMX UL 248-14
• Small size
Agency File Number
Ampere Range
E10480
0.062A - 15A
29862
0.062A - 15A
NBK030205-E10480A
NBK030205-E10480B
NBK101105-E184655
1A - 1.6A
2A - 5A
6.3A - 10A
Electrical Characteristics for Series
% of Ampere Rating
Ampere Rating
Opening Time
100%
0.062A –15
4 hours, Minimum
0.062A –10
5 sec., Maximum
12 –15
20 sec., Maximum
200%
• RoHS compliant, Leadfree and Halogen Free
• Wide range of current
rating available (0.062A
to 15A)
• Conforms to DENAN’s
Appendix 3
Applications
• Notebook PC
• Storage system
• LCD/PDP TV
• Telecom system
• LCD monitor
• Wireless basestation
• LCD/PDP panel
• White goods
• LCD backlight inverter
• Game console
• Portable DVD player
• Office Automation
equipment
• Power supply
• Battery charging circuit
protection
• Networking
• PC server
• Industrial equipment
• Cooling fan system
Additional Information
Datasheet
Resources
Samples
© 2020 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 01/21/20
Surface Mount Fuses
NANO2® Fuse > Very Fast-Acting > 448 Series
Electrical Specifications by Item
Ampere Rating
(A)
Amp Code
Max
Voltage Rating
(V)
Interrupting
Rating
Agency Approvals
Nominal Cold
Nominal Melting
Resistance
I2t (A2sec)
(Ohms)
PS
E
0.062
.062
125
5.50
0.00023
x
x
0.080
.080
125
4.42
0.00043
x
x
0.100
.100
125
2.90
0.00082
x
x
0.125
.125
125
2.58
0.00130
x
x
0.160
.160
125
1.76
0.00280
x
x
0.200
.200
125
1.65
0.00380
x
x
0.250
.250
125
0.95
0.01520
x
x
0.315
.315
125
0.7015
0.02650
x
x
0.375
.375
125
0.6155
0.02400
x
x
0.400
.400
125
0.4895
0.04160
x
x
0.500
.500
125
0.3800
0.10000
x
x
0.630
.630
125
x
0.750
.750
125
0.800
.800
125
1.00
001.
125
1.25
1.25
125
1.50
01.5
1.60
0.3125
0.121
x
0.2290
0.206
x
x
0.1907
0.272
x
x
0.08630
0.441
x
x
x
0.06619
0.900
x
x
x
125
0.06514
0.900
x
x
x
01.6
125
0.06261
1.122
x
x
x
2.00
002.
125
0.03529
0.812
x
x
x
2.50
02.5
125
0.02934
1.156
x
x
x
3.00
003.
125
0.02445
1.720
x
x
x
3.15
3.15
125
0.02300
1.810
x
x
x
3.50
03.5
125
0.02100
2.300
x
x
x
4.00
004.
125
0.01577
3.970
x
x
x
5.00
005.
125
0.01531
4.490
x
x
x
6.30
06.3
125
0.01044
12.10
x
x
x
7.00
007.
125
0.00900
13.92
x
x
x
8.00
008.
125
0.00780
18.33
x
x
x
0.00700
28.00
x
x
x
0.00533
47.59
x
x
0.00394
78.4
x
x
10.00
010.
125
12.00
012.
85
15.00
015.
85
50A @125VAC/
VDC
300A @32 VDC
PSE: 100A
@100VAC
35A @125 VAC
50A @125 VDC
300A @32 VDC
PSE: 100A
@100VAC
50A @65 VAC/
VDC
300A @24 VDC
200A @85 VDC
Notes:
- l2t calculated at 8ms.
- Resistance is measured at 10% of rated current, 25ºC
© 2020 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 01/21/20
Surface Mount Fuses
NANO2® Fuse > Very Fast-Acting > 448 Series
448 SERIES NANO LEAD FREE VERY FAST ACTING FUSE
Average Time Current
Curves
.062 A
.080 A
.100 A
.125 A
.160 A
.200 A
.250 A
.315 A
.375 A
.40 A
.50 A
.63 A
.75 A
.80 A
1.00 A
1.25 A
1.50 A
1.60 A
2.00 A
2.50 A
3.00 A
3.15 A
3.50 A
4.00 A
5.00 A
6.30 A
7A
8A
10 A
12 A
15 A
Temperature Re-rating Curve
100
TIME IN SECONDS
10
1
0.1
Note:
1. Rerating depicted in this curve is in addition to the standard derating of 25% for continuous operation.
0.01
0.001
0.1
1
10
100
1000
CURRENT IN AMPS
Soldering Parameters
Pb – Free assembly
Pre Heat
- Temperature Min (Ts(min))
150°C
- Temperature Max (Ts(max))
200°C
- Time (Min to Max) (ts)
60 – 180 secs
Average ramp up rate (Liquidus Temp (TL) to peak
5°C/second max.
TS(max) to TL - Ramp-up Rate
Reflow
5°C/second max.
- Temperature (TL) (Liquidus)
217°C
- Temperature (tL)
60 – 150 seconds
Peak Temperature (TP)
260+0/–5 °C
Time within 5°C of actual peak Temperature (tp)
20 – 40 seconds
Ramp-down Rate
5°C/second max.
Time 25°C to peak Temperature (TP)
8 minutes max.
Do not exceed
260°C
Wave Soldering Parameters
tP
TP
Critical Zone
TL to TP
Ramp-up
TL
TS(max)
Temperature
Reflow Condition
tL
Ramp-down
TS(min)
25
Preheat
tS
time to peak temperature
(t 25ºC to peak)
Time
260°C Peak Temperature, 10 seconds max.
© 2020 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 01/21/20
Surface Mount Fuses
NANO2® Fuse > Very Fast-Acting > 448 Series
Product Characteristics
Product Marking
Body: Ceramic
Terminations: Gold-plated Caps
Brand, Amperage Rating
Operating Temperature
-55oC to 125oC
Moisture Sensitivity Level
Level 1, J-STD-020
Mechanical Shock
Solderability
Insulation Resistance (after
Opening)
MIL-STD-202, Method 208
MIL-STD-202, Method 302, Test Condition A
(10,000 ohms minimum)
Vibration
Materials
Thermal Shock
Moisture Resistance
Salt Spray
Resistance to Soldering Heat
Dimensions
Part Numbering System
6.10 ± .20
(.240")
7A
MIL-STD-202, Method 107, Test Condition
B, 5 cycles, -65oC to 125oC, 15 minutes @
each extreme
MIL-STD-202, Method 213, Test I:
Deenergized. 100G’s pk amplitude,
sawtooth wave 6ms duration, 3 cycles
XYZ+xyz = 18 shocks
MIL-STD-202, Method 201: 0.03”
amplitude, 10-55 Hz in 1 min. 2hrs each
XYZ=6hrs
MIL-STD-202, Method 106, 10 cycles
MIL-STD-202, Method 101, Test Condition
B (48hrs)
MIL-STD-202, Method 210, Test condition
B (10 sec at 260oC)
F
2.69 ± .25
(.106")
0448
2.69 ± .25
(.106")
001. M R
Series
Amp Code*
Refer to Electrical
Characteristics table
1.45
(.057")
Quantity code
6.86
(.270")
M = 1000 pcs
Packaging code
3.15
(.124")
1.96
(.077")
R = Tape and Reel
*Example:
1.5 amp product is 044801.5MR (1 amp
product shown above).
2.95
(.116")
Recommended pad layout
Packaging
Packaging Option
Packaging Specification
Quantity
12mm Tape and Reel
EIA RS-481-1 (IEC 600286-3)
1000
Quantity &
Packaging Code
MR
