Surface Mount Fuses
Thin Film > 1206 Size > Very Fast-Acting > 466 Series
466 Series Fuse
Description
The 466 Series Fast-Acting Surface Mount Fuse (SMF)
is a small (1206 size) thin-film device designed for
secondary protection of circuits used in space constrained
applications such as hand-held portable electronic devices.
Features
Agency Approvals
AGENCY
AGENCY FILE NUMBER
AMPERE RANGE
E10480
125mA - 5A
LR29862
125mA - 5A
Opening Time at 25OC
100%
4 hours, Minimum
200%
5 sec., Maximum
300%
0.2 sec., Maximum
t &MFNFOUDPWFSJOHNBUFSJBM
is resistant to industry
standard cleaning
operations
t 1SPEVDUJTNBSLFEPO
top surface with code to
allow amperage rating
identification without
testing
t .PVOUJOHQBEBOE
electrical performance are
JEFOUJDBMUP-JUUFMGVTF
and 433 Series products
t -PXQSPåMFGPSIFJHIU
sensitive applications
Electrical Characteristics for Series
% of Ampere
Rating
t 1SPEVDUJTDPNQBUJCMF
with lead-free solders
and higher temperature
profiles
t 'MBUUPQTVSGBDFGPSQJDL
and-place operations
t "MMPZCBTFEFMFNFOU
construction provides
superior inrush withstand
characteristics (I2t) over
ceramic or glass-based
1206 chip fuse products
Applications
Secondary protection for space constrained applications:
t $FMMQIPOFT
t %7%QMBZFST
t #BUUFSZQBDLT
t )BSEEJTLESJWFT
t %JHJUBMDBNFSBT
Electrical Specifications by Item
Ampere
Rating
(A)
0.125
0.200
0.250
0.375
0.500
0.750
1.00
1.25
1.50
1.75
2.00
2.50
3.00
4.00
5.00
Amp
Code
.125
.200
.250
.375
.500
.750
001.
1.25
01.5
1.75
002.
02.5
003.
004.
005.
Max
Nominal Cold
Interrupting
Voltage Rating
Resistance
Rating
(V)
(Ohms)
125
4.000
125
1.160
50A @125 V AC/
DC
125
0.710
125
0.350
63
0.248
63
0.111
63
0.076
50A @63 V AC/DC
63
63
0.048
63
63
0.031
32
0.024
32
0.020
50A @32 V AC/DC
32
0.014
32
0.011
Nominal
Melting
I2t (A2sec)
0.00040
0.00055
0.0010
0.0028
0.0060
0.0276
0.0423
0.0640
0.1103
0.1323
0.2326
0.3516
0.5760
1.024
1.600
Nom
Nom Power Agency Approvals
Voltage Drop Dissipation
(mV)
(W)
552.66
x
x
254.28
x
x
207.01
0.0518
x
x
0.0634
x
x
158.47
x
x
0.0740
x
x
x
x
85.71
0.1071
x
x
0.1244
x
x
80.73
0.1413
x
x
78.73
0.1575
x
x
x
x
0.2280
x
x
74.50
x
x
73.75
0.3688
x
x
1. Measured at 10% of rated current, 25ºC.
2. Measured at rated voltage.
© 2009 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to www.littelfuse.com/series/466.html for current information.
29
Revised: July 7, 2009
466 Series
466 Series
This series is 100% lead-free and meets the requirements
of the RoHS directive. New Halogen-Free 466 Series
fuses are available to order using the “HF” suffix. See Part
Numbering section for additional information.
Mount
Fuses
IntroductionSurface
to Circuit
Protection
Thin Film > 1206 Size > Very Fast-ActingTransientology
> 466 Series
2A
2 1/2A
3A
4A
5A
1 1/4A
1 1/2A
1 3/4A
1A
3/4A
1/2A
3/8A
1/4A
Average Time Current Curves
1/8A
Temperature Rerating Curve
100
TIME IN SECONDS
10
1
0.1
Note:
0.01
1. Rerating depicted in this curve is in addition to the standard rerating of 25% for
continuous operation.
&YBNQMF
For continuous operation at 70 degrees celsius, the fuse should be rerated as follows:
0.001
I = (0.75)(0.80)IRAT = (0.60)IRAT
0.1
1
10
100
CURRENT IN AMPERES
Soldering Parameters
Pre Heat
Pb – free assembly
- Temperature Min (Ts(min))
150°C
- Temperature Max (Ts(max))
200°C
- Time (Min to Max) (ts)
60 – 180 seconds
Average Ramp-up Rate (Liquidus Temp
(TL) to peak)
5°C/second max.
TS(max) to TL - Ramp-up Rate
5°C/second max.
Reflow
- Temperature (TL) (Liquidus)
217°C
- Temperature (tL)
60 – 150 seconds
Peak Temperature (TP)
250+0/-5 °C
Time within 5°C of actual peak
Temperature (tp)
20 – 40 seconds
Ramp-down Rate
5°C/second max.
Time 25°C to peak Temperature (TP)
8 minutes max.
Do not exceed
260°C
Wave Soldering
466 Series
tP
TP
Critical Zone
TL to TP
Ramp-up
TL
TS(max)
Temperature
Reflow Condition
tL
Ramp-down
TS(min)
Preheat
tS
25
time to peak temperature
(t 25ºC to peak)
Time
260°C, 10 seconds max.
30
© 2009 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to www.littelfuse.com/series/466.html for current information.
Surface Mount Fuses
Thin Film > 1206 Size > Very Fast-Acting > 466 Series
Product Characteristics
Operating
Temperature
– 55 $UP C.
Consult temperature rerating curve chart.
Thermal Shock
Withstands 5 cycles of –55OC to 125OC
Humidity
.*-45%'
.FUIPE#
$POEJUJPO%
O
O
Vibration
1FS.*-45%'
.FUIPE"
Insulation Resistance
(After Opening)
Greater than 10,000 ohms
Resistance to
Soldering Heat
.*-45%(
.FUIPE'
Condition D
Part Marking System
Dimensions
MARKING CODE VARIES
WITH AMPERAGE RATING
(SEE CHART)
0.660 ± 0.127
(0.026" ± 0.005")
Sn
0.584 ± 0.076
(0.023" ± 0.003")
0.559 ± 0.127
(0.022" ± 0.005")
3.175 ± 0.127
(0.125" ± 0.005")
Cu
Coating
Amp
Code
Marking
Code
.125
B
.200
C
.250
D
.375
E
.500
F
.750
G
001.
H
1.25
J
01.5
K
466 Series
Materials
Body: Advanced High Temperature Substrate
Terminations:5JOPWFS/JDLFMPWFS
Copper
Element Cover Coat: Conformal Coating
Sn
Sn
1.524 ± 0.127
(0.060" ± 0.005")
3.175 ± 0.127
(0.125" ± 0.005")
1.65
(.065")
1.52
(.060")
4.83
(.190")
1.52
(.060")
3.81
(.150")
1.75
L
002.
N
02.5
O
003.
P
004.
S
005.
T
1.14
(.045")
2.03
(.080")
2.03
(.080")
WAVE SOLDER
Part Numbering System
REFLOW SOLDER

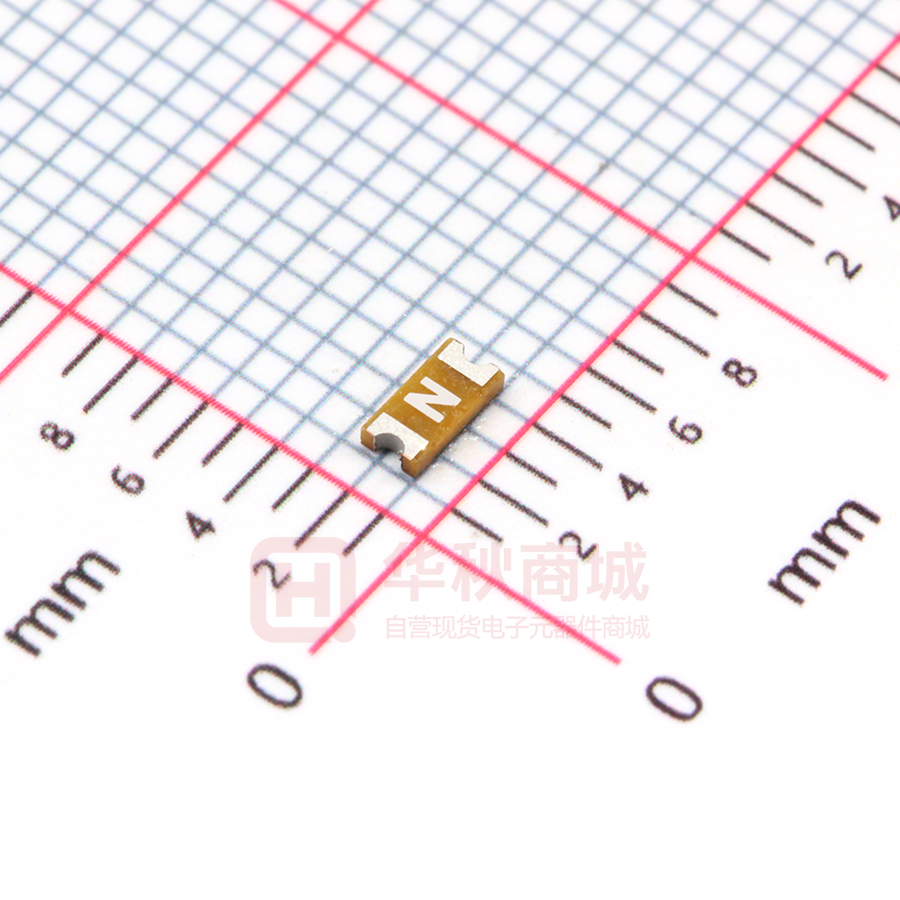

0466002.NRHF
SERIES
AMP Code
Refer to Amp Code column in the
&MFDUSJDBM4QFDJåDBUJPOTUBCMF
5IFEPUJTQPJTJUJPOFECFGPSFUIF1BDLaging Suffix with whole ratings and
within the numbering sequence for
fractional ratings.
QUANTITY Code
N = 5000 pcs
PACKAGING Code
R = Tape and Reel
Example:
.125 amp product is
0466.125 NR HF
(2 amp product shown
above).
‘HF’ SUFFIX
HALOGEN FREE ITEM
Packaging
Packaging Option
Packaging Specification
Quantity
Quantity &
Packaging Code
8mm Tape and Reel
&*"34 *&$
QBSU
5000
NR
© 2009 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to www.littelfuse.com/series/466.html for current information.
31
466 Series
