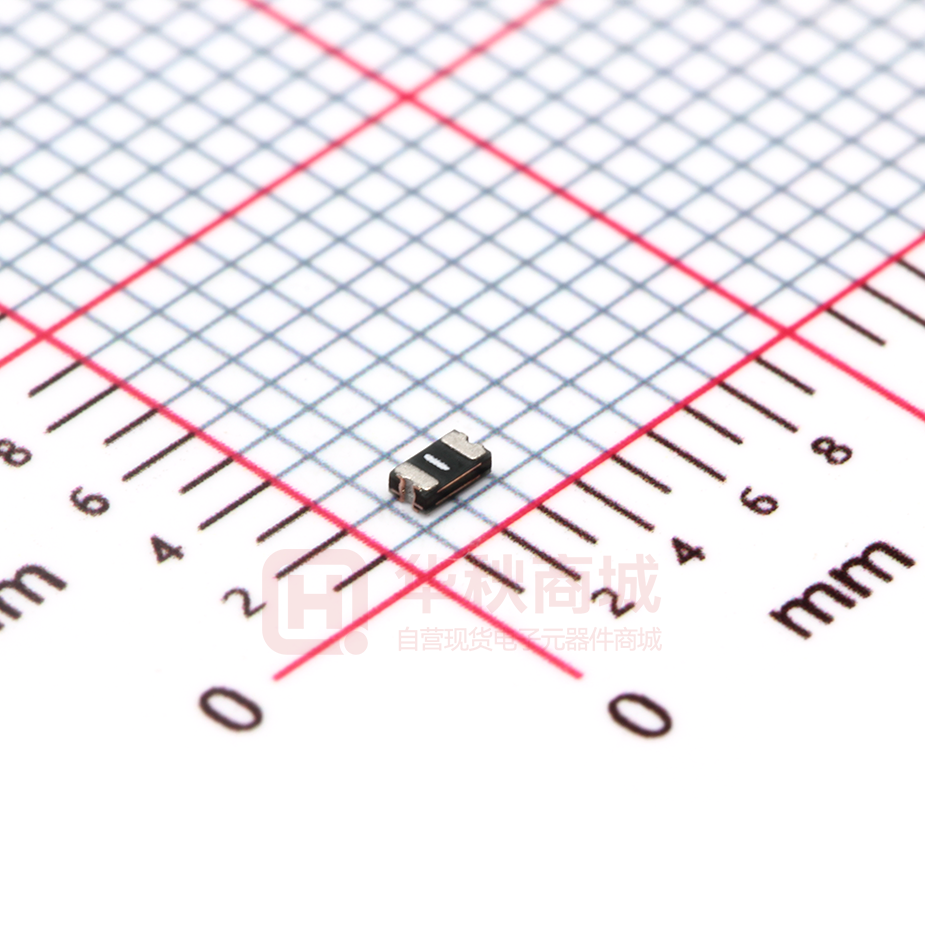

0603L025YR

POLY-FUSE® Resettable PTCs Surface Mount > 0603L Series 0603L Series RoHS Description  he 0603L Series PTC provides surface mount T overcurrent protection for applications where space is at a premium and resettable protection is desired. Features • Low resistance • Low-profile • Compatible with high temperature solders • RoHS compliant, lead-free and halogen free • Fast response to fault currents • Compact design saves board space Agency Approvals AGENCY AGENCY FILE NUMBER Applications E183209 R50119118 Additional Information Datasheet • PDAs / digital cameras • Game console port protection • USB peripherals • Disk drives • CD-ROMs • Plug and play protection for motherboards and peripherals Samples Resources Electrical Characteristics Part Number Marking I hold (A) 0603L004 - 0.04 I trip (A) V max (Vdc) I max (A) Pd typ. (W) 0.12 24 20 Maximum Time To Trip Resistance Current (A) Time (Sec.) R min (Ω) R 1max (Ω) 0.5 0.20 1.00 4.00 40.00 Agency Approvals X X 0603L010 C 0.10 0.30 15 40 0.5 0.50 1.00 0.900 6.000 X X 0603L020 H 0.20 0.50 9 40 0.5 1.00 0.60 0.550 3.500 X X 0603L025 I 0.25 0.55 9 40 0.5 8.00 0.08 0.500 3.000 X X 0603L035 F 0.35 0.75 6 40 0.5 8.00 0.10 0.200 1.000 X X 0603L050 J 0.50 1.00 6 40 0.5 8.00 0.10 0.100 0.680 X X I hold = Hold current: maximum current device will pass without tripping in 20°C still air. I trip = Trip current: minimum current at which the device will trip in 20°C still air. V max = Maximum voltage device can withstand without damage at rated current (I max) I max = Maximum fault current device can withstand without damage at rated voltage (Vmax) P d = Power dissipated from device when in the tripped state at 20°C still air. R min = Minimum resistance of device in initial (un-soldered) state. R 1max = Maximum resistance of device at 20°C measured one hour after tripping or reflow soldering of 260°C for 20 sec. Caution: Operation beyond the specified rating may result in damage and possible arcing and flame. WARNING • Users shall independently assess the suitability of these devices for each of their applications • Operation of these devices beyond the stated maximum ratings could result in damage to the devices and lead to electrical arcing and/or fire • These devices are intended to protect against the effects of temporary over-current or over-temperature conditions and are not intended to perform as protective devices where such conditions are expected to be repetitive or prolonged in duration • Exposure to silicon-based oils, solvents, electrolytes, acids, and similar materials can adversely affect the performance of these PPTC devices • These devices undergo thermal expansion under fault conditions, and thus shall be provided with adequate space and be protected against mechanical stresses • Circuits with inductance may generate a voltage (L di/dt) above the rated voltage of the PPTC device. © 2017 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 03/22/17 POLY-FUSE® Resettable PTCs Surface Mount > 0603L Series Temperature Rerating Ambient Operation Temperature -40°C -20°C 0°C 20°C 40°C 0603L004 0.052 0.048 0.044 0.040 0603L010 0.13 0.12 0.11 0.10 0603L020 0.27 0.25 0.23 0.20 0603L025 0.32 0.29 0.27 0.25 0603L035 0.47 0.41 0.38 0.35 0603L050 0.67 0.59 0.54 0.50 60°C 70°C 85°C 0.032 0.028 0.024 0.020 0.012 0.08 0.07 0.06 0.05 0.03 0.17 0.14 0.12 0.10 0.07 0.21 0.18 0.16 0.14 0.10 0.29 0.26 0.24 0.20 0.14 0.41 0.37 0.34 0.29 0.20 Hold Current (A) Part Number Average Time Current Curves 0.10A 0.20A 0.35A 0.50A 0.75A 1.00A 1.10A 0.04A 0.10A 0.20A 0.25A 0.35A 0.50A Temperature Rerating Curve 170% 0603L 150% 10 110% 90% 10 70% 50% 30% 1 10% -40 0.1 0.01 0.1 0805L 100 130% Time in Seconds Percentage of Rated Current 100 Time in Seconds 50°C -30 -20 1 -10 0 10 20 30 40 Temperature (°C) 50 60 70 80 0.1 Note: Typical Temperature rerating curve, refer to table for derating data 1 10 0.01 0.1 100 Current in Amperes 1 10 100 Current in Amperes 0.10A 0.20A 0.35A 0.50A 0.75A 1.00A The average time current curves and Temperature Rerating curve performance is affected by a number or variables, and these curves provided as guidance only. Customer must verify the performance in their application. 100000 10000 © 2017 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 03/22/17 Time in Seconds 1000 100 10 1 0805L OLD POLY-FUSE® Resettable PTCs Surface Mount > 0603L Series Soldering Parameters Pb-Free Assembly Average Ramp-Up Rate (TS(max) to TP) 3°C/second max Pre Heat: Temperature Min (Ts(min)) 150°C Temperature Max (Ts(max)) 200°C Time (Min to Max) (ts) 60 – 180 secs Time Maintained Temperature (TL) Above: Temperature (tL) 217°C Peak / Classification Temperature (TP) 260+0/-5 °C Time within 5°C of actual peak Temperature (tp) 20 – 40 seconds Ramp-down Rate 6°C/second max Time 25°C to peak Temperature (TP) 8 minutes Max. 60 – 150 seconds tP TP Critical Zone tL to tP Ramp-up TL TS(max) Temperature Profile Feature tL Ramp-do Ramp-down Preheat TS(min) 25 tS time to peak temperature Time -- All temperature refer to topside of the package, measured on the package body surface -- If reflow temperature exceeds the recommended profile, devices may not meet the performance requirements -- Recommended reflow methods: IR, vapor phase oven, hot air oven, N2 environment for lead -- Recommended maximum paste thickness is 0.25mm(0.010inch) -- Devices can be cleaned usingstandard industry methods and solvents -- Devices can be reworked using the standard industry practices Physical Specifications Environmental Specifications Terminal Material Solder-Plated Copper (Solder Material: Matte Tin (Sn)) Operating/Storage Temperature -40°C to +85°C Lead Solderability Meets EIA Specification RS186-9E, ANSI/J-STD-002, Category 3. Maximum Device Surface Temperature in Tripped State 125°C Passive Aging +85°C, 1000 hours -/+10% typical resistance change Humidity Aging +85°C, 85% R.H.,100 hours -/+15% typical resistance change Thermal Shock MIL–STD–202, Method 107 +85°C/-40°C 20 times -30% typical resistance change Solvent Resistance MIL–STD–202, Method 215 No change Vibration MIL–STD–883, Method 2007, Condition A No change Moisture Sensitivity Level Level 1, J–STD–020 © 2017 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 03/22/17 POLY-FUSE® Resettable PTCs Surface Mount > 0603L Series Dimensions C A Solder Pad Layout Top View Side View B Pad Layout Marking code varies with amperage rating -- See Electrical Characteristics table Bottom View D B Inch Min 1mm (.039”) 1mm (.039”) 1mm (.039”) E A Part Number 0.8mm (.032”) mm Max Min Max C Inch Min mm Max Min D Inch Max Min mm Max Min Inch Max Min Max E mm Inch mm Min Max Min Max Min Max 0603L004 .055 .071 1.40 1.80 .024 .039 0.60 1.00 .016 .030 0.40 0.75 .006 .020 0.15 0.50 .004 .016 0.10 0.40 0603L010 .055 .071 1.40 1.80 .024 .039 0.60 1.00 .016 .030 0.40 0.75 .006 .020 0.15 0.50 .004 .016 0.10 0.40 0603L020 .055 .071 1.40 1.80 .024 .039 0.60 1.00 .016 .030 0.40 0.75 .006 .020 0.15 0.50 .004 .016 0.10 0.40 0603L025 .055 .071 1.40 1.80 .024 .039 0.60 1.00 .016 .030 0.40 0.75 .006 .020 0.15 0.50 .004 .016 0.10 0.40 0603L035 .055 .071 1.40 1.80 .024 .039 0.60 1.00 .030 .061 0.75 1.55 .006 .020 0.15 0.50 .004 .016 0.10 0.40 0603L050 .055 .071 1.40 1.80 .024 .039 0.60 1.00 .030 .061 0.75 1.55 .006 .020 0.15 0.50 .004 .016 0.10 0.40 Part Ordering Number System 0603 L xxx Y R - A -A: Automotive grade Blank: Standard version SERIES PACKAGING STYLE R: Tape & Reel QUANTITY CODE Y: 4000 I HOLD HOLD CURRENT CODE (Refer to Electrical Characteristics Table) L: LITTELFUSE SURFACE MOUNT PPTC DEVICE SIZE CODE (0.06 x 0.03 inch) Packaging Halogen Free I hold (A) I hold Code 0603L004YR Yes 0.04 004 Tape and Reel 4000 YR 0603L010YR Yes 0.10 010 Tape and Reel 4000 YR 0603L020 0603L020YR Yes 0.20 020 Tape and Reel 4000 YR 0603L025 0603L025YR Yes 0.25 025 Tape and Reel 4000 YR 0603L035 0603L035YR Yes 0.35 035 Tape and Reel 4000 YR 0603L050 0603L050YR Yes 0.50 050 Tape and Reel 4000 YR Part Number Ordering Number 0603L004 0603L010 © 2017 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 03/22/17 Packaging Option Quantity Quantity & Packaging Codes POLY-FUSE® Resettable PTCs Surface Mount > 0603L Series Tape and Reel Specifications TAPE SPECIFICATIONS: EIA-481-1 (mm) 0603L004 0603L010 0603L020 0603L025 0603L035 0603L050 W 8.0+/-  0.30 8.0+/-  0.30 C Ø178+/-1.0 F 3.5+/-  0.05 3.5+/-  0.05 D Ø60.2+/-  0.5 REEL DIMENSIONS: EIA-481-1 (mm) E1 1.75+/-  0.10 1.75+/-  0.10 H 11.0+0.5 D0 1.55+/-  0.05 1.55+/-  0.05 W 9.0+/- 1.5 T 0.20+/-  0.10 0.20+/-  0.10 K0 0.72+/-  0.10 0.96+/-  0.10 Leader min. 390 390 Trailer min. 160 160 Tape and Reel Diagram H Tape Specifications D0 P0 P1 Reel Specifications E1 P2 D F C W T D1 D1 K0 W B0 Disclaimer Notice - Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability of and test each product selected for their own applications. Littelfuse products are not designed for, and may not be used in, all applications. Read complete Disclaimer Notice at www.littelfuse.com/disclaimer-electronics. © 2017 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 03/22/17
