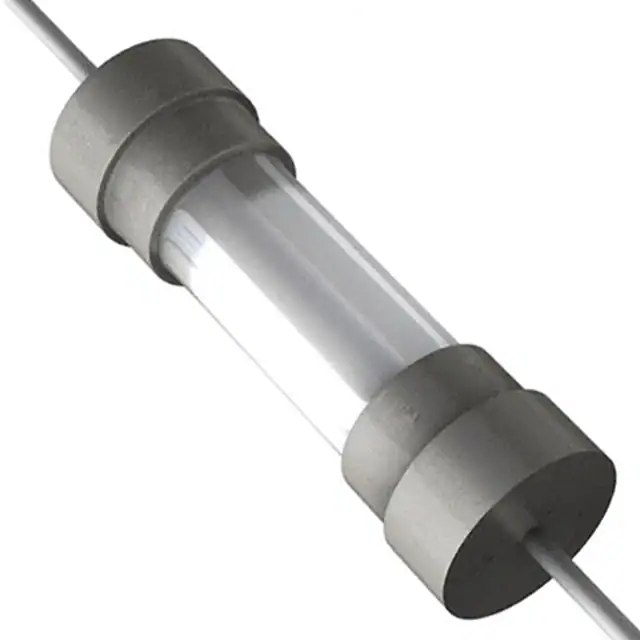

Axial Lead and Cartridge Fuses 5x20 mm > Time Lag > 977 Series 977 Series, 5x20 mm, Time Lag (Slo-Blo) Fuse Description 450Vdc/500Vac rated, 5x20mm, Time lag, surge withstand, ceramic body, cartridge fuse Features Designed to International (IEC) Standards for use globally. Follow the IEC 60127-2,Sheet 5 specification for Time lag Fuses. Available in Cartridge and Axial lead Form . Rohs compliant and Pb-free.. Agency Approval Application Agency Approvals Certificate No. Certificate No. Ampere Range Cartridge NBK040609-JP1021A NBK040609-JP1021C NBK100408-JP1021A Leaded NBK040609-JP1021B NBK040609-JP1021D NBK100408-JP1021B 2A – 5A 6.3A – 12A 16A 2A – 5A 6.3A -12A 16A Cartridge No.1010769 Leaded No.1010769 500mA-8A Inverter in LCD backlight unit, DC side of air-conditioners, 3-phase power supplies, Higher Energy and Power Efficient applications. Electrical Characteristics % of Ampere Rating and Opening Time Rated Current 1.5In 2.1In MIN MAX MIN MAX MIN MAX MIN MAX 500mA – 800mA 60 30 250 80 50 5 5 150 2A – 3.15A 60 30 750 80 95 5 10 150 4A – 6.3A 60 30 750 80 150 5 10 150 8A – 16A 30 30 750 80 150 5 10 150 min min ms sec ms sec ms ms 500mA-8A 500mA – 16A 2.75 In 4 In 10 In Electrical Characteristics Amp Code Amp Rating .500 Voltage Rating Interrupting Rating Nominal Cold Resistance (milli-ohms) Nominal Melting I2T (A2Sec.) Agency Approvals AC DC 0.5 500 450 945.0 0.3 X .800 002. 0.8 2 500 500 450 450 417.0 44.5 0.8 17 X X X 3.15 004. 3.15 4 500 500 450 450 27.5 18.4 58 124 X X X X 005. 06.3 5 6.3 500 500 450 450 11.9 9.1 91 188 X X X X 008. 010. 8 10 500 500 450 450 8.0 7.2 233 249 X X X 012. 016. 12 16 500 500 450 450 5.8 3.9 388 725 X X 100A @500Vac 200A @450Vdc PSE Semko Axial Lead and Cartridge Fuses 5x20 mm > Time Lag > 977 Series Temperature Rerating Curve Average Time Current Curves Axial Lead and Cartridge Fuses 5x20 mm > Time Lag > 977 Series Product Characteristics Dimensions Part Numbering System 20±0.5 0977000.XP 5.2+0.1 - 0.2 5.1 ± 0.6 40 5.1 ± 0.6 ∅6.0 Max 22.5 max. E: Axial Leaded Amp Code Refer to Amp Code column of Electrical Characteristics Table ∅0.65* 40 Option Codes Series 0977.500XEP to 0977.800XEP 0977002.XEP to 0977016.XEP 0977 xxxx M X E P ∅5.8 Max 22.5 max. P: Lead-Free Others: Special options. Please call Littelfuse for detail. Quantity Code Packaging Code M=1000 X= Filler ∅0.65* All dimensions in mm •Ratings above 5A ∅1 Lead. •For 977 16A Ø1.2 Lead. Packaging Packaging Option 977 Series Bulk Bulk Packaging Specification N/A N/A Quantity Quantity & Packaging Code Reel Size 1000 1000 MX MXE N/A N/A
