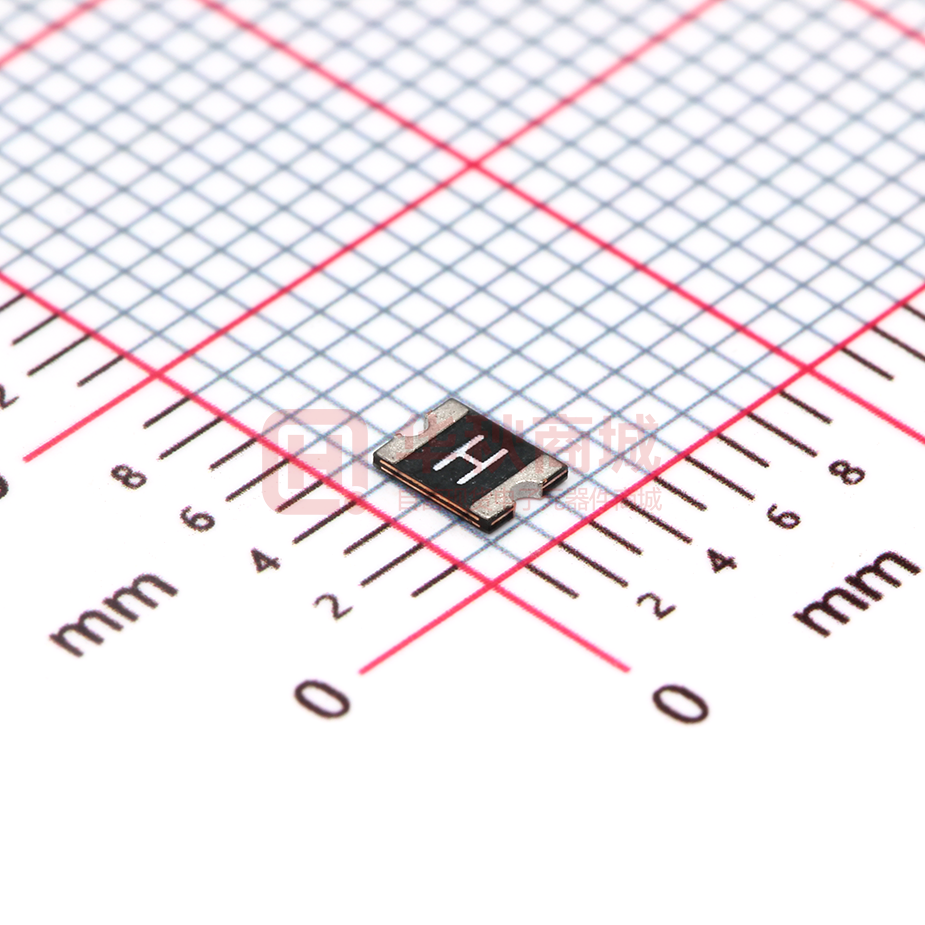

POLY-FUSE® Resettable PTCs Surface Mount > 1210L Series 1210L Series RoHS Description The 1210L Series PTC provides surface mount overcurrent protection for applications where space is at a premium and resettable protection is desired. Features Agency Approvals Agency Agency File Number Applications E183209 • Mobile phones - battery and port protection • PDAs / digital cameras • Game console port protection • USB peripherals • Disk drives • CD-ROMs • PC motherboards - plug and play protection R50119118 Additional Information Datasheet • Low resistance • Low-profile • Compatible with high temperature solders • RoHS compliant, lead-free and halogen-free • Fast response to fault currents • Compact design saves board space Samples Resources Electrical Characteristics Marking I hold (A) 1210L005 A 0.05 0.15 30 10 0.60 1210L010 B 0.10 0.30 30 10 0.60 1210L020 C 0.20 0.40 30 10 1210L035 E 0.35 0.70 6 1210L035/30 E3 0.35 0.70 1210L050 F 0.50 1210L050/30 F3 1210L075 G 1210L075/24 G2 1210L110/12 H1 1210L110/16 Part Number I trip (A) V max (Vdc) I max (A) P d typ. (W) Maximum Time To Trip Agency Approvals Resistance Time (Sec.) R min (Ω) R 1max (Ω) 0.25 1.50 3.600 50.00 X X 0.50 1.50 1.600 15.00 X X 0.60 8.00 0.02 0.800 5.000 X X 100 0.60 8.00 0.20 0.320 1.300 X X 30 40 0.60 8.00 0.20 0.320 1.300 X X 1.00 13.2 100 0.60 8.00 0.05 0.250 0.900 X X 0.50 1.00 30 40 0.60 8.00 0.15 0.220 0.900 X X 0.75 1.50 6 100 0.60 8.00 0.10 0.130 0.400 X X 0.75 1.50 24 100 0.60 8.00 0.10 0.130 0.400 X X 1.10 2.20 12 100 0.6 8.00 0.10 0.060 0.210 X X HF 1.10 2.20 16 100 0.6 8.00 0.10 0.060 0.210 X X 1210L110TH H 1.10 2.20 8 100 0.60 8.00 0.10 0.060 0.210 X X 1210L150/16 KF 1.50 3.00 16 100 0.80 8.00 0.30 0.040 0.110 X X 1210L150TH K 1.50 3.00 6 100 0.80 8.00 0.30 0.040 0.110 X X 1210L175 V 1.75 3.50 6 100 0.80 8.00 0.60 0.020 0.080 X X 1210L200 L 2.00 4.00 6 100 0.80 8.00 1.00 0.015 0.070 X X Current (A) I hold = Hold current: maximum current device will pass without tripping in 20°C still air. P d = Power dissipated from device when in the tripped state at 20°C still air. I trip = Trip current: minimum current at which the device will trip in 20°C still air. R min = Minimum resistance of device in initial (un-soldered) state. V max = Maximum voltage device can withstand without damage at rated current (I max) R typ = Typical resistance of device in initial (un-soldered) state. I max = Maximum fault current device can withstand without damage at rated voltage (Vmax) R 1max = Maximum resistance of device at 20°C measured one hour after tripping or reflow soldering of 260°C for 20 sec. Caution: Operation beyond the specified rating may result in damage and possible arcing and flame. © 2019 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 06/17/19 POLY-FUSE® Resettable PTCs Surface Mount > 1210L Series Temperature Rerating Ambient Operation Temperature -40°C -20°C 0°C 20°C Part Number 40°C 50°C 60°C 70°C 85°C Hold Current (A) 1210L005 0.08 0.07 0.06 0.05 0.04 0.04 0.03 0.03 0.02 1210L010 0.16 0.14 0.12 0.10 0.08 0.07 0.06 0.05 0.05 1210L020 0.29 0.26 0.22 0.20 0.16 0.14 0.13 0.11 0.08 1210L035 0.47 0.45 0.40 0.35 0.33 0.28 0.24 0.21 0.18 1210L035/30 0.47 0.45 0.40 0.35 0.33 0.28 0.24 0.21 0.18 1210L050 0.76 0.67 0.58 0.50 0.43 0.40 0.36 0.32 0.28 1210L050/30 0.76 0.67 0.58 0.50 0.43 0.40 0.36 0.32 0.28 1210L075 1.00 0.97 0.86 0.75 0.64 0.59 0.54 0.48 0.40 1210L075/24 1.00 0.97 0.86 0.75 0.64 0.59 0.54 0.48 0.40 1210L110/12 1.60 1.42 1.26 1.10 0.94 0.86 0.80 0.70 0.58 1210L110/16 1.60 1.42 1.26 1.10 0.94 0.86 0.80 0.70 0.58 1210L110TH 1.60 1.42 1.26 1.10 0.94 0.86 0.80 0.70 0.58 1210L150/16 2.30 2.02 1.76 1.50 1.24 1.11 1.00 0.86 0.65 1210L150TH 2.30 2.02 1.76 1.50 1.24 1.11 1.00 0.85 0.65 1210L175 2.45 2.22 2.01 1.75 1.45 1.26 1.10 0.98 0.80 1210L200 2.60 2.44 2.35 2.00 1.78 1.67 1.50 1.45 1.10 Temperature Rerating Curve 10.00 Percentage of Rated Current 150% 1210L 100.00 Time in Seconds 170% 130% 110% 10000 90% 70% 50% 30% 10% -40 1.00 1812L 100000 1000 Time in Seconds 0.05A 0.10A 0.20A 0.35A 0.35A/30 0.50A 0.50A/30 0.75A 0.75A/24 1.10A 1.50A 1.50A/16 1.75A 2.00A Average Time Current Curves 0.10A 0.14A 0.20A 0.50A 0.75A/33V 0.75A/24V 0.75A 1.10A/16V 1.10A/33V 1.10A 1.25A 1.25A/6V 1.50A/12V 1.50A 1.50A/24V 1.60A/12V 1.60A 1.60A/8V 2.00A 2.60A Note: The temperature rerating data is only for reference, please contact Littelfuse technical support for detail temperature rerating information. -30 -20 100 -10 10 0 10 20 30 40 Temperature (°C) 50 60 70 80 85 Note: Typical Temperature rerating curve, refer to table for derating data 1 0.10 0.1 0.01 0.10 1.00 10.00 0.01 0.1 1 10 Current in Amperes Current in Amperes 0.05A 0.10A 0.20A 0.35A 0.50A 0.75A 1.10A 1.50A 1.75A 2.00A The average time current curves and Temperature Rerating curve performance is affected by a number or variables, and these curves provided as guidance only. Customer must verify the performance in their application. 10000 © 2019 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 06/17/19 1210L OLD 100 POLY-FUSE® Resettable PTCs Surface Mount > 1210L Series Soldering Parameters Profile Feature Pb-Free Assembly Average Ramp-Up Rate (TS(max) to TP) 3°C/second max Temperature Min (Ts(min)) 150°C Pre Heat: Temperature Max (Ts(max)) 200°C Time (Min to Max) (ts) 60 – 180 secs Time Maintained Above: Temperature (TL) 217°C Temperature (tL) 60 – 150 seconds °C Time within 5°C of actual peak Temperature (tp) 20 – 40 seconds Ramp-down Rate 6°C/second max Time 25°C to peak Temperature (TP) 8 minutes Max. Physical Specifications Terminal Material Solder-Plated Copper (Solder Material: Matte Tin (Sn)) Lead Solderability Meets EIA Specification RS186-9E, ANSI/JSTD-002 Category 3. Temperature 260 Critical Zone tL to tP Ramp-up TL TS(max) Peak / Classification Temperature (TP) +0/-5 tP TP tL Ramp-do Ramp-down Preheat TS(min) 25 tS time to peak temperature Time -- All temperature refer to topside of the package, measured on the package body surface -- If reflow temperature exceeds the recommended profile, devices may not meet the performance requirements -- Recommended reflow methods: IR, vapor phase oven, hot air oven, N2 environment for lead -- Recommended maximum paste thickness is 0.25mm(0.010inch) -- Devices can be cleaned usingstandard industry methods and solvents -- Devices can be reworked using the standard industry practices Environmental Specifications Operating/Storage Temperature Maximum Device Surface Temperature in Tripped State -40°C to +85°C 125°C Passive Aging +85°C, 1000 hours -/+5% typical resistance change Humidity Aging +85°C, 85, R.H.,1000 hours -/+5% typical resistance change Thermal Shock MIL–STD–202, Method 107 +85°C/-40°C, 20 times -30% typical resistance change Solvent Resistance MIL–STD–202, Method 215 No change Vibration MIL–STD–883, Method 2007, Condition A No change Moisture Level Sensitivity Level 1, J–STD–020 © 2019 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 06/17/19 POLY-FUSE® Resettable PTCs Surface Mount > 1210L Series Dimensions MARKING CODE VARIES WITH AMPERAGE RATING (See Electrical Characteristics Table) SHOWN IS 1.5AMP RATING C A Top View K Bottom View K Side View B 2.00 mm (.079) Pad Layout D 2.50 mm (.098) E 1.00 mm (.040) A Part Number B Inches mm Inches C mm Inches D mm Inches E mm Inches mm Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min 1210L005 0.12 0.14 3.0 3.43 0.09 0.11 2.35 2.80 0.03 0.05 0.75 1.25 0.01 0.03 0.25 0.75 0.004 0.02 0.10 Max 0.50 1210L010 0.12 0.14 3.0 3.43 0.09 0.11 2.35 2.80 0.03 0.05 0.75 1.25 0.01 0.03 0.25 0.75 0.004 0.02 0.10 0.50 1210L020 0.12 0.14 3.0 3.43 0.09 0.11 2.35 2.80 0.02 0.04 0.60 1.00 0.01 0.03 0.25 0.75 0.004 0.02 0.10 0.50 1210L035 0.12 0.14 3.0 3.43 0.09 0.11 2.35 2.80 0.02 0.03 0.50 0.85 0.01 0.03 0.25 0.75 0.004 0.02 0.10 0.50 1210L035/30 0.12 0.14 3.00 3.43 0.09 0.11 2.35 2.80 0.03 0.05 0.75 1.25 0.01 0.03 0.25 0.75 0.004 0.02 0.10 0.50 1210L050 0.12 0.14 3.0 3.43 0.09 0.11 2.35 2.80 0.02 0.03 0.50 0.85 0.01 0.03 0.25 0.75 0.004 0.02 0.10 0.50 1210L050/30 0.12 0.14 3.00 3.43 0.09 0.11 2.35 2.80 0.03 0.05 0.75 1.25 0.01 0.03 0.25 0.75 0.004 0.02 0.10 0.50 1210L075 0.12 0.14 3.0 3.43 0.09 0.11 2.35 2.80 0.02 0.03 0.50 0.85 0.01 0.03 0.25 0.75 0.004 0.02 0.10 0.50 1210L075/24 0.12 0.14 3.0 3.43 0.09 0.11 2.35 2.80 0.05 0.07 1.20 1.80 0.01 0.03 0.25 0.75 0.004 0.02 0.10 0.50 1210L110/12 0.12 0.14 3.0 3.43 0.09 0.11 2.35 2.80 0.03 0.05 0.75 1.25 0.01 0.03 0.25 0.75 0.004 0.02 0.10 0.50 1210L110/16 0.12 0.14 3.0 3.43 0.09 0.11 2.35 2.80 0.03 0.05 0.75 1.25 0.01 0.03 0.25 0.75 0.004 0.02 0.10 0.50 1210L110TH 0.12 0.14 3.0 3.43 0.09 0.11 2.35 2.80 0.04 0.05 0.30 0.71 0.01 0.03 0.25 0.75 0.004 0.02 0.10 0.50 1210L150/16 0.12 0.14 3.00 3.43 0.09 0.11 2.35 2.80 0.03 0.05 0.75 1.25 0.01 0.03 0.25 0.75 0.004 0.02 0.10 0.50 1210L150TH 0.12 0.14 3.0 3.43 0.09 0.11 2.35 2.80 0.03 0.07 0.75 1.07 0.01 0.03 0.25 0.75 0.004 0.02 0.10 0.50 1210L175 0.12 0.14 3.0 3.43 0.09 0.11 2.35 2.80 0.02 0.04 0.60 1.00 0.01 0.03 0.25 0.75 0.004 0.02 0.10 0.50 1210L200 0.12 0.14 3.0 3.43 0.09 0.11 2.35 2.80 0.03 0.06 0.80 1.60 0.01 0.03 0.25 0.75 0.004 0.02 0.10 0.50 Part Ordering Number System 1210 L 380 /12 TH Y R - A -A: Automotive grade Blank: Standard version SERIES PACKAGING STYLE R: Tape & Reel QUANTITY CODE: K=10,000 Y=4,000 W=3,000 P=2,000 THIN PROFILE (Not applicable to all parts) /XX: SPECIAL VOLTAGE RATING (Not applicable to all parts. Refer to Electrical Characteristics Table) I HOLD HOLD CURRENT CODE (Refer to Electrical Characteristics Table) L: LITTELFUSE SURFACE MOUNT PPTC SIZE © 2019 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 06/17/19 POLY-FUSE® Resettable PTCs Surface Mount > 1210L Series Packaging Options Part Number Ordering Number Halogen Free I hold (A) I hold Code 1210L005 1210L005WR Yes 0.05 005 Tape and Reel 3000 WR 1210L010 1210L010WR Yes 0.10 010 Tape and Reel 3000 WR Packaging Option Quantity Quantity & Packaging Codes 1210L020 1210L020WR Yes 0.20 020 Tape and Reel 3000 WR 1210L035 1210L035YR Yes 0.35 035 Tape and Reel 4000 YR 1210L035/30 1210L035/30WR Yes 0.35 035 Tape and Reel 3,000 WR 1210L050 1210L050YR Yes 0.50 050 Tape and Reel 4000 YR 1210L050/30 1210L050/30WR Yes 0.50 050 Tape and Reel 3,000 WR 1210L075 1210L075YR Yes 0.75 075 Tape and Reel 4000 YR 1210L075/24 1210L075/24PR Yes 0.75 075 Tape and Reel 2000 PR 1210L110/12 1210L110/12WR Yes 1.10 110 Tape and Reel 3,000 WR 1210L110/16 1210L110/16WR Yes 1.10 110 Tape and Reel 3,000 WR 1210L110TH 1210L110THYR Yes 1.10 110 Tape and Reel 4000 YR 1210L150/16 1210L150/16WR Yes 1.50 150 Tape and Reel 3,000 WR 1210L150TH 1210L150THWR Yes 1.50 150 Tape and Reel 3000 WR 1210L175 1210L175WR Yes 1.75 175 Tape and Reel 3000 WR 1210L200 1210L200PR Yes 2.00 200 Tape and Reel 2000 PR Tape and Reel Specifications TAPE SPECIFICATIONS: EIA-481-1 (mm) 1210L035 1210L050 1210L075 1210L110TH 1210L005 1210L010 1210L020 1210L035/30 1210L050/30 1210L110/12 1210L110/16 1210L150/16 1210L150TH 1210L175 1210L200 1210L075/24 W 8.00+/- 0.30 8.00+/- 0.30 8.00+/- 0.30 C Ø178+/- 1.0 F 3.50+/- 0.05 3.50+/- 0.05 3.50+/- 0.05 D Ø60.2+/- 0.5 REEL DIMENSIONS: EIA-481-1 (mm) E1 1.75+/- 0.10 1.75+/- 0.10 1.75+/- 0.10 H 11.0+/- 0.05 D0 1.55+/- 0.05 1.55+/- 0.05 1.55+/- 0.05 W 9.0+/- 1.5 D1 1.00 (min) 1.00 (min) 1.00 (min) P0 4.00+/- 0.10 4.00+/- 0.10 4.00+/- 0.10 P1 4.00+/- 0.10 4.00+/- 0.10 4.00+/- 0.10 P2 2.00+/- 0.05 2.00+/- 0.05 2.00+/- 0.05 2.80+/- 0.10 A0 2.82+/- 0.10 2.82+/- 0.10 B0 3.46+/- 0.10 3.50+/- 0.10 3.50+/- 0.10 T 0.25+/- 0.10 0.20+/- 0.10 0.25+/- 0.10 K0 1.00+/- 0.10 1.30+/- 0.10 1.60+/- 0.10 Leader min. 390 390 390 Trailer min. 160 160 160 © 2019 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 06/17/19 POLY-FUSE® Resettable PTCs Surface Mount > 1210L Series H D0 P0 P1 E1 P2 D F C W T D1 D1 K0 W B0 WARNING • Users shall independently assess the suitability of these devices for each of their applications • Operation of these devices beyond the stated maximum ratings could result in damage to the devices and lead to electrical arcing and/or fire • These devices are intended to protect against the effects of temporary over-current or over-temperature conditions and are not intended to perform as protective devices where such conditions are expected to be repetitive or prolonged in duration • Exposure to silicon-based oils, solvents, electrolytes, acids, and similar materials can adversely affect the performance of these PPTC devices • These devices undergo thermal expansion under fault conditions, and thus shall be provided with adequate space and be protected against mechanical stresses • Circuits with inductance may generate a voltage (L di/dt) above the rated voltage of the PPTC device. Disclaimer Notice - Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability of and test each product selected for their own applications. Littelfuse products are not designed for, and may not be used in, all applications. Read complete Disclaimer Notice at http://www.littelfuse.com/disclaimer-electronics. © 2019 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 06/17/19
