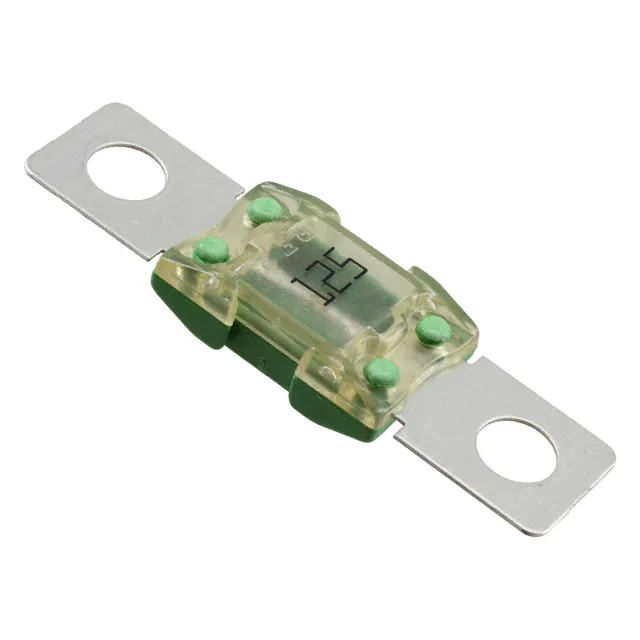

High Current Fuses BF2 FUSE RATED 32V Specifications Housing Material: Terminal: Mounting Torque: Breaking Capacity: Complies with: Out of thermoplastic (UL 94-V0, heat-resistant) 100A - 300A: Visible melting element Copper alloy, gal. Sn 2 x M8 bolts, Distance 51 mm 12.0 Nm +/- 1Nm 100 A - 300 A: 2.000 A, 32V, DC 400 A - 500 A: 1.500 A, 32V, DC ISO 8820-5 UL 248 Special Purpose Fuses Ordering Information Part Number Package Size 153.5395.xxxx 200 Description Time-Current Characteristic Curves 100A 125A 150A 175A 200A 225A 250A 300A 400A 500A TIME-CURRENT CHARACTERISTIC CURVES (RECORDED@23°C) 1000 100 TIME [s] This BF2 fuse is rated at 32V and offers a bolt-on fuse for high current wiring protection. Current rating 100A - 500A; with transparent housing material for easy detection of blown fuses. 10 1 0,1 10 100 1000 10000 CURRENT [A] 100A-300A: FL=1,25 (max. operating current: 0,8 x Irat at 23°C) 400A-500A: FL=2,00 (max. operating current: 0,5 x Irat at 23°C) www.littelfuse.com BF2 FUSE RATED 58V Specifications Housing Material: Terminal: Mounting Torque: Breaking Capacity: Complies with: Out of thermoplastic (UL 94-V0, heat-resistant) Visible melting element Copper alloy, gal. Sn 2 x M8 bolts, Distance 51 mm 12.0 Nm +/- 1Nm 1000A, 58V DC ISO 8820-5 UL 248 Special Purpose Fuses Ordering Information Part Number Package Size 142.5395.xxx2 200 Description This BF2 fuse is rated at 58V and offers a bolt-on fuse for high current wiring protection. Current rating 100A - 300A; with transparent housing material for easy detection of blown fuses. Time-Current Characteristic Curves 100A 125A 150A 175A 200A 225A 250A 300A 400A 500A TIME-CURRENT CHARACTERISTIC CURVES (RECORDED@23°C) 1000 TIME [s] 100 10 1 0,1 10 100 1000 10000 CURRENT [A] 100A-300A: FL=1,25 (max. operating current: 0,8 x Irat at 23°C) 400A-500A: FL=2,00 (max. operating current: 0,5 x Irat at 23°C) © 2014 Littelfuse • Automotive Passenger Car Solutions Catalog
