POLY-FUSE® Resettable PTCs
Surface Mount > 2016L Series
2016L Series
RoHS
Description
The 2016L Series PTC provides surface mount overcurrent
protection for low voltage (≤60V) applications where
resettable protection is desired.
Features
• High voltage
• Low-profile
• RoHS compliant, lead-free
and halogen-free
• Fast response to fault
currents
Agency Approvals
Agency
Applications
• Low voltage telecom
equipment protection
• IEEE 1394 port protection
•P
owered ethernet port
protection (IEEE 802.3 af)
• Automotive electronic
control module protection
Agency File Number
E183209
R50119118
Electrical Characteristics
Part Number
Marking
I hold
(A)
I trip
(A)
V max
(Vdc)
I max
(A)
P d typ.
(W)
2016L030
LF030
0.30
0.60
60
20
2016L050
LF050
0.55
1.10
60
20
2016L075/60
LF075
0.75
1.50
60
2016L100
LF100
1.10
2.20

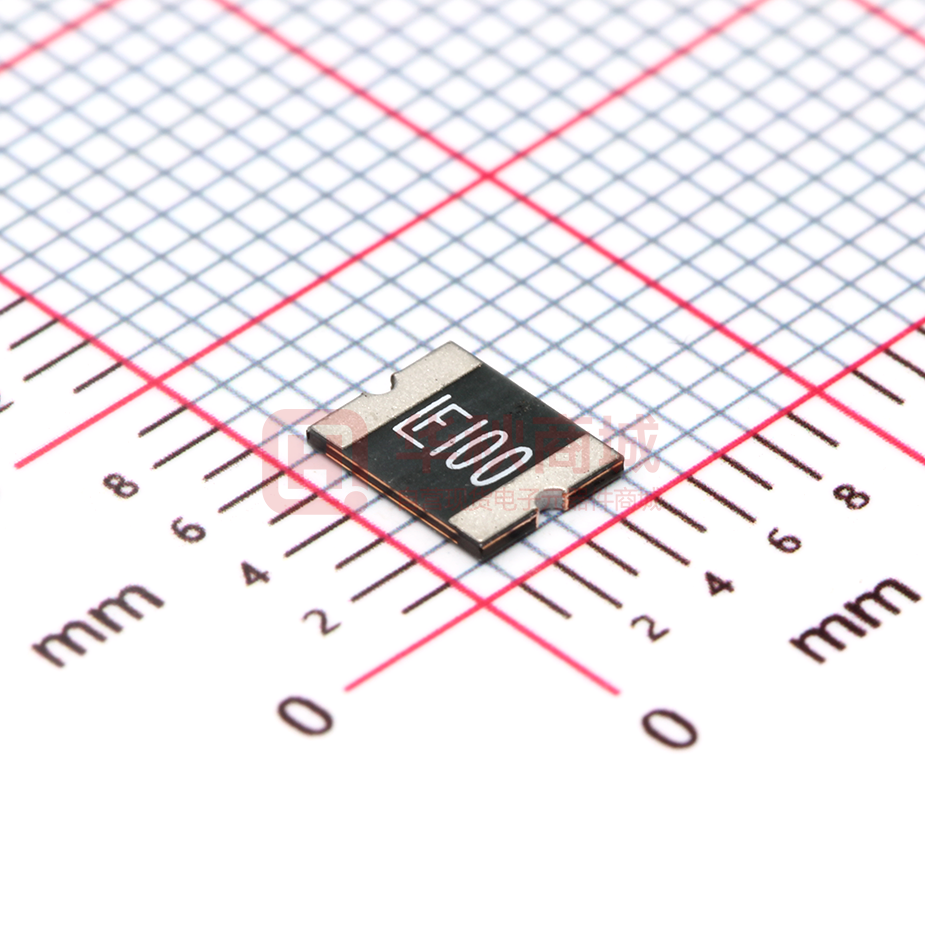

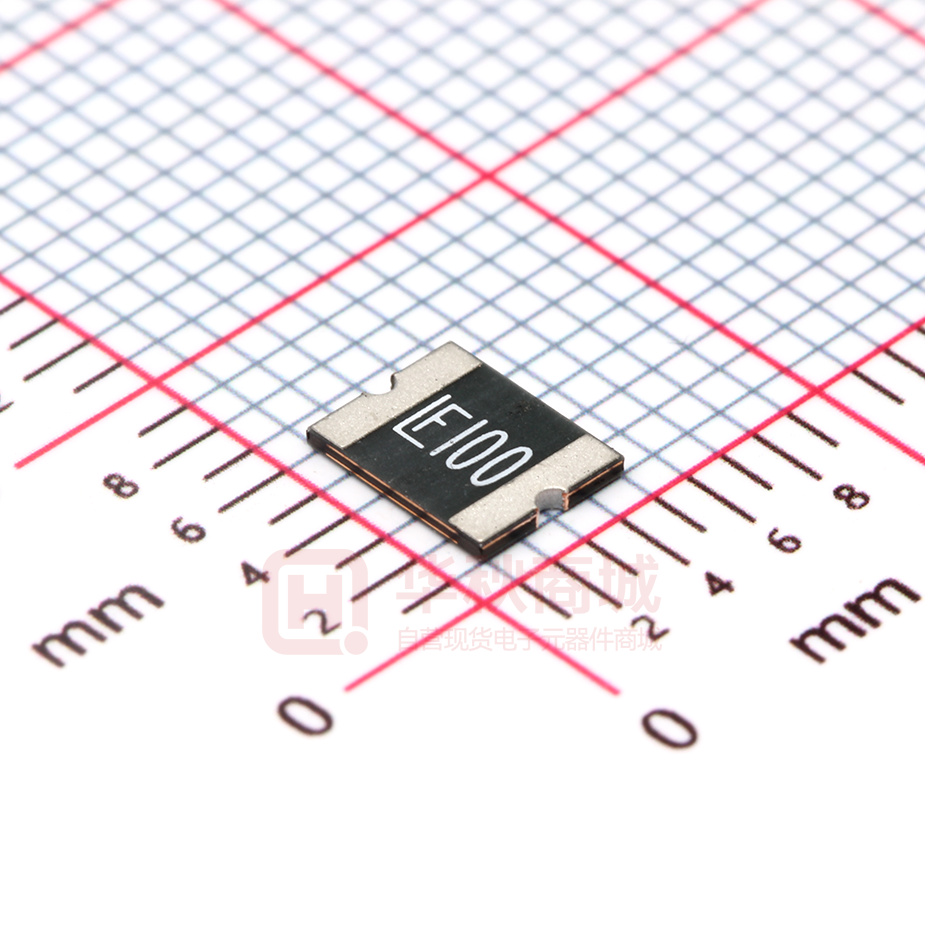

2016L100/33
LF100-33
1.10
2016L150
LF150
1.50
2016L150/33
LF150-33
1.50
2016L200
LF200
2016L260/24
2016L300/16
2016L500
Maximum Time
To Trip
Resistance
Agency
Approvals
Current
(A)
Time
(Sec.)
R min
(Ω)
R 1max
(Ω)
1.40
1.5
3.0
0.500
2.300
X
X
1.40
2.5
5.0
0.200
1.000
X
X
20
1.40
8.0
0.5
0.130
0.900
X
X
15
40
1.40
8.0
0.5
0.100
0.400
X
X
2.20
33
40
1.40
8.0
0.5
0.100
0.400
X
X
3.00
15
40
1.40
8.0
1.0
0.070
0.180
X
X
3.00
33
40
2.0
8.00
1.00
0.070
0.180
X
X
2.00
4.20
6
40
1.40
8.0
3.0
0.048
0.100
X
X
LF260-24
2.60
5.00
24
40
1.6
8.00
5.00
0.025
0.075
X
X
LF300
3.00
5.00
16
40
1.6
8.00
10.00
0.015
0.048
X
X
LF500
5.00
10.00
6
100
2.0
25.00
2.00
0.005
0.025
X
X
I hold = Hold current: maximum current device will pass without tripping in 20°C still air.
I trip = Trip current: minimum current at which the device will trip in 20°C still air.
V max = Maximum voltage device can withstand without damage at rated current (I max)
I max = Maximum fault current device can withstand without damage at rated voltage (Vmax)
P d = Power dissipated from device when in the tripped state at 20°C still air.
R min = Minimum resistance of device in initial (un-soldered) state.
R typ = Typical resistance of device in initial (un-soldered) state.
R 1max = M
aximum resistance of device at 20°C measured one hour after tripping or reflow soldering of 260°C for 20 sec.
Caution: Operation beyond the specified rating may result in damage and possible arcing and flame.
* Agency Approval is Pending
WARNING
• Users shall independently assess the suitability of these devices for each of their applications
• Operation of these devices beyond the stated maximum ratings could result in damage to the devices and lead to electrical arcing and/or fire
• These devices are intended to protect against the effects of temporary over-current or over-temperature conditions and are not intended to perform as protective devices where such
conditions are expected to be repetitive or prolonged in duration
• Exposure to silicon-based oils, solvents, electrolytes, acids, and similar materials can adversely affect the performance of these PPTC devices
• These devices undergo thermal expansion under fault conditions, and thus shall be provided with adequate space and be protected against mechanical stresses
• Circuits with inductance may generate a voltage (L di/dt) above the rated voltage of the PPTC device.
© 2019 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 05/10/19
POLY-FUSE® Resettable PTCs
Surface Mount > 2016L Series
Temperature Rerating
Ambient Operation Temperature
-40°C
-20°C
0°C
20°C
Part Number
40°C
50°C
60°C
70°C
85°C
Hold Current (A)
2016L030
0.45
0.40
0.35
0.30
0.25
0.23
0.20
0.18
0.14
2016L050
0.93
0.95
0.65
0.55
0.42
0.38
0.33
0.30
0.23
2016L075/60
1.05
1.06
0.85
0.75
0.60
0.55
0.45
0.40
0.30
2016L100
1.66
1.47
1.29
1.10
0.91
0.83
0.73
0.64
0.50
2016L100/33
1.66
1.47
1.29
1.10
0.91
0.83
0.73
0.64
0.50
2016L150
2.26
2.00
1.76
1.50
1.24
1.13
1.00
0.87
0.68
2016L150/33
2.26
2.00
1.76
1.50
1.24
1.13
1.00
0.87
0.68
2016L200
2.80
2.50
2.19
2.00
1.84
1.74
1.50
1.34
1.14
2016L260/24
3.82
3.46
3.06
2.60
2.24
2.03
1.82
1.60
1.26
2016L300/16
4.40
3.96
3.52
3.00
2.65
2.43
2.20
1.96
1.59
2016L500
7.29
6.57
5.86
5.00
4.38
4.02
3.66
3.26
2.66
Temperature Rerating Curve
Average Time Current Curves
Time in Seconds
100
10
150%
Percentage of Rated Current
1.50A/33
2.60A/24
3.00A/16
5.00A
0.30A
0.50A
0.75A/60
1.00A
1.00A/33
1.50A
2.00A
170%
130%
110%
90%
70%
50%
30%
10%
-40
-30 -20
-10
0
1
10
20 30
40
Temperature (°C)
50
60
70
80 85
Note:
Typical Temperature rerating curve, refer to table for derating data
0.1
Additional Information
0.01
0.1
1
10
Current in Amperes
The average time current curves and Temperature Rerating curve performance is affected
by a number or variables, and these curves provided as guidance only. Customer must
verify the performance in their application.
Datasheet
Resources
Samples
© 2019 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 05/10/19
POLY-FUSE® Resettable PTCs
Surface Mount > 2016L Series
Soldering Parameters
Profile Feature
Pb-Free Assembly
Average Ramp-Up Rate (TS(max) to TP)
3°C/second max
Time
Maintained
Above:
Temperature Min (Ts(min))
150°C
Temperature Max (Ts(max))
200°C
Time (Min to Max) (ts)
60 – 180 secs
Temperature (TL)
217°C
Temperature (tL)
60 – 150 seconds
Peak / Classification Temperature (TP)
260
Time within 5°C of actual peak Temperature
(tp)
20 – 40 seconds
+0/-5
°C
Ramp-down Rate
6°C/second max
Time 25°C to peak Temperature (TP)
8 minutes Max.
Physical Specifications
Critical Zone
tL to tP
Ramp-up
TL
TS(max)
Temperature
Pre Heat:
tP
TP
tL
Ramp-do
Ramp-down
Preheat
TS(min)
25
tS
time to peak temperature
Time
-- All temperature refer to topside of the package, measured on the package body surface
-- If reflow temperature exceeds the recommended profile, devices may not meet the
performance requirements
-- Recommended reflow methods: IR, vapor phase oven, hot air oven, N2 environment
for lead
-- Recommended maximum paste thickness is 0.25mm(0.010inch)
-- Devices can be cleaned usingstandard industry methods and solvents
-- Devices can be reworked using the standard industry practices
Environmental Specifications
Terminal Material
Solder-Plated Copper (Solder Material: Matte
Tin(Sn))
Operating/Storage Temperature
-40°C to +85°C
Lead Solderability
Meets EIA Specification RS186-9E, ANSI/
J-STD-002 Category 3.
Maximum Device Surface
Temperature in Tripped State
125°C
Passive Aging
+85°C, 1000 hours
-/+5% typical resistance change
Humidity Aging
+85°C, 85%,R.H.,1000 hours
-/+5% typical resistance change
Thermal Shock
MIL–STD–202, Method 107
+85°C/-40°C 20 times
-30% typical resistance change
Solvent Resistance
MIL–STD–202, Method 215
No change
Vibration
MIL–STD–883, Method 2007,
Condition A
No change
Moisture Sensitivity Level
Level 1, J–STD–020
© 2019 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 05/10/19
POLY-FUSE® Resettable PTCs
Surface Mount > 2016L Series
Dimensions (mm)
C
A
Top
View
100
Bottom
View
100
100
-33
B
3.40 mm
(.133”)
Pad
Layout
D
E
4.60 mm
(.181”)
1.50 mm
(.059”)
A
Part Number
Inches
Min
Max
MARKING CODE VARIES
WITH AMPERAGE AND VOLTAGE RATING
SEE ELECTRICAL CHARACTERISTICS CHART
SHOWN ARE:
- 1.1A/15V RATING (LEFT)
- 1.1A/33V RATING (RIGHT)
Side
View
B
mm
Min
Max
Inches
Min
Max
C
mm
Min
D
Inches
mm
Min
Max
Min
Max
2016L030
0.03
0.05
0.75
1.25
2016L050
0.05
0.08
1.20
2.00
2016L075/60
Max
4.43
2016L100
2016L100/33
0.19
2016L150
0.21
4.72
5.44
0.15
0.17
3.7
0.05
0.08
1.20
2.00
0.02
0.03
0.50
0.75
0.03
0.05
0.75
1.25
0.03
0.06
0.75
1.55
2016L150/33
4.43
0.03
0.06
0.80
1.60
2016L200
4.43
0.02
0.03
0.50
0.75
4.43
0.03
0.06
0.80
1.60
Inches
E
mm
Inches
mm
Min
Max
Min
Max
Min
Max
Min
Max
0.01
0.06
0.3
1.5
0.01
0.03
0.25
0.65
2016L260/24
2016L300/16
2016L500
Part Ordering Number System
2016 L xxx /xx D R - A
SERIES
-A: Automotive grade
Blank: Standard version
PACKAGING STYLE
R: Tape & Reel
QUANTITY CODE: D=1500 M=1000 P=2000
SPECIAL VOLTAGE RATING ITEM
(Not applicable to all parts. Refer to Electrical
Characteristics Table for additional information)
I HOLD HOLD CURRENT CODE
(Refer to Electrical Characteristics Table)
L: LITTELFUSE SURFACE MOUNT PPTC
DEVICE SIZE CODE (0.20 x 0.16 inch)
Packaging
Ordering Number
Halogen
Free
I hold
(A)
I hold Code
2016L030
2016L030DR
Yes
0.30
2016L050
2016L050MR
Yes
0.55
2016L075/060
2016L075/60MR
Yes
0.75
075
2016L100
2016L100PR
Yes
1.10
110
2016L100/33
2016L100/33DR
Yes
1.10
110
2016L150
2016L150DR
Yes
1.50
150
2016L150/33
2016L150/33DR
Yes
1.50
150
2016L200
2016L200PR
Yes
2.00
200
2016L260/24
2016L260/24MR
Yes
2.60
260
2016L300/16
2016L300/16MR
Yes
3.00
2016L500
2016L500DR
Yes
5.00
Part Number
Voltage
Option
Packaging
Option
Quantity
030
Tape and Reel
1500
DR
050
Tape and Reel
1000
MR
MR
/60
/33
/33
Quantity &
Packaging Codes
Tape and Reel
1000
Tape and Reel
2000
PR
Tape and Reel
1500
DR
Tape and Reel
1500
DR
DR
Tape and Reel
1,500
Tape and Reel
2000
PR
/24
Tape and Reel
1,000
MR
300
/16
Tape and Reel
1,000
MR
500
/6
Tape and Reel
1,500
DR
© 2019 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 05/10/19
POLY-FUSE® Resettable PTCs
Surface Mount > 2016L Series
Tape and Reel Specifications
TAPE SPECIFICATIONS: EIA-481-1 (mm)
2016L100
2016L200
2016L030
2016L100/33
2016L150
2016L150/33
2016L500
2016L050
2016L075/60
2016L260/24
2016L300/16
W
12.0+/- 0.30
12.0+/- 0.30
12.0+/- 0.30
C
Ø178.0+/-1.0
REEL DIMENSIONS:
EIA-481-1 (mm)
F
5.50+/- 0.05
5.50+/- 0.05
5.50+/- 0.05
D
Ø60.2+/-0.5
E1
1.75+/- 0.10
1.75+/- 0.10
1.75+/- 0.10
H
16.0+/- 0.5
D0
1.55+/- 0.05
1.55+/- 0.05
1.55+/- 0.05
W
13.2+/- 1.5
D1
1.50 (MIN)
1.50+/-0.10
1.50+/-0.10
4.0+/- 0.10
P0
4.0+/- 0.10
4.0+/- 0.10
P1
8.0+/- 0.10
8.0+/- 0.10
8.0+/- 0.10
P2
2.0+/- 0.05
2.0+/- 0.05
2.0+/- 0.05
A0
4.40+/- 0.10
4.48+/- 0.10
4.45+/- 0.10
B0
5.50+/- 0.10
5.40+/- 0.10
5.48+/- 0.10
T
0.25+/- 0.10
0.25+/- 0.10
0.25+/- 0.10
KO
0.75+/-0.10
1.36+/- 0.10
1.86+/- 0.10
Leader Min.
390
390
390
Trailer Min.
160
160
160
Tape and Reel Diagram
D0
P0
P1
E1
P2
H
F
W
D
T
D1
C
D1
K0
B0
W
Disclaimer Notice - Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability of and
test each product selected for their own applications. Littelfuse products are not designed for, and may not be used in, all applications.
Read complete Disclaimer Notice at www.littelfuse.com/disclaimer-electronics.
© 2019 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 05/10/19
很抱歉,暂时无法提供与“2016L100PR”相匹配的价格&库存,您可以联系我们找货
免费人工找货- 国内价格
- 1+1.25820
- 10+1.23120
- 30+1.21328
- 国内价格
- 1+1.02591
- 10+0.98767
- 100+0.89589
- 500+0.85000
