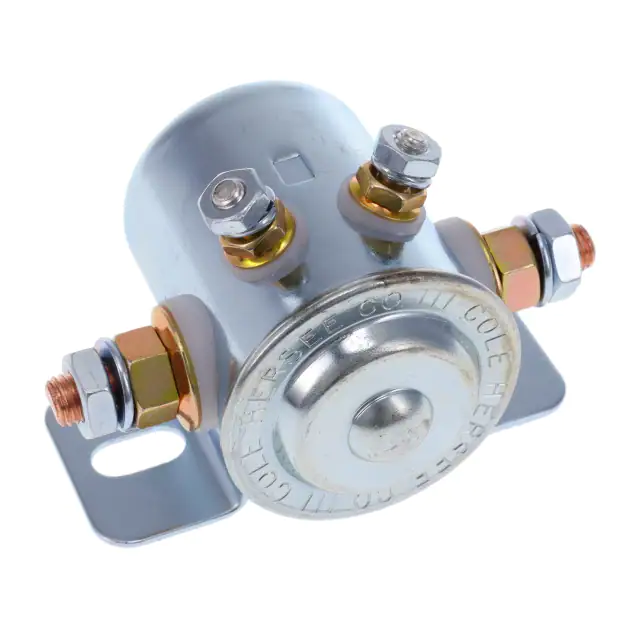

CONTINUOUS-DUTY SPST SERIES Solenoid Relays Specifications 24059-08 24117 Max Voltage Rating:  12, 24, 36 VDC Current Rating Continuous:  65 A, 85 A, 110 A, 200 A Coil Voltage:  6, 12, 24, 36 VDC Coil Type: Insulated Circuitry: SPST Temperature: -40°C to 85°C Housing: Plated Steel Housing / Plated steel Housing, PVC coated Recommended Torque: #10-32: 15 in-lbs (1.69 Nm) 5/16-24: 25 in-lbs (3.95 Nm) Coil Terminals: Steel Plated Stud #10-32 Power Terminals: Copper Stud 5/16”-24 Hardware: Bagged, 2x Hex Nut 5/16-24 2x Lock Washer 5/16 2x Hex Nut #10-32 2x Lock Washer #10 Applications 24063 • Construction Vehicles • Material Handling Continuous-Duty SPST Series Solenoid Relays are designed with single-pole, single-throw (SPST) circuitry and come in a wide variety of configurations to meet the electrical and environmental requirements of various applications. • Agricultural Equipment • Motor and Inductive Loads Features and Benefits • Configurations with 6 V, 12 V, 24 V, or 36 V coil ratings are available With continuous current ratings of 65 A, 85 A, 110 A, or 200 A and a range of coil voltages available, the Continuous-Duty SPST series makes it simple to find the right heavy-duty solenoid relay for high current loads. • Models are available with a 65 A, 85 A, 110 A, or 200 A continuous current rating for handling high current loads • Insulated and grounded options allow you to match the requirements of your application Select models of Continuous-Duty SPST series solenoid relays come with a PVC coating, which seals the relay to withstand moisture and dust to an IP66 rating. • SPST or latched SPST circuitry, depending on the model • Large 5/16”-24 copper power studs and small #10-32 steel coil studs (for the control circuit) are heavy and durable In addition, select models are available with a potted interior, which provides added protection for the coil and studs. These models are ideal for applications where vehicle vibration is an issue. • Plated steel housing with PVC-coated options available for applications requiring a sealed solenoid to withstand moisture and dust to an IP66 rating Web Resources • Potted interior on select models offers vibration resistance Download 2D print, installation guide and technical resources at: littelfuse.com/ContDutySPST 1 Littelfuse.com © 2023 Littelfuse, Inc. 031423-A CONTINUOUS-DUTY SPST SERIES Solenoid Relays Ordering Information PART NUMBER COIL IMPEDANCE NORMAL POSITION MOUNTING METHOD 36 V 85 A SPST Solenoid Relay with Insulated 12 V Coil 17.5 Ω Normally Open BRACKET STYLE FLAT with holes of 5/16" x 19/32" (7.9 x 15.1 mm)on 2 13/64" (56 mm)centers 24059-BP 12 V 65 A SPST Insulated Solenoid Relay - UL & CE Approved 17.5 Ω Normally Open BRACKET STYLE FLAT with holes of 5/16" x 19/32" (7.9 x 15.1 mm)on 2 13/64" (56 mm)centers 24059-BX 12 V 65 A SPST Insulated Solenoid Relay - UL & CE Approved - Blister Pack 17.5 Ω Normally Open BRACKET STYLE FLAT with holes of 5/16" x 19/32" (7.9 x 15.1 mm)on 2 13/64" (56 mm)centers 24059-08 12 V 65 A SPST Insulated Solenoid Relay - UL & CE Approved - Boxed 17.5 Ω Normally Open BRACKET STYLE FLAT with holes of 5/16" x 19/32" (7.9 x 15.1 mm)on 2 13/64" (56 mm)centers 24059-08-BP 36 V 85 A SPST Insulated Solenoid Relay with Potted Interior & PVC-Coated Housing 17.5 Ω Normally Open BRACKET STYLE FLAT with holes of 5/16" x 19/32" (7.9 x 15.1 mm)on 2 13/64" (56 mm)centers 24059-08-BX 36 V 85 A SPST Solenoid Relay with Insulated 12 V Coil - Blister Pack 17.5 Ω Normally Open BRACKET STYLE FLAT with holes of 5/16" x 19/32" (7.9 x 15.1 mm)on 2 13/64" (56 mm)centers 36 V 85 A SPST Solenoid Relay with Insulated 12 V Coil - Boxed 17.5 Ω Normally Open BRACKET STYLE FLAT with holes of 5/16" x 19/32" (7.9 x 15.1 mm)on 2 13/64" (56 mm)centers 36 V 85 A SPST Solenoid Relay with 24 V Insulated Coil 71 Ω Normally Open BRACKET STYLE FLAT with holes of 5/16" x 19/32" (7.9 x 15.1 mm)on 2 13/64" (56 mm)centers 24063-BX 24 V 65 A SPST Insulated Solenoid Relay with PVC-Coated Housing - UL & CE Approved 71 Ω Normally Open BRACKET STYLE FLAT with holes of 5/16" x 19/32" (7.9 x 15.1 mm)on 2 13/64" (56 mm)centers 24063-08 24 V 65 A SPST Insulated Solenoid Relay with PVC-Coated Housing - UL & CE Approved - Boxed 71 Ω Normally Open BRACKET STYLE FLAT with holes of 5/16" x 19/32" (7.9 x 15.1 mm)on 2 13/64" (56 mm)centers 36 V 85 A SPST Solenoid Relay with 24 V Insulated Coil - Boxed 71 Ω Normally Open BRACKET STYLE FLAT with holes of 5/16" x 19/32" (7.9 x 15.1 mm)on 2 13/64" (56 mm)centers 36 V 85 A SPST Insulated Solenoid Relay 130 Ω Normally Open BRACKET STYLE FLAT with holes of 5/16" x 19/32" (7.9 x 15.1 mm)on 2 13/64" (56 mm)centers 36 V 85 A SPST Insulated Solenoid Relay - Boxed 130 Ω Normally Open BRACKET STYLE FLAT with holes of 5/16" x 19/32" (7.9 x 15.1 mm)on 2 13/64" (56 mm)centers 36 V 85 A SPST Grounded Solenoid Relay with 12 V Coil 17.5 Ω Normally Open BRACKET STYLE CURVED with holes of 5/16" x 19/32" (7.9 x 15.1 mm)on 2 13/64" (56 mm) centers 36 V 85 A SPST Grounded Solenoid Relay with 12 V Coil - Boxed 17.5 Ω Normally Open BRACKET STYLE CURVED with holes of 5/16" x 19/32" (7.9 x 15.1 mm)on 2 13/64" (56 mm) centers 36 V 85 A SPST Insulated Solenoid Relay with 6 V Coil 4.2 Ω Normally Open BRACKET STYLE FLAT with holes of 5/16" x 19/32" (7.9 x 15.1 mm)on 2 13/64" (56 mm)centers 36 V 85 A SPST Insulated Solenoid Relay with 6 V Coil - Boxed 4.2 Ω Normally Open BRACKET STYLE FLAT with holes of 5/16" x 19/32" (7.9 x 15.1 mm)on 2 13/64" (56 mm)centers 36 V 85 A SPST Grounded Solenoid Relay with 12 V Coil & Flat Bracket 17.5 Ω Normally Open BRACKET STYLE FLAT with holes of 5/16" x 19/32" (7.9 x 15.1 mm)on 2 13/64" (56 mm)centers 36 V 85 A SPST Grounded Solenoid Relay with 12 V Coil & Flat Bracket - Boxed 17.5 Ω Normally Open BRACKET STYLE FLAT with holes of 5/16" x 19/32" (7.9 x 15.1 mm)on 2 13/64" (56 mm)centers 24059 24059-15 24063 24063-08-BX 24080 24080-BX 24082 24082-BX 24097 24097-BX 24106 24106-BX DESCRIPTION 24107 36 V 85 A SPST Three-Stud Insulated Solenoid Relay with 24 V Coil 71 Ω Normally Open BRACKET STYLE FLAT with holes of 5/16" x 19/32" (7.9 x 15.1 mm)on 2 13/64" (56 mm)centers 24115 36 V 85 A SPST Three-Stud Insulated Solenoid Relay with 12 V Coil 17.5 Ω Normally Open BRACKET STYLE FLAT with holes of 5/16" x 19/32" (7.9 x 15.1 mm)on 2 13/64" (56 mm)centers 36 V 85 A SPST Three-Stud Insulated Solenoid Relay with 12 V Coil - Boxed 17.5 Ω Normally Open BRACKET STYLE FLAT with holes of 5/16" x 19/32" (7.9 x 15.1 mm)on 2 13/64" (56 mm)centers 36 V 85 A SPST Insulated Solenoid Relay with 12 V Coil & PVC-Coated Housing 17.5 Ω Normally Open BRACKET STYLE FLAT with holes of 5/16" x 19/32" (7.9 x 15.1 mm)on 2 13/64" (56 mm)centers 24117-BX 12 V 65 A SPST Insulated Solenoid Relay with PVC-Coated Housing 17.5 Ω Normally Open BRACKET STYLE FLAT with holes of 5/16" x 19/32" (7.9 x 15.1 mm)on 2 13/64" (56 mm)centers 24117-01 12 V 65 A SPST Insulated Solenoid Relay with PVC-Coated Housing - Blister Pack 17.5 Ω Normally Open BRACKET STYLE FLAT with holes of 5/16" x 19/32" (7.9 x 15.1 mm)on 2 13/64" (56 mm)centers 24117-01-BP 12 V 65 A SPST Insulated Solenoid Relay with PVC-Coated Housing - Boxed 17.5 Ω Normally Open BRACKET STYLE FLAT with holes of 5/16" x 19/32" (7.9 x 15.1 mm)on 2 13/64" (56 mm)centers 24117-01-BX 36 V 85 A SPST Insulated Solenoid Relay with 12 V Coil & PVC-Coated Housing - Boxed 17.5 Ω Normally Open BRACKET STYLE FLAT with holes of 5/16" x 19/32" (7.9 x 15.1 mm)on 2 13/64" (56 mm)centers 24115-BX 24117 2 Littelfuse.com © 2023 Littelfuse, Inc. 031423-A CONTINUOUS-DUTY SPST SERIES Solenoid Relays Ordering Information 36 V 85 A SPST Grounded Solenoid Relay with 24 V Coil & Flat Bracket 71 Ω Normally Open BRACKET STYLE FLAT with holes of 5/16" x 19/32" (7.9 x 15.1 mm)on 2 13/64" (56 mm)centers 36 V 85 A SPST Grounded Solenoid Relay with 24 V Coil & Flat Bracket - Boxed 71 Ω Normally Open BRACKET STYLE FLAT with holes of 5/16" x 19/32" (7.9 x 15.1 mm)on 2 13/64" (56 mm)centers 12 V 200 A SPST Insulated Solenoid Relay 17.5 Ω Normally Open BRACKET STYLE FLAT with holes of 5/16" x 19/32" (7.9 x 15.1 mm)on 2 13/64" (56 mm)centers 24213-BP 12 V 200 A SPST Insulated Solenoid Relay with Potted Interior 17.5 Ω Normally Open BRACKET STYLE FLAT with holes of 5/16" x 19/32" (7.9 x 15.1 mm)on 2 13/64" (56 mm)centers 24213-BX 12 V 200 A SPST Insulated Solenoid Relay with PVC-Coated Housing 17.5 Ω Normally Open BRACKET STYLE FLAT with holes of 5/16" x 19/32" (7.9 x 15.1 mm)on 2 13/64" (56 mm)centers 24213-01 12 V 200 A SPST Insulated Solenoid Relay - Blister Pack 17.5 Ω Normally Open BRACKET STYLE FLAT with holes of 5/16" x 19/32" (7.9 x 15.1 mm)on 2 13/64" (56 mm)centers 24213-03 12 V 200 A SPST Insulated Solenoid Relay - Boxed 17.5 Ω Normally Open BRACKET STYLE FLAT with holes of 5/16" x 19/32" (7.9 x 15.1 mm)on 2 13/64" (56 mm)centers 24 V 200 A SPST Insulated Solenoid Relay 71 Ω Normally Open BRACKET STYLE FLAT with holes of 5/16" x 19/32" (7.9 x 15.1 mm)on 2 13/64" (56 mm)centers 24214-BX 24 V 200 A SPST Insulated Solenoid Relay - Boxed 71 Ω Normally Open BRACKET STYLE FLAT with holes of 5/16" x 19/32" (7.9 x 15.1 mm)on 2 13/64" (56 mm)centers 24063-06 36 V 85 A SPST Insulated Solenoid Relay with IP66 Rating 71 Ω Normally Open BRACKET STYLE FLAT with holes of 5/16" x 19/32" (7.9 x 15.1 mm)on 2 13/64" (56 mm)centers 24106-07 36 V 85 A SPST Grounded Solenoid Relay with IP66 Rating 17.5 Ω Normally Open BRACKET STYLE FLAT with holes of 5/16" x 19/32" (7.9 x 15.1 mm)on 2 13/64" (56 mm)centers 36 V 110 A SPST Latching Solenoid Relay with 12 V Coil 3.1 Ω LATCHED BRACKET STYLE FLAT with holes of 5/16" x 19/32" (7.9 x 15.1 mm)on 2 13/64" (56 mm)centers 3.1 Ω LATCHED BRACKET STYLE FLAT with holes of 5/16" x 19/32" (7.9 x 15.1 mm)on 2 13/64" (56 mm)centers 24124 24124-BX 24213 24214 24200 24200-BX 36 V 110 A SPST Latching Solenoid Relay with 12 V Coil - Boxed 3 Littelfuse.com © 2023 Littelfuse, Inc. 031423-A
