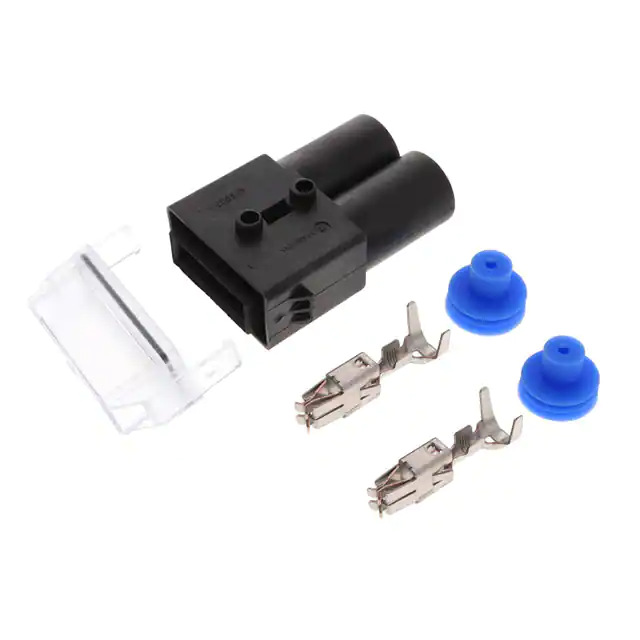

279.6850.0402

MAXI ® 152 SERIES 32V IN-LINE SPLASHPROOF BLADE FUSE HOLDER Specifications Max Voltage Rating: 32VDC Current Rating:  60A, 80A Fuse Type: MAXI® Blade Fuse Mounting Method:  In Line Fuse Holder Applications • Commercial Vehicle Circuit Protection • Accessory Circuits 01520003TXN941 Features and Benefits • Available in 60A and 80A MAXI® fuse holder configurations Description • Available with a splashproof IP54 or IP64 rating for water-resistant installation or with a waterproof rating of IP67 for installation in harsh environments The MAXI® 152 Series 32V In-Line Splashproof Blade Fuse Holder provides a simple way to install and protect a MAXI® blade-style fuse in a harsh automotive environment. The fuse holder cover and cable seals help to create a water-resistant fuse holder that protects the installed fuse (sold separately) against splashes and debris. • Heat-resistant fuse holder cover protects the installed fuse (sold separately) • Available with a UL 94 V-0 or UL 94 HB flammability rating The MAXI® 152 Series is available in 60A and 80A MAXI® fuse holder configurations. The fuse holder bodies are also available with and without molded mounting tabs. • Fuse holder body is available with and without molded mounting tabs Web Resources • Cable seals are available in various sizes to accommodate different wire gauges Download 2D print, installation guide and technical resources at: littelfuse.com/MAXI152 1 Littelfuse.com © 2022 Littelfuse, Inc. 090622-A MAXI ® 152 SERIES 32V IN-LINE SPLASHPROOF BLADE FUSE HOLDER Ordering Information PART NUMBER DESCRIPTION IGNITION PROTECTION IGNITION PROOF INGRESS RATING WIRE SIZE 01520003TXN 32V In-Line Splashproof Blade Fuse Holder - 80A, IP64 - - - - 01520003TXN941 32V In-Line Splashproof Blade Fuse Holder - 80A, IP64, 2.5 to 6 mm² Cable Seals HB UL-94 IP-64 Recommended in MM²: 2.5-6 01520003TXN942 32V In-Line Splashproof Blade Fuse Holder - 80A, IP64, 6 to 10 mm² Cable Seals HB UL-94 IP-64 - 01520003U 32V In-Line Fuse Holder Body - 80A, IP64 HB UL-94 IP-64 - 01520004Z 32V In-Line Fuse Holder Body with Mounting Tabs (Hole & Slot) - 60A - - - - 01520005Z 32V In-Line Fuse Holder Body with Mounting Tabs - 60A - - - - 01520006Z 32V In-Line Fuse Holder Body - 60A - - - - 01520008Z 32V In-Line Fuse Holder Body with Mounting Tabs - 80A - - - - 01520009Z 32V In-Line Fuse Holder Body - 80A V-0 UL-94 - - 01520010Z 32V In-Line Waterproof Blade Fuse Holder with Set Screw - 60A, IP67 V-0 UL-94 IP-67 01520903TXN Heat-Resistant Cover for MAXI 152 Series 32V In-Line Blade Fuse Holder - - - - 01520903U Heat-Resistant Cover for MAXI® 152 Series 32V In-Line Blade Fuse Holder - - - - 279.6805.0602 32V In-Line Blade Fuse Holder - 80A, 6 to 10 mm² Cable Seals V-0 UL-94 - 6-10 mm2 279.6850.0402 32V In-Line Splashproof Blade Fuse Holder - 80A, IP54, 4 mm² Cable Seals V-0 UL-94 IP-54 4 mm2 279.6850.0602 32V In-Line Splashproof Blade Fuse Holder - 80A, IP54, 6-10 mm² Cable Seals V-0 UL-94 IP-54 6-10 mm2 279.6850.1602 32V In-Line Splashproof Blade Fuse Holder - 80A, IP54, 16 mm² Cable Seals V-0 UL-94 IP-54 16 mm2 868-095 12-14 Gauge Cable Seal for MAXI® 152 Series Fuse Holder - - - - 868-096 8-10 Gauge Cable Seal for MAXI® 152 Series Fuse Holder - - - - ® 2 Littelfuse.com © 2022 Littelfuse, Inc. 090622-A
