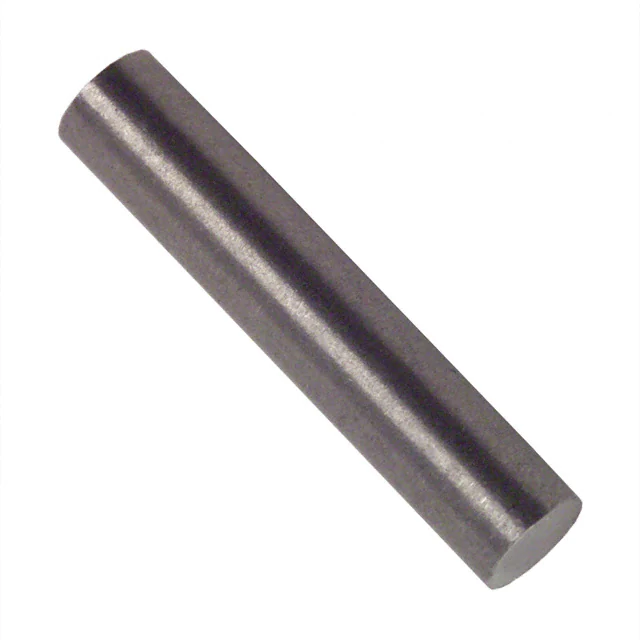

315-MAGNET

Magnets and Actuators Magnetic Actuators Description Littelfuse offers a wide range of magnetic actuators that are packaged in shapes similar to the relative mating sensors. We also offer a limited family of bare magnets with various grades of materials, including ferrite (ceramic), AlNiCo and neodymium iron boron (NdFeB) materials. Rectangular Actuators These rectangular bare magnets and packaged actuators are ideally suited for mounting on a flat surface. They are suitable for use in a wide range of environments, including high-temperature applications. Overall Dimensions Recommended Operating Temp. Retentivity Coercivity Gauss Oersted Max. AlNiCo-5 10,900 620 450 AlNiCo-5 10,900 620 450 19.10 (0.750) x 3.20 (0.120) x 3.20 (0.120) AlNiCo-5 10,900 620 450 AlNiCo Magnet 25.40 (1.000) x 6.35 (0.250) x 6.35 (0.250) AlNiCo-5 10,900 620 450 H-40 Neodymium Magnet 7.62 (0.300) x 3.18 (0.125) x 3.18 (0.125) NdFeB 45H 13,300 11,800 120 H-41 Neodymium Magnet 19.05 (0.750) x 3.18 (0.125) x 3.18 (0.125) NdFeB 35H 11,700 10,800 120 H-58 Neodymium Magnet 21.00 (0.827) x 7.00 (0.276) x 4.70 (0.185) NdFeB 35H 11,700 10,800 120 57105 Actuator for Terminal Flange Mount Sensor 40.17 (1.582) x 19.05 (0.750) x 6.35 (0.250) AlNiCo-5 11,000 620 105 57125 Actuator for Pinned Flange Mount Sensor 28.57 (1.125) x 19.05 (0.750) x 6.35 (0.250) AlNiCo-5 11,000 620 105 57135 Actuator for High-Temp Flange Mount Sensor 28.57 (1.125) x 19.05 (0.750) x 6.35 (0.250) AlNiCo-5 12,800 640 150 57140 Actuator for Mini Flange Mount Sensor 23.00 (0.906) x 14.00 (0.551) x 6.00 (0.236) AlNiCo-5 11,000 620 105 57141 Actuator for Mini Flange Mount Sensor 23.00 (0.906) x 14.00 (0.551) x 6.00 (0.236) AlNiCo-5 11,000 620 105 57142 Actuator for Mini Flange Mount Sensor 23.00 (0.906) x 14.00 (0.551) x 6.00 (0.236) NdFeB 35H 11,700 10,800 105 57145 Actuator for Flange Mount Sensor 28.57 (1.125) x 19.05 (0.750) x 6.35 (0.250) AlNiCo-5 11,000 620 105 57150 Actuator for Flange Mount Sensor 28.57 (1.125) x 19.05 (0.750) x 6.35 (0.250) AlNiCo-5 11,000 620 105 57045 Actuator for Mini PCB Mount Overmolded 17.78 (0.700) x 3.30 (0.130) x 4.32 (0.170) AlNiCo-5 11,000 620 105 57050 Actuator for PCB Mount Overmolded 22.86 (0.900) x 4.57 (0.180) x 4.57 (0.180) AlNiCo-5 11,000 620 105 Product Series Description H-31 AlNiCo Magnet 12.70 (0.500) x 1.60 (0.062) x 1.60 (0.062) H-32 AlNiCo Magnet 25.40 (1.000) x 4.80 (0.190) x 4.80 (0.190) H-33 AlNiCo Magnet H-34 mm (inch) Material LxWxH ˚C Cylindrical Actuators Designed for mounting on a frame, these cylindrical bare magnets and packaged actuators are appropriate for use in a wide range of environments, including high-temperature applications. Overall Dimensions Product Series Description H-35 H-48 CM-1 H-36 H-315 H-420 H-625 57020 57022 57025 57030 57040 57060 57065 57070 57075 Neodymium Magnet Neodymium Magnet Ceramic Magnet AlNiCo Magnet AlNiCo Magnet AlNiCo Magnet AlNiCo Magnet Actuator for Mini Firecracker Actuator for Firecracker Actuator for Firecracker Actuator for Long Firecracker Actuator for Firecracker with Retaining Ribs Actuator for Stainless Steel Threaded Barrel Sensor Actuator for Threaded Barrel Sensor (Standard) Actuator for Threaded Barrel Sensor (Metric) Actuator for Heavy Duty Threaded Barrel Sensor mm (inch) Material ØxL © 2015 Littelfuse Revised: 11/03/15 Specifications are subject to change without notice. 6.35 (0.250) x 6.35 (0.250) 4.40 (0.173) x 6.00 (0.236) 12.70 (0.500) x 5.08 (0.200) 4.60 (0.182) x 25.40 (1.000) 3.00 (0.118) x 15.00 (0.590) 4.00 (0.157) x 20.0 (0.787) 6.00 (0.236) x 25.0 (0.984) 5.10 (0.201) x 15.24 (0.600) 5.80 (0.228) x 25.40 (1.000) 6.22 (0.245) x 25.40 (1.000) 6.22 (0.245) x 38.10 (1.500) 10.70 (0.420) x 31.00 (1.220) M8 x 1.25 Pitch x 36.00 (1.420) (5/16 x 24) Pitch x 38.10 (1.500) M8 x 1.25 Pitch x 38.10 (1.500) M12 x 1.00 Pitch x 46.00 (1.810) NdFeB 35H NdFeB 35SH Ceramic-5 AlNiCo-5 AlNiCo-5 AlNiCo-5 AlNiCo-5 AlNiCo-5 AlNiCo-5 AlNiCo-5 AlNiCo-5 NdFeB 35H AlNiCo-5 AlNiCo-5 AlNiCo-5 Ceramic-2 Recommended Operating Temp. Retentivity Coercivity Gauss Oersted Max. 11,700 11,700 3,900 12,800 11,000 11,000 11,000 11,000 11,000 11,000 11,000 11,700 11,000 11,000 11,000 2,900 10,800 10,800 2,400 640 620 620 620 620 620 620 620 10,800 620 620 620 2,400 120 150 250 450 450 450 450 105 105 105 105 105 105 105 105 105 ˚C littelfuse.com
