Fuse Block Datasheet
559/560 Series
Fuse Blocks for TE5/TR5 Type Fuses
RoHS
Product Characteristics
560 Series Holder
559 Series Holder
Additional Information
559 Series (Lead Free)
560 Series
Compatible
Fuses
TR5/TE5
TR5/TE5
Materials
Holder: Black
Holder: Thermoplastic,
Thermoplastic, UL94 V-0 UL 94 V-0
Metal Parts: Copper alloy; solderable tinned
Electrical Data Rated Voltage: 250V
(23ºC)
Max. Current/Power: 6.3 A /1.6 W
Mounting
PC Board, 7.18 mm pin
spacing
PC Board, 5.08 mm pin
spacing
Solderability
max. 260 ºC, 10 s (Wave)
Minimum
Cross Section
Conducting path - 0.1 mm2
Unit Weight
0.63 g
Ambient
Temperature
-40 °C to +85 °C
0.4 g
Ordering Information
Ordering Number
Resources
559 Series
Resources
560 Series
Accessories
559 Series
Samples
559 Series
Accessories
560 Series
55900000001
“A” Height Options
Packaging
6.5 mm (code 0001)
1000 Pcs Bulk
55900008011
10 mm (code 8011)
100 Pcs Bulk
56000001319
3.0 mm (code 1319)
500 Pcs Bulk
56000001009
4.3 mm (code 1009)
500 Pcs Bulk

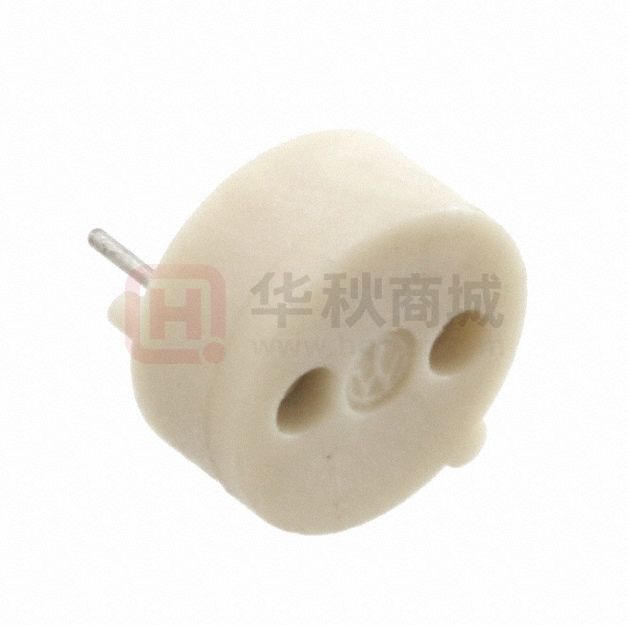

56000001019
4.3 mm (code 1019)
1000 Pcs Bulk
Samples
560 Series
Dimensions (Units in mm)
559 Series
Agency Approvals
Ø 10
A
N/A
40041024
3.8
N/A
E14721
7.18
1.2
R0.
3
1±0.1
5.2±0.1
7.18
1.3±0.1
560 Series
0.5
559 Series
0.9
Mounting Dimensions
560 Series
Ø 9.5
A
1.3
3.03
Application testing is strongly recommended.1
1.4
5.08
5.08
Ø1
Ø 0.5
R0.75
45
1±0.1
Agency
Agency File Number
Mounting Dimensions
© 2021 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: GD. 05/17/21
Fuse Block Datasheet
559/560 Series
Fuse Blocks for TE5/TR5 Type Fuses
Soldering Parameters - Wave Soldering
Recommended Process Parameters:
280
260
Wave Parameter
240
220
Lead-Free Recommendation
Preheat:
200
(Depends on Flux Activation Temperature)
180
160
140
120
100
80
60
40
230
Time (Seconds)
Cooling Time
Preheat Time
(Typical Industry Recommendation)
Temperature Minimum:
100° C
Temperature Maximum:
150° C
Preheat Time:
60-180 seconds
Solder Pot Temperature:
280° C Maximum
Solder Dwell Time:
2-5 seconds
Recommended Hand-Solder Parameters:
Solder Iron Temperature: 350° C +/- 5°C
Heating Time: 5 seconds max.
240
220
210
200
190
180
170
160
150
140
130
120
110
90
100
80
70
60
50
40
20
0
0
30
20
10
Temperature (°C) - Measured on bottom side of board
300
Dwell Time
Note: These devices are not recommended for IR or Convection Reflow process.
