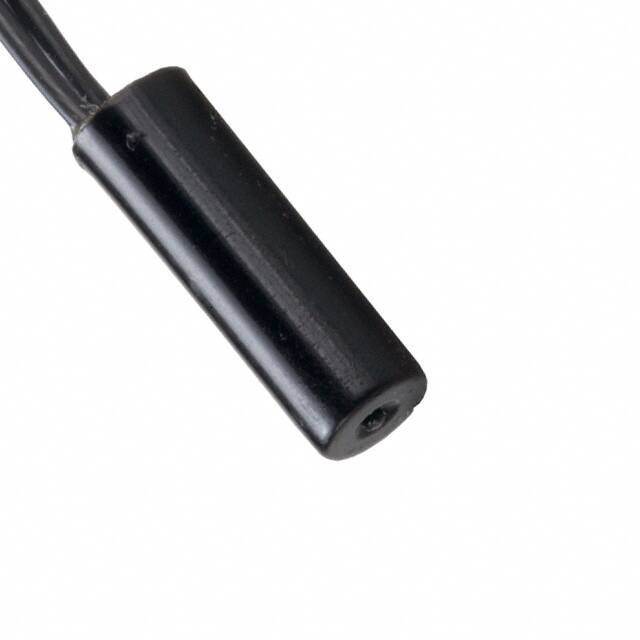

Reed Sensors Firecracker > 59010 59010 Sub-Miniature Firecracker Reed Sensor + 57020 Actuator Description The 59010 Firecracker Reed Sensor is a sub-miniature cylindrical reed sensor 9.0mm L x 3.0mm Dia. (0.354” x 0.118”) with a normally open contact. It is capable of switching up to 170Vdc at 10W and has cable length and connector options. It functions best with the 57020-000 actuator. Sensors Note: The 57020 Actuator is sold separately. Features • Magnetically operated proximity sensor • Compact size requires only 3mm diameter hole Actuator • Hermetically sealed contacts • Custom cable length and connector options available Benefits Dimensions • Well suited for usage in highmoisture and contaminated environments • Non-contact solution, aesthetically more appealing than push-button or lever mechanical-type switches • Simple installation and adjustment • No standby power requirement Dimensions in mm (inch) A A B A Nom. • Ideal for battery-powered applications as the contacts do not draw power when in the nonactivated state • Reed contacts last for millions of operating cycles under microcontroller logic-level loads C B Nom. C Nom. mm(in) mm(in) mm(in) 57020 Actuator 5.10 (.201) 15.24 (.600) -- 59010 Sensor 3.00 (.118) 9.00 (.354) Cable Length ±10.00 (.393) © 2019 Littelfuse Revised: 02/08/19 Specifications are subject to change without notice. Applications • Position and Limit Sensing • Security System Switch • Level Sensing • Linear Actuators littelfuse.com Reed Sensors Firecracker > 59010 59010 Sub-Miniature Firecracker Reed Sensor + 57020 Actuator Electrical Ratings Contact Type Normally Open Switch Type 1 VA/Watt - max. 5 Vdc - max. Vac - max. Vdc - min. 175 140 200 Carry Adc - max. Aac - max Adc - max. 0.35 0.25 0.50 Contact, Initial Insulation Ω - max. Ω - min. 0.550 1012 Capacitance Contact pF - typ. 0.45 Temperature Operating °C -40 to +85 Contact Rating 1 Switching Voltage 2 4 Breakdown Switching Current 3 2 4 Resistance 5 Product Characteristics Operate Time 6 ms - max. 0.35 Release Time 6 ms - max. 0.03 11ms 1⁄2 sine G - max. 50 10-2000 Hz G - max. 10 Shock 7 Vibration 7 Notes: 1. Contact rating - Product of the switching voltage and current should never exceed the wattage rating. Contact Littelfuse for additional load/life information. 2. When switching inductive and/or capacitive loads, the effects of transient voltages and/or currents should be considered. Refer to Application Notes AN108A and AN107 for details. 3. Breakdown Voltage - per MIL-STD-202, Method 301. 4. Electrical Load Life Expectancy - Contact Littelfuse with voltage, current values along with type of load. 5. This resistance value is for 11.81mm wire length. Resistance changes when wire lengthens. 6. Operate (including bounce)/Release Time - per EIA/NARM RS-421-A, diode suppressed coil (Coil II). 7. Shock and Vibration - per EIA/NARM RS-421-A and MIL-STD-202. 8. For custom modifications to the wire length or size, or adding a special connector, please contact Littelfuse. Sensitivity Options (Using 57020 Actuator) Select Option S Switch Type 1 Normally Open T Pull-In AT Range Activate Distance - D mm (inch) Average Pull-In AT Range Activate Distance - D mm (inch) Average 6-10 6.3 (.248) 10-15 4.9 (.193) Note: 1. Pull-In AT Range: These AT values are the bare reed switch AT before modification. 2. The activation distance is average value on the final sensor assembly. Sensor Actuator D © 2019 Littelfuse Revised: 02/08/19 Specifications are subject to change without notice. littelfuse.com Reed Sensors Firecracker > 59010 59010 Sub-Miniature Firecracker Reed Sensor + 57020 Actuator Cable Length Specification Part Numbering System (Cable Type 30 AWG 7/38 PTFE 200ºC MIL-W-16878/6) Select Option Cable Length mm (inch) 02 300 (11.81) Sensor: 59010 - 1 - X - XX - X Series Termination Options Select Option Description A Tinned Leads F Untinned Leads Switch Type Sensitivity S or T Cable Length 02 Termination A or F 57020 - 000 Actuator: Series Standard Actuator 000 Note: The 57020 Actuator is sold separately. Packaging Packaging Option Bulk Packaging Specification Bulk Quantity 500 Quantity & Packaging Code N/A Taping Width N/A Disclaimer Notice - Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability of and test each product selected for their own applications. Littelfuse products are not designed for, and may not be used in, all applications. Read complete Disclaimer Notice at www.littelfuse.com/disclaimer-electronics. © 2019 Littelfuse Revised: 02/08/19 Specifications are subject to change without notice. littelfuse.com
