Reed Sensor Datasheet
59022 Reed Sensor
Description

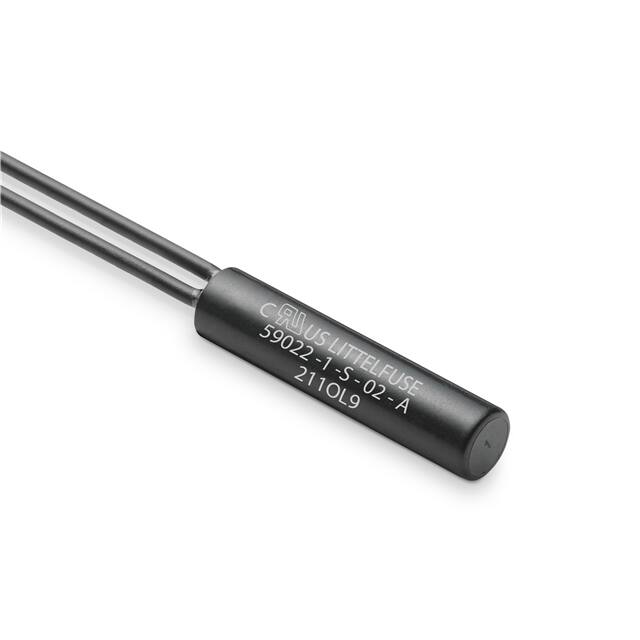

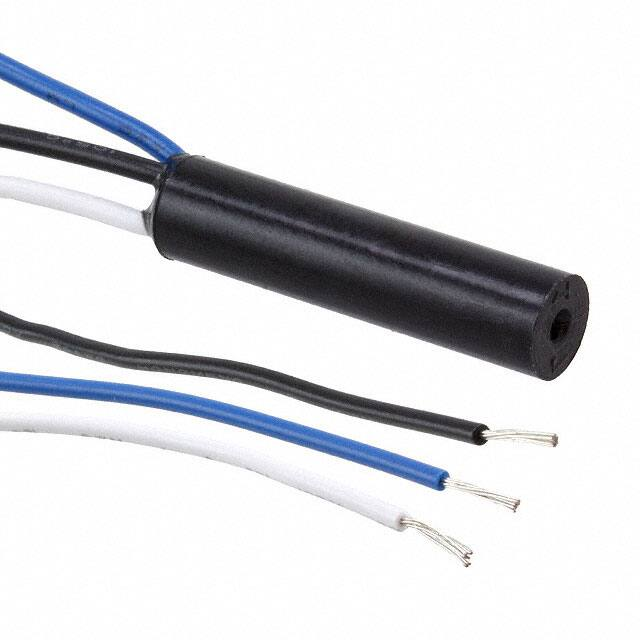

The 59022 Reed Sensor is a small cylindrical reed sensor, 25.4
mm (L) x 5.80 mm (Dia.) (1.00” x 0.228”), with a choice of
normally open, normally closed or change-over contacts. It is
capable of switching up to 200 Vdc at 10 W.
The 59022 Reed Sensor is available with a range of sensitivity and
cable length options. It is well suited for use in a wide range of
industrial, appliances, or IoT proximity sensing applications. It
functions best with the 57022 actuator.
Features & Benefits
■ Non-contact switching
solution for wet & harsh
environments
■ No leakage current in ‘open’
state−ideal for batterypowered IoT applications
Additional Information
Resources
Accessories
Samples
■ Available in select sensitivities
(operating distances)
■ Helps implement efficient
proximity/access and energy
management systems
■ Standard cable
configurations; customization
options available
■ Compact size and easy
installation and effective
concealment in many
applications
■ UL Recognized per UL 508
and CSA C22.2 No. 14.
■ Hermetically sealed, IP67
rated; UL and
REACH compliant
Agency Approvals
Agency
■ Can operate through
non-ferrous materials (for
example, wood, plastic, or
aluminum)
Agency File Number
Applications
E61760
Note: Contact Littelfuse for specific agency approval ratings.
1
■ Security and access control
■ Major appliances
■ Factory automation
■ Small appliances
■ Process equipment
■ Proximity and limit sensing
© 2021 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: BA.07/08/21
Reed Sensor Datasheet
59022 Reed Sensor
Package Dimensions
Material Specifications
Dimensions in mm (inch)
Product
57025 Actuator
59025 Sensor
A Nom. mm[in]
B Nom. mm[in]
Product
Housing
Material
Color
Sealing
Component
6.22
[0.245
6.22
[0.245
25.4 +/- 0.25
[1.00 +/- 0.010]
25.4 +/- 0.25
[1.00 +/- 0.010]
57022 Actuator
20% GF P.B.T
Black
Epoxy
59022 Sensor
20% GF P.B.T
Black
Epoxy
+/+/+/+/-
0.25
0.010]
0.25
0.010]
A
A
B
Electrical Ratings
Contact Type
Switch Type
Normally Open
Change Over
Normally Closed
-
-
1
3
4
-
VA/Watt - max.
10
5
5
Vdc - max.
Vac - max.
Vdc - min.
200
140
250
175
120
200
175
120
200
Capacitance
Carry
Contact, Initial
Insulation
Contact
Adc - max.
Aac - max.
Adc - max.
Ω - max.
Ω - min.
pF - typ.
0.5
0.35
1.2
0.2
1010
0.3
0.25
0.18
1.5
0.2
109
0.3
0.25
0.18
1.5
0.2
109
0.3
Temperature
Operating
°C
-40 to +105
-40 to +105
-40 to +105
Contact Rating
Voltage
Current
1
Switching
2
4
Breakdown
Switching
3
2
4
Resistance
5
Product Characteristics
Operate Time
6
-
ms - max.
1.0
3.0
3.0
Release Time
6
-
ms - max.
1.0
3.0
3.0
11ms 1⁄2 sine
G - max.
100
50
50
50-2000 Hz
G - max.
30
30
30
Shock
7
Vibration
7
Notes:
1. Contact rating - Product of the switching voltage and current should never exceed the wattage rating.
4. Electrical Load Life Expectancy - Contact Littelfuse with voltage, current values along with type of load.
Contact Littelfuse for additional load/life information.
5. This resistance value is for 300 mm wire length. Resistance changes when wire lengthens.
2. When switching inductive and/or capacitive loads, the effects of transient voltages and/or currents should 6. Operate (including bounce)/Release Time - per EIA/NARM RS-421-A, diode suppressed coil (Coil II).
be considered. Refer to Application Notes AN108A and AN107 for details.
7. Shock and Vibration - per EIA/NARM RS-421-A and MIL-STD-202.
3. Breakdown Voltage - per MIL-STD-202, Method 301. Leakage current is less than 0.1m A for 60 seconds.
2
© 2021 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: BA.07/08/21
Reed Sensor Datasheet
59022 Reed Sensor
Sensitivity Options
Select Option
S
Switch Type
Pull-In AT
Range
Activation
Distance
(mm)
T
Deactivation
Distance
(mm)
Pull-In AT
Range
U
Activation
Distance
(mm)
Deactivation
Distance
(mm)
Pull-In AT
Range
Activation
Distance
(mm)
Deactivation
Distance
(mm)
1
Normally Open
12-18
5-14
6-16
17-23
4-11
6-15
22-28
1-8
5-11
3
Change Over
15-20
3-11
5-16
20-25
3-10
4-13
25-30
2-9
4-13
4
Normally Closed
15-20
4-11
5-16
20-25
3-9
4-11
25-30
2-8
4-10
Note:
1. Measurments are from 57022 Nominal Actuator
2. Pull-In AT Range: These AT values are the bare reed switch AT before modification.
3. Not recommended to be mounted within/near ferrous materials; if doing so these activate & deactivate
distances will decrease significantly
Schematics
Switch Type
Black
Sensor
1
Black
Actuator
Black
Blue
Red
3
Black
Termination Specification
Cable Length Specification
Cable Type: 24 AWG 7/32 PVC 105°C UL1430/UL1569
02
300 +/- 10.00 [11.81 +/- 0.394]
Select
Option
05
1000 +/- 10.00 [39.37 +/- 0.394]
A
Options
Cable Length mm [inch]
Packaging
Cable Length
Packaging Specification
4
Black
D
Termination Options
Description
(Two-wire versions illustrated)
Tinned leads (6.4±0.76)mm
Part Numbering System
59022 - X - X - XX - X
Quantity
02
Bulk
2000
05
Bulk
1500
Actuator
57022 - 000
Series
Sensor
Package Markings
Standard Actuator
000
Series
Switch Type
1, 3, or 4
Sensitivity
S, T, or U
Cable Length
02, 05
Termination
A
LITTELFUSE
59022-X-X-XX-X
YYWWL9
Part Number
Date Code
YYWW
