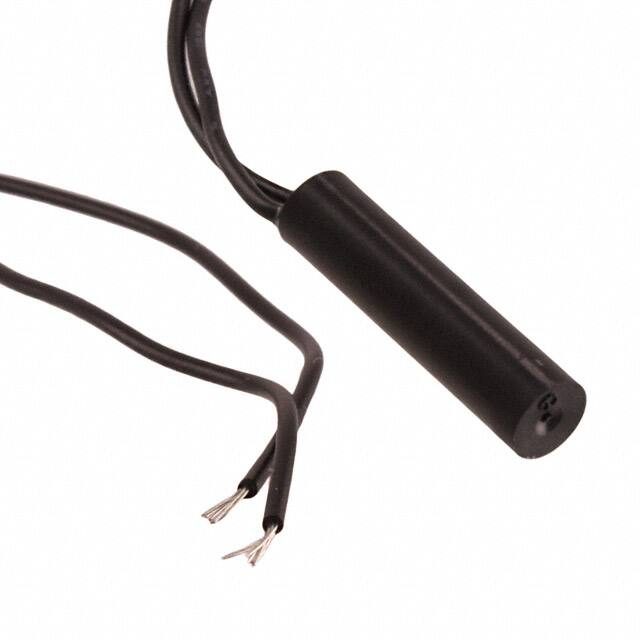

59025-040

www.breedelectronics.com 59020 and 59025 Firecracker Features and Benefits 57020,57025 Actuator F eatures Benefits Applications • 2 Part Magnetically Operated • Quick and easy to install • No standby power requirement • Operates through non-ferrous • • • • Proximity Sensor 304mm (12") lead outs UL Recognised Choice of normally open, normally closed or change over switching Subminiature version also available • • • 59020,59025 Sensor • materials such as wood,plastic or aluminium • Hermetically sealed,magnetically operated contacts continue to operate long after optical and other technologies fail due to contamination Position and limit sensing Security Level sensing Linear actuators DIMENSIONS 57020 57025 A Max B Max C + .250 (15,24) (.201) 5,10 (.245) 6,22 (.600) 15,24 (1.00) 25,4 - 59020 (.201) 5,10 (.650) 16,4 (12.00) 304,8 59025 (.201) 6,22 (1.00) 25,4 (12.00) 304,8 File E61760(N) Recommended Activating Positions: Sensors and Matching Actuators (Note 2) Must Actuator Sensor Must Actuate Release .100 (2,54) .300 (7,62) 57020-000 59020-010 — — — — .150 (3,81) .800 (20,32) 57025-000 — 59025-010 59025-020 59025-030 59025-040 Electrical Specifications and Operating Characteristics Contact Type F orm A F orm A F orm A F orm C SPST-NO SPST-NO SPST-NO SPDT-CO High Volta ge Standar d Signal Le vel Contact Rating Standar d F orm B SPST-NC Standar d Watt - max. 3 10 10 5 5 Switching Vdc - max. 100 200 300 175 175 Breakdown Vdc - min. 170 250 450 200 200 A - max. 0.25 0.5 0.5 0.25 0.25 Carry A - max. 0.5 1.2 1.5 1.5 1.5 Contact,Initial Ω - max. 0.2 0.2 0.2 0.2 0.2 Insulation Ω - min. 1010 1010 1010 109 109 Capacitance Contact p F - typ. 0.2 0.3 0.2 0.3 0.3 Temperature Operating °C -40 to + 105 -40 to + 105 -20 to + 105 -40 to + 105 -40 to + 105 Storage °C -65 to + 105 -65 to + 105 -65 to + 105 -65 to + 105 -65 to + 105 Operate ms - typ. 1.0 1.0 1.0 1.0 1.0 Release ms - typ. 1.0 1.0 1.0 1.0 1.0 Shock 11ms 1⁄2 sine G - max. 100 100 100 50 50 Vibration 50-2000 Hz G - max. 30 30 30 30 30 Voltage Current Switching Resistance Time Notes: 1.Flying Leads 59025 are 24 AWG 7/32 PVC, 105 deg. C.,UL 1569.Leads are stripped .250 (6,35),untinned. 59020 26 AWG,UL 1569 2.Order Actuators as a separate item. 3. Underwriters Laboratories recognition. For details on electrical specifications,contact Hamlin,Inc. Breed Electronics USA Breed Electronics UK Tel: Tel: Breed Electronics German y Tel: Breed Electronics France Tel: INFORMATION PROVIDED ON THIS DATA SHEET IS PROVIDED FOR INFORMATION PURPOSES ONLY AND SHOULD NOT BE RELIED UPON AS BEING ACCURATE FOR ANY PARTICULAR PURPOSE. Product performance may be affected by the application to which the product is put. Upon request,HAMLIN will assist purchasers by providing information specific to any particular application.HAMLIN disclaims any and all liability whatsoever for any purchaser’s reliance upon the information contained on this data sheet without further consultation with authorised representatives of HAMLIN. 001 920 648 3000 • Fax:001 920 648 3001 • Email: sales@hamlin.com +44 (0)1379 649700 • Fax:+44 (0)1379 649702 • Email: uksales@breedtech.com +49 (0) 6181 953660 • Fax:+49 (0) 6181 9536666 • Email: hamlin-electronics.de@breedtech.com +33 1 46 87 02 02 • Fax:+33 1 46 86 67 86 • Email: hamectrol@hamectrol.fr PA GE 1 OF 1 ISSUE No: DATE:08/12/00 SIGNED:
