Reed Sensor Datasheet
59025 Reed Sensor
Description

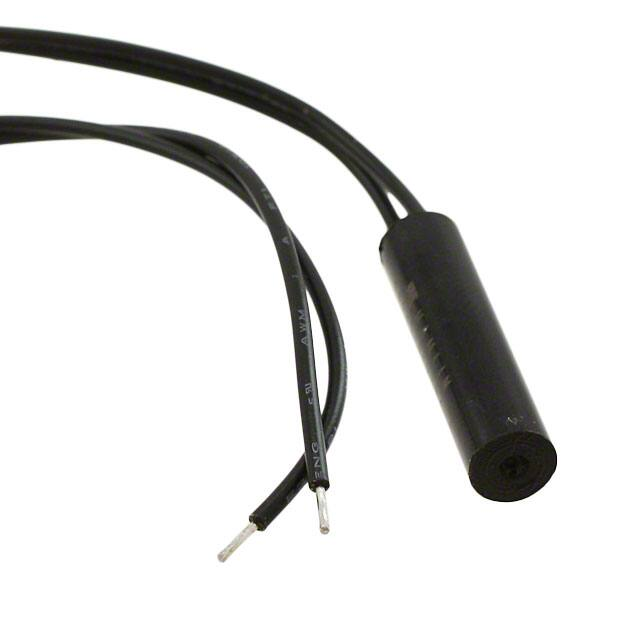

The 59025 Reed Sensor is a small cylindrical reed sensor, 25.4
mm (L) x 6.22 mm (Dia.) (1.00” x 0.245”), with a choice of
normally open, normally closed or change-over contacts. It is
capable of switching up to 265 Vac/300 Vdc at 10 VA. The 59025
Reed Sensor is available with a range of sensitivity and cable
length options. It is well suited for use in a wide range of industrial,
appliances, or IoT proximity sensing applications.
It functions best with the 57025 actuator.
Features & Benefits
■ Non-contact switching
solution for wet &
harsh environments
■ No leakage current in ‘open’
state−ideal for batterypowered IoT applications
Additional Information
Resources
Accessories
Samples
■ Available in select sensitivities
(operating distances)
■ Helps implement efficient
proximity/access and energy
management systems
■ Standard cable
configurations; customization
options available
■ Compact size and easy
installation and effective
concealment in
many applications
■ UL Recognized per UL 508
and CSA C22.2 No. 14.
■ Hermetically sealed, IP67
rated; UL and
REACH compliant
Agency Approvals
Agency
■ Can operate through
non-ferrous materials (for
example, wood, plastic,
or aluminum)
Applications
Agency File Number
E61760
Note: Contact Littelfuse for specific agency approval ratings.
1
■ Security and access control
■ Major appliances
■ Factory automation
■ Small appliances
■ Process equipment
■ Proximity and limit sensing
© 2021 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: GD. 10/05/21
Reed Sensor Datasheet
59025 Reed Sensor
Package Dimensions
Material Specifications
Dimensions in mm (inch)
Product
57025 Actuator
59025 Sensor
A Nom. mm[in]
B Nom. mm[in]
Product
Housing
Material
Color
Sealing
Component
6.22
[0.245
6.22
[0.245
25.4 +/- 0.25
[1.00 +/- 0.010]
25.4 +/- 0.25
[1.00 +/- 0.010]
57025 Actuator
30% GF P.B.T
Black
Epoxy
59025 Sensor
30% GF P.B.T
Black
Epoxy
+/+/+/+/-
0.25
0.010]
0.25
0.010]
A
A
B
Electrical Ratings
Switch Type
-
-
1
Normally Open
HighVoltage
2
Contact Rating1
-
VA/Watt - max.
10
10
5
5
Switching2
Vdc - max.
Vac - max.
Vdc - min.
200
140
250
300
265
400
175
120
200
175
120
200
Carry
Adc - max.
Aac - max.
Adc - max.
0.5
0.35
1.2
0.4
0.30
1.4
0.25
0.18
1.5
0.25
0.18
1.5
Capacitance
Contact, Initial
Insulation
Contact
Ω - max.
Ω - min.
pF - typ.
0.2
1010
0.3
0.2
1010
0.2
0.2
109
0.3
0.2
109
0.3
Temperature
Operating
°C
-40 to +105
-20 to +105
-40 to +105
-40 to +105
Contact Type
Voltage4
Breakdown3
Switching2
Current4
Resistance
5
Normally Open
Change Over
Normally Closed
3
4
Product Characteristics
Operate Time
6
-
ms - max.
1.0
1.0
3.0
3.0
Release Time6
-
ms - max.
1.0
1.0
3.0
3.0
Shock7
11ms 1⁄2 sine
G - max.
100
100
50
50
Vibration7
50-2000 Hz
G - max.
30
30
30
30
Notes:
1. Contact rating - Product of the switching voltage and current should never exceed the wattage rating
Contact Littelfuse for additional load/life information.
2. When switching inductive and/or capacitive loads, the effects of transient voltages and/or currents
should be considered. Refer to Application Notes AN108A and AN107 for details.
3. Breakdown Voltage - per MIL-STD-202, Method 301. Leakage current is less than 0.1 mA for 60 seconds.
4. Electrical Load Life Expectancy - Contact Littelfuse with voltage, current values along with type of load.
5. This resistance value is for 300 mm wire length. Resistance changes when wire lengthens.
6. Operate (including bounce)/Release Time - per EIA/NARM RS-421-A, diode suppressed coil (Coil II).
7. Shock and Vibration - per EIA/NARM RS-421-A and MIL-STD-202.
2
© 2021 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: GD. 10/05/21
Reed Sensor Datasheet
59025 Reed Sensor
Sensitivity Options
Select Option
S
T
Pull-In
AT
Range
1 Normally Open
12-18
5-14
6-16
17-23
4-11
6-15
22-28
1-8
4-13
27-33
0.5-7
3-13
--
--
--
17-23
3-9
5-12
22-28
2-9
4-13
27-33
0.5-7
3-13
High Voltage
3
Change Over
4 Normally Closed
Pull-In
AT
Range
Activation Deactivation
Distance
Distance
(mm)
(mm)
Pull-In
AT
Range
V
Switch Type
2
Activation Deactivation
Distance
Distance
(mm)
(mm)
U
Activation Deactivation
Distance
Distance
(mm)
(mm)
Pull-In
AT
Range
Activation Deactivation
Distance
Distance
(mm)
(mm)
15-20
3-11
5-16
20-25
3-10
4-13
25-30
2-9
4-13
27-33
--
--
15-20
4-11
5-16
20-25
3-9
4-11
25-30
2-8
4-10
27-33
--
--
Note:
1. Measurments are from 57025 Nominal Actuator
2. Pull-In AT Range: These AT values are the bare reed switch AT before modification.
3. Not recommended to be mounted within/near ferrous materials; if doing so these activate & deactivate
distances will decrease significantly
Schematics
Sensor
Actuator
Switch Type
Black
1, 2
Black
Black
Blue
White
3
Black
Cable Length Specification
Termination Specification
Cable Type: 24 AWG 7/32 PVC 105°C UL1430/UL1569
Options
Termination Options
Cable Length mm [inch]
02
300 +/- 10.00 [11.81 +/- 0.394]
05
1000 +/- 10.00 [39.37 +/- 0.394]
Select Option
A
Packaging Specification
Description (Two-wire versions illustrated)
Tinned leads (6.4±0.76) mm
Packaging
Cable Length
4
Black
D
Part Numbering System
59025 - X - X - XX - X
Quantity
02
Bulk
2000
05
Bulk
1500
Sensor
Package Markings
Series
Switch Type
1, 2, 3, or 4
Sensitivity
S, T, U, or V
Cable Length
02, 05
Termination
A
LITTELFUSE
59025-X-X-XX-X
YYWW
Part Number
Date Code
YYWW
Actuator
57025 - 000
Series
Standard Actuator
000
