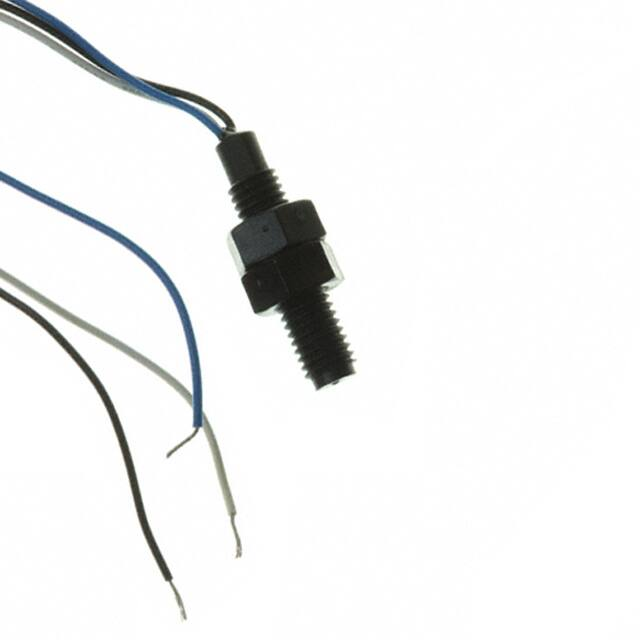

Reed Sensors Firecracker > 59070 59070 M8 Plastic Threaded Barrel Sensor + 57070 Actuator Description The 59070 is a small plastic barrel sensor with a M8 x 1.25 thread, 38.1mm (1.500”) long with a choice of normally open, normally open high voltage, normally closed or change over contacts. It is capable of switching up to 265Vac/300Vdc at 10VA. It functions best with the 57070 actuator. Sensor Note: The 57070 Actuator is sold separately. Actuator Features • Two-part magnetically operated proximity sensor • Threaded barrel with retaining nuts • Available as M8 (57070/59070) or 5/16 (57065/59065) size options Agency Approvals Agency • Customer defined sensitivity option • Choice of cable length and connector Agency File Number Benefits E61760 • Simple installation and adjustment using supplied retaining nuts • Operates through non-ferrous materials such as wood, plastic or aluminium Note: Contact Littelfuse for specific agency approval ratings. Dimensions • Excellent for switching microcontroller logic level loads. • No standby power requirement Dimensions in mm (inch) Actuator Applications M8 x 1.25 (57070) 5/16 x 24THD (57065) • Position and Limit Sensing • Security System Switch 31.75 (1.250) 38.10 (1.500) Sensor • Industrial Process Control • Linear Actuators 5.56 (.219) M8 x 1.25 (59070) 5/16 x 24 THD (59065) 31.75 (1.250) 38.10 (1.500) 6.35 NOM. (.250) 300±10.00 (11.81±.394) 5.56 (.219) Different cable options available. © 2017 Littelfuse Revised: 12/18/17 Specifications are subject to change without notice. littelfuse.com Reed Sensors Firecracker > 59070 59070 M8 Plastic Threaded Barrel Sensor + 57070 Actuator Electrical Ratings Contact Type Normally Open Switch Type Normally Open HighVoltage Change Over Normally Closed 1 2 3 4 VA/Watt - max. 10 10 5 5 Vdc - max. Vac - max. Vdc - min. 200 140 250 300 265 400 175 120 200 175 120 200 Carry Adc - max. Aac - max. Adc - max. 0.5 0.35 1.2 0.4 0.30 1.4 0.25 0.18 1.5 0.25 0.18 1.5 Contact, Initial Insulation Ω - max. Ω - min. 0.2 1010 0.2 1010 0.2 109 0.2 109 Capacitance Contact pF - typ. 0.3 0.2 0.3 0.3 Temperature Operating °C -40 to +105 -20 to +105 -40 to +105 -40 to +105 Contact Rating Voltage 4 Current 4 1 Switching 2 Breakdown Switching Resistance 5 3 2 Product Characteristics Operate Time 6 ms - max. 1.0 1.0 3.0 3.0 Release Time 6 ms - max. 1.0 1.0 3.0 3.0 11ms 1⁄2 sine G - max. 100 100 50 50 50-2000 Hz G - max. 30 30 30 30 Shock 7 Vibration 7 Notes: 1. Contact rating - Product of the switching voltage and current should never exceed the wattage rating. Contact Littelfuse for additional load/life information. 2. When switching inductive and/or capacitive loads, the effects of transient voltages and/or currents should be considered. Refer to Application Notes AN108A and AN107 for details. 3. Breakdown Voltage - per MIL-STD-202, Method 301. 4. Electrical Load Life Expectancy - Contact Littelfuse with voltage, current values along with type of load. 5. This resistance value is for 11.81mm wire length. Resistance changes when wire lengthens. 6. Operate (including bounce)/Release Time - per EIA/NARM RS-421-A, diode suppressed coil (Coil II). 7. Shock and Vibration - per EIA/NARM RS-421-A and MIL-STD-202. 8. For custom modifications to the wire length or size, or adding a special connector, please contact Littelfuse. Sensitivity Options (Using 57070 Actuator) Select Option S T U V Activate Distance–D Activate Distance–D Activate Distance–D Pull-In Pull-In Pull-In Pull-In mm (inch) mm (inch) mm (inch) AT Range AT Range AT Range AT Range Average Average Average Switch Type Activate Distance–D mm (inch) Average 1 Normally Open 12-18 8.4 (.330) 17-23 6.6 (.260) 22-28 5.1 (.200) 27-33 4.0 (.157) 2 High Voltage -- -- 17-23 6.6 (.260) 22-28 5.1 (.200) 27-33 4.0 (.157) 3 Change Over 15-20 6.5 (.255) 20-25 4.9 (.193) 25-30 3.7 (.146) -- -- 15-20 6.5 (.255) 20-25 4.9 (.193) 25-30 3.7 (.146) -- -- 4 Normally Closed Note: 1. Pull-In AT Range: These AT values are the bare reed switch AT before modification. 2. The activation distance is average value on the final sensor assembly. Schematics Switch Type Black Sensor Actuator Black Black Blue Red Black D © 2017 Littelfuse Revised: 12/18/17 Specifications are subject to change without notice. Black 1 and 2 3 4 littelfuse.com Reed Sensors Firecracker > 59070 59070 M8 Plastic Threaded Barrel Sensor + 57070 Actuator Part Numbering System Cable Length Specification Select Option Cable Length mm (inch) 02 300 (11.81) 59070 - X - X - XX - X Sensor: Cable Type: 24 AWG 7/32 PVC 105°C UL1430/UL1569 Series Switch Type 1, 2, 3, or 4 Termination Specification Termination Options Select Option Sensitivity S, T, U, or V Description (Two-wire versions illustrated) A Tinned leads (6.4±0.76)mm F Untinned leads (6.4±0.76)mm E JST type XHP 2.5mm pitch Cable Length 02 Termination A, F, or E Actuator: 57070 - 000 Series Standard Actuator 000 Note: The 57070 Actuator is sold separately. Packaging Packaging Option Packaging Specification Bulk Bulk Quantity 500 Quantity & Packaging Code N/A Taping Width N/A Disclaimer Notice - Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability of and test each product selected for their own applications. Littelfuse products are not designed for, and may not be used in, all applications. Read complete Disclaimer Notice at www.littelfuse.com/disclaimier-electronics. © 2017 Littelfuse Revised: 12/18/17 Specifications are subject to change without notice. littelfuse.com
