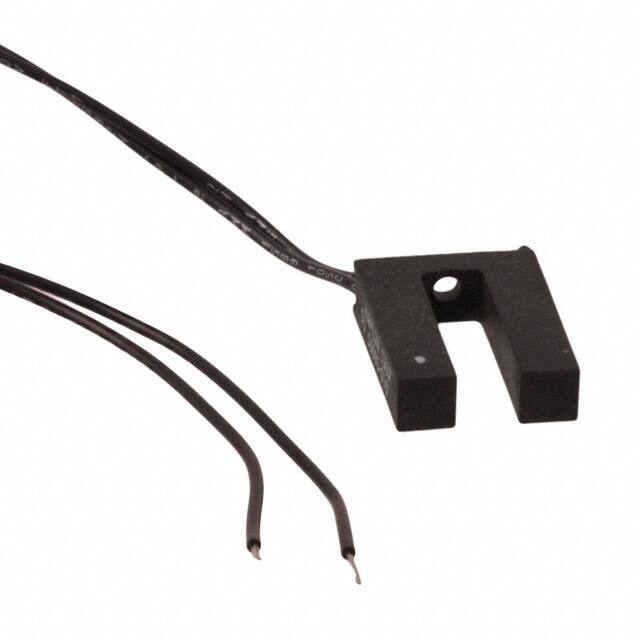

59085 Sensor
59085 Vane Sensor Features and Benefits
F eatures
Benefits
Applications
• Sensor and magnet contained
• Quick and relaible single screw
in single housing
• Sensor operates when ferrous
vane passes through slot
• Normally open,normally
closed or change over options
• Flying leads
mounting with location feature
• No standby power
requirement
• Hermetically sealed,
magnetically operated contacts
continue to operate long after
optical and other technologies
fail due to contamination
•
•
•
•
•
Position and limit sensing
Security system switch
Linear actuators
Industrial process control
Shaft rotation sensing
DIMENSIONS
Recommended Activating Positions:
Sensors
Actuator
Must
Actuate
.100 (2,54)
Sensor
Must
Release
.250 (6,35)
Note 1
Electrical Specifications and Operating Characteristics
Contact Type
59085-040
59085-030
59085-010
F orm B
Form C
Form A
SPST-NC
SPDT-CO
Standar d
Contact Rating
Standar d
SPST-NO
Standar d
Watt - max.
10
5
5
Switching
Vdc - max.
200
175
175
Breakdown
Vdc - min.
250
200
200
A - max.
0.5
0.25
0.25
Carry
A - max.
1.2
1.5
1.5
Contact,Initial
Ω - max.
0.2
0.2
0.2
Insulation
Ω - min.
1010
109
109
Capacitance
Contact
p F - typ.
0.3
0.3
0.3
Temperature
Operating
°C
-40 to + 105
-40 to + 105
-40 to + 105
Storage
°C
-65 to + 105
-65 to + 105
-65 to + 105
Operate
ms - typ.
1.0
1.0
1.0
Release
ms - typ.
1.0
1.0
1.0
Shock
11ms 1⁄2 sine
G - max.
100
50
50
Vibration
50-2000 Hz
G - max.
30
330
30
Voltage
Current
Switching
Resistance
Time
Notes:
1. 59085 contains both sensor and magnet.Activation is obtained by inserting an annealed ferrous vane between them.Operate and release positions depend on size and
thickness of the vane .
2.Flying Leads are 24 AWG 7/32 PVC, 105 deg. C.,UL 1569.Leads are stripped
.250 (6,35),untinned.
3. Underwriters Laboratories recognition. For details on electrical specifications,contact BREEDElectronics
